Introduction
Thank you for purchasing Sonance Visual Performance ®
Single-Stereo Technology®(SST) or surround (SUR) speakers.
When properly installed your new speakers will give you years
of entertainment pleasure.
Box Contents
I
I
I
IIt
t
t
tte
e
e
eem
m
m
mm Quantity (SST)
Quantity (SST)
Quantity (SST)
Quantity (SST)Quantity (SST) Quantity (SUR)
Quantity (SUR)
Quantity (SUR)
Quantity (SUR)Quantity (SUR)
Visual Performance Speaker 1 2
Paintable Grille 1 2
Plastic Paint Plug 1 2
Mounting Cutout Template 1 1
Speaker Placement
SST Models
Because a single SST speaker reproduces both stereo channels
from a single location, it will deliver outstanding performance
from a wide variety of mounting locations where a pair of stereo
speakers would be impractical, including hallways, bathrooms
and closets.

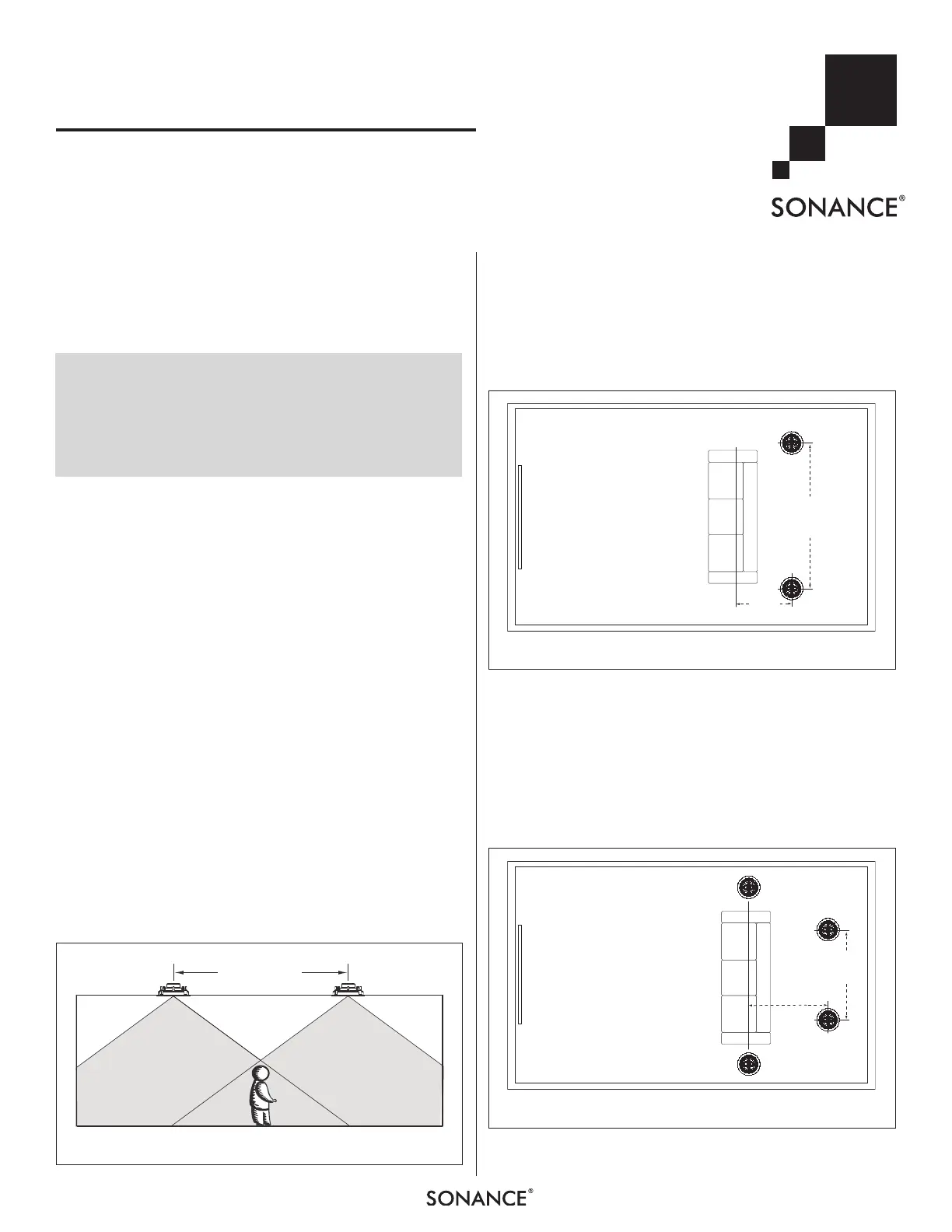

The table below shows how far apart SST speakers can be
spaced in distributed audio applications while still providing
good coverage for standing and seated listeners (see
Figure 1
).
Ceiling Height
Ceiling Height
Ceiling Height
Ceiling HeightCeiling Height S
S
S
SSpacing (Standing)
pacing (Standing)
pacing (Standing)
pacing (Standing)pacing (Standing) Spacing (Seated)
Spacing (Seated)
Spacing (Seated)
Spacing (Seated)Spacing (Seated)
9-Foot Ceiling 5’7” (1.7m) 9’5” (2.9m)
10-Foot Ceiling 9’7” (3.0m) 13’5” (4.1m)
12-Foot Ceiling 13’7” (4.2m) 17’5” (5.3m)
14-Foot Ceiling 17.7’ (5.4m) 21’5” (6.6m)
SUR Models:
5.1-Channel Home Theater System
Mount the left and right surround speakers on the ceiling 2 – 6
feet (0.6m – 1.8m) behind the listening position. The speakers
should be 6 – 10 feet (1.8m – 3m) apart. Orient the speakers so
the tweeters face the front and rear walls of the room. Use
Figure
2
as a guide.
SUR Models:
7.1-Channel Home Theater System
Mount the left and right surround speakers directly to the sides of
the listening position, 6 – 10 feet (1.8m – 3m) apart. Mount the
surround back speakers 2 – 6 feet (0.6m – 1.8m) behind the
listening position. The surround back speakers should be closer
together than the left and right surround speakers, 3 – 6 feet
(0.9m – 1.8m) apart. Use
Figure 3
as a guide.
TV
3' – 6'
(0.9m – 1.8m)
apart
2' – 6'
(0.6m – 1.8m)
Surround
Back
Speaker
Surround
Back
Speaker
Right Surround
Speaker
Left Surround
Speaker
F P 7.1-C SIGURE 3: SUR SPEAKER LACEMENT IN A HANNEL YSTEM
I N S T R U C T I O N M A N U A L
V I S U A L P E R F O R M A N C E ® S E R I E S
S S T A N D S U R S P E A K E R S
TV
6' – 10'
(1.8m – 3m)
apart
2' – 6'
(0.6m – 1.8m)
Right Surround
Speaker
Left Surround
Speaker
F P 5.1-C SIGURE 2: SUR SPEAKER LACEMENT IN A HANNEL YSTEM
C
OVERAGE
A
REA
C
OVERAGE
A
REA
S
PEAKER
S
PACING
F A S SIGURE 1: DISTRIBUTED UDIO PEAKER PACING
S W :AFETY ARNING
THESE SPEAKERS HAVE AST OUNTF M ® TABS THAT PREVENT THE
SPEAKER FROM FALLING OUT OF THE MOUNTING HOLE DURING T HE
INSTALLAT ION PROCESS.
T F MHE EDGES OF THE AST OUNT TABS ARE VERY SHARP.
U SE CAUTION WHEN HANDLING TH E SPEAKER.
2
SONANCE VISUAL PERFORMANCE®SST & SUR
Before Installation: Retrofit
1. Determine the location for the speaker (see
Speaker
Placement
, on page 1).
2. Perform an obstruction survey to be certain that there are no
studs, conduit, pipes, heating ducts, pocket doors or air returns
in the wall or ceiling cavity that will interfere with the speaker.
3. Mounting space require ments:
Mounting space requi rements:
Mounting space requi rements:
Mounting space requi rements:Mounting space requi rements:
• Larg e round SST & SU R:
Larg e rou nd SST & SU R:
Larg e rou nd SST & SU R:
Larg e rou nd SST & SU R:Larg e rou nd SST & SU R: 10 1⁄8" (257mm) diameter
cut-out; 5 7⁄8" (149mm) depth within the mounting cavity.
• Large square SST :
Large squa re SST:
Large squa re SST:
Large squa re SST:Large squa re SST: 10¼" x 10¼" (260mm x 260mm)
cut-out; 5 7⁄8" (149mm) depth within the mounting cavity.
• Medium round SST & SUR:
Medium round SST & SUR:
Medium round SST & SUR:
Medium round SST & SUR:Medium round SST & SUR: 8¼" (210mm) diameter
cut-out; 4¾" (121mm) depth within the mountinig cavity.
• Medium square SST :
Med ium square SST :
Med ium square SST :
Med ium square SST :Medi um square SST: 8¼" x 8¼" (210mm x 210mm)
cut-out; 4¾" (121mm) depth within the mounting cavity.
• Medium rectangle SST:
Medium rectangle SST:
Medium rectangle SST:
Medium rectangle SST: Medium rectangle SST: 6 15⁄16" x 10¾" (176mm x 273mm)
cut-out; 3 9⁄16" (91mm) depth within the mounting cavity.
• Medium T hinLin e round SST :
Med ium T hinLine round SST :
Med ium T hinLine round SST :
Med ium T hinLine round SST :Med ium T hinLine round SST : 8¼" (210mm) diameter
cut-out; 3 1⁄
32 " (77mm) depth within the mounting cavity.
• Sm a ll r oun d SST :
Sm a ll r ou n d SST :
Sm a ll r ou n d SST :
Sm a ll r ou n d SST :Sm a ll r ou n d SST : 5 7⁄8" (149mm) diameter cut-out;
3½" (89mm) depth within the mounting cavity.
• 5
Small square SST :
Small square SST :
Small square SST :
Small square SST :Small square SST : 5⁄8" x 5 5⁄8" (143mm x 143mm)
cut-out; 3 5⁄8" (92mm) depth within the mounting cavity.
4. Position the included cut-out template where the speaker is to
be located and pencil an outline on the wall or ceiling. If you
are unsure about obstructions, drill a small hole in the center
of the outline and insert a coat hanger wire into the hole to
feel-around for possible obstructions.
5. Cut the mounting hole using a keyhole or drywall saw, and
run the speaker wires from the mounting hole to the amplifier
location.
NOTE : CONSULT LOCAL BUILDING CODES BEFOR E RUNNING
SPEAKER WIRES THR OUGH CEILINGS.
Installation
Visual Performance SST SUR speakers feature exclusiveAND
FastMount tabs and an integral Roto-Lock®mounting system for
quick mounting directly into existing walls and ceilings.
WARNING: The edges of FastMount tabs are very
sharp. Use caution when handling the speaker.
1. Remove the paint plug from the speaker.
2. Run speaker wire from each speaker to the amplifier location.
3. Strip ¼” – ½” (6mm – 12mm) of insulation from each speak-
er lead. Twist the strands or tin the exposed wire with solder
to ensure that there are no stray strands. (Stray strands that
touch each other can cause a short-circuit that can damage
the amplifier.)
4. The speaker’s connector posts are spring-loaded. Push the top
of each connector post down to open the connector and insert
the exposed wires into the holes in the posts.
• The speaker’s positive post is labeled with a red dot; the neg-
ative post is labeled with a black dot. Double-check that you
connected amplifier “+” to speaker “+” and amplifier “–” to
speaker “–”.
5. Make sure all the Roto-
Lock clamps are in the
full clockwise position
so that they are tucked
within the mounting
hole’s border. Insert the
speaker into the hole in
the wall or ceiling
(
Figure 4
). The Roto-
Lock system can accom-
modate a maximum
wall or ceiling material
thickness of 1¼”
(32mm).
The FastMount tabs
will prevent the speak-
er from falling out of
the mounting hole,
allowing the installer
to let go of the speaker
to pick-up tools or
other items (
Figure 5
).
N FOTE: THE AST OUNTM
TABS ARE DESIGNED FOR
ONE TIME USE ONLY- .
IF THE SPEAKER IS
REMOVED FROM THE
MOUNTING HOLE THE
FAST OUNT TABS WILLM
DISCONNECT AND
REMAIN INSIDE THE WALL
OR CEILING.
6. Tighten the four screws on the front of the speaker baffle
(
Figure 6
). The Roto-Lock clamps will automatically rotate into
position and begin clamping the speaker. When you notice resist-
ance on the screws the speaker has been clamped successfully.
IMPORTANT: Always use low-torque settings;
NEVER over-tighten.
Roto-Lock Clamps
(retracted)
F S IIGURE 4: INSERT PEAKER NTO
M HOUNTING OLE
Roto-Lock
Screws
Roto-Lock
Screws
F R -LIGURE 6: TIGHTENING THE OTO OCK CREWSS
FastMount Tabs
FIGURE 5: FAST OUNTM TABS
3
SONANCE VISUAL PERFORMANCE®SST & SUR
N OTE OTO: ADJUSTING THE TENSION OF THE R -LOCK CLAMPS
SO THAT THE SPEAKER FRAME IS FLAT WILL HELP ENSURE THAT THE
GR ILLE CONTACTS THE WALL ALL THE WAY AROU ND THE SPEAKER
FOR A PROPER FIT.
7. The new micro-trim grille is held in place by several small,
powerful magnets on the speaker frame. Place the grille
against the speaker and the magnets will hold it firmly in
place. When properly installed, the grille trim should make
contact with the wall all the way around the speaker.
Painting The Speakers and Grilles
Please refer to the included
Painting Instructions
sheet.
Speaker Adjustments
Pivoting Woofer
Some SST and SUR models have a pivoting woofer assembly. This
allows you to direct sound toward or away from the listening
area, depending on how the speakers are being used:
• For SST models, pivoting the woofer towards the listening
position will maximize the speaker’s clarity and definition.
• For SUR models, you can create a more diffuse, spacious
surround effect by aiming the woofers towards a wall or
window, away from the listeners.
N POTE: WHE N IVOTING THE W O O F E R S IN MODE LSUR
SPEAKERS MAKE SURE THAT THE TWEETERS REMAIN OR IENTED,
TOWARDS THE FRONT AND REAR WALLS FOR SIDE SURROUND
SPEAKERS AND TOWARDS THE SID E WALLS FOR SUR, ROUND BACK
SPEAKERS.
To pivot the woofer,
apply pressure on the
outer edge of the
tweeter support brack-
et, as shown in
Figure
7
. Do not touch or
apply pressure to the
woofer cone.
F 7:IGURE
P IVOTING THE OOFERW

Produktspecifikationer

Varumärke: Sonance
Kategori: högtalare
Modell: Visual Performance VP65 SST

Behöver du hjälp?

Om du behöver hjälp med Sonance Visual Performance VP65 SST ställ en fråga nedan och andra användare kommer att svara dig


högtalare Sonance Manualer

Sonance

Sonance Visual Performance VP65 SST Bruksanvisning

16 Oktober 2024
Sonance

Sonance Landscape LS6T SAT Bruksanvisning

7 Oktober 2024
Sonance

Sonance Visual Performance VP87 Bruksanvisning

6 Oktober 2024
Sonance

Sonance Mariner MX66 Bruksanvisning

26 September 2024
Sonance

Sonance MAG06V3 Bruksanvisning

24 September 2024
Sonance

Sonance Patio SR 2-125 Bruksanvisning

25 Augusti 2024
Sonance

Sonance Mariner 64 Bruksanvisning

17 Augusti 2024
Sonance

Sonance Professional PS-S83T Bruksanvisning

16 Augusti 2024
Sonance

Sonance Mariner 64 SST Bruksanvisning

15 Augusti 2024
Sonance

Sonance Reference R2SUR Bruksanvisning

31 Juli 2024

högtalare Manualer

Nyaste högtalare Manualer

Continental Edison

Continental Edison CELED53HP20V2B4 Bruksanvisning

27 Oktober 2024
Canton

Canton Vento 830.2 Bruksanvisning

27 Oktober 2024
Jamo

Jamo S7-25C Bruksanvisning

27 Oktober 2024
Bowers Wilkins

Bowers Wilkins 707 S2 Bruksanvisning

27 Oktober 2024
Monitor Audio

Monitor Audio Silver C150 Bruksanvisning

26 Oktober 2024
FBT

FBT MITUS 210M Bruksanvisning

26 Oktober 2024
CyberData Systems

CyberData Systems SIP 011398 Bruksanvisning

26 Oktober 2024
Lamax

Lamax PartyGo1 Play Bruksanvisning

26 Oktober 2024
IKEA

IKEA SYMFONISK 405.847.50 Bruksanvisning

26 Oktober 2024
IKEA

IKEA SYMFONISK 804.923.34 Bruksanvisning

26 Oktober 2024
