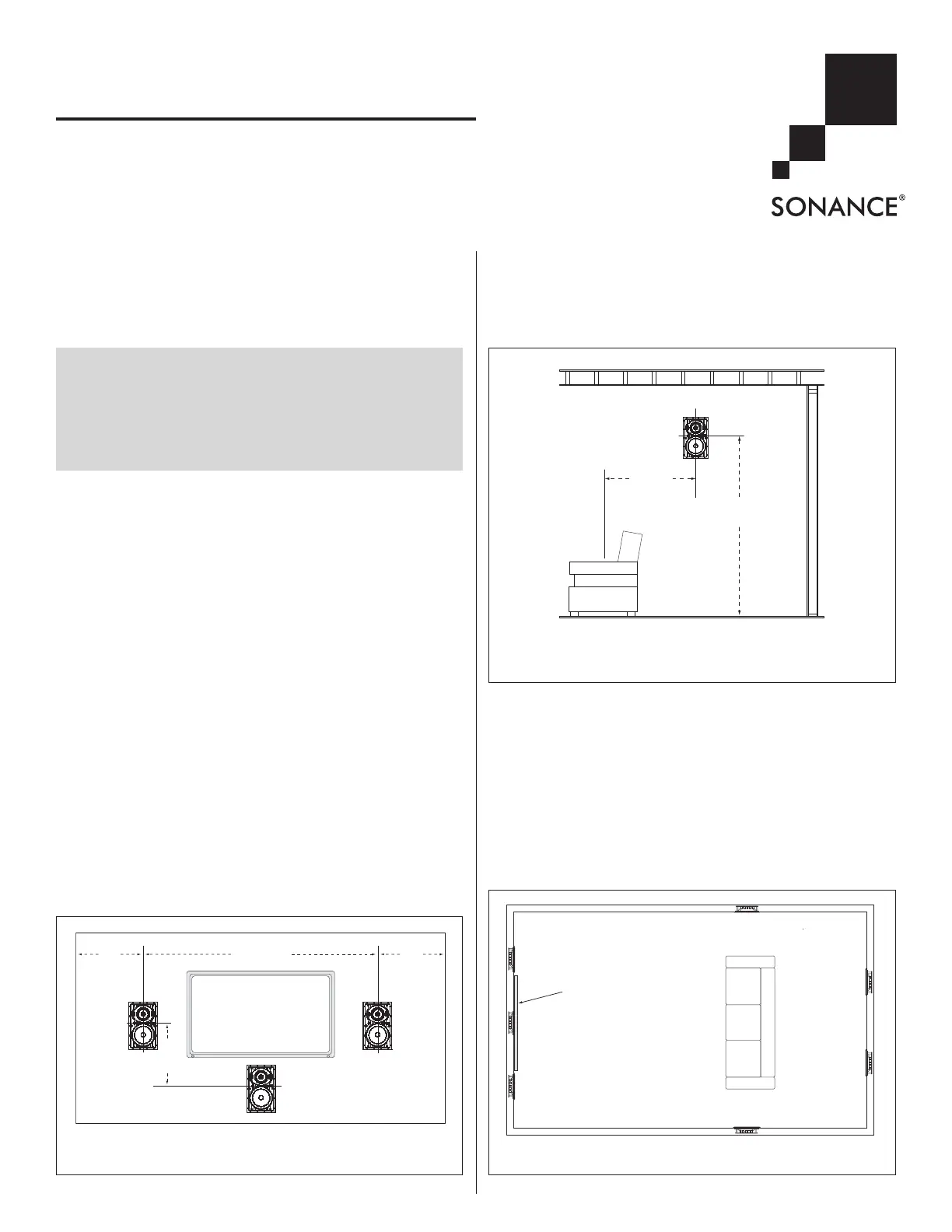

Sida 1/4
Introduction
Thank you for purchasing Sonance Visual Performance®
Series Large rectangle speakers. When properly installed your
new speakers will give you years of entertainment pleasure.
Box Contents
Each Sonance Visual Performance Series Large rectangle speaker
box contains (2) Visual Performance Series Large rectangle
speakers, (2) paint plugs (installed on the fronts of the speakers),
(2) paintable grilles and (1) mounting cut-out template.
Speaker Placement
Home Theater Speaker Placement
Left, Center & Right Speakers
• Place the left & right speakers on either side of the video
screen, 6 – 10 feet (1.8m – 3m) apart and 3 – 4 feet (0.9m –
1.2m) from the floor.
• If possible, locate the center speaker at the same height as the
left & right channel speakers.
• If you must place the center speaker above or below a video
screen, place it no more than 2 feet (0.6m) above or below the
center of the left and right speakers. This will maintain consis-
tent tonality between all three front channel speakers.
• The main listening position should be 8 – 12 feet (2.4m –
3.7m) away from the speakers.
Use
Figure 1
as a guide.
Surround Speakers (5.1-Channel System)
Locate the surround channel speakers on the side walls 2 – 6 feet
(0.6m – 1.8m) behind the listening position, 5 – 7 feet
(1.5m – 2.1m) from the floor.
Use
Figure 2
as a guide.
Surround Speakers (7.1-Channel System)
• LEFT & R : Place the left and right IGHT SURROUND PEAKERSS
surround speakers directly to the sides of the listening position,
5 – 7 feet (1.5m – 2.1m) from the floor.
• S URROUND PEAKERSBACK S : Place the surround back speakers in
the rear wall, 3 – 6 feet (0.9m – 1.8m) apart and at 5 – 7 feet
(1.5m – 2.1m) from the floor.
Use
Figure 3
as a guide.
I N S T A L L A T I O N M A N U A L
V I S U A L P E R F O R M A N C E ® S E R I E S
L A R G E R E C TA N G L E S P E A K E R S
S W :AFETY ARNING
THESE SPEAKERS HAVE AST OUNTF M ® TABS T HAT PREVENT T HE
SPEAKER FROM FALLING OUT OF THE MOUNTING HOLE DURING THE
INSTALLATION PROCESS.
T F MHE EDGES OF THE AST OUNT TABS ARE VERY S HARP.
U SE CAUTION WHEN HANDLING THE SP EAKER.
2'
(0.6m)
max.
18"
(0.5m)
From Side
Wall
6' – 10'
(1.8m – 3m)
Apart 18"
(0.5m)
From Side
Wall
FIGURE 1: LEFT, C & RENTER IGHT HANNELC
H TOME HEATER PEAKER LACEMENTS P
5' – 7'
(1.5m – 2.1m)
2' – 6'
(0.6m – 1.8m)
F H T S SIGURE 2: 5.1-CHANNEL OME HEATER URROUND PEAKER
PLACEMENT
Right Surround
Speaker
Left Surround
Speaker
Left
Front
Speaker
Right
Front
Speaker
Video
Screen
Center
Speaker
Left
Surround Back
Speaker
Right
Surround Back
Speaker
F H T S PIGURE 3: 7.1-CHANNEL OME HEATER PEAKER LACEMENT
2
SONANCE VISUAL PERFORMANCE®LARGE RECTANGLE
Stereo (2-Channel) Placement
• Place the left and right speakers 6 – 10 feet (1.8m – 3m) apart,
with the main listening position as close to midway between
the speakers as possible.
• The speakers should be at least 2 feet (0.6m) away from the
side walls.
• The main listening position should be 4 – 10 feet (1.2m – 3m)
away from the speakers.
• In most cases pivoting the midrange/tweeter of each speaker
directly towards the main listening position will help maximize
the stereo soundstage.
Use the left and right speaker placement in
Figure 1
, on page 1,
as a guide.
Before Installation: Retrofit
1. Determine the location for the speaker (see
Speaker
Placement,
on page 1).
2. Perform an obstruction survey to be certain that there are no
studs, conduit, pipes, heating ducts, pocket doors or air returns
in the wall cavity that will interfere with the speaker.
3. Mounting space requirements:
Mounting space requirements:
Mounting space requirements:
Mounting space requirements: Mounting space requirements: 8½” (216mm) wide by 14½”
(368mm) high cut-out; 37
/8” (98mm) mounting depth.
4. Position the included cut-out template where the speaker is to
be located and pencil an outline on the wall. If you are unsure
about obstructions, drill a small hole in the center of the
outline and insert a coat hanger wire into the hole to feel-
around for possible obstructions.
5. Cut the mounting hole using a keyhole or drywall saw, and
run the speaker wires from the mounting hole to the amplifier
location.
NOTE: CONSULT LOCAL BUILDING CODES BEFORE RUNNING
SPEAKER WIRES THROUGH WALLS.
Before Installation: IR Plug
Sonance Visual Performance Series
Large rectangle speakers have a plug
for installing an IR receiver into the
speaker’s front baffle (see
Figure 4
).
In systems where the electronics are
placed in an inconvenient location
this allows remote controls to be
aimed at the front of the room instead
of at the electronics.
The IR plug is in the form of a bolt
and retaining nut. To remove the
plug, unscrew the nut (located behind
the baffle, see
Figure 5
) and remove
the bolt. The hole is designed to
receive a Sonance OptiLinQ®SMR1
or SMR1P Surface-Mount IR receiver.
Insert the IR receiver through the
front of the speaker baffle and use
the nut included with the receiver to
secure it to the baffle.
Installation
Sonance Visual Performance Series speakers feature exclusive
FastMount tabs and an integral Roto-Lock®mounting system for
quick mounting directly into existing walls.
WA R N I N G : T H E E D G E S OF T H E FA S T M O U N T TA B S
ARE VERY SHARP. USE CAUTION WHEN HANDLING
T H E S P E A K E R .
1. Remove the paint plug from the speaker.
2. Strip ¼” – ½” (6mm – 12mm) of insulation from each speak-
er lead. Twist the strands or tin the exposed wire with solder
to ensure that there are no stray strands. (Stray strands that
touch each other can cause a short-circuit that can damage
the amplifier.)
3. The speaker’s connector posts are spring-loaded. Push the top
of each connector post down to open the connector and insert
the exposed wires into
the holes in the posts.
The speaker’s positive
post is labeled with a
red dot; the negative
post is labeled with a
black dot. Double-check
that you connected
amplifier “+” to speaker
“+” and amplifier “–” to
speaker “–”.
4. Make sure all the Roto-Lock
clamps are retracted so
that they are tucked
within the mounting hole’s
border. Insert the speak-
er into the hole in the
wall (
Figure 6
). The
Roto-Lock system can
accommodate a maxi-
mum wall material
thickness of 1¼”
(32mm).
The FastMount tabs will
prevent the speaker from
falling out of the mount-
ing hole, allowing you to
let go of the speaker to
pick-up tools or other
items (
Figure 7
).
N FOTE: THE ASTMOUNT TABS
ARE DESIGNED FOR ONE -
TIME USE ONLY. IF THE
SPEAKER IS REMOVED FROM
THE MOUNTING HOLE THE
F MA ST O U N T TA B S W I LL
DISCONNECT AND REMAIN
INSIDE THE WALL.
Roto-Lock Clamps
(retracted)
FIGURE 6: INSERTING THE PEAKERS
INTO THE OUNTING OLEM H
FastMount Tabs
Roto-Lock Clamps
(retracted)
FIGURE 7: FAST OUNTM TABS AND
R -L COTO OCK LAMPS
FIGURE 4: IR PLUG
FIGURE 5: IR PLUG
RETAINING UTN
IR Plug
Retaining Nut
3
SONANCE VISUAL PERFORMANCE®LARGE RECTANGLE
5. Tighten the four screws
on the front of the speaker
baffle. The Roto-Lock
clamps will automatically
rotate into position and
begin clamping the
speaker (
Figure 8
).
• When you notice resist-
ance on the screws the
speaker has been
clamped successfully.
IMPORTANT: Always
IMPORTANT: Always
IMPORTANT: Always
IMPORTANT: AlwaysIMPORTANT: Always
use low-torque set-
use low-torque set-
use low-torque set-
use low-torque set-use low-torque set-
tings; NEVER over-
tings; NEVER over-
tings; NEVER over-
tings; NEVER over-tings; NEVER over-
tighten.
tighten.
tighten.
tighten.tighten.
NOTE: ADJU ST IN G THE
TENSION OF THE ROTO-LOCK CLAMPS SO THAT THE SPEAKER
FRAME IS FLAT WILL HELP ENSURE THAT THE GRILLE CONTACTS THE
WALL ALL THE WAY AROUND THE SPEAKER FOR A PROPER FIT.
6. The new micro-trim grille is held in place by several small,
powerful magnets on the speaker frame. Place the grille
against the speaker and the magnets will hold it firmly in
place. When properly installed, the grille trim should make
contact with the wall all the way around the speaker.
Painting the Grilles
Please refer to the accompanying
Painting Instructions
sheet for
painting instructions.
Speaker Adjustments
Pivoting Midrange/Tweeter Assembly
All Visual Performance Series Large rectangle speakers have a
pivoting midrange/tweeter assembly. If you’re using the speakers
in stereo or as the front left/center/right speakers in a home
theater, pivot the drivers directly towards the listening area.
If you’re using the speakers as surround channel speakers in a
home theater, pivot the drivers towards a wall or window, away
from the listeners.
To pivot the
m i d r a n g e /t w e e t e r
assembly, apply light
pressure to the ring
around the outside
edge of the midrange
cone, as shown in
Figure 9
. Take care
not to touch or apply
pressure to the
midrange cone itself.
Tweeter and Midrange Level Switches
The VP89 and VP87 have midrange and tweeter level switches
(see
Figure 10
) that boost or cut those drivers’ levels by 3dB.
This lets you tailor the speaker’s performance to better match the
room’s acoustics or the listener’s preferences.
FIGURE 9: PIVOTING THE
M /T AIDRANGE WEETER SSEMBLY
Roto-Lock
Screws
FIGURE 8: TIGHTENING THE
R -L SOTO OCK CREWS
Midrange Level
Switch Tweeter Level
Switch
F L SIGURE 10: MIDRANGE & TWEETER EVEL WITCHES

Produktspecifikationer

Varumärke: Sonance
Kategori: högtalare
Modell: Visual Performance VP85

Behöver du hjälp?

Om du behöver hjälp med Sonance Visual Performance VP85 ställ en fråga nedan och andra användare kommer att svara dig


högtalare Sonance Manualer

Sonance

Sonance Visual Performance VP65 SST Bruksanvisning

16 Oktober 2024
Sonance

Sonance Landscape LS6T SAT Bruksanvisning

7 Oktober 2024
Sonance

Sonance Visual Performance VP87 Bruksanvisning

6 Oktober 2024
Sonance

Sonance Mariner MX66 Bruksanvisning

26 September 2024
Sonance

Sonance MAG06V3 Bruksanvisning

24 September 2024
Sonance

Sonance Patio SR 2-125 Bruksanvisning

25 Augusti 2024
Sonance

Sonance Mariner 64 Bruksanvisning

17 Augusti 2024
Sonance

Sonance Professional PS-S83T Bruksanvisning

16 Augusti 2024
Sonance

Sonance Mariner 64 SST Bruksanvisning

15 Augusti 2024
Sonance

Sonance Reference R2SUR Bruksanvisning

31 Juli 2024

högtalare Manualer

Nyaste högtalare Manualer

Continental Edison

Continental Edison CELED53HP20V2B4 Bruksanvisning

27 Oktober 2024
Canton

Canton Vento 830.2 Bruksanvisning

27 Oktober 2024
Jamo

Jamo S7-25C Bruksanvisning

27 Oktober 2024
Bowers Wilkins

Bowers Wilkins 707 S2 Bruksanvisning

27 Oktober 2024
Monitor Audio

Monitor Audio Silver C150 Bruksanvisning

26 Oktober 2024
FBT

FBT MITUS 210M Bruksanvisning

26 Oktober 2024
CyberData Systems

CyberData Systems SIP 011398 Bruksanvisning

26 Oktober 2024
Lamax

Lamax PartyGo1 Play Bruksanvisning

26 Oktober 2024
IKEA

IKEA SYMFONISK 405.847.50 Bruksanvisning

26 Oktober 2024
IKEA

IKEA SYMFONISK 804.923.34 Bruksanvisning

26 Oktober 2024
