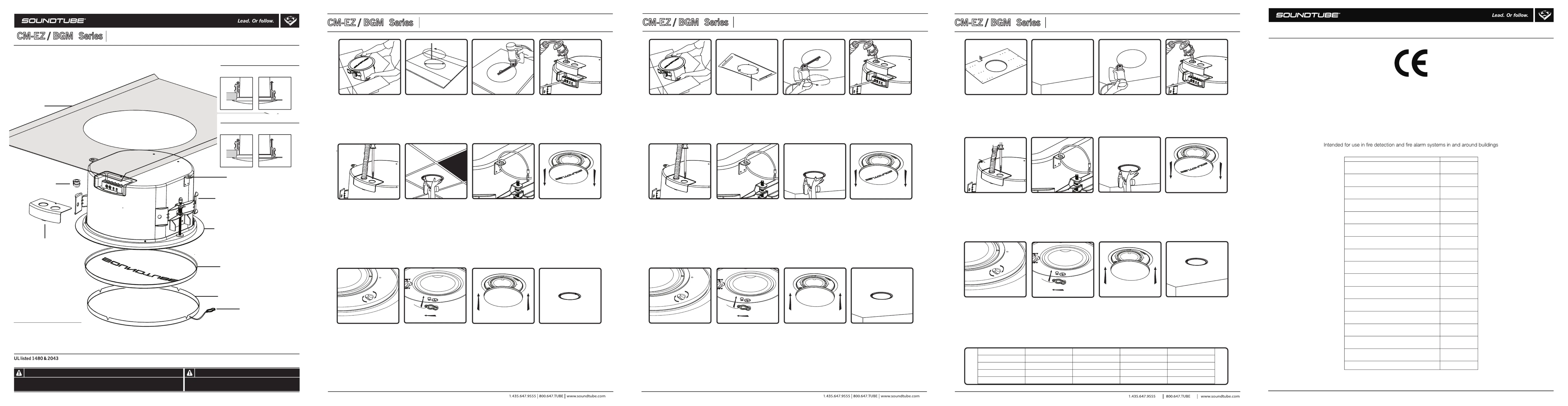

Sida 1/8
Tile bridge
Bafe
Installation aid/paint mask
Grille
Grille safety restraint
Speed Wing™ mounting arms
Box contents
1 Speaker
1 Flexible conduit clamp
1 Cover plate
1 Grille
1 Installation aid/paint mask
Min
0.9 mm (0.035 in)
Max
40.9 mm (1.60 in)
Ceiling thickness tolerances
Min
.00 mm (.00 in)
Max
38.1 mm (1.50 in)
CM42-EZs Ceiling thickness tolerances
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
© 2015 SoundTube Entertainment, Inc. All rights reserved.
Rev 7.12.2019
1.913.663.5600
| | 855.663.5600
www.soundtube.com
Flexible conduit clamp
Install Instructions For:
CM-EZ / BGM SeriesCM- Z / BGM SeriesE
Secondary attachment point
Cover plate
CM42-EZs-II-WH, CM42-EZs-II-BK, CM62-EZ-II-WH, CM62-EZ-II-BK, CM62-EZs-II-WH, CM62-EZs-II-BK, CM82-EZ-II-WH, CM82-EZ-II-BK,
CM82-EZs-II-WH, CM82-EZs-II-BK, CM82-EZ-FS-WH, CM82-EZ-FS-BK, CM82-EZs-FS-WH, CM82-EZs-FS-BK, CM89-EZ-WH, CM89-EZ-BK,
CM52-BGM-WH, CM52-BGM-BK, CM52s-BGM-WH, CM52s-BGM-BK, CM62-BGM-WH, CM62-BGM-BK, CM82-BGM-WH and CM82-BGM-BK
UL listed 1480 & 2043 (CM82-EZ-FS and CM82-EZs-FS are UL1480 UUMW
listed, all other CMEZ and BGM speakers are UL1480 UEAY listed.)
1. Unpack speaker & set
aside grille assembly.
2. Use included tile bridge
to mark cutout in tile.
3. Use Rotozip or other tool
to cut hole.
9. Select the tap position by
adjusting rotary switch
to desired high impedance
value or voice coil direct
mode.
11. Done!10. Press grille into place.
6. Insert speaker into
mounting hole with
installation aid in place.
Screw down both bolts on
the bafe face to actuate
the mounting wings. Firmly
secure both bolts – do not
over-tighten.
7. If required, a sheet-metal
tab located on the rear
panel of the speaker serves
as a secondary point of
attachment (cable not
included).
8. Once all painting and
nish work is completed,
remove the paint mask.
Hole Diameters
CM42-EZs-II
165.1 mm (6.50 in)
All other CMEZ, FS and BGM models
266.7 mm (10.50 in)
5. Tighten screw on terminal
plate, and push conduit
connector into knockout.
4. Run signal wires through
conduit connector, then through
cover plate. Connect to ceramic
terminal strip. Two + and two -
connectors are provided for
daisy chaining.
1.
2.
9. Attach grille safety clip by
placing the large end of the
clip over snap-t post (1),
then sliding clip until small
end snaps into place around
post (2).
Droptile Ceiling Install Instructions
CM-EZ / BGM SeriesCM- Z / BGM SeriesE
2. Use included tile bridge
to mark cutout in sheetrock.
3. Use Rotozip or other tool
to cut hole.
11. Done!
Sheetrock Ceiling Install Instructions
1. Unpack speaker & set
aside grille assembly.
5. Tighten screw on terminal
plate, and push conduit
connector into knockout.
4. Run signal wires through
conduit connector, then through
cover plate. Connect to ceramic
terminal strip. Two + and two -
connectors are provided for
daisy chaining.
9. Select the tap position by
adjusting rotary switch
to desired high impedance
value or voice coil direct
mode.
10. Press grille into place.
8. Once all painting andnish
work is completed, remove
the paint mask.
7. Insert speaker into
mounting hole with
installation aid in place.
Screw down both bolts on
the bafe face to actuate
the mounting wings. Firmly
secure both bolts – do not
over-tighten.
6. If required, a sheet-metal
tab located on the rear
panel of the speaker serves
as a secondary point of
attachment (cable not
included).
Hole Diameters
CM42-EZs-II
165.1 mm (6.50 in)
All other CMEZ, FS and BGM models
266.7 mm (10.50 in)
1.
2.
9. Attach grille safety clip by
placing the large end of the
clip over snap-t post (1),
then sliding clip until small
end snaps into place around
post (2).
CM-EZ / BGM SeriesCM- Z / BGM SeriesE
