Page 4 8"DT Owner’s Manual
940 Columbia Avenue, Riverside CA 92507-4492
(800) 448-0976 Fax (951) 787-8747
www.speakercraft.com
SpeakerCraft
LIT96800(rev2)
®
Should you have any questions regarding this, or any other SpeakerCraft product, please call our toll-free Service Hotline at
1-800-448-0976. We are available to assist you every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST
SpeakerCraft offers a variety of accessories to make your installation of these speakers and other SpeakerCraft products easy, economical,
and professional. Contact your authorized SpeakerCraft Dealer for more information.
SPEAKER SPECIFICATIONS
In our attempt to constantly improve, our products features and specification are subject to change without notice
8.1DT
Two tweeters co-axially mounted
onto a dual voice coil woofer
High Frequency Drivers:
Dual
1
⁄
11
⁄⁄
" Polyamide Dome Tweeters mounted
onto WavePlane
™
Tweeter Baffle
Low Frequency Driver:
8" Polypropylene Cone Woofer with
Dual Voice Coil and Urethane Surround
Impedance:
8
Ω
Efficiency:
91dB
Frequency Response
55Hz - 20kHz
Power Recommendations
5 - 70 watts (undistorted)
Diameter x Depth:
11
15
⁄
55
16
⁄⁄
" x 3
1
⁄
11
⁄⁄
"
Cut-Out Diameter
9
3
⁄
33
⁄⁄
"
8.5DT
Two tweeters co-axially mounted
onto a dual voice coil woofer
Dual 1" Silk Dome Tweeters mounted
onto WavePlane
™
Tweeter Baffle
8" Polypropylene Cone Woofer with
Dual Voice Coil and Rubber Surround
8
Ω
91dB
50Hz - 20kHz
5 - 80 Watts (undistorted)
11
15
⁄
55
16
⁄⁄
" x 3
1
⁄
11
⁄⁄
"
9
3
⁄
33
⁄⁄
"
OWNER’S MANUAL
SpeakerCraft®
SPEAKER PLACEMENT
Before installing your speaker, you should consider the placement carefully, taking into account the
location of electrical, plumbing and other fixtures. Contact your dealer for assistance if you are not sure
of the best location in your particular room environment.
Ceiling Placement:
When placing your speaker into the ceiling, it should ideally be located above
the primary listening area. The DT is intended to be used as a single stereo speaker in small listening
environments, walk-in closets, laundry rooms, bath rooms etc. In a large area, it may be necessary to
place additional speakers throughout the room to get the optimal effect.
MOUNTING SURFACE PREPARATION
New Construction - Unfinished Ceilings
A New Construction Bracket, SpeakerCraft part number BKT90681 (available from your dealer), may be
installed prior to drywall application across joists (up to 24" on-center) where a speaker will be located.
Insulation material should be in place prior to installing drywall. After the hole is cut and the drywall
is installed, the speaker can then be easily installed following the instructions for mounting under
“Finished Ceilings”
below.
””
Finished Ceilings
Prior to the actual installation of the speaker, it will be necessary to run cables to the speaker location.
See your dealer for more infor
mation on cable installation. After the cable has been properly installed,
you are ready to mount the speaker. Following the simple steps listed
below will result in a professional
looking installation
1.
Determine the best area to mount your speaker. This area of the ceiling should be free of obstructions
such as electrical conduit, HVAC ducts, or water lines. This can best be determined by noting the
placement of fixtures and gaining access to an attic or crawl space for further analysis of the location
of such obstacles.
2.
Find the joists nearest the desired speaker mounting location. We highly recommend using a good
stud-finder tool for this procedure.
If you are lining up the speaker to some other object or mold-
ing in the room, make sure you consider the size of the baffle flange which extends beyond the
mounting hole.
3.
Mark the hole. A punch out template for setting the
hole is provided in the box. Position the template in the
desired position and pencil an outline on the ceiling.
4.
Cutting the hole.
CAUTION: This is the most
important part of the entire installation
If you are
not certain whether any obstructions exist behind
the desired mounting area, you should start by
cutting a small hole in the center of your penciled
mounting hole with a drywall saw, cutting at a 45º
angle towards the inside of the hole.

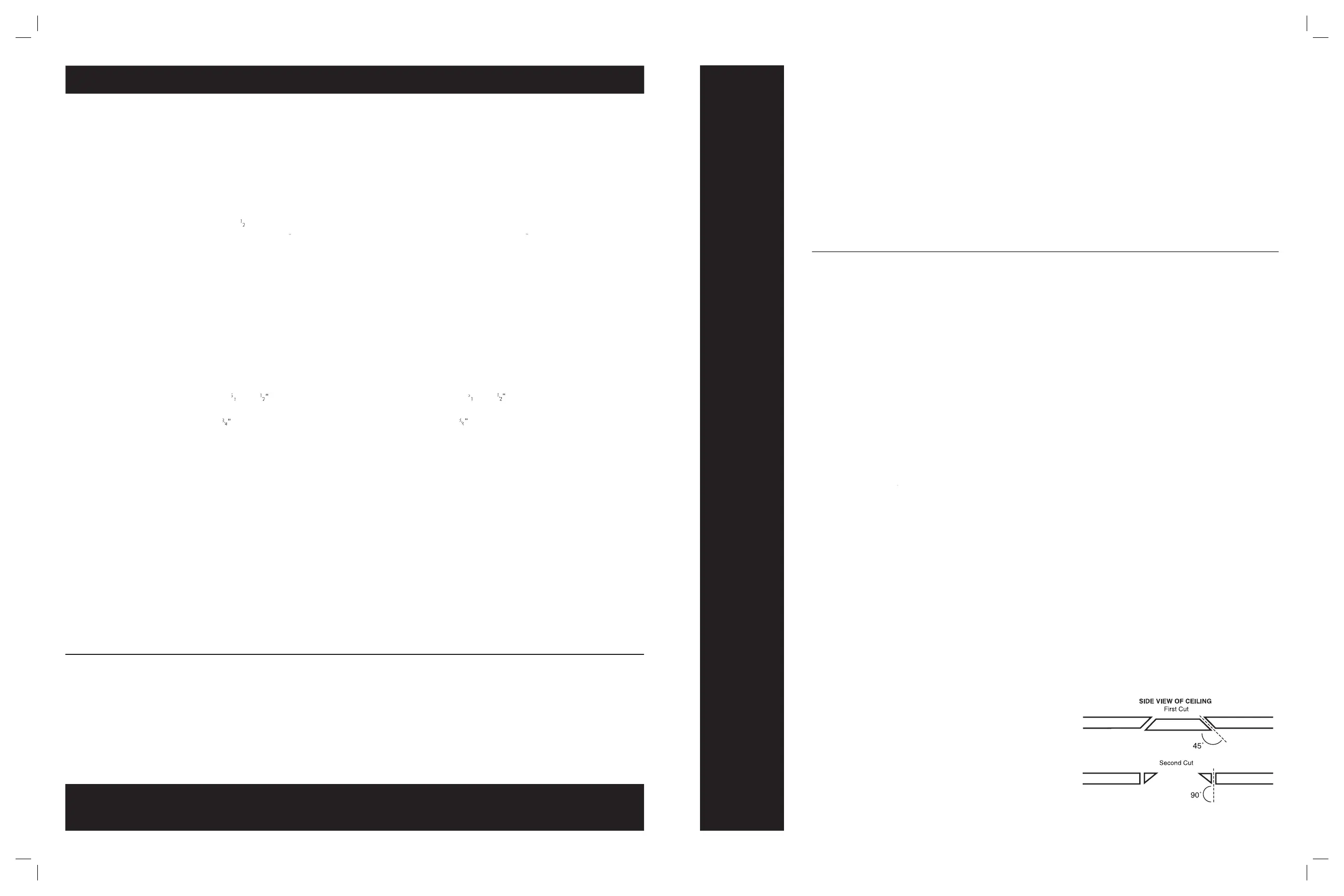

(See Diagram 1)
Diagram 1
8"DT
Single Stereo Speaker
8.1DT / 8.5DT
PRINTER'S INSTRUCTIONS:
INSTR,INSTL,8.XDT • LINEAR P/N: 224416X1 • INK: BLACK • MATERIAL: 70LB GLOSS PAPER • SIZE: 8.500" X 11.000" • SCALE: 1-1 • FOLDING: HALF FOLD
224416X1 • IMAGE 1
8"DT Owner’s Manual Page 3
LIMITED LIFETIME WARRANTY
SpeakerCraft Inc. warrants to the original retail purchaser only that this SpeakerCraft product will be free from defects in materials
and workmanship, provided the speaker was purchased from a SpeakerCraft Authorized Dealer.
Defective products must be shipped, together with proof of purchase, prepaid insured to the SpeakerCraft Authorized Dealer from
whom they were purchased, or to the SpeakerCraft factory at the address listed on this installation instruction manual. Freight col-
lect shipments will be refused. It is preferable to ship this product in the original shipping container to lessen the chance of transit
damage. In any case, the risk or loss or damage in transit is to be borne by the purchaser. If, upon examination at the Factory or
SpeakerCraft Authorized Dealer, it is determined that the unit was defective in materials or workmanship at any time during this
warranty period, SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no addi-
tional charge, except as set forth below. If this model is no longer available and can not be repaired effectively, SpeakerCraft, at its
sole option may replace the unit with a current model of equal or greater value. In some cases where a new model is substituted,
a modification to the mounting surface may be required. If mounting surface modification is required, SpeakerCraft assumes no
responsibility or liability for such modification. All replaced parts and product become the property of SpeakerCraft Inc. Products
replaced or repaired under this warranty will be returned to the original retail purchaser, within a reasonable time, freight prepaid.
This Warranty does not include service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inad-
equate packing or shipping procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, or service,
repair or modification of the product which has not been authorized or approved by SpeakerCraft. This Warranty also excludes
normal cosmetic deterioration caused by environmental conditions. This Warranty will be void if the Serial Number on the product
has been removed, tampered with or defaced.
This Warranty is in lieu of all other expressed warranties. If the product is defective in materials or workmanship as warranted
above, the purchaser’s sole remedy shall be repair or replacement as provided above. In no event will SpeakerCraft be liable
for any incidental or consequential damages arising out of the use or inability to use the product, even if SpeakerCraft Inc. or
a SpeakerCraft Inc. Authorized Dealer has been advised of the possibility of such damages, or for any claim by any other party.
Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not
apply.
All implied warranties on the product are limited to the duration of this expressed Warranty. Some states do not allow limitation
on the length of an implied warranty. I
f the original retail purchaser resides in such a state, this limitation does not apply.
SPECIAL FIRE WALL INSTALLATION
If you plan to mount your speaker into a fire rated ceiling, you should purchase a SpeakerCraft 8" Sound Enclosure # SE1410. This
metal enclosure is designed to be used exclusively with SpeakerCraft speakers, mounts easily between joists. The enclosure comes
with a standard electrical clamp type connector for connection of your speaker cable directly to the speaker. Tightening the two
provided screws will ensure a sturdy “pull proof” connection.
Page 2 Eazy6 Owner’s Manual
Page 2
Eazy6 Owner’s Manual
Page 2 8"DT Owner’s Manual
Cutting the small hole at this angle will make drywall repair much easier, using the piece cut out. Once you have determined
that there aren’t any obstructions in your desired mounting location, start cutting the finished hole at a 90º angle to the
ceiling’s surface.
5.
Add insulation. If the area in the ceiling is not already insulated, add an adequate amount insulation material to loosely cover the
back of the speaker. If the insulation material used is faced with foil or paper, position the foil or paper away from the speaker.
SPEAKER INSTALLATION
The unique integral four foot mounting system incorporated into
your DT speaker allows for a quick installation by following these
easy steps.
1.
Remove the grille. It may be necessary to push one or two
of the mounting screws, and its attached foot, towards the
baffle and against the inside surface of the grille to force the
grille out of its retaining groove.
2.
Attach the speaker cable (observing the proper polarity with
your amplifier, + to + and - to -). Either channel may be
attached to either terminal set, however, be sure that polarity
(+ and -) is correct on each channel or the performance of the
speaker will be seriously affected, as one channel will cancel
out the other.
(See Diagram 2)
3.
Make sure the mounting feet are turned inward to clear the
opening, and insert the speaker into the ceiling. Position
the speaker into the hole.
Note:
The flange of the speaker
is designed to flex and conform to any small imperfections
in the ceiling’s surface. Tighten the four screws on the front
of the baffle only enough to make the flange become snug
against the ceiling. As you tighten the screws, the feet will
automatically flip into an outward position thereby clamping
the drywall between the feet and the flange.
(See Diagram 3)
CAUTION: Over tightening may warp the baffle, crack the
ceiling, cause the flange to distort, and make the grille
difficult to install.
4.
Push the grille firmly into the slot in the speaker baffle.
PAINTING THE SPEAKER
If you plan to paint your speaker, we recommend that it be
done prior to installation. If you plan to paint your speaker
sometime in the future, it is best to remove it by simply reversing
the steps for
“Speaker Installation”
listed above. If it is necessary
””
to paint the speaker while it is still in the ceiling, the paint mask
provided in the carton must be installed in place of the grille
while the flange is being painted with the ceiling. The grille
can also be painted, however, great care should be taken not
to clog the holes as this will greatly reduce the sound quality of
the speaker. SpeakerCraft recommends only light spray painting
using 5 parts thinning agent to 1 part paint. Do not paint the
grille while it is attached to the speaker.
Diagram 3
Diagram 3
Diagram 2
PRINTER'S INSTRUCTIONS:
INSTR,INSTL,8.XDT • LINEAR P/N: 224416X1 • INK: BLACK • MATERIAL: 70LB GLOSS PAPER • SIZE: 8.500" X 11.000" • SCALE: 1-1 • FOLDING: HALF FOLD
224416X1 • IMAGE 2
