Sida 1/2
SPECIFICATIONS:
• Frequency Response: 80Hz ~ 12kHz
• Impedance: Lo-Z: 600 Ohms
Hi-Z: 50K Ohms
• Sensitivity: Lo-Z: -73dB±3dB
Hi-Z: -53dB±3dB
• Capsule Type: Dynamic
• Pattern: Uni-directional
• Housing: Die-cast Zinc
• Connector: 3-Pin Cannon-Type (XLR)
• Dimensions: Gooseneck – 12”
Base – 6.3” (L) x 4.75” (W) x 3.77” (H)
Cord – Expandable to 5’
Warranty:
Speco Technologies offers a 2-year warranty on their microphones. Please
reference the Website for complete details of warranty.
Speco Technologies 200 New Highway Amityville NY 11701● ● ● ●
www.specotech.com
Rev. 04/15/20

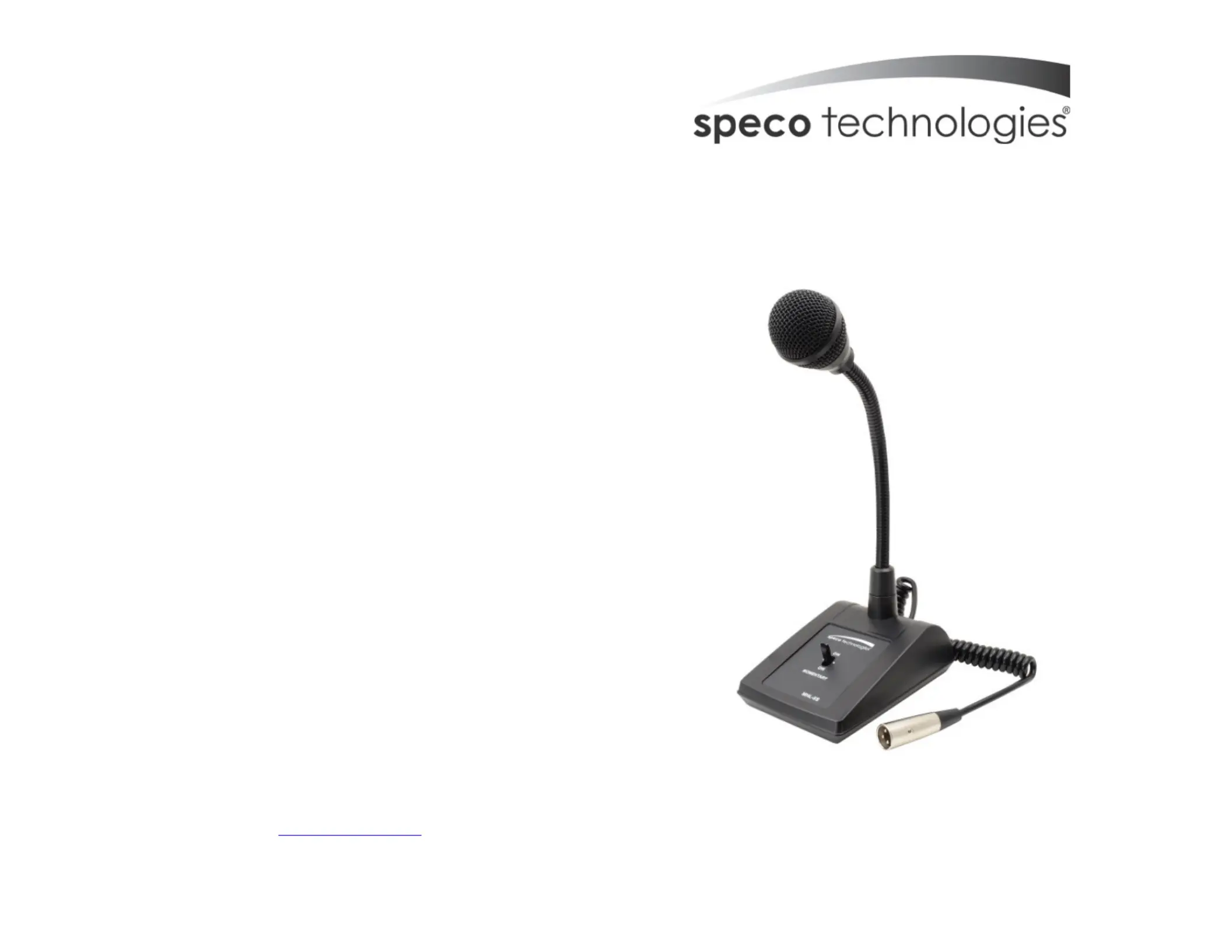

Owner’s Manual for Model:
MHL5S
Dynamic Gooseneck
Desktop Paging Microphone
4
Congratulations on your purchase of Speco
Technologies Desktop Adjustable Dual-Impedance
Microphone.
The continues Speco Technologies’ heritage of more than sixty years of MHL5S
providing the highest quality of performance and reliability for residential and
commercial sound applications
Speco Technologies’ MHL5S was designed with the focus of making the
contractor’s work as easy and time-efficient as possible.
The MHL5S is constructed of durable die-cast Zinc and is ideal for a wide variety of
commercial paging applications. There is an inset impedance selector switch on
the bottom of the unit to ensure compatibility with a wide variety of amplifiers.
The push-to-talk switch fits the needs of every use. Pushing the switch down for a
momentary page, and push it up to lock it in the on position.
The MA Series is the ideal all-purpose, value sound solution covering a wide range
of applications in commercial sound, and, with a furnished 8 Ohm tap selection,
can be kept readily on hand to meet any of your unexpected sound installation
needs.
CONNECTION DIAGRAMS:
Note: Voice-activated priority paging does not require the use of switch connection
(red and black wires). Priority paging uses switch contacts (red and black).
Microphone: Yellow and shield
Priority paging connection: Red and Black
Impedance Selector Switch on bottom of base
2
3
