Creative Video Revolution

V 1 . 0

User Manual

NeoLIVE R2 PLUS

Contents

1. Quick Start 2

1.1 Overview 2

2. Common Operation 3

2.1 Video Operation 3

2.2 Audio Operation 4

3. Menu Functions & Details 5

3.1 Input 5

3.2 Output 6

3.3 Layer 6

3.4 Transitions 8

3.4.3 DIP & FTB 8

3.5 Chroma Key 9

3.6 Media 9

3.7 PTZ Camera 9

3.8 System Setting 10

1. Quick Guide

1.1 Overview

NeoLive R2 Plus is a professional live streaming switcher. It supports 4 x HDMI

multi-resolution inputs and 2 x external audio inputs. The output supports 2 x HDMI PGM

outputs, and transmits the real-time audio and video signals to the computer for live

streaming through the TypeC interface, user can also ﬁll in the RTMP code for network

streaming directly.

When using the TypeC interface, Neolive R2Plus will be recognized by the computer as a

high-deﬁnition web camera, which can adaptively support MJPEG and YUY2 formats (the

default format is MJPEG under USB2.0, while it is YUY2 default under USB3.0, YUY2

format supports better image quality, higher-quality performance and more eﬃcient

decoding performance, YUY2 format is better for use). It has a built-in 5.5-inch LCD

display, which can realize real-time monitoring of input and output and online operation. At

the same time, it has more convenient functions, such as PTZ camera control, scene

preset, chroma /luma key, special transition eﬀects, mixed audio and monitoring and

recording etc. R2Plus can also deal with various live broadcasting needs which is a

professional product in live streaming.

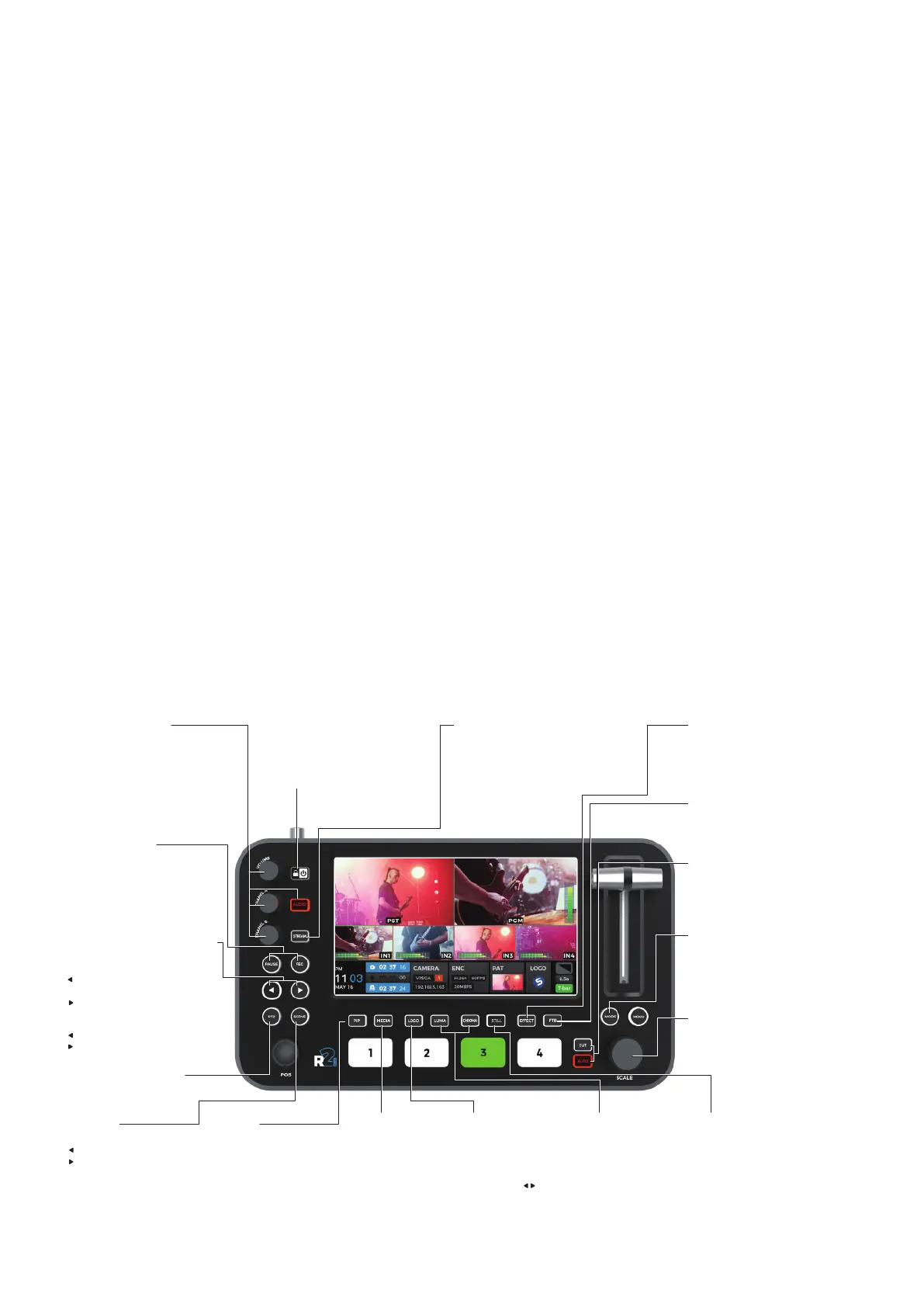

Switch & Lock Button

Press to power on

Short press and return to the main scene

Press and hold for 3s to lock and unlock

Press and hold for 5s to switch oﬀ

REC & Pause

Press the REC button to start

recording for PGM

Press again to stop recording

and generate MP4 ﬁles

Press PAUSE to stop recording

or continue recording

Auxiliary Operation Area

Under PTZ control

It is for logo switching when the logo

button is ﬂashing

+Scale knob is for layer vertical

adjustment

+Scale knob is for layer horizontal

adjustment

After pressing Scene

for Save page the scene,

for Load page for scene

It is for zoom in or out

SCENE

Press to activate the scene

for Save page the scene,

for Load page for scene

Select the number button to save

and load the scene

PIP

Press to enable PIP

Press again to select the PIP

sub-layer

When the button is ﬂashing,

and the sub-layer can be

edited and closed

MEDIA

Load picture

Select image as

signal source when

editing layers

LOGO

Press to display the logo

Press again to edit the logo

Adjust the logo position by

joystick

Switch the logo by button

LUMA &

CHROMA KEY

STILL

Press to chroma key for the

current input source

Press STILL to freeze the

PGM screen

EFFECT

Press STILL to freeze the current

PGM screen

Knob

It is for the menu operation when

the menu is activated

Layer zoom adjustment in the scene

FTB

Press to fade to black in PGM output

CUT & AUTO

Press CUT to switch between PST & PGM

Press AUTO to realize the transition eﬀect

between PST & PGM

MODE

For layer operation modes

T-bar mode is for PST layer operation

EAZY mode is for PGM layer switching

STREAM Button

Press STREAM button to start the

RTMP stream. The button is on when

the stream is normal

Audio Operation

Press Audio to enter the audio setting interface

The volume knob is for the PGM output volume

adjustment

Press to mute and restore

The Channel A knob is for the volume

adjustment of PIP

The Channel B knob is for the volume

adjustment of the background
