Sida 1/11

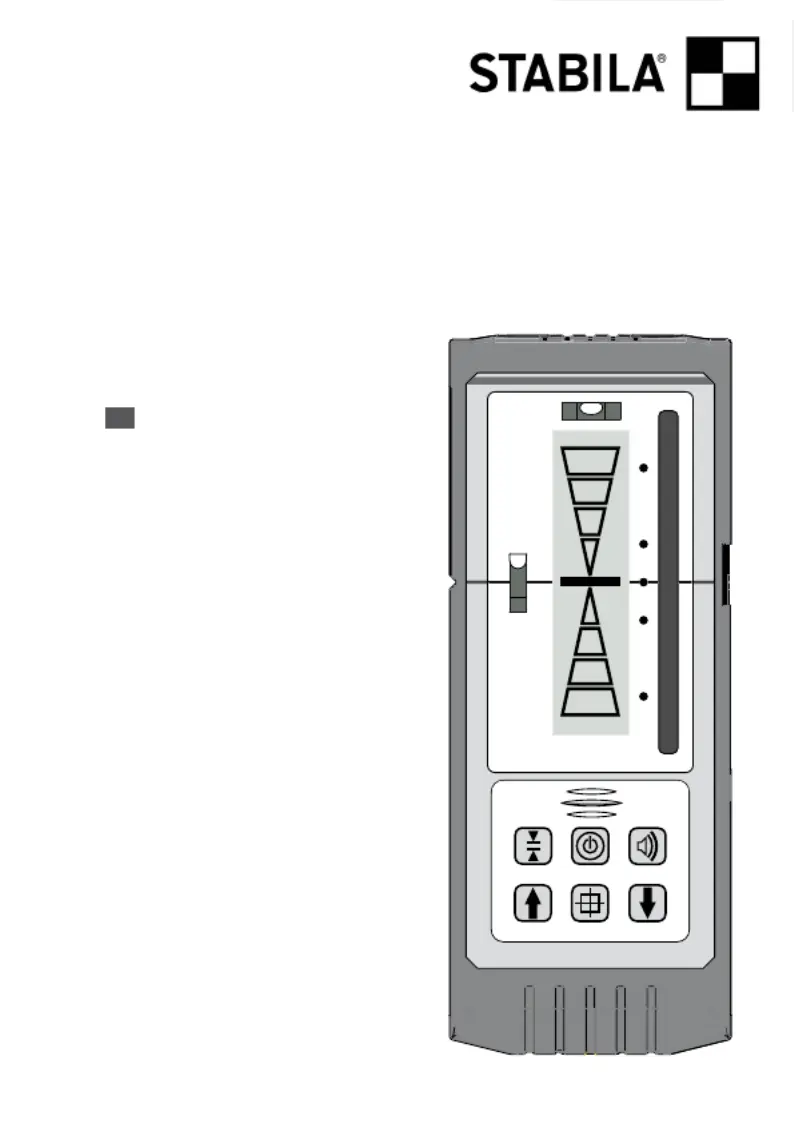

REC 410 Line RF
en
REC 410
Line RF
Operating instructions
en
Operating instructions
The STABILA REC 410 Line RF s a simple-to-use receiver i for the rapid capture
of aser lines. The STABILA REC 10 Line RF l 4 c ran only eceive pulse modulated
laser beams. The receiver will ork not w with rotation lasers. We have ende-
avoured to explain the unit’s h fandling and unctioning in as lear and c com-
prehensib mle anner as ssib If howeverpo le. , , y still hav any unanswered ou e
questions, we should be pleased o provide advice over the telephone at y t an
time on the following telephone number:
+49 / 6346 / 309-0
Main components
(a) ON/OFF
(b) Volume
(c) Accuracy
(d) Automatic precision adjustment
(e) Manual precision adjustment
(f) Laser receiver glass
(g) Display
(h) LED display ( red, yellow, green)
(i) „In line“ marks
(j) Magnet for xing the receiver
directly to a metal surface
(k) Integrated steel plate to attach
the receiver directly to the
magnet of the bracket
(l) Beeper
(m) Battery compartment cover
(n) Fold-out support for using the
receiver on a flat surface
(o) Vial
(p) Fold-out indicator notch
REC 410
Lin e RF
en

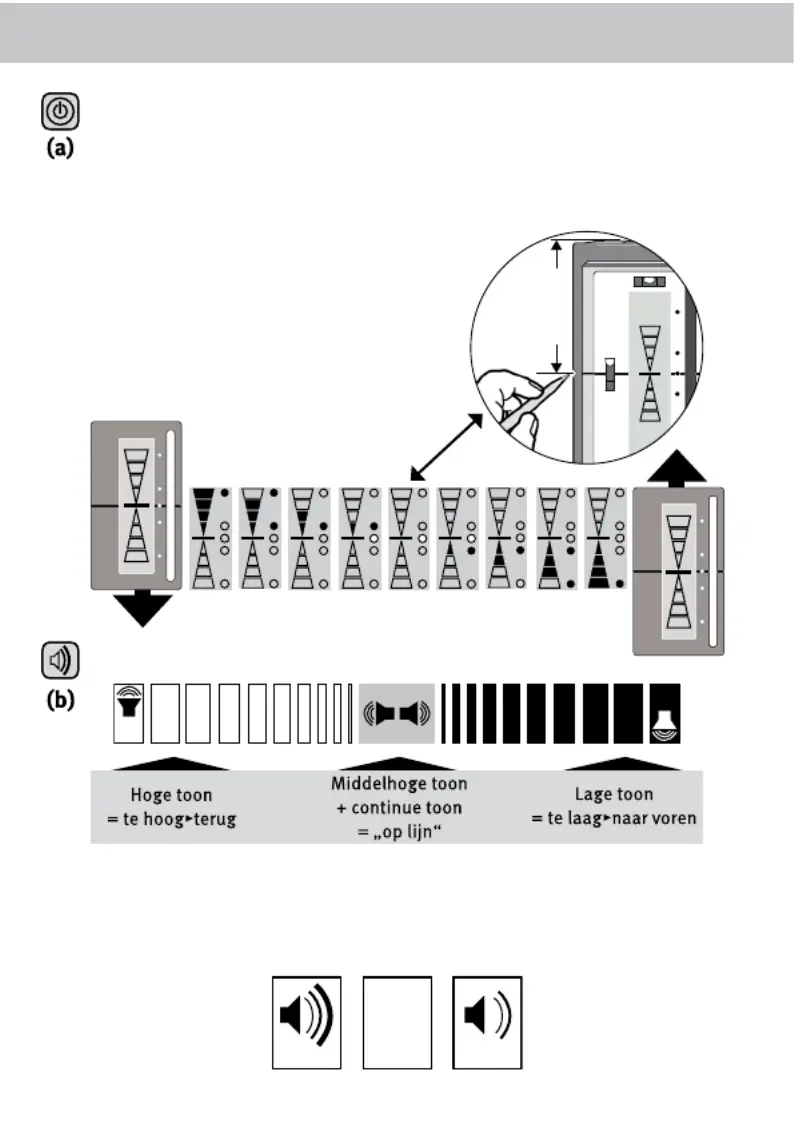

Getting started
Press the ON/OFF button (a). An audio signal, a brief flash from the display
and the LEDs conrm that the receiver is switched on. Press the ON/OFF but-
ton (a) quickly once to switch the instrument o. If the instrument is not used,
it will automatically switch itself o aer 30 minutes.
Display
9 display steps indicate the divergence from the
centre of the laser line. The central bar indica-
tes the “in line” position of the REC 410 Line RF.
The arrow increases in size as the distance from
the “in line” position increases.
Audio signals
Setting the volume
The volume is increased/decreased by repeatedly pressing the button (b):
Loud (1) out (2) so (3), or . If the instrument is set to “silent” only a short
beep is emitted when the laser beam is received.
REC 410
Line RF
65 mm
2.50 inch
REC 410
Line RF
REC 410
Line RF
(1) (2) )(3
