Quick-Start Guide

Manual Revision: August 29, 2023 9:24 AM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Product ID

RK619WALL

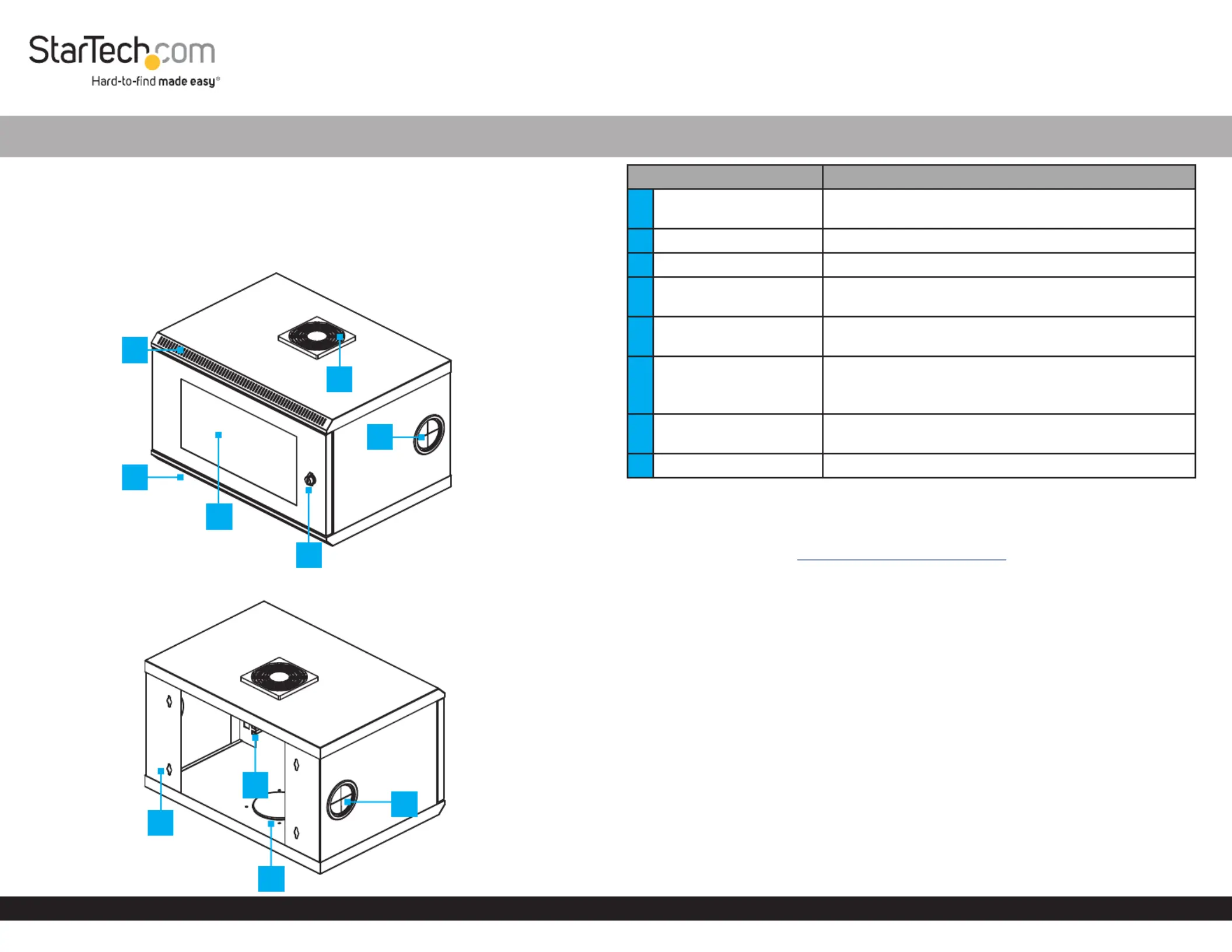

Product Diagram

Front - Angled View

Rear - Angled View

6U 19in Wall Mount Server Rack Cabinet

Component Function

1Window Area • Enables monitoring of the at Mounted Equipment

a glance

2Door Lock • Locks the using the included Door Keys

3Top and Bottom Vents • Vented panel to promote airow

4Cooling Fan • Top-mounted helps to regulate the 120mm Fan

temperature of the Mounted Equipment

5Cable Routing Holes • Removable pre-installed cover. Enables convenient

passage for cables

6Wall-Mounting Holes

• Used to fasten the onto a wallWall-Mounted Rack

• Horizontal distance between the Wall-Mounting

Holes is 16 in (40.6 cm)

7Secondary Fan Hole • Removable pre-installed cover. Enables installation

of (not included)120mm Fan

8Mounting Posts • For mounting 19in Rack Equipment

Product Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/RK619WALL

Requirements

• Phillips Head Screwdriver

• Mounting Hardware (not included)

• Spirit/Bubble Level

• (Optional) Wrench

• (Optional) Cage Nut Tool

How to Identify the LOT Code Revision Number

The Revision Number (Rev #) appears as the fth and sixth digits of the LOT code,

located on the sticker axed to the product and its packaging. If the LOT code sticker

is missing, the product is Rev 01.

*Product may vary from image

4. Insert the (x 4) through the (x 4) on the M5 Screws Mounting Holes Rack

Equipment M5 Cage Nuts M5 Screw , and into the (x 4). Tighten each (x 4) using a

Phillips Head Screwdriver Rack Equipment Mounting Posts to fasten the to the .

Reverse the Door

To accommodate dierent rack congurations, you can reverse the door to open to the

left or right of the rack. The door uses spring-loaded pins located at the top and bottom

corners of the door.

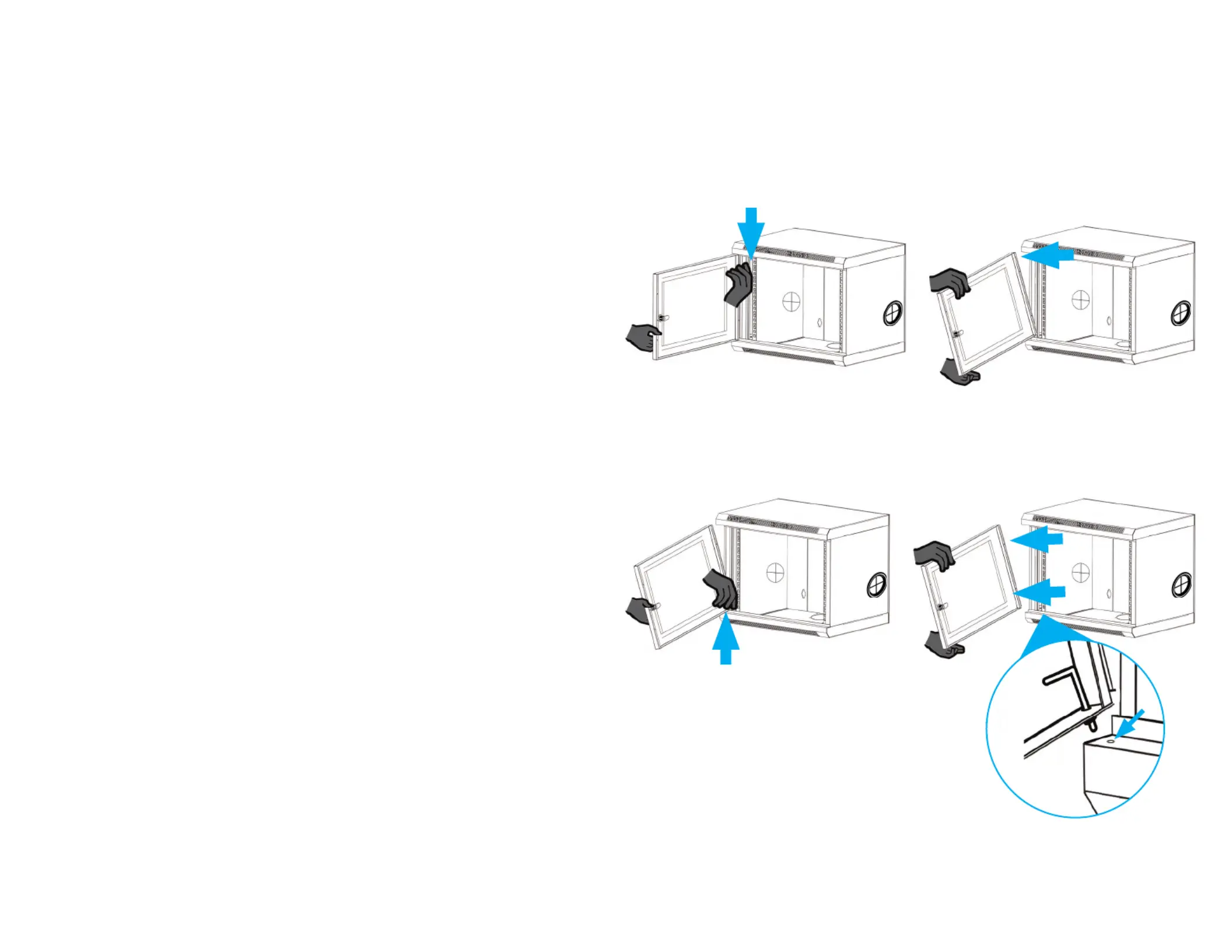

1. While holding the , the in the of the Door Pull Pin Handle Down Inside Top Corner

Door Pull Top Corner Door Door Frame. the of the slightly away from the . (Figure 1)

Figure 1

2. In the of the of the , the and remove Bottom Corner Inside Door Pull Pin Handle Up

the . Retain the from the , for re-installation of the . Door Washer Bottom Corner Door

The may be located on the or the on the Washer Pin Lower Hinge Hole Door Frame

(Figure 2).

Figure 2

3. theRe-orientate Door so that the are located on the , with the Pins Opposite Side

Front Door Facing Outwards of the . (Figure 3)

Warnings!

• Read the entire manual and ensure the instructions are fully understood before

assembling and/or using this product.

• StarTech.com Ltd. is not responsible for any property damage and/or personal injury

resulting from the installation procedures outlined in this technical document.

• Mounting hardware is not included with this product. Make sure to source

appropriate mounting hardware that is capable of supporting the weight of a loaded

Rack, and is adequate for the wall type the rack is going to be mounted on.

• If you lack the necessary expertise required to attach this product to the wall structure

or to assess the suitability of the hardware provided, please contact a professional

installer.

• Before adding equipment to this product, ensure this product has been properly mounted.

• Never operate this product if parts are missing or damaged.

• Ensure the weight of the equipment does not exceed the weight capacity of this product.

If the weight capacity is exceeded, personal injury or damage to the equipment are

possibilities. This product can support the following weight: up to 110.2lbs (50kg).

• Wall structures vary. Ensure the type of wall structure and mounting hardware will

properly support the mounted equipment. Failure to do so might result in personal injury

and/or equipment damage. The wall structure should be capable of supporting at least

four times the weight of the mounted equipment.

Package Contents

• 6U Equipment Rack x 1

• Set of Keys x 1

• M5 Screws x 20

• M5 Cage Nuts x 20

Installation

Mount the 6U Equipment Rack to a Mounting Surface

1. Place the against the Mounting Surface, in the location it will be 6U Equipment Rack

mounted (ensure it is level, using a ).Spirit/Bubble Level

2. Use the (x4), located on the as a Wall-Moutning Holes Wall Mount Server Rack

template, and mark the surface in all four locations where the mounting hardware

will be installed.

3. Use the appropriate to fasten the to Mounting Hardware Wall Mount Server Rack

the Mounting Surface.

Install the Cage Nuts

1. Install the into the on the . If M5 Cage Nuts Mounting Holes Mounting Posts

available, use a or your preferred installation method to install the Cage Nut Tool

Cage Nuts.

2. Repeat as many times as needed to install the number of Step 1 M5 Cage Nuts

required for the application.

3. Align the on the with the installed Mounting Holes Rack Equipment M5 Cage Nuts

on the .Mounting Posts

Figure 3

4. Install the (retained in ) onto the on the Washer Step 2 Bottom Pin Lower Inside

Corner Doorof the . (Figure 4)

Figure 4

5. With the top corner of the door angled slightly away from the enclosure, gently

Insert Bottom Pin Fully Extended Washer Lower the , ensuring is into the and the

Hinge Hole. (Figure 5)

Figure 5

6. With the partially installed, the and swing Bottom Pin Pull Top Pin Handle Down

the of the toward the . the Top Corner Door Upper Hinge Hole Align Retracted

Top Pin Upper Hinge Hole Release Pin Handle Pinwith the and the , ensuring the

is into the . (Figure 6) Fully Extended Upper Hinge Hole

Figure 6
