Quick start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 02/01/2016

For the latest information, technical specications, and support for

this product, please visit www.startech.com/ST10GSPEXNB.

Packaging contents

• 1 x 1-port PCI Express® 5-speed Ethernet network card

• 1 x driver CD

• 1 x low-prole mounting bracket

• 1 x quick start guide

System requirements

• PCI Express enabled computer with an available PCI Express slot

(x4, x8, or x16)

• Any of the following operating systems:

• Windows® 10 (32-bit or 64-bit)

• Windows 8.1 (32-bit or 64-bit)

• Windows 8 (32-bit or 64-bit)

• Windows 7 (32-bit or 64-bit)

• Windows Server® 2012

• Windows Server 2008 R2

• Mac OSX 10.11

• Mac OSX 10.10

Note: If you want to use 10GBase-T, you will need a Cat6a cable. For

other speeds, you need to use a Cat5e cable.

System requirements are subject to change. For the latest

requirements, please visit www.startech.com/ST10GSPEXNB.

ST10GSPEXNB

1-Port PCIe 10GBase-T / NBase-T Ethernet Network Card

*actual product may vary from photos

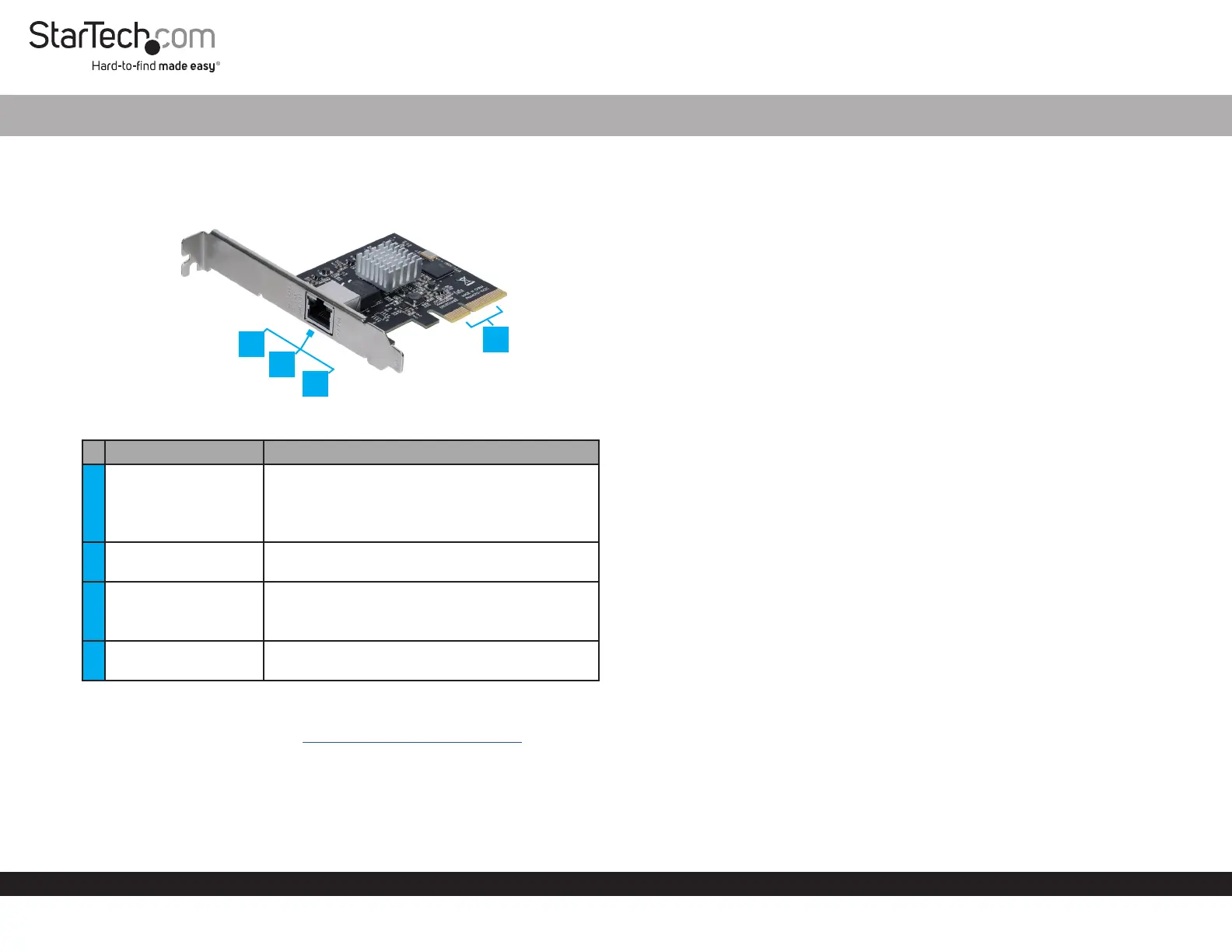

Product diagram

Link speed LED

Link state and activity LED

Ethernet port PCIe p1-x4

connector

Installation

Install the PCI Express card

Warning! PCI Express cards can be severely damaged by static

electricity. Make sure that you are properly grounded before you

open your computer case or touch your PCI Express card. You should

wear an anti-static strap when you install any computer component.

If an anti-static strap isn’t available, discharge any built-up static

electricity by touching a large grounded metal surface for several

seconds. Only handle the PCI Express card by its edges and don’t

touch the gold connectors.

1. Turn o your computer and any peripherals that are connected

to it (for example, printers, external hard drives, and so on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

4. Remove the cover from your computer case. Consult the

documentation that came with your computer for details about

how to do this safely.

5. Locate an open PCI Express slot and remove the corresponding

metal cover plate from the back of your computer case. Consult

the documentation that came with your computer for details

about how to do this safely. This card works in PCI Express slots of

additional lanes (x4, x8, or x16 slots).

6. Gently insert the card into the open PCI Express slot and fasten

the bracket to the back of the case.

Note: If you install the card into a small form factor or a low-prole

desktop system, it may be necessary to replace the preinstalled

standard-prole bracket with the included low-prole (half-height)

installation bracket.

7. Place the cover back onto your computer case.

8. Reconnect the power cable to the back of your computer.

9. Reconnect all of the peripheral devices that you disconnected in

step 3.

10. Turn on your computer and peripherals.

Install the driver on a computer running Windows

1. If the Found New Hardware dialog box appears when you turn

on your computer after installing the network card, close or

cancel the dialog box.

2. Insert the provided driver CD into your computer.

3. On the screen, click . Ethernet Adapter Install Driver

4. On the screen, click .Install Driver PCIe 10G

5. Click and follow the on-screen instructions to nish Install

installing the driver.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Verify driver installation on a computer running

Windows

1. On your computer, navigate to .Device Manager

2. Under , right-click Network adapters TN4010 10GBase-T Ethernet

Network Card Properties and click .

3. Conrm that the driver is installed and working as expected. About LED indicators

The ST10GSPEXNB features two LED indicators, one on either side

of the Ethernet port. For more information about the LED indicators,

consult the table below.

Link speed LED

LED behavior Scenario

Amber LED is illuminated Link speed is 10Gbps
