Sida 1/95

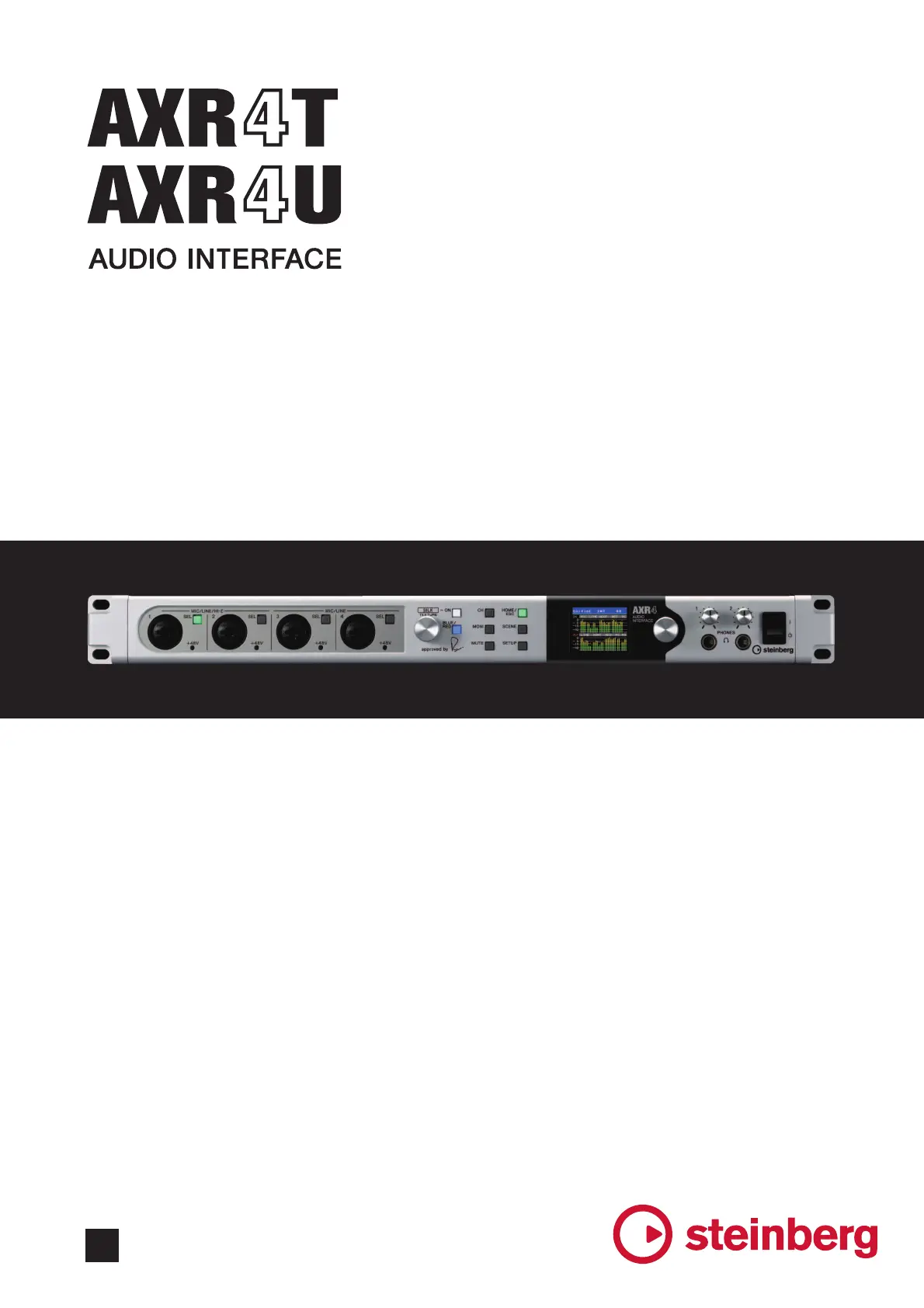

Operation Manual
EN
Contents
AXR4 Operation Manual 2
Contents
Introduction 3
Message from the Development Team.......... 3
Panel Controls and Functions (Main
Panel) 4
Front Panel .................................................... 4
Rear Panel..................................................... 6
Connection Example...................................... 8
Cautions for Rack-mounting .............................8
Display ........................................................... 9
Screen Configuration ........................................9
METER Screen ..................................................9
SCENE Screen................................................10
SYSTEM SETUP Screen..................................11
MONITOR SETUP Screen...............................22
CH SETUP Screen ..........................................24
Software 31
Yamaha Steinberg Thunderbolt Driver ...........31
Yamaha Steinberg USB Driver .......................33
dspMixFx AXR ............................................. 36
Window Examples and How to Open the
Window ...........................................................36
Mixer Window .................................................37
Input Channels Area .......................................38
Output Channels Area ....................................42
Right Side Bar.................................................44
Left Side Bar ...................................................45
Relational Tables ............................................47
Menu ...............................................................48
Matrix Mixer Window.......................................51
Meter Window .................................................54
Show/Hide Channels Window.........................55
Settings Window .............................................56
Building a Monitoring Environment.................59
Stacking the AXR4T ........................................61
Configuring AXR4 Settings in Cubase (AXR
Extension) ....................................................62
Window Configuration.................................... 62
Dedicated Cubase Window ........................... 62
Hardware Setup ............................................. 65
Plug-ins ........................................................66
Equalizer 601 ................................................. 66
Compressor 276 ............................................ 68
REV-X ............................................................. 70
Sweet Spot Morphing Channel Strip.............. 72
Operation Correspondence Table 75
Troubleshooting 77
Technical Specifications 80
Error Messages 82
Block Diagram 83
Software License and Copyrights 89
Index 92
•This manual is the exclusive copyrights of
Yamaha Corporation.
•Copying of the software or reproduction of this
manual in whole or in part by any means is
expressly forbidden without the written consent
of the manufacturer.
•The illustrations and screens as shown in this
manual are for instructional purposes only.
•Steinberg Media Technologies GmbH and
Yamaha Corporation make no representations or
warranties with regard to the use of the software
and documentation and cannot be held
responsible for the results of the use of this
manual and the software.
•Software may be revised and updated without
prior notice.
Introduction
AXR4 Operation Manual 3
Introduction
Message from the Development Team
Thank you for choosing the AXR4 Audio Interface.
The AXR4 is our flagship audio interface model, developed from the perspective of audio
engineers for use in professional music production.
The “sound” is the most vital component for an audio interface. The microphone preamp acts as a
core foundation in producing this sound. This preamp is based on an analog “AXR Preamplifier”
perfecting a traditional, natural soundscape attained by the development team, and a digital
“hybrid microphone preamp” that further evolves Yamaha’s proprietary modeling technology, VCM
(Virtual Circuitry Modeling).
Analog I/O components use AD/DA circuits that support up to 32-bit integer resolutions and
384 kHz sample rate to capture and reproduce the rich aural sounds produced by performers and
vocalists without a loss in quality.
The digital section faithfully recreates the Rupert Neve Designs
® transformer circuit in addition to
employing the renowned Silk processing models in Rupert Neve Designs’s microphone preamp.
The Silk processing can be applied in two variations to match the atmosphere of the tune or the
music source: Silk Blue for a vintage sound that produces a solid, powerful expression, and Silk
Red offering rich, exuberant sound brimming with musicality. Silk processing helps produce
graceful, defined sounds with an analog-like texture. The unique feeling of compression and
saturation this introduces to a piece is unlike that found anywhere else.
Silk processing is incorporated to reproduce the feeling in an artist’s performance and the original,
pure sound produced by an instrument at a level never heard before. To achieve this, circuits on
board the AXR4 are tuned to an obsessive degree of precision in order to deliver a level of sound
quality that is leaps and bounds beyond what conventional audio interfaces offer.
The AXR4 provides a rich array of I/O connectors in order to flexibly meet a broad range of
requirements from professional audio engineers. Similarly, a full matrix mixer has been
incorporated into the device to adequately meet a diverse set of monitoring and system-related
requirements. The drivers processing these I/O signals have also undergone major improvements,
providing both low latency and stable performance. As with the microphone preamp, SSPLL™
(Super Suppression PLL) is also provided in the form of an analog/digital hybrid type PLL
architecture. By tuning jitters in the digital section with the analog section, super low jitter levels
and high levels of stability are delivered.
Beyond just hardware improvements, major usability improvements have been introduced into our
packaged software applications, including a complete overhaul of Extension controlling AXR4 from
Cubase.
There are no limits to human creativity. We sincerely hope that the AXR4 opens up the potential for
new developments in the field of professional studio audio engineering, and it would give us the
greatest pleasure to see this product usher forth a new level of musical production and cultural
achievement.
The Steinberg Hardware Development Team
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 4
Panel Controls and Functions (Main Panel)
Front Panel
1MIC/LINE/HI-Z [1]/[2] jacks
For connecting to a microphone, digital
instrument, electric guitar, or electric bass.
This jack can be connected to both XLR-
type and 1/4" phone-type plugs. Both
balanced and unbalanced connections
are supported when using a 1/4" phone-
type LINE connection. Unbalanced
connection is supported when using a
1/4" phone-type HI-Z connection.
2MIC/LINE [3]/[4] jacks
For connecting to a microphone or digital
instrument. This jack can be connected to
both XLR-type and 1/4" phone-type plugs.
The XLR-type plug is dedicated for
microphone connection plug. Both
balanced and unbalanced connections
are supported when using a 1/4" phone-
type LINE connection.
3[SEL] keys
Dedicated selection keys to switch
between MIC/LINE/HI-Z [1]/[2], and MIC/
LINE [3]/[4]. The ANALOG SETUP screen
for the selected channel appears on the $
display. This lights up green when
selected.
NOTE
You can turn channel linking on and off by holding
down a [SEL] key for MIC/LINE/HI-Z [1]/[2] or MIC/
LINE [3]/[4] and pressing the other [SEL] key
(page 12). The channel that was pressed first lights
up in green. The channel pressed afterwards flashes
in green. The ANALOG SETUP screen for the
channel flashing in green appears on the display.
Press the [SEL] key on the side that is flashing in
green to switch the channel selection to the side
pressed.
4[+48V] indicators
Lights up in red when the phantom power
is turned on.
1 2 7 ) #4
3 5 8 ! $ % *
^
9 @6
&
NOTICE
When connecting devices or when switching
the routing structure, observe the following
cautions to avoid damage and noise being
introduced to the product and peripheral
devices.
•Turn the phantom power off (page 26) when
connecting a device that does not support
phantom power to the MIC/LINE/HI-Z [1]/[2]
jack or the MIC/LINE [3]/[4] jack.
•Do not connect or disconnect cables to/from
the MIC/LINE/HI-Z [1]/[2] jacks or the MIC/LINE
[3]/[4] jacks while the phantom power is on.
The [+48V] indicator flashes for several
seconds when phantom power is turned off.
Wait until this indicator stops flashing before
plugging in or taking out cables.
•Turn the phantom power on and off when the
[MUTE] key on the front of the AXR4 device is
on.
•HI-Z and phantom power cannot be turned on
at the same time.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 5
5SILK [ON] key
Turns Silk on and off for the channel
selected with the [SEL] key. This lights up
white when turned on.
Silk
Silk uses proprietary Yamaha “VCM
technology” digital signal processing to
faithfully replicate the “Silk” processing
that is built into numerous high-end analog
audio devices developed, manufactured,
and sold by Rupert Neve Designs. Silk
helps vividly accentuate individual audio
parts.
6SILK [TEXTURE] knob
Adjusts the harmonic content of the source
audio.
7SILK [BLUE/RED] key
Switches between BLUE acting on low
frequency bands, and RED acting on high
frequency bands.
8[CH] (Channel) key
Displays the CH SETUP screen on the
display. This lights up green when
selected.
9[MONI] (Monitor) key
Displays the MONITOR SETUP screen on
the display. This lights up green when
selected.
)[MUTE] key
Mutes all input and output audio at once.
This flashes red when muted.
![HOME/ESC] key
Returns to the previous display screen.
Press this several times to eventually
return to the HOME screen. You can also
return to the HOME screen by holding this
key down.
@[SCENE] key
Displays the SCENE screen on the display.
This lights up green when selected.
#[SETUP] key
Displays the SYSTEM SETUP screen on
the display. This lights up green when
selected.
$Display
Displays information needed to use and
configure the AXR4 device.
%Multi-function knob
Used to operate the screen in the display.
Turn to move between items, and press in
to select an item.
^PHONES [1]/[2] knobs
Adjusts the output signal level for the
PHONES [1]/[2] jack.
&PHONES [1]/[2] jacks
For connecting headphones. Output
signals for both the PHONES [1] jack and
the PHONES [2] jack can be routed on the
OUTPUT PATCH screen. This can also be
set in the Cubase series-specific AXR
Extension window (page 62), or the
dspMixFx AXR Mixer window (page 43).
*[P/I] (Standby/On) switch
Turns the product on (I) or puts it into
standby mode (P).
NOTE
Switching off to on quickly can cause malfunctions.
After setting the [P/I] (standby/on) switch to
standby, wait for about six seconds before setting it
to on again.
NOTICE
Even when the power is in the standby position
(P), electricity is still flowing to the product. If
you do not plan to use the product for a while,
unplug the power cord from the outlet.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 6
Rear Panel
AXR4T
AXR4U
1DC IN [24V]
For connecting to a power adaptor.
2[ ] (Thunderbolt 2) connector
(AXR4T only)
For connecting the AXR4T to a computer.
2[USB 3.0] connector (AXR4U only)
For connecting the AXR4U to a computer.
1
2
693
4 7
)
85
16 93
42 7
)
85
NOTICE
Follow the cautions described below when
connecting to a computer. Data could be
destroyed or lost if the computer or the product
hangs. If the computer or the product hangs,
either restart the application or the computer.
•A separate Thunderbolt 2-certified cable and
a Thunderbolt 3 to Thunderbolt 2 adapter are
required. Prepare a cable and an adapter that
matches the connector on the computer and
the Thunderbolt 2 connector on the AXR4T
device. However, the Thunderbolt 3 to
Thunderbolt 2 adapter is not required when
your computer is equipped with a
Thunderbolt 2 connector.
•Ensure that the PHONES [1]/[2] knobs and
output level controls for any power amps or
powered speakers connected to the AXR4T
are set to the minimum before inserting or
removing cables.
•Close down all computer applications before
turning the power to the AXR4T device to
standby (P) or inserting and removing
cables.
•Wait six seconds or longer between turning
the AXR4T device on (I), switching to
standby (P), and inserting or removing
cables.
NOTICE
Follow the cautions described below when
connecting to a computer. Data could be
destroyed or lost if the computer or the product
hangs. If the computer or the product hangs,
either restart the application or the computer.
•Use the USB cable that comes packaged with
the AXR4U. Cables that do not support
USB 3.1 Gen 1 cannot be used.
•Ensure that the PHONES [1]/[2] knobs and
output level controls for any power amps or
powered speakers connected to the AXR4U
are set to the minimum before inserting or
removing cables.
•Check that no data is being sent from the
product before plugging in or removing the
cable.
•Close down all computer applications before
turning the power to the AXR4U device to
standby (P) or inserting and removing
cables.
•Wait six seconds or longer between turning
the AXR4U device on (I), switching to
standby (P), and inserting or removing
cables.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 7
3WORD CLOCK [IN]/[OUT] jacks
For connecting external word clock
signals. The WORD CLOCK [IN] jack
terminates internally at 75Ω.
4MIDI [OUT] jack
For connecting to the MIDI IN jack on MIDI
devices. Outputs a MIDI signals sent from
the computer.
5MIDI [IN] jack
For connecting to the MIDI OUT jack on
MIDI devices. Sends the MIDI signals
received to the computer.
6[AES/EBU] connector
For connecting to devices that input or
output digital signals in the AES/EBU
format. You can select between the [AES/
EBU] connector and the 7 OPTICAL B
[IN]/[OUT] connector for use. The jack and
format in use can be set on the DIGITAL I/
O MODE screen on the AXR4 device
(page 16) or on the Settings screen on the
dspMixFx AXR.
NOTE
For more information on the pin arrangement for the
[AES/EBU] connector, see page 81.
7OPTICAL B [IN]/[OUT] connector
Supports both S/PDIF and ADAT formats.
You can select between the 6 [AES/EBU]
connector and the OPTICAL B [IN]/[OUT]
connector for use. The jack and format in
use can be set on the DIGITAL I/O MODE
screen on the AXR4 device (page 16) or
on the Settings screen on the dspMixFx
AXR.
8OPTICAL A [IN]/[OUT] connector
Supports both S/PDIF and ADAT formats.
You can select whether to use the
OPTICAL B [IN]/[OUT] connector in S/PDIF
format or ADAT format on the DIGITAL I/O
MODE screen on the AXR4 device or on
the Settings screen on the dspMixFx AXR.
9LINE OUTPUT [1] – [8] jacks
For connecting to external devices with
line level signals. These jacks can be
connected to 1/4" phone-type (balanced/
unbalanced) plugs.
)LINE INPUT [5] – [12] jacks
For connecting to digital instruments.
These jacks can be connected to
1/4" phone-type (balanced/unbalanced)
plugs.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 8
Connection Example
See the following connection example (AXR4T) to connect speakers, microphones, or instruments.
Cautions for Rack-mounting
This product has been tested to function at a
room temperature of 0 – 40°C. When mounting
this product together with other devices into
an EIA-standard rack, the product may not be
able to deliver sufficient performance due to
the increased temperature caused by the heat
produced by other devices. Mount this
product in a rack under the following
conditions to ensure that heat does not build
up.
•Leave at least 1U of space empty both
above and below the product. Ensure that
empty spaces are properly ventilated by
installing a ventilation panel or allowing for
open air exposure.
•Open up the rear of the rack and separate
the rack from the wall by at least 10 cm to
ensure proper ventilation. If this is not
possible, install a commercially available fan
kit or other such forced ventilation device.
Note that when installing a fan kit, closing off
the rear of the rack may help improve heat
loss. For more information, see the owner’s
manuals for your rack and fan kit.
Guitar
Microphone Headphones
Computer Monitor
Speakers
Synthesizer
Word Clock
Generator Sound Module Microphone
Preamp Outboard Effects
NOTICE
This product has been designed to support a LINE
OUTPUT load impedance of 10kΩ or more.
As a load impedance of less than 10kΩ can cause
issues with heat generation, do not connect
devices with an input impedance of less than 10kΩ.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 9
Display
Screen Configuration
The display screen is split into the TOOL BAR
area on the top, and the MAIN area on the
bottom.
METER Screen
This screen is used to display input/output
audio signal levels for the AXR4 device.
How to open the METER screen
Press the [HOME/ESC] key on the AXR4
device to open the METER screen.
NOTE
If a screen other than the METER screen is displayed for
over a minute without any user interaction, the system
will automatically return to display the METER screen.
TOOL BAR display area
1Scene name
Displays the name of the most recent
scene recalled.
2Clock source
Displays the current clock source.
NOTE
The clock source name will flash when the word
clock has not been synchronized.
3Sample rate
Displays the sample rate in use by the
AXR4 device.
NOTE
(AXR4U only)
When communicating with a computer at the High-
Speed (USB 2.0) setting, the background color of
TOOL BAR is displayed in green.
MAIN display area
1MIC IN meter
2LINE IN meter
3ADAT A or S/PDIF A IN meter
4ADAT B or S/PDIF B or AES/EBU IN
meter
TOOL BAR area
MAIN area
1 2 3
1 2 3 4 5
6 7 8 9 )
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 10
5Input meter from computer
6LINE OUT meter
7ADAT A or S/PDIF A OUT meter
8ADAT B or S/PDIF B or AES/EBU
OUT meter
9Output meter to computer
)PHONES OUT meter
NOTE
3 ADAT A or S/PDIF A IN meter
4 ADAT B or S/PDIF B or AES/EBU IN meter
7 ADAT A or S/PDIF A OUT meter
8 ADAT B or S/PDIF B or AES/EBU OUT meter
Contents displayed for the above items will change
depending on the Digital I/O mode and sample rate in
use.
How to use the METER screen
1. Press the multi-function knob to display the
MAIN OUT VOLUME dialog.
2. Turn the multi-function knob while the
MAIN OUT VOLUME dialog is displayed to
adjust the level of the mix bus being set by
the MAIN OUT VOLUME setting.
NOTE
You can set the channels being set by the MAIN
OUT VOLUME setting on the MAIN OUT SETUP
screen (page 23).
SCENE Screen
This screen is used to store and recall scenes.
How to open the SCENE screen
Press the [SCENE] key on the AXR4 device
panel to open the SCENE screen.
MAIN display area
This area displays scenes in a list. An asterisk
(*) will appear to the left of the most recently
recalled scene.
NOTE
The Initial Data scene is a scene used to restore mixer
settings to the default factory settings.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 11
How to use the SCENE screen
1. Turn the multi-function knob to focus on a
scene name.
2. Press the multi-function knob to display the
confirmation dialog.
3. Turn the multi-function knob to select an
option.
4. Press the multi-function knob to execute.
Each option and the action performed are
described below.
NOTE
If you press the [HOME/ESC] key while the confirmation
dialog is displayed, the confirmation dialog will be
closed without performing an action.
SYSTEM SETUP Screen
This screen is used to perform system setup
for the AXR4 device.
AXR4T
AXR4U
Option Action performed
Cancel Closes the dialog without performing
an action
Store Stores the current mixer settings to the
selected scene
NOTE
•Up to eight scenes can be stored.
•Scene names are automatically
added in the form of “Scene XX”
(where XX represents the list order).
•Scene names can be set in
“dspMixFx AXR” “Menu”
“Scene” (page 49).
Recall Recalls the selected scene
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 13
How to use the CH LINK screen
1. Turn the multi-function knob to select a
channel pair.
2. Press the multi-function knob to display the
settings dialog.
3. Turn the multi-function knob to select either
“ON” or “OFF.”
4. Press the multi-function knob to confirm.
CLOCK screen
This screen is used to configure word clock-
related items such as clock source, sample
rate, and SRC (Sample Rate Converter).
How to open the CLOCK screen
1. On the SYSTEM SETUP screen, turn the
multi-function knob to select “CLOCK.”
2. Press the multi-function knob to confirm.
MAIN display area
This area displays options in a list.
MASTER For setting the clock source
SAMPLE RATE For configuring word clock-
related settings such as clock
source and sample rate
SRC Turns the SRC on and off
AES/EBU CH For setting which channel in the
AES/EBU should be the source
channel when AES/EBU is set as
the clock source
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 14
• MASTER
Allows you to set the clock source from the list.
Available options are as follows.
NOTE
*1 Either ADAT A or S/PDIF A will be displayed based on
the digital I/O mode settings (page 16) configured.
*2 Either ADAT B, S/PDIF B, or AES/EBU will be
displayed based on the digital I/O mode settings
configured.
*3 If ADAT A or ADAT B is selected as the clock source,
you must select an operating sample rate for the
AXR4 matching the sample rate of the clock source.
How to configure the MASTER
1. Navigate from the SYSTEM SETUP screen
to the CLOCK screen, and then turn the
multi-function knob to select “MASTER.”
2. Press the multi-function knob to select.
3. When the MASTER screen appears, turn
the multi-function knob to select a clock
source.
4. Press the multi-function knob to confirm.
• SAMPLE RATE
Allows you to select an operating sample rate
from the list.
There are eight sample rate options available,
including, 44.1k, 48k, 88.2k, 96k, 176.4k,
192k, 352.8k, and 384k.
NOTE
Note that the 352.8k and 384k sample rate are only
available when the clock master is set to “INTERNAL” or
“WCLK.”
For more information on what inputs and
outputs are available for each sample rate,
see the Operation Correspondence Table
(page 75).
INTERNAL The internal AXR4 clock
WCLK External clock from the WORD
CLOCK IN jack
ADAT A*1*3 External clock from ADAT A
S/PDIF A*1 External clock from S/PDIF A
ADAT B*2*3 External clock from ADAT B
S/PDIF B*2 External clock from S/PDIF B
AES/EBU*2 External clock from AES/EBU
NOTICE
Changing word clock settings in this product or
any digital audio system may result in system
noise. To prevent damaging connected speakers,
either turn off the power amp and other devices, or
restrict their output before configuring word clock
settings.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 15
How to configure the SAMPLE RATE
1. Navigate from the SYSTEM SETUP screen
to the CLOCK screen, and then turn the
multi-function knob to select “SAMPLE
RATE.”
2. Press the multi-function knob to select.
3. When the SAMPLE RATE screen appears,
turn the multi-function knob to select a
sample rate.
4. Press the multi-function knob to confirm.
• SRC
Allows you to set the AES/EBU input SRC on
and off. When turned on, the sample rate will
be converted, and audio data can be used
even if AES/EBU inputs (1/2 – 7/8) and the
AXR4 internal clock are asynchronous.
How to configure the SRC
1. Navigate from the SYSTEM SETUP screen
to the CLOCK screen, and then turn the
multi-function knob to select “SRC.”
2. Press the multi-function knob to select.
3. When the dialog appears, turn the multi-
function knob to select either “ON” or
“OFF.”
4. Press the multi-function knob to confirm.
• AES/EBU CH
Allows you to set the channel in the AES/EBU
from which the clock source is received when
AES/EBU is set as the clock source.
How to configure the AES/EBU CH
1. Navigate from the SYSTEM SETUP screen
to the CLOCK screen, and then turn the
multi-function knob to select “AES/EBU
CH.”
2. Press the multi-function knob to select.
3. When the AES/EBU CH screen appears,
turn the multi-function knob to select a
channel.
4. Press the multi-function knob to confirm.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 16
DIGITAL I/O MODE screen
This screen is used to set whether to use the
connector in S/PDIF format or ADAT format
when using the OPTICAL A [IN]/[OUT]
connector. Further, you can set whether the
[AES/EBU] connector or the OPTICAL B [IN]/
[OUT] connector is used, and if the OPTICAL
B [IN]/[OUT] connector is used, you can set
whether to use the connector in S/PDIF format
or ADAT format.
The three options available are ADAT, S/PDIF,
and AES/EBU (DIGITAL(B) only).
How to configure the DIGITAL I/O MODE
1. On the SYSTEM SETUP screen, turn the
multi-function knob to select “DIGITAL I/O
MODE.”
2. Press the multi-function knob to select.
3. When the DIGITAL I/O MODE screen
appears, turn the multi-function knob to
select either “DIGITAL(A)” or “DIGITAL(B).”
4. Press the multi-function knob to select.
5. When the DIGITAL(A) or DIGITAL(B)
screen appears, turn the multi-function
knob to select a format.
6. Press the multi-function knob to confirm.
PEAK HOLD screen
This screen sets the peak level display for the
level meter on or off.
How to open the PEAK HOLD screen
1. On the SYSTEM SETUP screen, turn the
multi-function knob to select “PEAK
HOLD.”
2. Press the multi-function knob to confirm.
How to use the PEAK HOLD screen
1. Press the multi-function knob to display the
settings dialog.
2. Turn the multi-function knob to select either
“ON” or “OFF.”
3. Press the multi-function knob to confirm.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 17
HPF screen
This screen is used to set the cutoff frequency
for the high pass filter.
How to open the HPF screen
1. On the SYSTEM SETUP screen, turn the
multi-function knob to select “HPF.”
2. Press the multi-function knob to select.
How to use the HPF screen
1. Turn the multi-function knob to select a
cutoff frequency.
2. Press the multi-function knob to confirm.
CONVERSION MODE screen
This screen is used to set the filter for the AD/
DA converter.
The AD/DA converter has two filter setting
options available: LINEAR PHASE and SHORT
DELAY. There are some sonic differences
between the two filter settings. Select the one
most suitable for your applications.
How to open the CONVERSION MODE
screen
1. On the SYSTEM SETUP screen, turn the
multi-function knob to select
“CONVERSION MODE.”
2. Press the multi-function knob to confirm.
How to use the CONVERSION MODE
screen
1. Turn the multi-function knob to select either
“LINEAR PHASE” or “SHORT DELAY.”
2. Press the multi-function knob to confirm.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 19
STACK ID screen (AXR4T only)
This screen is used to assign an ID to the
AXR4T device to identify the device when
multiple AXR4T devices are connected.
NOTE
•Up to three AXR4T devices can be stacked. You
cannot use four or more connected AXR4T devices
together.
•You cannot use multiple connected AXR4T devices by
duplicating the STACK ID.
•An assigned STACK ID will be applied after a power
cycle.
•A STACK ID can only be set from the screen.
How to configure a STACK ID
1. On the SYSTEM SETUP screen, turn the
multi-function knob to select “STACK ID.”
2. Press the multi-function knob to select.
3. When the dialog screen appears, turn the
multi-function knob to select a number
from 1, 2 or 3.
4. Press the multi-function knob to confirm.
5. Set the [P/I] (standby/on) switch on the
front panel of the AXR4T device into the
standby position ([P]).
6. Set the [P/I] (standby/on) switch on the
front panel of the AXR4T device into the
[I] position.
USB MODE Screen (AXR4U only)
This screen is used to set the USB
transmission mode.
Select either SuperSpeed (USB 3.1 Gen 1) or
High-Speed (USB 2.0).
Normally, set this to SuperSpeed (USB 3.1
Gen 1) and connect the interface to a USB 3.0
port on your computer.
High-Speed (USB 2.0) has a more narrow
transmission bandwidth than SuperSpeed
(USB 3.1 Gen 1), and therefore there are
fewer channels available when using a
sample rate of 176.4kHz or higher (page 75).
Using a USB 2.0 port on your computer or
using a USB 2.0 cable will also result in fewer
channels available.
NOTE
•The actual data transmission speed between a
computer is displayed in the upper right corner of the
screen. When communicating at High-Speed even
though the USB MODE is set to SuperSpeed,
“!USB2.0!” is displayed in the upper right corner of the
screen, and the text “SuperSpeed” flashes.
•When using SuperSpeed (USB 3.1 Gen 1) the sound
might cut out during audio recording/playback,
depending on the USB host controller installed on the
computer. If this happens, try changing to High-Speed
(USB 2.0).
•When using High-Speed (USB 2.0) you may not be
able to set a sample rate of 88.2kHz or higher,
depending on the USB host controller installed on the
computer.
•If the AXR4U is connected to dspMixFx AXR or
Cubase, you cannot change the USB MODE setting.
Close dspMixFx AXR or Cubase.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 20
How to Open the USB MODE Screen
1. On the SYSTEM SETUP screen, turn the
multi-function knob to select “USB MODE.”
2. Press the multi-function knob to confirm.
How to Use the USB MODE Screen
1. Turn the multi-function knob to select either
“SuperSpeed” or “High-Speed.”
2. Press the multi-function knob to display the
confirmation dialog.
NOTE
If the USB mode is not changed, the system returns
to the SYSTEM SETUP screen without displaying the
confirmation dialog.
3. Turn the multi-function knob to select either
“OK” or “CANCEL.”
4. Press the multi-function knob to confirm.
The AXR4U automatically restarts.
INFO/INITIALIZE screen
This screen is used to display information
pertinent to the AXR4 device such as firmware
information. You can also restore settings
value stored to the AXR4 device and scene
records back to their default factory settings
here.
Available options, and the actions they
perform, are as follows.
Option Action
performed
VERSION Displays information
pertinent to the AXR4
device such as
firmware information
ABOUT Displays information
about the AXR4
device and
information about the
card slot on the rear
of the AXR4 device
INITIALIZE CURRENT
DATA
Restores all current
mixer settings and
AXR4 device
settings to their
defaults
SCENE
MEMORY
Deletes all scenes
stored to the AXR4
device
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 21
How to perform the INITIALIZE feature
1. Navigate from the SYSTEM SETUP screen
to the INFO/INITIALIZE screen, and then
turn the multi-function knob to select
“INITIALIZE.”
2. Press the multi-function knob to select.
3. When the INITIALIZE screen appears, turn
the multi-function knob to select either
“CURRENT DATA” or “SCENE MEMORY.”
4. Press the multi-function knob to display the
settings dialog.
5. Turn the multi-function knob to select either
“OK” or “CANCEL.”
6. Press the multi-function knob to confirm.
A progress bar will appear and the
initialization process will begin.
NOTE
If the initialization is performed with “CURRENT DATA”
selected, the AXR4 device will restart automatically
when the process is complete.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 22
MONITOR SETUP Screen
This screen is used to configure monitor
output settings.
How to open the MONITOR SETUP
screen
Press the [MONI] key on the AXR4 device
panel to open the MONITOR SETUP screen.
MAIN display area
This area displays options in a list.
PHONES PATCH screen
This screen is used to set the mix bus to be
assigned to the output jack.
How to open the PHONES PATCH
screen
1. On the MONITOR SETUP screen, turn the
multi-function knob to select “PHONES
PATCH.”
2. Press the multi-function knob to confirm.
MAIN display area
The names of each output jack appear on the
left, and the names of the currently set mix bus
appear on the right.
How to use the PHONES PATCH screen
1. Turn the multi-function knob to select an
output jack.
2. Press the multi-function knob to select.
3. When the list of available mix buses
appears, turn the multi-function knob to
select a mix bus.
4. Press the multi-function knob to confirm.
PHONES
PATCH
For setting the mix bus assigned
to the PHONES jack
OUTPUT
PATCH
For setting the mix bus assigned
to the output jack
MAIN OUT
SETUP
For setting the mix bus for which
levels are controlled when
turning the multi-function knob
on the METER screen
WARNING
To avoid loud sounds unintentionally coming
through headphones, check that the headphone
volume (PHONES [1]/[2] knob) is set to the
minimum level before configuring output patch
settings.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 23
OUTPUT PATCH screen
This screen is used to set the mix bus to be
assigned to the output jack.
How to open the OUTPUT PATCH
screen
1. On the MONITOR SETUP screen, turn the
multi-function knob to select “OUTPUT
PATCH.”
2. Press the multi-function knob to confirm.
MAIN display area
The names of each output jack appear on the
left, and the names of the currently set mix bus
appear on the right.
How to use the OUTPUT PATCH screen
1. Turn the multi-function knob to select an
output jack.
2. Press the multi-function knob to select.
3. When the list of available mix buses
appears, turn the multi-function knob to
select a mix bus.
4. Press the multi-function knob to confirm.
MAIN OUT SETUP screen
This screen is used to set the mix bus for
which levels are controlled when turning the
multi-function knob on the METER screen.
How to open the MAIN OUT SETUP
screen
1. On the MONITOR SETUP screen, turn the
multi-function knob to select “MAIN OUT
SETUP.”
2. Press the multi-function knob to confirm.
MAIN display area
This area displays a list of mix buses.
How to use the MAIN OUT SETUP
screen
1. Turn the multi-function knob to select a mix
bus.
2. Press the multi-function knob to confirm.
WARNING
To avoid loud sounds unintentionally coming
through speakers and headphones, check that the
volume of powered speakers, amps, and
headphones (the PHONES [1]/[2] knob for the
AXR4 device) is set to the minimum level before
configuring output patch settings.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 24
CH SETUP Screen
This screen is used to configure AXR4
hardware inputs.
How to open the CH SETUP
screen
Press the [CH] key on the AXR4 device panel
to open the CH SETUP screen.
TOOL BAR display area
This area displays available hardware inputs.
MAIN display area
This area displays options in a list.
ANALOG SETUP screen (MIC)
This screen is used to configure audio
controls for signal inputs through the MIC/
LINE/HI-Z [1]/[2] jack and the MIC/LINE [3]/[4]
jack.
How to open the ANALOG SETUP
screen (MIC)
1. On the CH SETUP screen, turn the multi-
function knob to select “TOOL BAR
Display Area.”
2. Press the multi-function knob to select.
3. When the list of available hardware inputs
appears, turn the multi-function knob to
select a hardware input from MIC IN1 to
MIC IN4.
4. Press the multi-function knob to confirm.
5. On the CH SETUP screen, turn the multi-
function knob to select “ANALOG SETUP.”
6. Press the multi-function knob to confirm.
NOTE
When a screen other than the CH SETUP screen is in
use, press the [SEL] key on the front of the AXR4 device
to display the ANALOG SETUP screen for the channel
corresponding to the [SEL] key.
ANALOG
SETUP
For configuring audio control
components at the hardware inputs
NOTE
Options appearing on the following
screen will vary depending on the
channel selected.
SILK For configuring SILK-related
settings
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 25
MAIN display area
This area displays options in a list. The current
setting value is displayed to the right of each
field.
NOTE
Display and dspMixFx AXR parameters are linked.
• GAIN
How to configure
1. On the ANALOG SETUP (MIC) screen, turn
the multi-function knob to select “GAIN.”
2. Press the multi-function knob to select.
3. When the dialog screen appears, turn the
multi-function knob to select a value.
NOTE
• The input meter will appear on the lower part of
the settings dialog screen. Adjusting the audio
while watching the meter allows you to adjust gain
visually.
• If the PAD is already on, the screen will display the
GAIN value damping -20(dB) in advance.
Settings details are as follows.
GAIN For setting analog circuit input
gain
PAD For switching PAD on and off for
analog circuits
+48V For switching phantom power on
and off for analog circuits
PHASE For switching the input signal
phase from positive to negative
HPF For switching the high pass filter
on and off
HI-Z For switching HI-Z on and off for
analog circuits
Setting range +15(dB) to +68(dB)
Step 1(dB)
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 27
• PHASE
How to configure
1. On the ANALOG SETUP (MIC) screen, turn
the multi-function knob to select “PHASE.”
2. Press the multi-function knob to select.
3. When the dialog appears, turn the multi-
function knob to select either “ON” or
“OFF.”
4. Press the multi-function knob to confirm.
• HPF
How to configure
1. On the ANALOG SETUP (MIC) screen, turn
the multi-function knob to select “HPF.”
2. Press the multi-function knob to select.
3. When the dialog appears, turn the multi-
function knob to select either “ON” or
“OFF.”
4. Press the multi-function knob to confirm.
• HI-Z
How to configure
1. On the ANALOG SETUP (MIC) screen, turn
the multi-function knob to select “HI-Z.”
2. Press the multi-function knob to select.
3. When the dialog appears, turn the multi-
function knob to select either “ON” or
“OFF.”
4. Press the multi-function knob to confirm.
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 28
ANALOG SETUP screen (LINE)
This screen is used to configure audio
controls for signal inputs through the LINE
INPUT [5] – [12] jacks.
How to open the ANALOG SETUP
screen (LINE)
1. On the CH SETUP screen, turn the multi-
function knob to select “TOOL BAR
Display Area.”
2. Press the multi-function knob to select.
3. When the list of available hardware inputs
appears, turn the multi-function knob to
select a hardware input from LINE IN 5 to
LINE IN 12.
4. Press the multi-function knob to confirm.
5. On the CH SETUP screen, turn the multi-
function knob to select “ANALOG SETUP.”
6. Press the multi-function knob to confirm.
MAIN display area
This area displays options in a list. The current
setting value is displayed to the right of each
field.
• PAD
How to configure
1. On the ANALOG SETUP (LINE) screen,
turn the multi-function knob to select
“PAD.”
2. Press the multi-function knob to select.
3. When the screen appears, turn the multi-
function knob to select either -10 dBV,
+4 dBu (14 dB), or +4 dBu (20 dB).
NOTE
The number in the parentheses for +4 dBu (20) and
+4 dBu (14) represents the headroom (dB).
4. Press the multi-function knob to confirm.
• PHASE
How to configure
1. On the ANALOG SETUP (LINE) screen,
turn the multi-function knob to select
“PHASE.”
2. Press the multi-function knob to select.
3. When the dialog appears, turn the multi-
function knob to select either “ON” or
“OFF.”
4. Press the multi-function knob to confirm.
PAD For setting the expected input
signal level for analog circuits
PHASE For switching the input signal
phase from positive to negative
HPF For switching the high pass filter
on and off
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 29
• HPF
How to configure
1. On the ANALOG SETUP (LINE) screen,
turn the multi-function knob to select
“HPF.”
2. Press the multi-function knob to select.
3. When the dialog appears, turn the multi-
function knob to select either “ON” or
“OFF.”
4. Press the multi-function knob to confirm.
SILK SETUP screen
This screen is used to configure Silk settings.
How to open the SILK SETUP screen
1. On the CH SETUP screen, turn the multi-
function knob to select “TOOL BAR
Display Area.”
2. Press the multi-function knob to select.
3. When the list of available hardware inputs
appears, turn the multi-function knob to
select a hardware input from MIC IN 1 to
MIC IN 4.
4. Press the multi-function knob to confirm.
5. On the CH SETUP screen, turn the multi-
function knob to select “SILK.”
6. Press the multi-function knob to confirm.
NOTE
To navigate to the SILK SETUP screen, use either the
SILK [ON] key, the SILK [TEXTURE] knob, or the SILK
[BLUE/RED] key on the front of the AXR4 device.
MAIN display area
This area displays options in a list. The current
setting value is displayed to the right of each
field.
SILK Turns Silk on and off
TYPE Changes the Silk type
TEXTURE Adjusts the amount of Silk
processing
Panel Controls and Functions (Main Panel)
AXR4 Operation Manual 30
• SILK
How to configure
1. On the SILK SETUP screen, turn the multi-
function knob to select “SILK.”
2. Press the multi-function knob to select.
3. When the dialog appears, turn the multi-
function knob to select either “ON” or
“OFF.”
4. Press the multi-function knob to confirm.
• TYPE
How to configure
1. On the SILK SETUP screen, turn the multi-
function knob to select “TYPE.”
2. Press the multi-function knob to select.
3. When the screen appears, turn the multi-
function knob to select either “BLUE” or
“RED.”
4. Press the multi-function knob to confirm.
• TEXTURE
How to configure
1. On the SILK SETUP screen, turn the multi-
function knob to select “TEXTURE.”
2. Press the multi-function knob to select.
3. When the dialog screen appears, turn the
multi-function knob to select a value.
Software
AXR4 Operation Manual 31
Software
This section explains software operations for using the AXR4 with a computer.
Yamaha Steinberg Thunderbolt
Driver
Yamaha Steinberg Thunderbolt Driver is a
software program that allows communication
between the AXR4T and a computer.
In Control Panel, you can configure the basic
settings for the audio driver.
How to Open the Window
Windows
•From the start menu, select [Yamaha
Steinberg Thunderbolt Driver] [Control
Panel].
•From the Cubase series menu, select
[Studio] [Studio Setup] [Yamaha
Steinberg Thunderbolt] [Control Panel].
Click the upper tabs to select the desired
window.
Mac
•Select [Application] [Yamaha Steinberg
Thunderbolt Control Panel]
•From the Cubase series menu, select
[Studio] [Studio Setup] [Yamaha
Steinberg Thunderbolt] or [Yamaha
Steinberg Thunderbolt (High Precision)]
[Control Panel] [Open Config App]
AXR4 Window
For selecting the AXR4T settings.
1Device selection tabs
Used to switch to the AXR4T which you
want to configure settings for in the Control
Panel when multiple AXR4Ts are
connected together in a stack.
2Sample Rate
Used to change the AXR4T device sample
rate (page 14).
NOTE
On Mac, you can also change the sample rate in
“Applications” “Utilities” “Audio MIDI Settings”
3Clock Source
Used to set the AXR4T device clock
source (page 13).
1
3
2
Software
AXR4 Operation Manual 32
ASIO Window (Windows only)
For selecting the ASIO driver settings.
4Buffer Size
Lets you select the buffer size for the ASIO
driver. The range varies depending on the
specified sample rate. The lower the value
of the ASIO buffer size, the lower the value
of audio latency.
5DMA Buffer Size
Lets you select the buffer size for the
AXR4T. The lower the value of the DMA
buffer size, the lower the value of audio
latency. This value is changed
automatically when you change “4Buffer
Size”.
6Input Latency / Output Latency
Indicates the latency (delay time) for the
audio input and output in millisecond units.
7Enable MMCSS
When this check box is checked, ASIO
performance may be improved because
CPU resources are preferentially assigned
to ASIO driver processing. Conversely, the
performance may be deteriorate
depending on your computer environment.
About Window
Indicates the version and copyright
information of the audio driver.
How to Select the Buffer Size (Mac)
You can select the buffer size in the settings
window for each application (DAW software,
etc.).
From the Cubase series menu, select [Studio]
[Studio Setup], then click [Control Panel] in
[Yamaha Steinberg Thunderbolt] or [Yamaha
Steinberg Thunderbolt (High Precision)] in the
menu on the left side of the window.
NOTE
The method for opening the settings window is different
for each application.
Using with 32-bit Integer processing
(Mac)
[Yamaha Steinberg Thunderbolt] or [Yamaha
Steinberg Thunderbolt (High Precision)] is
shown in the [ASIO Driver] setting on the
Cubase series program. Select [Yamaha
Steinberg Thunderbolt (High Precision)] when
processing at 32-bit integer resolutions
between Cubase and the driver.
Steinberg AXR4 2TR (Mac)
Select this audio driver when playing OS
audio, iTunes audio and other non-DAW
application audio. You can also record the
audio signals of the channel on which
LOOPBACK is set to ON by using this audio
driver (page 42). One stereo line is available
for playback and recording channels.
Sample rate Setting range
44.1 kHz/
48 kHz
32 Samples to 2048 Samples
88.2 kHz/
96 kHz
64 Samples to 4096 Samples
176.4 kHz/
192 kHz
128 Samples to 8192 Samples
352.8 kHz/
384 kHz
256 Samples to 16384 Samples
4
6
7
5
Software
AXR4 Operation Manual 33
Yamaha Steinberg USB Driver
Yamaha Steinberg USB Driver is a software
program that allows communication between
the AXR4U and a computer. In Control Panel,
you can configure the basic settings for the
audio driver.
How to Open the Window
Windows
•From the start menu, select [Yamaha
Steinberg USB Driver] [Control Panel].
•From the Cubase series menu, select
[Studio] [Studio Setup] [Yamaha
Steinberg USB ASIO] [Control Panel].
Click the upper tabs to select the desired
window.
Mac
•Select [Application] [Yamaha Steinberg
USB Control Panel]
•From the Cubase series menu, select
[Studio] [Studio Setup] [Steinberg
AXR4U] or [Steinberg AXR4U (High
Precision)] [Control Panel] [Open
Config App]
Steinberg AXR4 Window
For selecting the AXR4U settings.
Windows
Mac
1Sample Rate (Windows only)
Used to change the AXR4U sample rate
(page 14).
NOTE
That sample rates that you can select will vary
depending on the sample rates supported by your
DAW.
2Clock Source (Windows only)
Used to set the AXR4U clock source
(page 13).
3USB Mode
Used to set the AXR4U USB mode
(page 19).
1
2
3
3
Software
AXR4 Operation Manual 34
ASIO Window (Windows only)
For selecting the ASIO driver settings.
4Device
For selecting the device on which the ASIO
driver is used. This is enabled when two or
more devices supported by the Yamaha
Steinberg USB Driver are connected to the
computer.
5Mode
For selecting the latency mode.
Options: Low Latency, Standard, Stable
6Buffer Size
Lets you select the buffer size for the ASIO
driver. The range varies depending on the
specified sample rate. The latency will
change depending on the buffer size
setting. The lower the value of the buffer
size, the lower the value of audio latency.
7Input Latency/Output Latency
Indicates the latency (delay time) for the
audio input and output in milliseconds.
About window
Displays the version and copyright information
for the audio driver.
How to Select the Sample Rate (Mac)
How to Select the Clock Source (Mac)
You can select these settings in [Audio MIDI
Setup].
Select [Applications] [Utilities]   [Audio
MIDI Setup]. In [Format], select a sample rate.
In [Clock Source], select a clock source.
Options Description
Low Latency This mode provides low latency.
A high-performance computer is
required to use this mode.
Standard This is the standard latency
mode.
Stable This mode has higher latency. It
provides greater stability for low-
spec computers and projects
that place a heavy load on the
CPU.
Sample rate Setting range
44.1 kHz/
48 kHz
32 Samples to 2048 Samples
88.2 kHz/
96 kHz
64 Samples to 4096 Samples
176.4 kHz/
192 kHz
128 Samples to 8192 Samples
352.8 kHz/
384 kHz
256 Samples to 16384 Samples
Software
AXR4 Operation Manual 35
How to Select the Buffer Size (Mac)
You can select the buffer size in the settings
window for each application (DAW software,
etc.).
From the Cubase series menu, select [Studio]
[Studio Setup], then click [Control Panel] in
the [Steinberg AXR4] or [Steinberg AXR4
(High Precision)] menu on the left of the
window to select the buffer size. The open
method of the settings window will vary
depending on the application.
Using with 32-bit Integer Processing
(Mac)
In Cubase, you can select [Steinberg AXR4]
or [Steinberg AXR4 (High Precision)]. Select
[Steinberg AXR4 (High Precision)] when
processing at 32-bit integer resolutions
between Cubase and the driver.
Software
AXR4 Operation Manual 36
dspMixFx AXR
This software is used to operate the DSP mixer and DSP effects installed on the AXR4 device.
Window Examples and How to Open the Window
Window configuration
dspMixFx AXR is composed of five windows including the Mixer window.
NOTE
Click the bottom right edge of the window and drag it diagonally to adjust the size of the window while expanding and
contracting the size of the items displayed.
Mixer window Matrix Mixer window
Meter window
Show/Hide Channels window
Settings window
Software
AXR4 Operation Manual 37
How to open dspMixFx AXR
“Applications” “dspMixFx AXR”
Mixer Window
This window is used to control the mixer.
1Input Channels area (page 38)
2Output Channels area (page 42)
3Right side bar (page 44)
4Left side bar (page 45)
5Menu (page 48)
6Scroll bar
NOTE
Contents displayed on the Mixer window can be changed by performing the following actions.
•Move the scroll bar to display input channels and output channels outside the display area.
•Click the top or bottom edge of the Mixer window and drag it up and down to change the window size without changing
the mixer size.
•Click the upper right edge of the Mixer window and drag it diagonally to scale the mixer along with the window size.
•Click the right edge of the Mixer window and drag it left and right to increase or decrease the number of channels
displayed in the input channels area.
1 2
34
5
6
Software
AXR4 Operation Manual 38
Input Channels Area
This area is used to configure input channel
settings. If you are unable to display all
channels due to the window size, use the
scroll bar to display the intended channels.
You can switch between stereo and mono for
all input channels. You can select which
channels to display using filtering settings.
Some functions allow you to select either to
display all details or to show a reduced
display.
1Channel label (page 38)
2Input Settings area (page 39)
3SILK (page 40)
4Insert FX (page 40)
5Reverb Send (page 40)
6PAN/FADER area (page 43)
NOTE
•In the input channels area and the output channels
area, you can select to display all functions (Display
All) or to display designated functions only (Reduced
Display) (page 45).
•Not all channels will be displayed in the input channels
area on the initial window shown when launching
dspMixFx AXR. Either move the display using the scroll
bar, or increase the window width to display hidden
channels.
Channel label
*Red box section
This displays the channel name. Double click
this to rename the channel name. Channel
labels can be up to ten characters long.
Right click on the channel label (Windows) or
click on the channel label while holding down
the <control> key (Mac).
Channel name
Click this to reset the channel name back to its
initial setting.
Channel Link
Click this on a mono channel to link the
channel to the adjacent channel. Click this on
a stereo channel to convert a stereo channel
into two mono channels. A tick will appear to
indicate linked channels.
2
1
6
3
5
4
Software
AXR4 Operation Manual 39
Input Settings area — Head amp
1[+48V] button
Turns the phantom power on and off.
2[PAD] button
Switches the PAD on and off.
3[HI-Z] button (CH1 and CH2 Only)
Switches the HI-Z on and off.
NOTE
Attenuation when PAD is on is 20 (dB).
4Input Gain control knob
Adjusts the input gain.
5Input Gain value
Used to display and edit the current input
gain.
6High Pass Filter button
Switches the high pass filter on and off.
7[ϕ] button
Switches phase inversion on and off.
When channels are stereo linked, the
[ϕ] button will appear for both left and right
channels.
NOTE
•Left click the input gain control knob while holding
down the <Ctrl> key (Windows) or click the input gain
control knob while holding down the <command> key
(Mac) to minimize input gain.
•You can also control the input gain control knob with
the mouse wheel.
•Double click the input gain value to enter a gain value
directly.
Input Settings area — Line
1[+4dBu(20)] button
Sets the required input level to +4 dBu
(20).
2[+4dBu(14)] button
Sets the required input level to +4 dBu
(14).
NOTE
The number in the parentheses for +4 dBu (20) and
+4 dBu (14) represents the headroom (dB).
3[-10dBV] button
Sets the required input level to -10 dBV.
4High Pass Filter button
Switches the high pass filter on and off.
5[ϕ] button
Switches phase inversion on and off.
When channels are stereo linked, the
[ϕ] button will appear for both left and right
channels.
NOTICE
When connecting devices or when switching
the routing structure, observe the following
cautions to avoid damage and noise being
introduced to the product and peripheral
devices.
•Turn the phantom power off when connecting
a device that does not support phantom
power to the MIC/LINE/HI-Z [1]/[2] jack or the
MIC/LINE [3]/[4] jack.
•Do not connect or disconnect cables to/from
the MIC/LINE/HI-Z [1]/[2] jacks or the MIC/LINE
[3]/[4] jacks while the phantom power is on.
The [+48V] indicator will flash for several
seconds when phantom power is turned off.
Wait until this indicator stops flashing before
plugging in or taking out cables.
•Turn the phantom power on and off when the
[MUTE] key on the front of the AXR4 device is
on.
•HI-Z and phantom power cannot be turned on
at the same time.
21
6
7
3
5
4
1
4
5
2
3
Software
AXR4 Operation Manual 40
SILK (Display all)
1SILK button
Switches the Silk function on and off.
2BLUE/RED button
Changes between BLUE and RED.
3TEXTURE control knob
Adjusts the amount of Silk of TEXTURE
applied.
4TEXTURE value
Used to display and edit TEXTURE value.
NOTE
•Left click the TEXTURE control knob while holding
down the <Ctrl> key (Windows) or click the TEXTURE
control knob while holding down the <command> key
(Mac) to minimize TEXTURE.
•You can also control the TEXTURE control knob with
the mouse wheel.
•Double click the TEXTURE value to enter a texture
value directly.
Insert FX (Display all)
1FX REC button
Switches the recording with effects applied
(FX REC lit) and recording without effects
(FX REC dark).
2FX Bypass button (SLOT 1)
Bypass switch for the inserted effect.
3FX Edit button (SLOT 1)
Configures inserted effect settings.
4Select FX (SLOT 1)
Used to select an effect and display the
currently selected effect.
5FX Bypass button (SLOT 2)
Bypass switch for the inserted effect.
6FX Edit button (SLOT 2)
Configures inserted effect settings.
7Select FX (SLOT 2)
Used to select an effect and display the
currently selected effect.
Reverb Send (Display all)
1Reverb Send knob
Controls the reverb send amount.
2Reverb Send amount
Used to display and edit the reverb send
amount.
NOTE
•Left click the Reverb Send knob while holding down
the <Ctrl> key (Windows) or click the Reverb Send
knob while holding down the <command> key (Mac)
to minimize the reverb send amount.
•You can also control the Reverb Send knob with the
mouse wheel.
•Double click the Reverb Send value to enter a reverb
send value directly.
1
4
2
3
1
2
3
4
5
6
7
1
2
Software
AXR4 Operation Manual 41
PAN/FADER area
1PAN knob
Adjusts the degree of pan applied.
2PAN value
Used to display and edit the pan value.
3MUTE button
Switches the mute feature on and off.
4SOLO button
Switches the solo function on and off.
5Level meter
Displays the input level.
6Send Level control fader
Adjusts send levels.
7Send Level
Used to display and edit the send level.
8Mix Bus (Send Destination)
Used to display and select mix buses.
How to use the Mix Bus (Send
Destination) option and the drop down
menu
Click the mix bus (send destination) to display
a list of mix buses available for routing. Click a
mix bus from the list displayed for routing.
NOTE
•Left click the PAN knob while holding down the <Ctrl>
key (Windows) or click the PAN knob while holding
down the <command> key (Mac) to center the pan.
•You can also control the PAN knob with the mouse
wheel.
•Double click the PAN value to enter a pan value
directly.
•While holding down the <shift> key on your computer,
drag the send level control fader to allow for finer fader
level control based on the dragging amount.
•Double click the send level to enter a send value
directly.
•Each input channel has its own pan value and the
send level for each mix bus. Re-selecting a mix bus
(send destination) changes fader and PAN knob
displays based on the PAN value and send level set for
the selected mix bus.
1
3
2
4
7
5
6
8
Software
AXR4 Operation Manual 42
Output Channels Area
This area is used to configure output channel
settings. This area is fixed to display four
channels (eight stereo channels), regardless
of window size. You can switch between
stereo and mono for all output channels. Scroll
to display the intended channel. You can
select which channels to display using filtering
settings.
1Insert FX (page 42)
2Reverb Return (page 43)
3PAN/FADER area (page 43)
Insert FX (Display all)
1[LOOPBACK] button
Switches the function to return channel
audio signals back to computer system
sounds on and off.
NOTE
To record the loopbacked audio in the computer,
select “Steinberg AXR4” in the Windows sound
settings, or select “Steinberg AXR4 2TR” in the Mac
sound input settings.
2FX Bypass button (SLOT 1)
Bypass switch for the inserted effect.
3FX Edit button (SLOT 1)
Configures inserted effect settings.
4Select FX (SLOT 1)
Used to select an effect and display the
currently selected effect.
5FX Bypass button (SLOT 2)
Bypass switch for the inserted effect.
6FX Edit button (SLOT 2)
Configures inserted effect settings.
7Select FX (SLOT 2)
Used to select an effect and display the
currently selected effect.
2
1
3
1
2
3
4
5
6
7
Software
AXR4 Operation Manual 43
Reverb Return (Display all)
1Reverb Return knob
Adjusts the reverb return amount.
2Reverb Return amount
Used to display and edit the reverb return
amount.
NOTE
•Left click the Reverb Return knob while holding down
the <Ctrl> key (Windows) or click the Reverb Return
knob while holding down the <command> key (Mac)
to set the return amount to nominal.
•You can also control the Reverb Return knob with the
mouse wheel.
•Double click the Reverb Return value to enter a reverb
return value directly.
PAN/FADER area
1PAN knob
Adjusts the degree of pan applied.
2PAN value
Used to display and edit the pan value.
3MUTE button
Turns the MUTE on and off.
4Output Level control fader
Adjusts output levels.
5Level meter
Displays output levels.
6Output Level
Used to display and edit the output level.
7Headphone 1 button
Outputs to headphone 1.
8Headphone 2 button
Outputs to headphone 2.
1
2
1
3
2
8
6
4
5
7
Software
AXR4 Operation Manual 44
Right Side Bar
This is used to open and close, and show and
hide areas on the channel strip, and configure
REV-X settings.
1REV-X (page 44)
2Filtering buttons (page 44)
REV-X
1INPUT meter
Displays reverb input signal levels.
2OUTPUT meter
Displays reverb output signal levels.
3Reverb Edit button
Opens the reverb advanced settings
window.
4Select Reverb Type
Selects a reverb type.
5Reverb Time settings knob
Adjusts the reverb time.
6Reverb Time setting value
Used to display and edit the current reverb
time.
NOTE
•Left click the Reverb Time settings knob while holding
down the <Ctrl> key (Windows) or click the Reverb
Time settings knob while holding down the
<command> key (Mac) to set the reverb time to
default.
•You can also control the Reverb Time settings knob
with the mouse wheel.
•Double click the Reverb Time setting value to enter a
reverb time directly.
Filtering buttons
1[Analog] button
Shows/hides analog output channels.
2[Digital] button
Shows/hides digital output channels
(ADAT, S/PDIF, AES/EBU).
2
1
1
3
5
4
2
6
1
2
Software
AXR4 Operation Manual 45
Left Side Bar
This is used to switch between display all/
reduced display, or to show/hide functions in
the input channels area and the output
channels area.
1Switch between Display all/ Reduced
display (page 45)
2Filtering buttons (page 46)
Switch between Display all/
Reduced display
1INPUT
Switches between display all/reduced
display for input settings.
2SILK
Switches between display all/reduced
display for Silk settings.
3INSERT
Switches between display all/reduced
display for inserts effect settings.
4REV-X
Switches between display all/reduced
display for reverb send and reverb return
settings.
2
1
1
2
3
4
Software
AXR4 Operation Manual 46
Filtering buttons
1[Analog] button
Shows/hides analog input channels (MIC
and LINE channels for hardware inputs).
2[Digital] button
Shows/hides digital input channels (ADAT,
S/PDIF, AES/EBU channels for hardware
inputs).
3[DAW] button
Shows/hides DAW input channels.
1
2
3
Software
AXR4 Operation Manual 47
Relational Tables
Information on available operations by channel type, and display all mode and reduced display
mode correspondence is provided in the tables below.
Channel-specific settings
*1 Can be inserted into two slots
*2 Unavailable when the output channel is configured for mono
Channel-specific settings
*1 Can be inserted into two slots
*2 Unavailable when configured for mono
Item Description HARDWARE DAW
ANALOG DIGITAL
1 – 2 CH 3 – 4 CH 5 – 12 CH 13 CH onwards All CH
Display
all
Reduced
display
Display
all
Reduced
display
Display
all
Reduced
display
Display
all
Reduced
display
Display
all
Reduced
display
Settings
area
Input +48V Turns phantom power on/off -- -- -- -- -- --
PAD Switches PAD on/off -- -- -- -- -- --
HI-Z Switches HI-Z settings on/off -- -- -- -- -- -- -- -- --
Gain knob Adjusts input gain  -- -- -- -- -- -- -- --
Gain value Input Adjusts input gain value -- -- -- -- -- --
Change gain Changes input gain -- -- -- -- -- -- -- -- --
HPF Switches high pass filter on/
off
  -- -- -- -- -- -- --
PHASE Used for PHASE settings -- -- -- -- -- -- --
SILK ON/OFF Switches SILK on/off -- -- -- -- -- --
BLUE/RED Changes between BLUE/RED -- -- -- -- -- --
TEXTURE knob Used for setting TEXTURE
knob
 -- -- -- -- -- -- -- --
TEXTURE value
input
Used to set TEXTURE value    -- -- -- -- -- --
Insert FX FX REC Used for a recording with
effects applied
   -- -- -- -- -- --
FX Bypass (*1) Bypass the inserted effect -- -- -- -- -- --
FX Edit (*1) Displays the effect settings
window
   -- -- -- -- -- --
Select effect (*1) Used to select the effect to
insert
-- --
Reverb
Send
Send amount knob Adjusts reverb send amount -- -- -- -- --
Send amount value
input
Used to input reverb send
amount value

PAN/
FADER
area
PAN (*2) Used for PAN settings 
MUTE Switches MUTE on/off 
SOLO Switches SOLO on/off 
Fader+ value input Adjusts send level 
Meter Displays input level 
Item Description All CH
Display
all
Reduced
display
Settings area LOOPBACK Switches loopback to PC on/off --
Insert FX ON/OFF (*1) Switches effect on/off --
Edit FX (*1) Displays the effect settings window --
Select effect (*1) Used to select the effect to insert  
Reverb Return Return amount knob Reverb return amount control knob --
Return amount input Used to input reverb return amount  
PAN/FADER area PAN (*2) Used for pan settings  
MUTE Switches MUTE on/off  
SOLO Switches SOLO on/off  
Fader+ value input Adjusts output level  
Meter Displays output level  
Headphone Switches headphone monitor on/off  

Produktspecifikationer

Varumärke: Steinberg
Kategori: Inte kategoriserad
Modell: AXR4U

Behöver du hjälp?

Om du behöver hjälp med Steinberg AXR4U ställ en fråga nedan och andra användare kommer att svara dig


Inte kategoriserad Steinberg Manualer

Steinberg

Steinberg AXR4U Bruksanvisning

23 Februari 2025
Steinberg

Steinberg Marco Minnemann Studio Drums Bruksanvisning

23 Februari 2025
Steinberg

Steinberg The Grand 3 Bruksanvisning

21 Februari 2025
Steinberg

Steinberg HALion Symphonic Orchestra Bruksanvisning

21 Februari 2025
Steinberg

Steinberg Dorico Pro 3.5 Bruksanvisning

21 Februari 2025
Steinberg

Steinberg SBS-NL-5 Bruksanvisning

1 Februari 2025
Steinberg

Steinberg SBS-LAB-110 Bruksanvisning

1 Februari 2025
Steinberg

Steinberg SBS-LF-153 Bruksanvisning

9 Januari 2025
Steinberg

Steinberg SBS-LVS-200 Bruksanvisning

9 Januari 2025
Steinberg

Steinberg SBS-TWB-100 Bruksanvisning

18 December 2024

Inte kategoriserad Manualer

Nyaste Inte kategoriserad Manualer

IFM

IFM PE2599 Bruksanvisning

2 April 2025
IFM

IFM RU6035 Bruksanvisning

2 April 2025
Nedis

Nedis WCPD18W100BK Bruksanvisning

2 April 2025
Targus

Targus APK032US Bruksanvisning

2 April 2025
Beghelli

Beghelli Formula 65 LED HT Bruksanvisning

2 April 2025
Simrad

Simrad NEP-3 Bruksanvisning

2 April 2025
Simrad

Simrad S3100H Bruksanvisning

2 April 2025
Sharp

Sharp NQ-R256A Bruksanvisning

2 April 2025
Electro Harmonix

Electro Harmonix Triangle Big Muff Pi Bruksanvisning

2 April 2025
Black Box

Black Box KVS4-2002V Bruksanvisning

2 April 2025
