Rev. 1.0b
®
SUPER

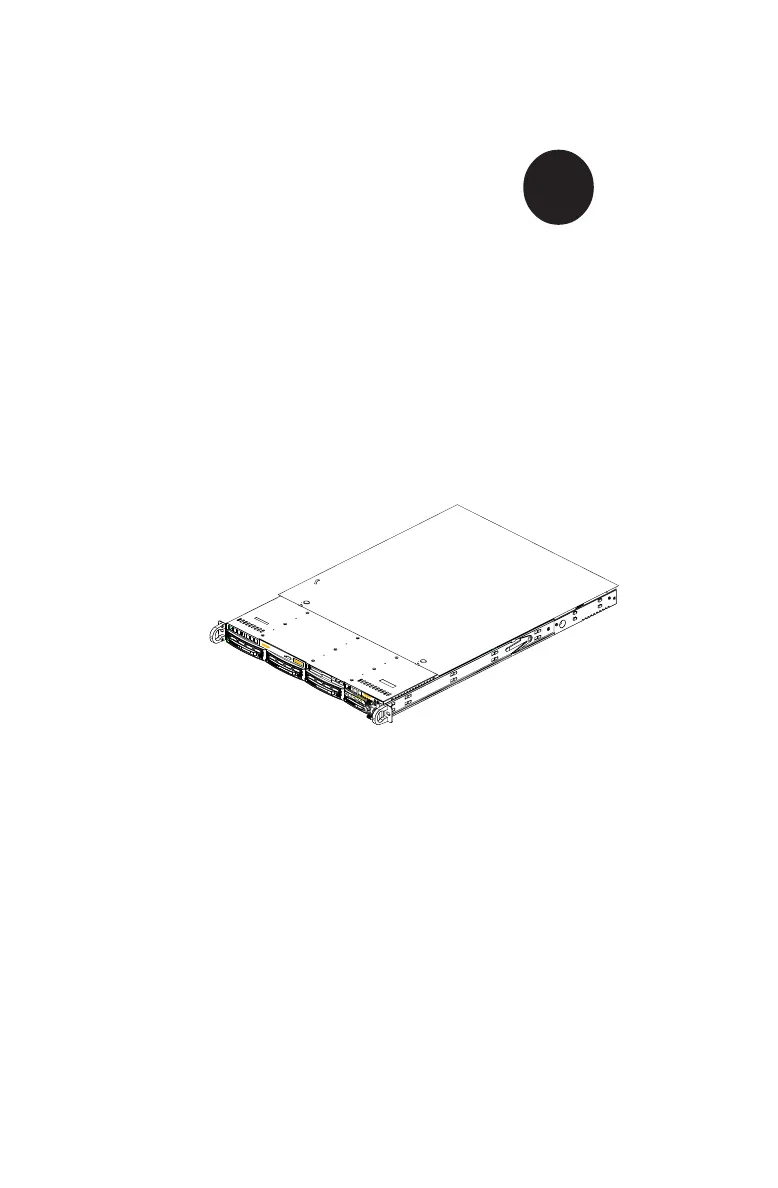

The SC813/SC813M Chassis Series
Installation Guide
SC813/813M Chassis User's Guide
1-2
Table of Contents
Chapter I: Introduction ............................................................... 1-3
A. Packing Lists ............................................................................................... 1-3
B. Front Panel LED Indicators ....................................................................... 1-4
C. SC813/SC813M Chassis Specifications ................................................. 1- 5
D. SC813/SC813MPower Supply Specifications ........................................ 1 -6
Chapter 2: Installation Procedures ........................................... 2-1
Section 1: Installing components into the SC813 Chassis ....... 2-1
A. Removing the top Cover of the SC813 Chassis .................................. 2-1
B. Accessing the SCA Drive Tray to Install a Hard Drive ....................... 2-2
C. Rail Installation ........................................................................................... 2-3
D. Installing the Slide Assemblies into the Rack ....................................... 2-4
E. Installing the Chassis into the Rack ........................................................ 2-5
Section 2: Appendix A: SCSI (Super) GEM Driver Installation
Instructions for Windows OS ............................................................ 2-6
1-3
Chapter 1: Introduction
Chapter 1- Introduction
A. Packing Lists
A-1 The SC813 chassis
The SC813 chassis contains the following:
One (1) Slim CD ROM Drive [CDM-TEAC-24(B)]
Four (4) SCA 1" drive trays [CSE-PT39-(B)]
One (1) Slim 3.5" floppy drive [FPD-TEAC-S(B)]
Two (2) 100mm Blowers [FAN-0059]
One (1) Cold-swappable 500W power supply [PWS-0048]
One (1) Power supply backplane [CSE-PT813-PD520 for the SC813T/S-500
Series]
One (1) Power supply backplane [CSE-PT813-PD524 for the SC813T/S-500C
Series]
One (1) 4-port SATA backplane [CSE-SATA-813 (*for 813T)]
One (1) 4-port SCSI backplane [CSE-SCA-813S (*for 813S)]
The accessory box contains the following:
One set of motherboard screws
One set of drive screws
One set of HDD (hard disk drive) screws
One (1) AC power cord
Rail Packaging includes:
One pair of rear inner slides to be installed on the chassis
One pair of outer slides to be installed in the rack
Two pairs of short brackets to be used on the front side of the outer slides
(Note: One pair of short brackets include screw threads, and the other pair
do not. Use the only pair that will fit into your rack.)
One pair of long brackets to be used on the rear side of the outer slides
Optional Kits include:
The SC813 Series:
Riser Cards [CSE-RRIU-X]
Low Profile Riser Cards [CSE-RRIU-XLP]
Front Bezel [CSE-PTFB-813(B)]
The SC813C Series:
Riser Cards (64-Bit) [CSE-RRIU-X]
Riser Cards(32-Bit) [CSE-RR32]
Front Bezel [CSE-PTFB-813(B)]
