SUPERMICR R
ContaCt nformatIon I
MNL-1486-QRG R . 1.00ev
• www.supermicro.com(Email:support@supermicro.com)
• Manuals:http://www.supermicro.com/support/manuals
• Drivers&Utilities:ftp://ftp.supermicro.com
• Safety:http://www.supermicro.com/about/policies/safety_information.cfm
© 2013 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written
consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
P C - BaCkage ontents ulk
X10sle-f/Hf

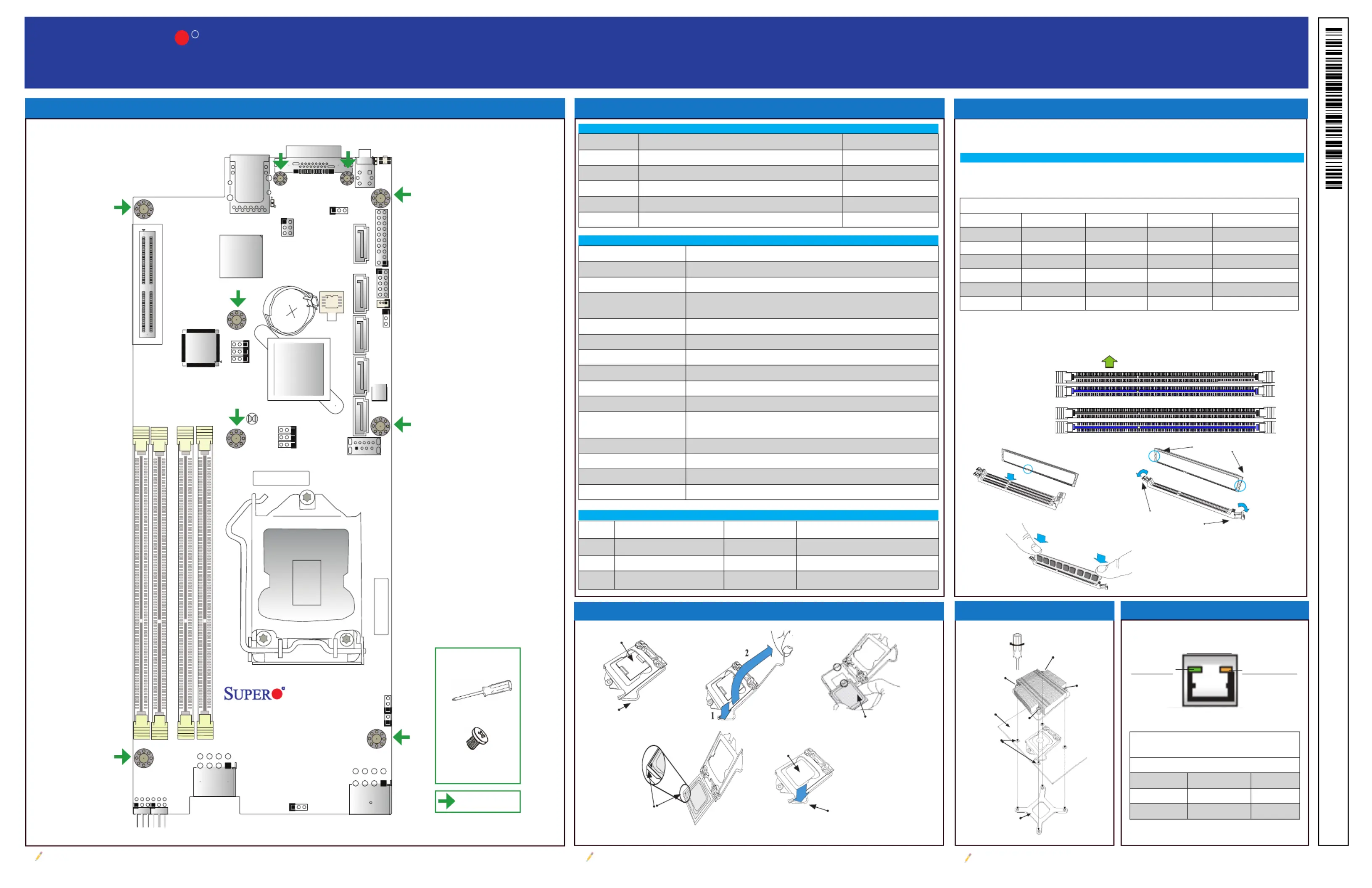

Q r g uICk eferenCe uIde r . 1.00ev
• One(1)QuickReferenceGuide
LED Indicators
Connectors
DIMM Memory Installation
Jumpers, Connectors and LED Indicators Memory Support
Motherboard Layout and Features
Jumpers
Note: Graphics shown in this quick reference guide are for illustration only. Your components may or may not look exactly the same as drawings shown in this guide. Note: Refer to Chapter 1 of the User Manual for detailed information on jumpers, connectors,
and LED indicators.
Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU/
motherboard installation instructions.
= mounting hole
I-SATA4
JSD1JTPM1
JBR1
JPV1
JWD1
JPB1
JPME2
JPME1
J19
JPG1
J18
J22
JBT1
SW1
LED5
LED6
JKVM1
JUIDB1
JPWR2
I-SATA1I-SATA0 I-SATA3I-SATA2
JP16
JP1
JP18JP17
BAR CODE
MAC CODE
Battery
USB3.0-0
IPMI_LAN
UID
MICRO-L PCI-E 3.0 X8P
X10SLE-F/HF
Rev. 1.00
PWR
DIMMB2
DIMMB1
DIMMA2
DIMMA1
CPU
BIOS
PCH
BMC
AST2400
Intel LP
C226/C224
Jumper Description Default
JBT1 CMOS Clear (See Chpt. 2)
JPG1 VGA Enable Pins 1-2 (Enabled)
JPME1 ME Recovery Pins 1-2 (Normal)
JPME2 Manufacture Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Timer Enable Pins 1-2 (RST)
Connector Description
Battery Onboard Battery
IPMI_LAN IPMI_Dedicated LAN
JKVM1 USB (x2)/VGA (Monitor)/COM (UART) Connector for Remote Console
Redirection or Remote Network Interface
JP16 Power Output for Hard Disk Drive (12V and 5V)
JP17 Motherboard Interface to PDB
JP18 Motherboard Interface to PDB
JPWR2 SMC-Proprietary Power Connector
JSD1 SATA DOM (Device_On_Module) Power Connector
JTPM1 Trusted Platform Module/Port 80 Connector
I-SATA0 - I-SATA4 (Intel PCH) Serial ATA Ports 0-4 (I-SATA0-3: SATA 3.0 Ports, I-SATA4:
SATA 2.0 Port)
Micro-LP PCI-E Slot SMC-Proprietary Micro Low-Prole (LP) PCI-Express 3.0 x8 Slot
SW1 Power Switch/LED Indicator
UID Unit Identier (UID) Button (JUIDB)
USB2, USB3 (3.0) Internal Type A USB 3.0
The X10SLE-F/-HF supports up to 32GB of Unbuffered (UDIMM) DDR3 ECC
1600/1333/1066 MHz VLP (Very Low Prole) memory in 4 slots.
Memory Population Guidelines
Please follow the table below when populating the X10SLE-F/HF.
Recommended Population (Balanced)
DIMMA2 DIMMB2 DIMMA1 DIMMB1 Total System Memory
2GB DIMM 2GB DIMM 4GB
2GB DIMM 2GB DIMM 2GB DIMM 2GB DIMM 8GB
4GB DIMM 4GB DIMM 8GB
4GB DIMM 4GB DIMM 4GB DIMM 4GB DIMM 16GB
8GB DIMM 8GB DIMM 16GB
8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB
Insert the desired number of DIMMs into the memory slots, starting with DIMMA2
(Channel A, Slot 2). For the system to work properly, please use the memory
modules of the same type and speed in the same motherboard.
Channel A Slot 1
Channel A Slot 2
(Blue Slot)
Channel B Slot 1
Channel B Slot 2
(Blue Slot)
Towards the CPU
Notches
Release Tabs
Press both notches
straight down into
the memory slot.
Link ivi LED Act ty LED
IPMI LAN
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color/State Denition
Link (Left) Green: Solid 100 Mbps
Amber: Solid 1000 Mbps
Activity (Right) Yellow Blinking Active
Tools Needed:
Screwdriver
Phillips screws (9)
CPU Installation
CPU Properly
Installed
Load Lever Locked
into Place
Load Lever
Load Plate
Pin 1
North Center Edge
Heatsink Installation
Screw#1 Screw#2
Screw#3
Screw#4
Motherboard
Mounting Holes
Heatsink Bracket
IPMI LAN Port LED
LED Description Color/State Status
LE5 BMC Heartbeat LED Green: Blinking BMC Functions Normally
LED5 Power Fail/Fan Fail/Overheat Red: On Power Fail, Fan Fail or Overheating
LED6 UID LED Blue: On Unit Identied
