Sida 1/20

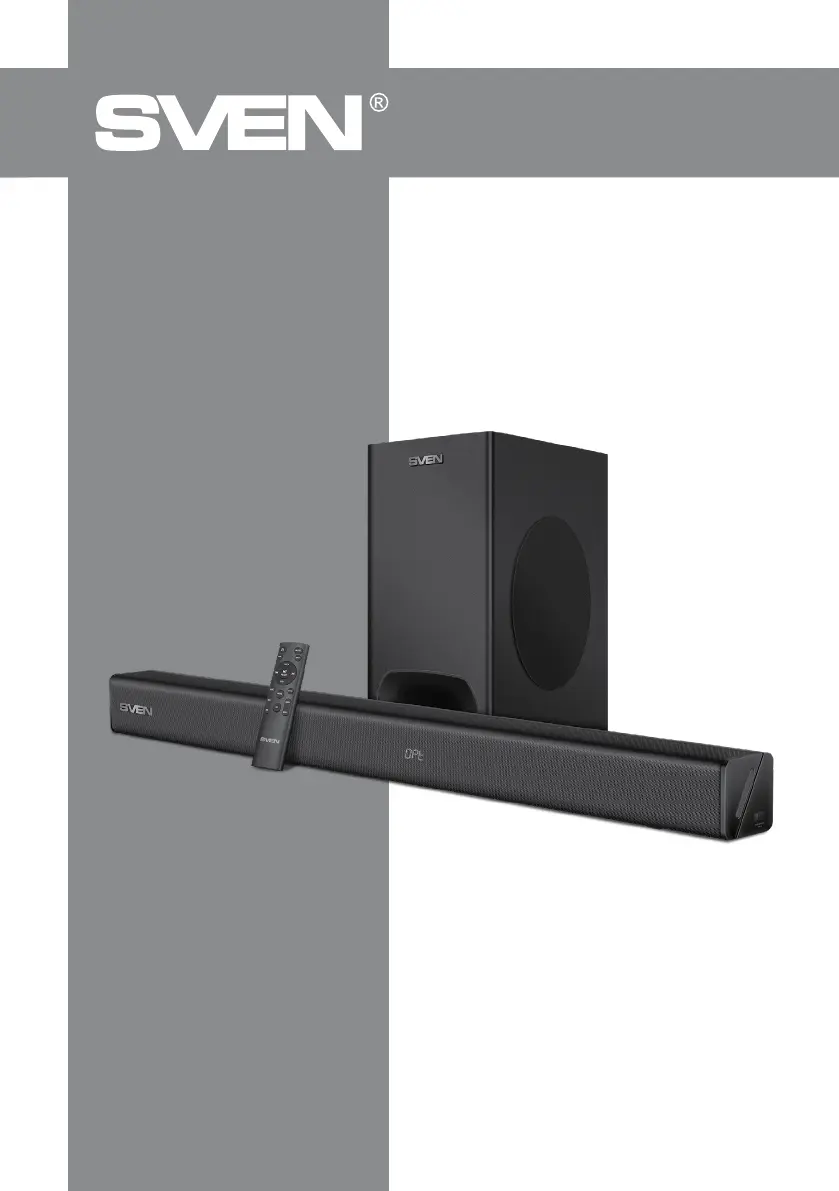

www.sven.fi

USER MANUAL

Soundbar with Wireless

Subwoofer

SB-2400DD

ENG

Soundbar with Wireless

Subwoofer

Congratulations on your purchase of the Sven speaker system!

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eorts to make this Manual more exact, some discrepancies may occur.

Theinformation in this Manual is given on «as is» terms. The author and the publisher do notbear

any liability to a person or an organization for loss or damage which has arisen from the infor-

mation contained in this Manual.

CONTENTS

ENG 2 ...............................................................................................................................................

1. BUYER RECOMMENDATIONS 2 ..................................................................................................

2. PACKAGE CONTENTS 3 ...............................................................................................................

3. SAFETY PRECAUTIONS 3 .............................................................................................................

4. TECHNICAL DESCRIPTION 3 .......................................................................................................

5. PREPARATION AND OPERATION 5 ............................................................................................

6. TROUBLESHOOTING 8 ................................................................................................................

7. TECHNICAL SPECIFICATIONS 9 ..................................................................................................

RUS 10 ..............................................................................................................................................

1. BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up

thedevice for damage; if the product was damaged during transportation, address the rm

which carried out the delivery; if the product functions incorrectly, address the dealer at once.

• Check up the package contents and availability of the warranty card. Make sure the war-

ranty card has a shop stamp, a legible signature or the seller’s stamp and purchase date,

andthegoods number corresponds to that in the warranty card. Remember: in case of warran-

ty card loss ordiscrepancy of numbers you forfeit the right for warranty repairs.

• Do not switch on the speaker system immediately after you bring it into a room from environ-

ment with negative temperature! After unpacking, the speaker system should be kept incondi-

tions ofroom temperature for at least 4 hours.

• Before installing and using the speaker system, read this Manual carefully and keep it forfu-

ture reference.

• Shipping and transportation equipment is permitted only in the original container.

• Does not require special conditions for realization.

• Dispose of in accordance with regulations for the disposal of household and computer equip-

ment.

• The date of manufacture of the product is indicated on the box.

Technical support is on www.sven..

ENG

SB-2400DD

Operation Manual

2. PACKAGE CONTENTS

• Subwoofer — 1 pc

• Soundbar — 1 pc

• Remote control (RC) — 1 pc

• AAA type batteries — 2 pcs

• Mini-jack to mini-jack signal cable — 1 pc

• Optical cable — 1 pc

• Wall-mounting set — 2 pcs

• User manual — 1 pc

• Warranty card — 1 pc

• Mounting guide — 1 pc

3. SAFETY PRECAUTIONS

Caution! High voltage inside! To avoid the risk of electric shock

donot open or touch elements inside.

• To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service

and repairs should be performed only by qualied specialists in an authorized service center.

Thelist of authorized service centers is available on www.sven..

• Do not put foreign objects inside the holes of the MSS.

• Protect the MSS from high humidity, water and dust.

• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not ex-

pose it to direct sunlight.

• Do not place any open ame sources on MSS.

• Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. Whenop-

erating the MSS, do not put any devices on it, do not cover it with cloth or other objects prevent-

ing it from cooling.

• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.

4. TECHNICAL DESCRIPTION

SB-2400DD soundbar with a wireless subwoofer provides virual surround sound. The device isde-

signed for playing music and sounding games, movies, etc. The soundbar is equipped withabuilt-

in power amplier and tone control, compatible with TVs (ARC) and DVD/Media players. Remote

control is included. Has built-in LED-display, Bluetooth-module and optical input.

Special features

• Support of Dolby Digital Plus multichannel digital sound system

• Wireless signal transmission via Bluetooth

• Wireless soundbar connection with subwoofer

• Digital HDMI (ARC)

• Digital optical Input

• Ability to control the soundbar using the TV remote control (HDMI CEC)

• Remote control

• Wall mountable soundbar

• LED display

• Wooden casing of subwoofer (MDF)
