S-4010/S-4020/S-4030
Power Station Box
Ver:C.2
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
USER MANUAL
S W I T E l e c t r o n i c s Co . , LT D.
Congratulations on your purchase of this product. Please read this user manual carefully.
Warning Caution
Never expose this product to rain or moisture.
Never attempt to open this product, please contact the local
agent if have problems.
Never use metal or other conductors to touch the inside of
this product.
Never use the charger not provided by the manufacturer to
charge the Li-ion batteries in order to avoid damage.
Never short-circuit the output socket.
Never put this product in unstable place, it may fall and cause
serious damage.
◆
◆
◆
◆
◆
◆
Only limited to charge/discharge specied size of batteries.
Only work in the temperature between 0 - 40℃ ℃.
Keep the terminals clean and ensure the reliable connection.
Do not cover the cooling vent.
Use the specied fuse to avoid damage.
Not support charge and discharge at the same time.
Pay attention to the selection of the output socket.
◆
◆
◆
◆
◆
◆
◆
Introduction Feature

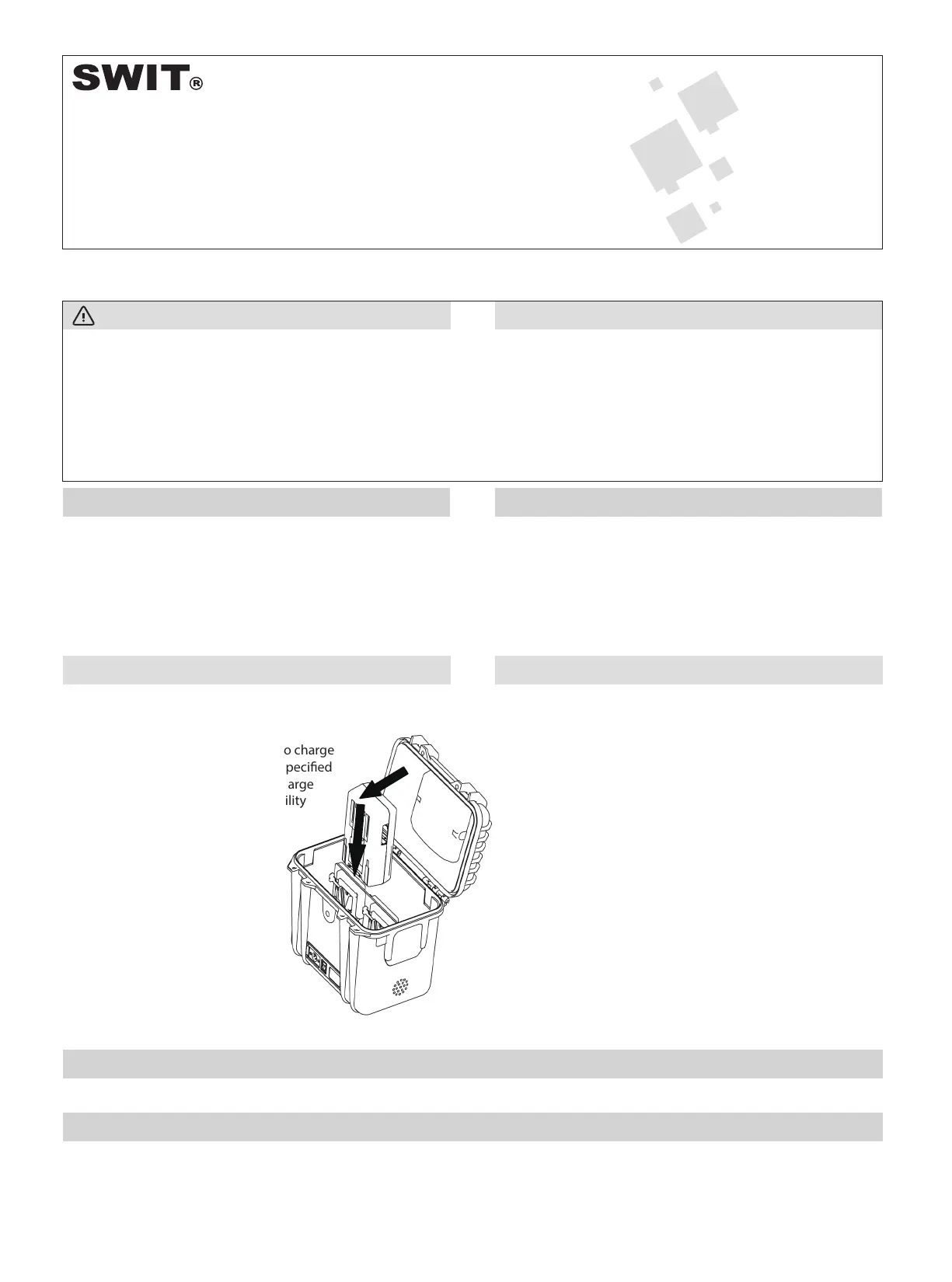

1. Install the V-mount battery following the arrow direction as
shown in gure 1. Battery and battery plate are well
connected with cracking sounds.
2. Use the provided battery charger to charge
(Only limited to charge/discharge specied
batteries). It may cause danger if charge
other batteries due to incompatibility
problem, see details as showed in
“Applicable Battery”. It can charge
maximum 4 V-mount batteries
simultaneously.
3. Make sure the batteries and
battery plates are well connected
before charging.
4. During charging process, pls
refer to “LED panel instruction” to
check the status.
5. When the indicator turns green,
it means fully charged.
Charging Discharging
1. Install the V-mount battery following the arrow direction as
shown ingure 1. Battery and battery plate are well connected
with cracking sounds.
2. To ensure continuous power supply and maximum power
output, it is recommended to use 4 pieces of the same
model and fully charged V-mount batteries to discharge,
otherwise the loading capacity will reduce or cause battery
and adapter protection.
3. S-4020 can output 12V or 24V according to the demands:
①. Dial up the power switch to “ ”, 12V will be activate, －
DC 11-16.8V has output while DC 22-33.6V has no output.
②. Dial down the power switch to ” ”, 24V will be activate,＝
DC 22-33.6V has output while DC 11-16.8V has no output.
4. For S-4030, the sum of 2 channels maximum output load is 15A.
5. Please choose the proper XLR cable. Make sure this product
and load equipment are well connected and no short circuit
before loading.
6. Please change or charging the Li-ion batteries if the LED low
battery warning displays.
fig1
Applicable Battery
All SWIT V-mount batteries no larger than 168x101x68mm
Storage
Please turn o the power switch if it is not used for a long time and take out the inside V-mount batteries.
Keep in cool and dry place.
Please avoid contact with corrosive substances, away from re and heat source.
◆
◆
◆
It adopts PP+ Fiber glass case which is high intensity, high
toughness and high temperature resistant. It can install 4 pieces
of V-mount batteries which can provide more power and longer
power supply time comparing to single Li-ion battery. It can
meet the demand of dierent users, and is very suitable for Cine
cameras, lightings for Film & Television and mobile studios.
1. PP+ Fiber glass case, strong and durable
2. Install 4 x V-mount batteries
3. Charging without take out batteries by provided 4-pin XLR DC
charging socket
4. LED panel to display real-time voltage and low voltage warning
5. Intelligent protective circuit design, safe and reliable
LED Panel Instruction
Specification Packing List
Product appearance
8
7
6
5
1
2
3
4
Fig2 Fig3
① Battery plate
② 4-pin XLR DC charging socket
(Pin 1: Negative, Pin 3: Positive)
③ On/O
④ LED display panel
⑤ ⑧ Fuse holder
⑥ ⑦ DC output
S-4010
S-4030
S-4020
⑥ ⑦ 4-pin XLR DC output socket
(Pin 1: Negative, Pin 4: Positive)
⑥ ⑦ 3-pin XLR DC output socket
(Pin 1: Negative, Pin 2: Positive)
⑥ 3-pin XLR DC output socket
(Pin 1: Negative, Pin 2: Positive)
⑦ 4-pin XLR DC output socket
(Pin 1: Negative, Pin 4: Positive)
S-4010 S-4030 (Dual 12V output) S-4020(12V/24V output) (Dual 24V output)
Model
Input
Output
Dimension
Net weight
Working
environment
DC 16.8V 5A
(Charging)
DC 16.8V 5A
(Charging)
DC 16.8V 5A
( ）Charging
290mm x 221mm x 278mm
3.45Kg
Item Name
Power Station Box
Fuse(65TS-150H/L)
Charger
Power Cable
Warranty Card
User Manual
Certicate of Quality
Quantity
x1
x2
x1
x1
x1
x1
x1
DC11-16.8V
15Ax2 (180Wx2)
DC 11-16.8V 15A (180W) Or
DC 22-33.6V 15A (360W)
DC 22-33.6V p2-x2
Together 15A(360W)
Working temperature: 0 +40 ℃～ ℃
Working humidity: 10% 90%～
Storage temperature: -15 60 ℃～﹢ ℃
Trouble-shooting
Description Possible Cause Solution
Can not output to power
equipments, but the LED panel
display voltage
Fuse has been damaged Change fuse
Reconnect the XLR cable.
DC output socket is not connected to the equipment
or not reliable connected
S-4020
S-4010
S-4030
“O” ：OFF
“ ” ON∣ ：
“ ” : 12V working mode－
“O” : OFF
“ ”: 24V working mode＝
Function Model ON/OFF state LED panel State
Charging
Discharge
S-4010
S-4020
S-4030
O
＝
O
∣
No Display
The outermost ring of the LED panel displays in recycling show way and after each circle,
it will display the current voltage.
The outermost ring of the LED panel displays in recycling show way and after each circle,
it will display the current voltage.
S-4010
S-4020
S-4030
Normal Working Status:
The outermost ring of the LED panel displays in recycling show way and after each circle,
it will display the current voltage.
Not in
“O”
position
No Display
No Display
No Display
No Display
Under Voltage Alarm:
The LED panel display and ash “ ”, it indicates that the voltage of the current batteries is
lower than the under-voltage protection value.
Note:
⑴. The under-voltage protection value for 12V operating mode is 13V；
⑵. The under-voltage protection value for 24V operating mode is 26V.
O
∣
－
