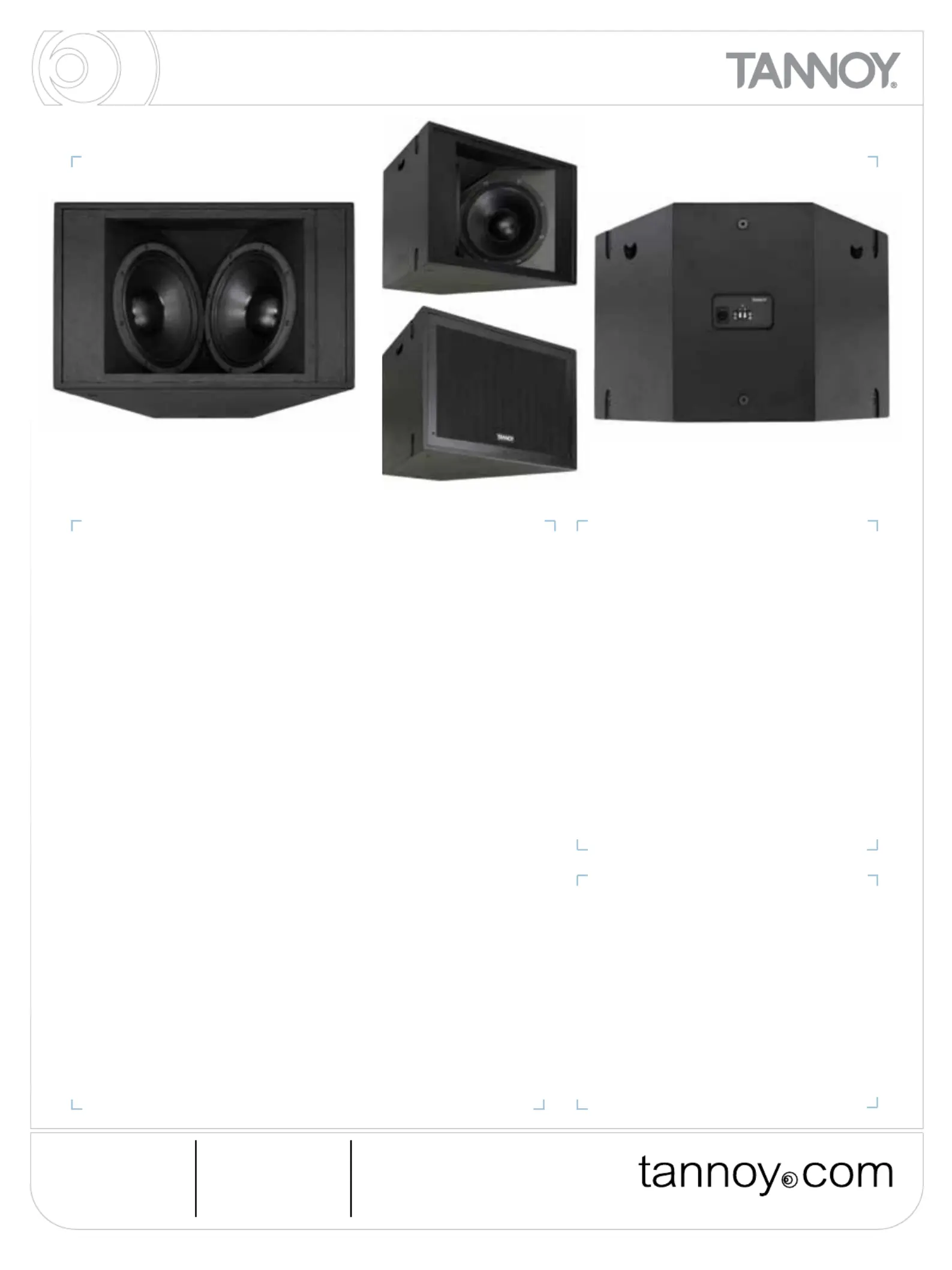

Product Description
Duplicating the low frequency performance of the VQ 60 & VQ 100 full range
loudspeakers, the VQ MB is intended for use as a own or ground stacked, high
power low/mid frequency module used in conjunction with full range or mid/high
systems in the VQ series.
Two (12”) low frequency transducers, offer high power handling and low power
compression for high continuous SPL capability. A newly designed LF loading design
provides the highest possible sensitivity for low/mid frequency output (105dB/w).
The VQ MB is principally intended for use with the VQ 60 & VQ 100 full range systems
to construct arrays with extended low frequency pattern control. By xing a VQ MB at
the opposing end of a VQ full range loudspeaker we can effectively extend pattern
control to below the cutoff point of the Mid/High PSW™ waveguide. By offsetting the
devices using delay we can also steer the low frequency lobe. The VQ MB can be
used to extend the bandwidth of any VQ Mid/High product whether singly or as part
of an array.
The VQ MB is part of an expanding line up of VQ products, addressing the requirement
for compact dimensions without compromising performance in any way.
Features
Applications
• Designed to extend the pattern control of VQ full
range systems
• Identical performance to low/mid section of VQ full
range systems
• Compact Dimensions
• Extremely high sensitivity, therefore high SPL’s can be
achieved with a very modest amount of amplier power
• Large Houses of Worship
• Large Corporate AV applications
• Stadiums & other Sports facilities
• Dance Clubs
• Live sound – concert halls, theatres,
open-air venues
VQ MB
VQ MB // issue 1.09 // 30.06.10
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com
Construction
Enclosure 18mm (0.71”) birch plywood.
Internally braced.
Grille Powder coated perforated
steel grille
Finish Textured black or white paint
(custom colours on request)
Connectors Barrier Strip and Neutrik NL4
Fittings 2 x Recessed carrying handles
12 x M10 ying inserts
Dimensions 433mm x 694mm x 515mm
(17.05” x 27.32” x 20.28”)
Net Weight 37kg (81.6 Ibs)
TECHNICAL SPECIFICATIONS
System VQ MB
System Type Mid Bass - Vented
Frequency Response (-3dB) (1) 115Hz - 500Hz
Frequency Range (-10dB) (1) 90Hz - 600Hz
System Sensitivity & Operating
Freq. (1W @1m) (2) 105dB (2.0V @ 4 Ohms)
Driver Complement 2 x 300mm (12.00”) Low
Frequency Transducers,
Semi Horn Loaded
Rated Maximum SPL (2)
Average 135dB
Peak 141dB
Power Handling (3)
Average 1000W (63.3V)
Programme 2000W
Recommended Amplier Power 2000W into 4 Ohms
Nominal Impedance 4 Ohms (4.1 Ohms Minimum)
Distortion
110dBSPL 2nd Harmonic 3rd Harmonic
200Hz 0.152 0.065
400Hz 0.067 0.023
120dBSPL
200Hz 0.446 0.175
400Hz 0.128 0.138
Notes:
(1) Average over stated bandwidth. Measured at 3 metres on axis, then referred to 1
metre
(2) Unweighted pink noise input, measured at 3 metres in an anechoic chamber, then
referred to 1 metre
(3) Accelerated Life Test (EIA RS426-B)
A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com
Full independent verication of published specications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specications when dealing with critical applications.
Ordering Information
PART NUMBER MODEL NAME COLOUR PACKED QUANTITY
8001 4810 VQ MB BLACK 1
8001 4811 VQ MB WHITE 1
VQ MB
VQ MB // issue 1.09 // 30.06.10
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com

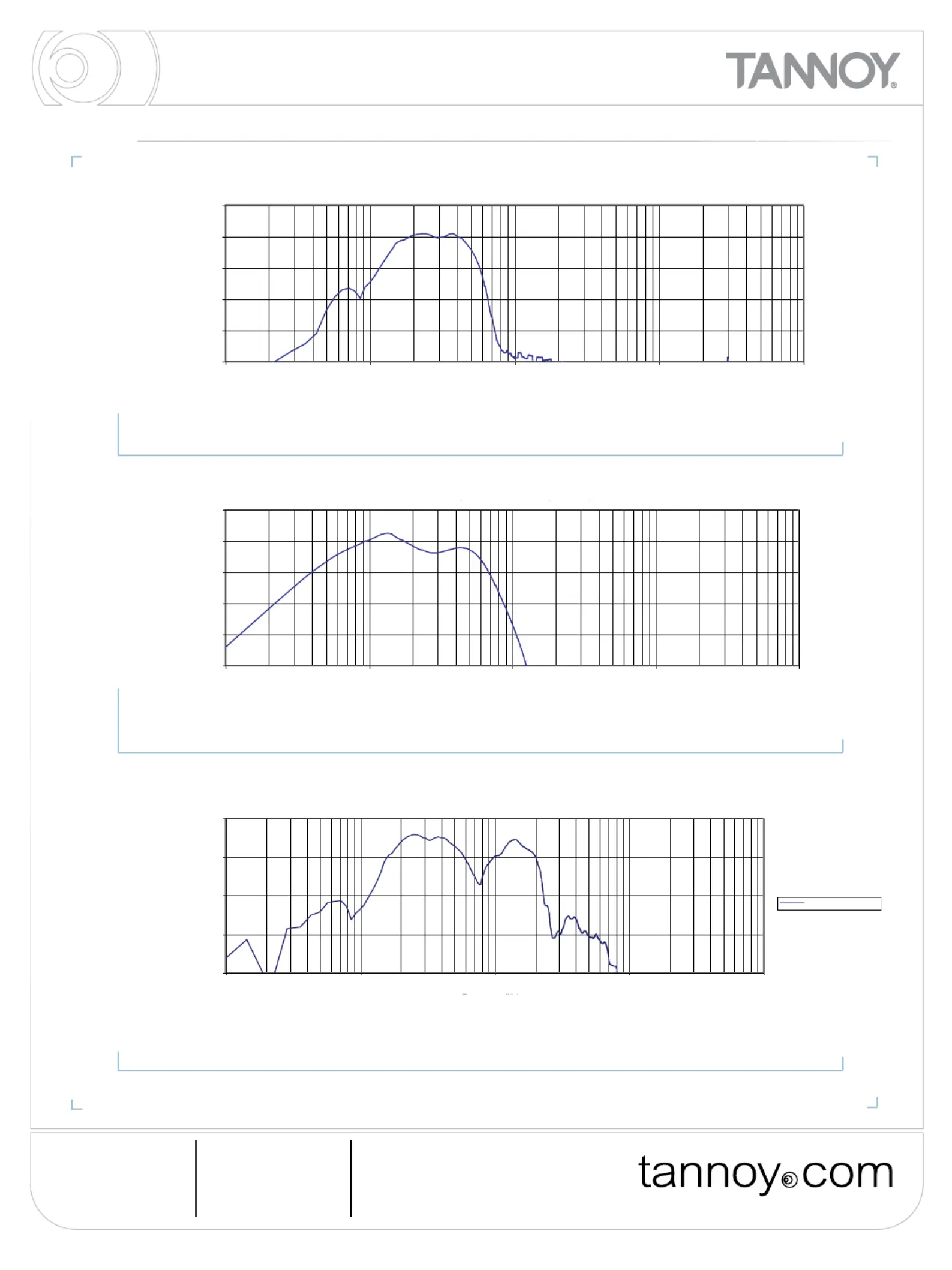

PERFORMANCE MEASUREMENTS
ANECHOIC
FREQUENCY
RESPONSE
ELECTRICAL
TRANSFER
FUNCTION
FOR OPTIMAL
OPERATION
SENSITIVITY
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Level, (dB)Level, (dB)Level, (dB)
-40
-30
-20
-10
0
10
10 100 1000 1000
0 1
00000
Anechoic Frequency Response: Processed
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency Response: Digital Signal Processor
70
80
90
100
110
10 100 1000 10000 100000
LF- 4ohms @ 3m
Frequency Response: Unprocessed
