Getting Started

1. With the power o, connect your audio sources to the input channels and headphones to the

outputs. Connect the power cable to the 5V socket.

2. Switch the power on.

3. Press the headphone button for the rst output that you want to adjust. It will light blue. Most of the

other functions in this list will be applied to this output only.

4. Turn the big knob down a bit to ensure that the level won’t be too loud.

5. Begin playing audio into Blender.

6. Press the input button for the rst audio source. It will ash blue. If the button ashes red, reduce the

output level of the audio source.

7. Use the big knob to adjust how much of the input’s signal is sent to the currently-selected output.

8. If you want to mix in some ambient room sound, press the Talk button and adjust the level with the

big knob.

9. Repeat steps 5-8 for any other audio sources until a balanced mix is achieved between the sources for

the rst pair of headphones.

10. Press the output button for the next set of headphones and repeat steps 4-9.

11. Visit tc-helicon.com to download the full manual and learn about advanced features such as remote

app control and multitrack recording.

Note – Due to the nature of unbalanced inputs, it is possible that grounding noise will be

transmitted to the outputs. If this happens, try the following steps to alleviate the problem:

• Plug the power cables into dierent power sources, especially dierent outlets from

one another.

• Use the Blender with 4 AA batteries instead of DC power. Do not expose the unit to excessive

heat when using battery power.

• Use your audio sources with battery power if possible.

Controls

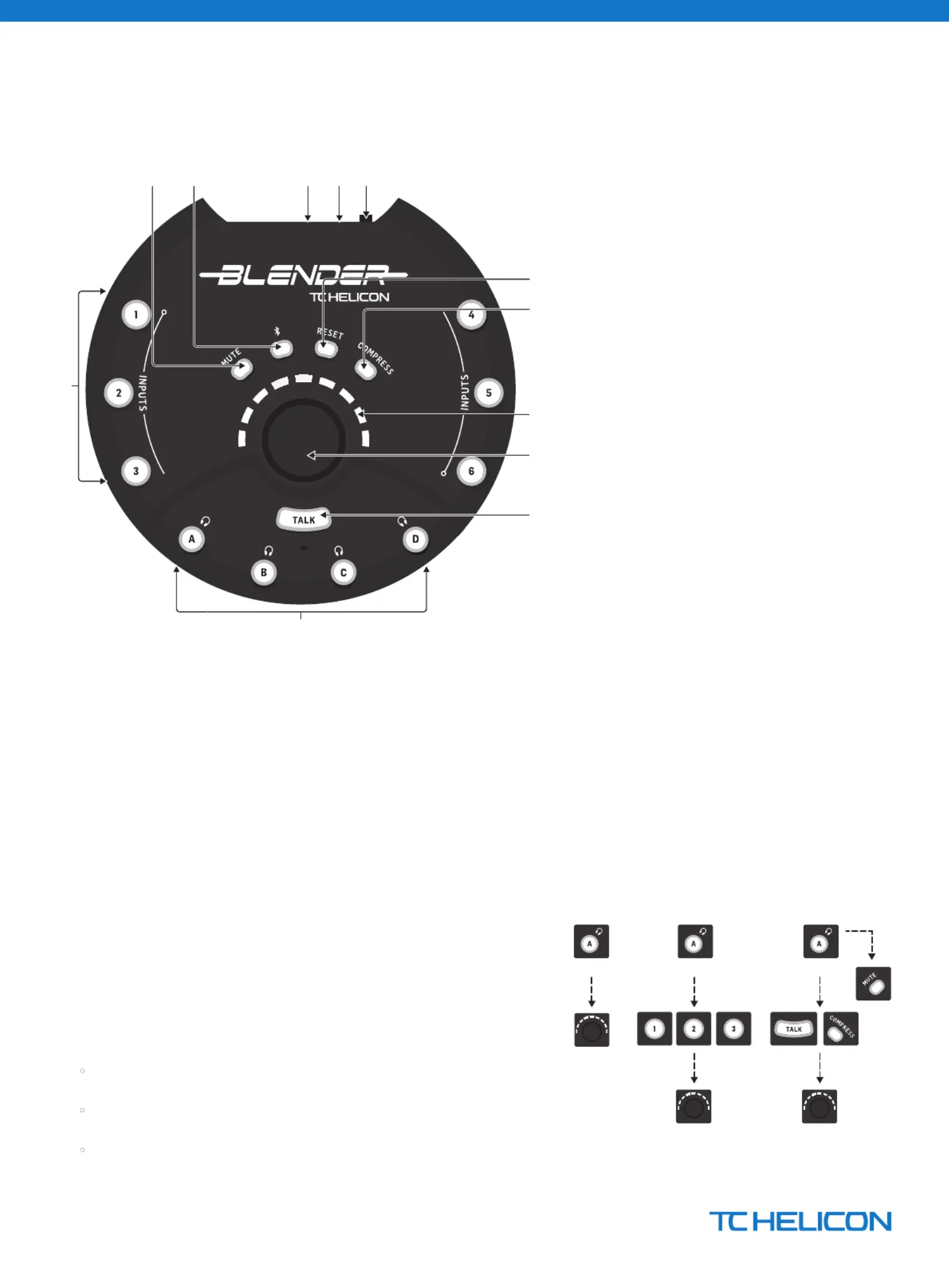

(1) INPUTS - Connect stereo sources via ⁄" TRS cable. Pressing the

associated input button causes the button to ash blue, indicating

that the level of that input can be adjusted for the currently-

selected headphone channel using the big knob. If the button

lights red, lower the output level of the source audio.

(2) OUTPUTS - Connect a pair of headphones via ⁄" stereo cable.

Pressing the associated output button causes the button to

light blue, indicating that the headphone volume can be adjusted

with the big knob.

(3) MUTE - Press this button to mute the outputs.

(4) BLUETOOTH - Press this button to make the Blender discoverable

by Android and iOS devices for use with the control app.

(5) RESET - Hold this button for 3 seconds to reset the device to

factory default settings.

(6) COMPRESS - Press this button to compress and boost the

average level for inputs routed to the currently-selected output.

Compression can be engaged and adjusted separately for

each output.

(7) LEVEL METER - Indicates the level of the currently-selected input,

output, or Talk.

(8) BIG KNOB - Adjusts the level of the currently-selected item.

(9) TALK - Pressing this activates the onboard microphone, allowing

some room sound to be mixed into the outputs. While the Talk

button ashes, the level can be adjusted for the currently-selected

output. If another input or output button is pressed, the Talk

button remains lit red, but loses the focus of the big knob. Select

another output channel, then disengage and re-engage Talk so

that it ashes again, enabling the level for that output to

be adjusted.

(10) USB - Connect the included USB cable to a computer for multitrack

recording and rmware updates. Visit tc-helicon.com to download

the USB drivers.

(11) Power - Connect the included power cable.

(12) ON/OFF - Power the unit on and o with this switch.

BLENDER

Portable 12 x 8 Stereo Mixer with USB Connectivity

(1)

(3) (4)

(5)

(6)

(7)

(8)

(9)

(10) (11) (12)

(2)

Phones Volume

Select output

Input Volume

Select output

Other features

Select output

Headphone Volume

Input Volume Rotate to adjust

Specications

Inputs

Type 6 x ⁄" TRS, stereo unbalanced

Impedance 10 k

Max. input level 8 dBu

Outputs

Type 4 x ⁄" TRS, stereo unbalanced

Impedance 16 

Max. output level 27 mW

USB

Connector Type-B mini

Audio 12 in / 2 out

Converter 24-bit

Sample rate 48 kHz

Bluetooth

Frequency range 2402–2480 MHz

Channel number 79 channels - 2 MHz spacing

Version 4.1 BLE

Compatibility 4.0 or newer

Output power +8 dbm

Power

Power adapter 5 V DC, 1 A

Battery power 4 x AA batteries (not included)

Physical

Dimensions (H x W x D) 43 x 132 x 124 mm (1.7 x 5.2 x 4.9")

Weight 0.37 kg (0.82 lbs)

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein.

Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik,

Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at musictribe.com/warranty.

FEDERAL COMMUNICATIONS

COMMISSION COMPLIANCE

INFORMATION

Responsible Party Name: Music Tribe Commercial NV Inc.

Address: 5270 Procyon Street

Las Vesgas, NV89118

Phone Number: +1 702 800 8290

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on,

the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation. This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

Caution!

The MUSIC Group is not responsible for any radio or TV interference caused by unauthorized

modications to this equipment. Such modications could void the user authority to

operate the equipment.

FCC RF Radiation Exposure Statement:

(1) This Transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

(2) This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20 centimeters between the radiator and your body.

Important information:

Changes or modications to the equipment not expressly approved by Music Tribe can

void the user’s authority to use the equipment.

BLENDER
