Sida 1/11

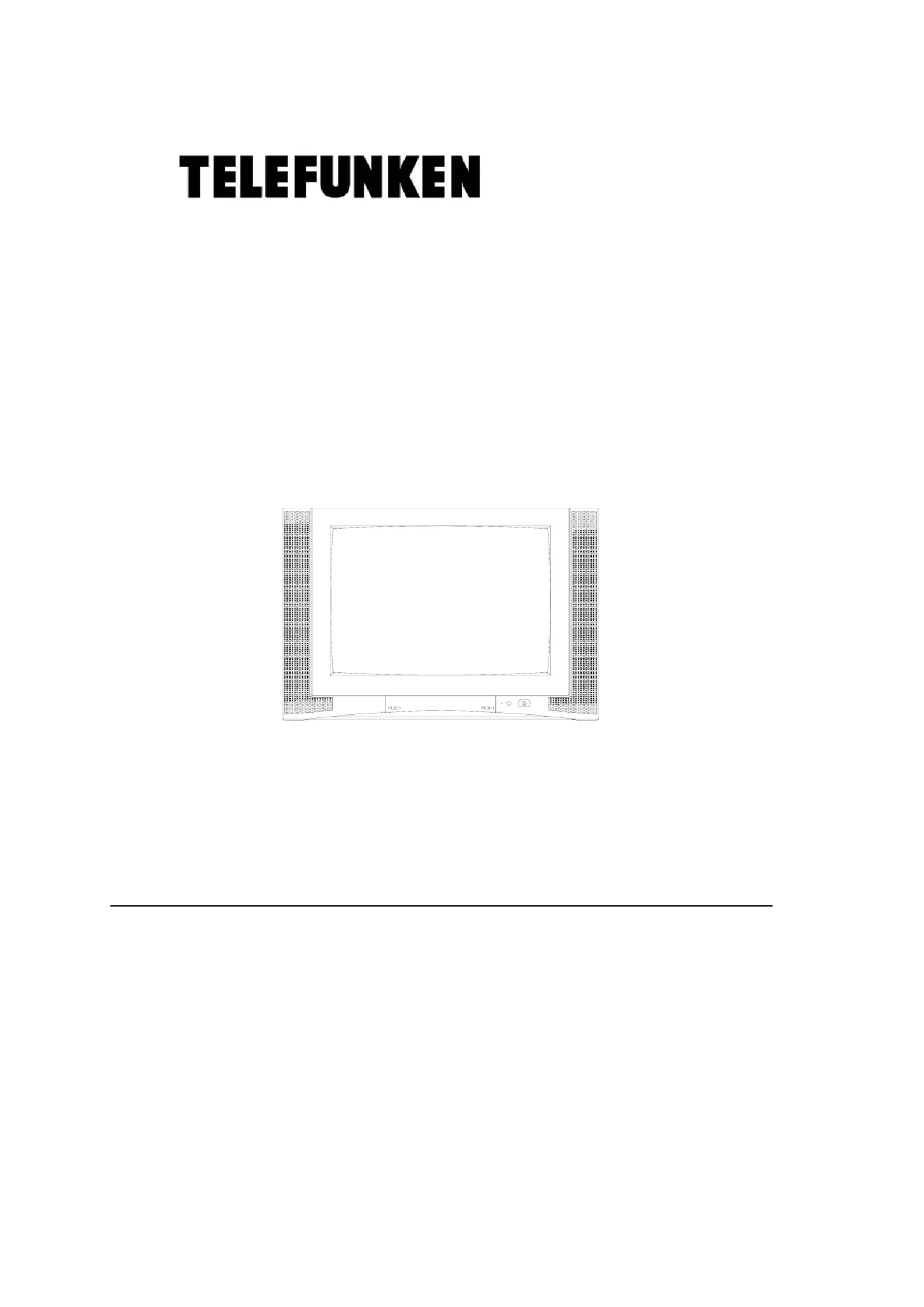

TTV-149

FULL ON SCREEN DISPLAY

255 PROGRAMS MEMORY

WITH INFRARED REMOTE CONTROL

Color Television

OWNER'S MANUAL

OWNER'S MANUALOWNER'S MANUAL

Thank you for purchasing this colour television.

To fully enjoy your set from the very beginning, read this manual carefully and keep it

handy for future reference.

Installation and Safety

To ensure safe and reliable operation of the TV set, please observe the following precautions in installation,

operation and maintenance.

Attention:

Pay attention to the power supply cord before installing the TV set. Do not hang anything on the cord, and

avoid treading on the cord.

The slots on the back housing are designed for ventilation to prevent overheating. They must never be covered

or blocked. The TV set must not be placed near a heat source such as radiator, air ducts direct sunlight.

The outdoor antenna must not be erected close to HV lines or other power supply lines. Use extreme care when

erecting the antenna.

4 This TV must be connected to AC 240V 50Hz. Never connect to DC supply or any other power supply

5 Do not let any object fall into the ventilation openings of the TV set housing, nor let any liquid flow into the it

via the openings. This may cause the television to short circuit

6 Do not subject the TV set to rain, or use it in damp environment. In cleaning dust, be sure to remove the power

supply plug from its socket first. Do not clean the television with liquid detergent, use a damp cloth. Be sure to remove

the power supply plug from its socket and remove the antenna plug during a thunderstorm or when it will not be used

for long time, to avoid components being damaged by lightning.

7 If you use an indoor antenna, do not let it touch any electrical appliance, or normal reception of TV program may

be affected.

Safety:

1Never open the rear of the television. High Voltage components can cause fire, electric shock or injury. Qualified

TV service personnel should carry out all internal work.

2. Remove the power supply plug from its socket in case of the following conditions, and consult with service

personnel.

(1) The power cord and plug is damaged or cracked.

(2) Any object has fallen into or liquid flown into the TV set.

(3) The performance of TV set has deteriorated significantly or there is damage on the housing.

(4) The TV set will not operate normally according to the instructions.

3. Please remove the power supply plug from its socket when the TV set will not be used for long time.

The adjusting buttons and some sockets are in the front of the TV, other sockets are in the rear of the TV.

① Main power switch

② Remote control sensor

③ Power indicator

④ Program number down (P-) and up (P+)

⑤ Volume decrease (V-) and increase (V+)

⑥ Menu button

⑦ TV/AV button

⑧

⑧ ⑧ AV IN sockets

⑨

⑨ ⑨ Antenna input and AV IN/OUT sockets

Connection of video signal

If you wish to receive video signal from the video player (for example: VCR, VCD or DVD), you must insert the

player’s audio and video output plugs into this TV’s relevant AV input sockets which are two groups in the rear and

front of the TV respectively. As the audio input of the TV is monophonic, be careful not to insert two audio inputs (L

and R) into each group’s two sockets at the same time, and the sockets in the front and the rear can not be used at the

same time. Then press the TV/AV button to get the picture of video signal.

The TV can broadcast the audio and video signals of received programs from the antenna. The output sockets are in

the rear panel (AV-OUT).

Connection of antenna：

The RF signal received from antenna is received through the RF input socket in the rear panel. In order to get a

good reception, it is necessary to use an outdoor antenna or common antenna TV (CATV) cable .The 75Ω coaxial

cable is recommended for eliminating the interference and noise lines resulting from mis-matched impedance .If you

use the 300 adapter according to the following figure. Ω parallel flat cable, please connect with 300Ω Ω-75

Battery installation (as shown in figure)

(1) Open the cover.

(2) Put in the batteries. Be sure

that the polarity (+or-)of the

batteries matches that of marks

inside the remote control.

(3) Replace the cover.

If following happens, replace with new

batteries. For example: remote control does

not work normally or cannot control the T

or is not stable, please replace batteries

according to the figure.

Attention: Exchange weak batteries to

revent leakage of battery acid into the

remote control. Do not charge, short circuit,

heat or burn normal batteries. Do not use

batteries, such as soda cell and C-Zn cell etc.
