INSTRUCTION MANUAL
LONG PRESS
ON/OFF
SHORT PRESS
GR EEN=FILTER
RED=NO FILTER
SAFETY ALERT
SYMBOL
This symbol is used to call your attention to hazards or
unsafe practices which could result in an injury or property
damage. The signal word, defined below, indicates the
severity of the hazard. The message after the signal word
provides information for preventing or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result in
severe injury or death.
Hazards which, if not avoided, COULD result in severe injury
or death.
Hazards which, if not avoided, MAY result in injury.
Electric shock hazard:
• Do not expose this unit to rain or moisture.
Contact with live circuits can result in severe
injury or death.
• Use this unit for the manufacturer’s intended
purpose only, as described in this manual.
Any other use can impair the protection
provided by the unit.
• Use test leads or accessories that are
appropriate for the application. See the
category and voltage rating of the test lead
or accessory.
• Inspect the test leads or accessory before
use. The item(s) must be clean and dry, and
the insulation must be in good condition.
• Before opening the case, remove the test
leads from the circuit and shut off the unit
Failure to observe these warnings can result in
severe injury or death.
Electric shock hazard:
• Do not attempt to repair this unit. It contains no user-
serviceable parts.
• Do not expose the unit to extreme temperatures or high
humidity. See Specifications.
Failure to observe these precautions can result in injury and
can damage the instrument.
Read and understand this material before
operating or servicing this equipment. Failure
to understand how to safely operate this tool
can result in an accident causing serious
injury or death.
200FP
Filtered Tone Probe
Description
The 200FP Filtered Tone Probe is designed to identify and
trace wires or cables within a group without need of removing
insulation. In addition, the 200FP has been specifically designed to
filter out all power-related noise to eliminate “Power Line Hum.”
The unit is constructed of durable ABS plastic, and an optional
leather carrying case, 200C, is available.The 200FP is also
available as part of the Model 801K kit.
When the 200FP is ON but not detecting a signal, the signal LED
will flash momentarily (every 4 seconds) as a visible ON indicator
and reminder. When a tone signal is detected by the probe, the
signal LED will serve as a signal strength indicator.The brighter
the LED, the stronger the tone signal detected.
Safety
Safety is essential in the use and maintenance of Tempo Tools
and equipment. This instruction manual and any markings on the
tool provide information for avoiding hazards and unsafe practices
related to the use of this tool. Observe all of the safety information
provided.
Purpose of this Manual
This manual is intended to familiarize personnel with the
safe operation and maintenance procedures for the Tempo
Communications 200FP Filtered Tone Probe. Please read this
entire manual before operating the tool, and keep this manual
available to all personnel. Replacement manuals are available
upon request at no extra charge.

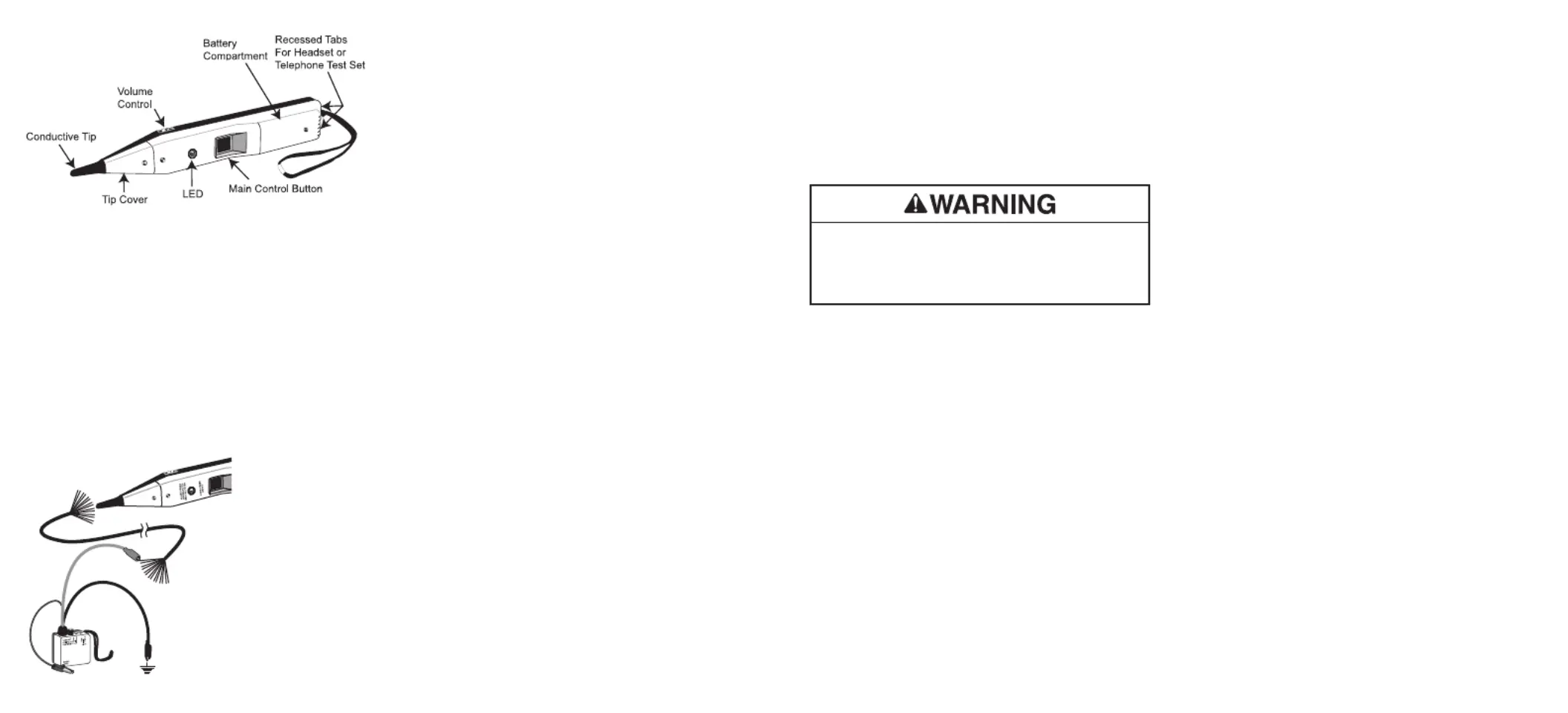

Controls (See Figure 1)
A long press of the main control button turns the unit OFF or ON,
and the unit beeps to indicate the change. A lower pitch beep
indicates that the unit is going OFF. An Auto-Off feature has
been incorporated to turn the 200FP OFF after 5 minutes to help
preserve battery life. When Auto-Off activates, a bee-bee-bee-
beep sounds from the speaker to alert the user that the 200FP is
now OFF. When the battery voltage is low, the unit sounds three
descending tones when it is turned ON.
Short presses of the main control button engage and disengage
the hum filter of the 200FP. The unit beeps to indicate the change
– a single beep means it is entering the normal unfiltered mode,
52080289 REV01 © 2019 Tempo Communications Inc. 08/19
Do not discard this product or throw away!
For recycling information, go to www.Tempo.com.
All specifications are nominal and may change as design improvements
occur. Tempo Textron Inc. shall not be liable for damages resulting from
misapplication or misuse of its products.
KEEP THIS MANUAL
while a double beep means the filter is engaged. In the normal
mode the LED indicator operates in red color, and in filter mode
the LED appears green.
A volume control knob located on the right side of the 200FP
allows the user to control the sensitivity and loudness of the probe
output.
Operation
Identification of wires and cables is accomplished by
first connecting a tracing tone generator like the Tempo
Communications 77HP, 77GX or AT8 to the wires being traced.
In working cables that are terminated, connect one lead of
the tone generator to a wire and the other test lead to earth
or equipment ground. This allows localization of the cable and
identification of the connected wire. (See Figure 2)
In non-working or
un-terminated cables,
connect one test lead
of a tone generator to a
wire and the other test
lead to another wire (i.e.,
tip and ring of an open
pair).This can make
cable localization a little
more difficult, but allows
positive identification of
both wires in a traced
pair.
1. To activate the 200FP, use a long press of the square main
control button.
Note: Changes in temperature and battery power can
affect the frequency of tones produced by any given tone
generator. Under certain conditions, a tone test set may
produce frequencies that are similar to power line hum and
cause them to be blocked by the 200FP’s filter mode.
2. Prior to locating the tone at the far end of the cable or wire,
confirm proper operation of the 200FP at the tone source.
With the probe ON and in the filter mode (a short press of the
control button and a green LED blink), listen for a solid single
tone or a complete warble tone at the tone generator. If no
tone or only “half ”of a warble tone is detected, use the 200FP
in the “Normal” unfiltered setting or replace the battery in the
tone generator.
3. Once activated, the volume control can be adjusted to suit
the environment. Loudness of the probe tone output can be
increased to overcome noise (i.e., vehicular traffic, airplanes
or machinery) or decreased to reduce interference or when
working in noise sensitive areas.
4. The 200FP is equipped with recessed ports for connecting
a lineman’s butt set. Attaching the butt set automatically
activates the probe when Talk mode is selected on the set.
5. To activate the 200FP without depressing the main control
button, silence the speaker, and use only the LED, attach
a jumper between the two recessed tabs. This simulates
connection of a butt set.
6. Touch the tip of the 200FP to the insulation of each potential
target conductor.
7. Reception of tone will be loudest on the subject wire.
(Reception of the tone may be improved by separating the
wires from the group.)
Specifications
Electrical
Nominal Gain: 35 dB
Nominal Input Impedance: 100 MΩ
Probe Tip Resistance (minimum): 300 Ω
Battery: One 9V alkaline
Nominal Battery Life: 50 hours
Overvoltage Protection: Cat I, 150V to Gnd
Physical
Length: 250 mm (9.85")
Width: 32 mm (1.27")
Depth: 35 mm (1.38")
Weight: 142 g (5 oz)
Operating/Storage Conditions
Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Maintenance
Before opening the case, remove the test leads from the circuit
and shut off the unit.
Failure to observe this warning can result in severe injury or
death.
Battery Replacement
1. Turn the unit off.
2. Remove the screw, then the battery door.
3. Replace the battery (observe polarity).
4. Replace the back and the screws. Do not overtighten the
screw.
Tip Replacement
1. Turn the unit off.
2. Remove the slotted screw and remove tip cover.
3. Replace the tip.
4. Replace tip cover and screw. Do not overtighten the screw.
Cleaning
Periodically wipe with a damp cloth and mild detergent; do not
use abrasives or solvents.
LON G P RES S
ON/ OFF
SH OR T PR ESS
GR EE N=FILTE R
RED =NO FILTE R
Fig. 1
Fig. 2
One-Year Limited Warranty
Tempo Communications Inc. warrants to the original purchaser of these
goods for use that these products will be free from defects in workmanship
and material for one year, excepting normal wear and abuse.
For all Test Instrument repairs, you must first request a Return Authorization
Number by contacting our Customer Service department at:
toll free in the US and Canada 800 642-2155.
Telephone +1 760 510-0558.
Facsimile +1 760 598-5634.
This number must be clearly marked on the shipping label. Ship units Freight
Prepaid to: Tempo Repair Center, 1390 Aspen Way, Vista, CA 92081 USA.
Mark all packages: Attention: TEST INSTRUMENT REPAIR.
For items not covered under warranty (such as dropped, abused, etc.) repair
cost quote available upon request.
Note: Prior to returning any test instrument, please check to make sure
batteries are fully charged.
Tempo Communications
1390 Aspen Way • Vista, CA 92081 • USA
800-642-2155
www.TempoCom.com
