Sida 1/4

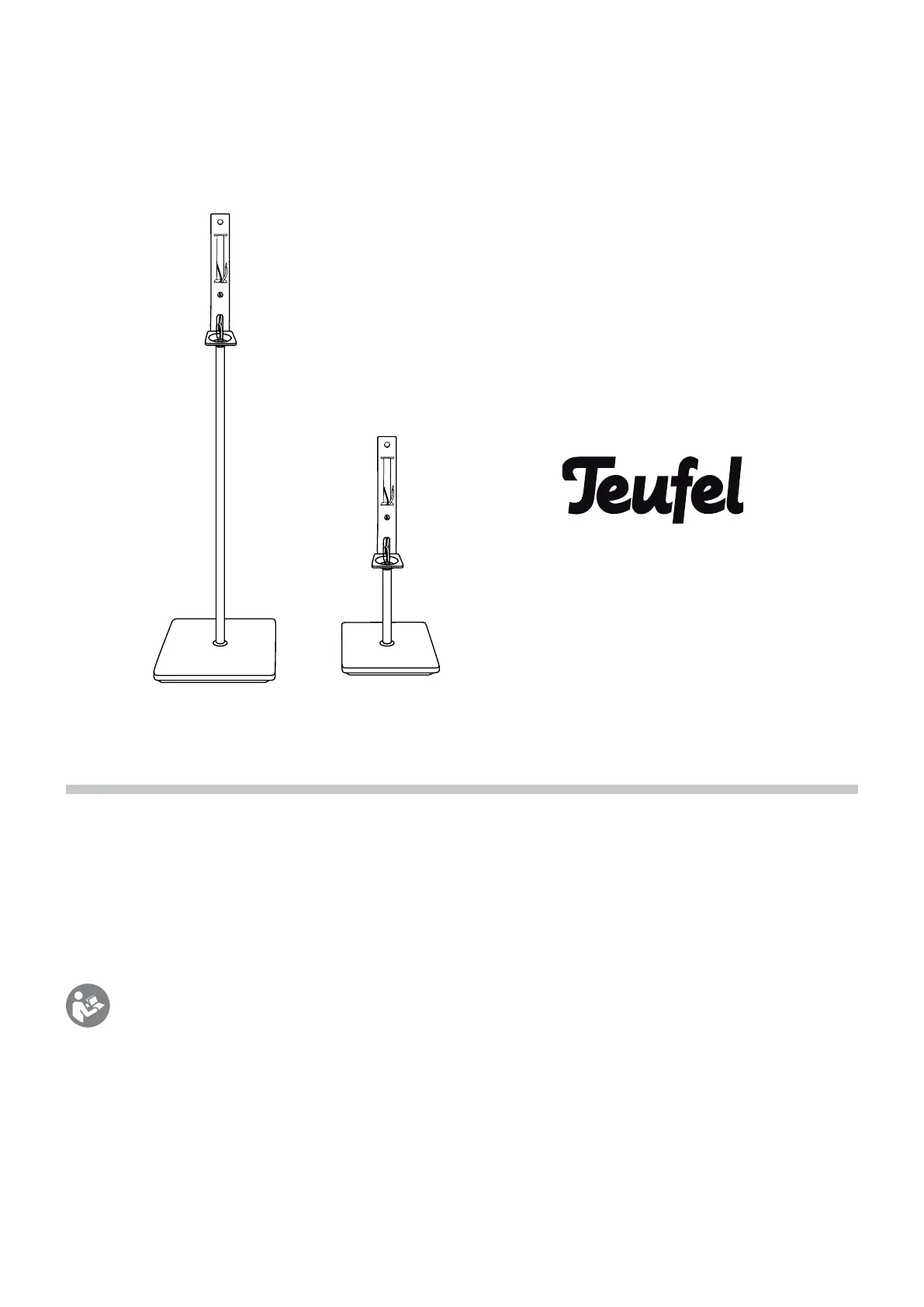

Table / Speaker stand

Varion

Proper use

The table / speaker stand only serves as a stand for a Teufel

Varion speaker. Mount and use the table / speaker stand only as

described in this user manual. Any other use will be deemed as

not in accordance with the instructions and may lead to damage

of property or even persons. The manufacturer cannot be held

liable for damages caused by improper use

. The

table / speaker

stand

is intended for private use.

Before you use the table / speaker stand, please

 rst carefully read through the safety notes and the

user manual. Only in this way, can you ensure that all

functions are used in a safe and reliable manner. Store this user

manual in a safe place and also be sure to pass it on to any

subsequent owner.

Notice

The information in this document may change without prior

notice and in no way constitutes any liability on the part of

Lautsprecher Teufel GmbH. Without the written permission of

Lautsprecher Teufel GmbH,

no part of this user manual may be

reproduced in any form or be broadcasted in any way electronical-

ly, mechanically, by photocopy or recording.

Original packaging

If you wish to exercise your eight-week right of return, we ask that

you be absolutely sure to hold onto the packaging. We can only

accept the return of the device WITH THE ORIGINAL PACKAGING.

Empty boxes are not available!

Complaints

In case of a complaint, we require your invoice number and the

serial or lot number for processing.

Thank you for your support!

Contact

Please contact our customer service with any questions, sug-

gestions or criticism:

Lautsprecher Teufel GmbH

BIKINI Berlin

Budapester Str. 44

10787 Berlin (Germany)

Phone 00800 - 200 300 40 (toll-free)

Fax +49 (0)30 / 300 930 930

E-mail: service@teufelaudio.com

www.teufelaudio.com

General Notes and Information

Technical Description and

Operating Instructions

Safety Notes

Pack Contents and Technical Data

Pack contents

Speaker stand Table stand

 a 2× Tube with cable  b 2× Tube with cable

 a 2× Base plate  b 2× Base plate

1× Allen key 1× Allen key

1× Socket key 1× Socket key

4× Nut 4× Nut

4× Cupped washer 4× Cupped washer

2× Flat washer 2× Flat washer

4× Screw 4× Screw

2× Bracket 2× Bracket

Check that all items have been delivered and that nothing is

damaged.

Should the delivery be incomplete or exhibit any transport dam-

age, please contact our support service.

Technical data

Speaker stand Table stand

Dimensions (L×W×H):

18cm × 18cm × 92mm

Dimensions (L×W×H):

15cm × 15cm × 35mm

Weight: 3.3 kg Weight: 2 kg

Technical changes reserved!

You can  nd further technical data on our website.

WARNING

There is a risk of suffocation if children play

with the packaging film or small mounting

parts.

–Do not allow children to play with the pack-

aging film. Children can become trapped in it

when playing and suffocate.

–Ensure that children do not take small parts

out of the mounting material bag and place

them in the mouth. They could swallow the

small parts and choke.

CAUTION

If the speakers are placed in an unsuitable

location, this can lead to injury to person and/

or property damage.

–Place the speakers in such a way that they

cannot be knocked over inadvertently and

make sure that the cables do not pose a trip-

ping hazard.

 a

 a

Speaker

stand

 b

 b

Table stand















Assembly

Fasten the tube a using the  at washer g and nut e onto the

base plate b. Use the socket key d to tighten the nut.

Thread the cables with the  at plug sleeves from the top

through the cupped washer f and the hole to the underside of

the base plate.

Screw the cupped washer f onto the tube threads and insert

the tube a through the hole.

Screw a cupped washer f onto the tube threads.

Place the bracket i onto the tube and fasten it in place using

the nut e. Use the socket key d to tighten the nut.

Thread the cable through the openings of the bracket as

shown here. Use the screws h to fasten the Varion speakers in

place to the bracket and connect the cable as described in the

user manual for the Varion speakers.

Connect the speaker cable to the connector terminal j as

shown here or use pin plugs from our online shop. In any case,

make sure the polarity is correct (red to red, black to black).

Otherwise the sound quality is affected.

Place both  at plug sleeves on the contact tabs of the connec-

tor terminal j. Pay attention that the colour of the cable is the

same as the terminal contact.


























