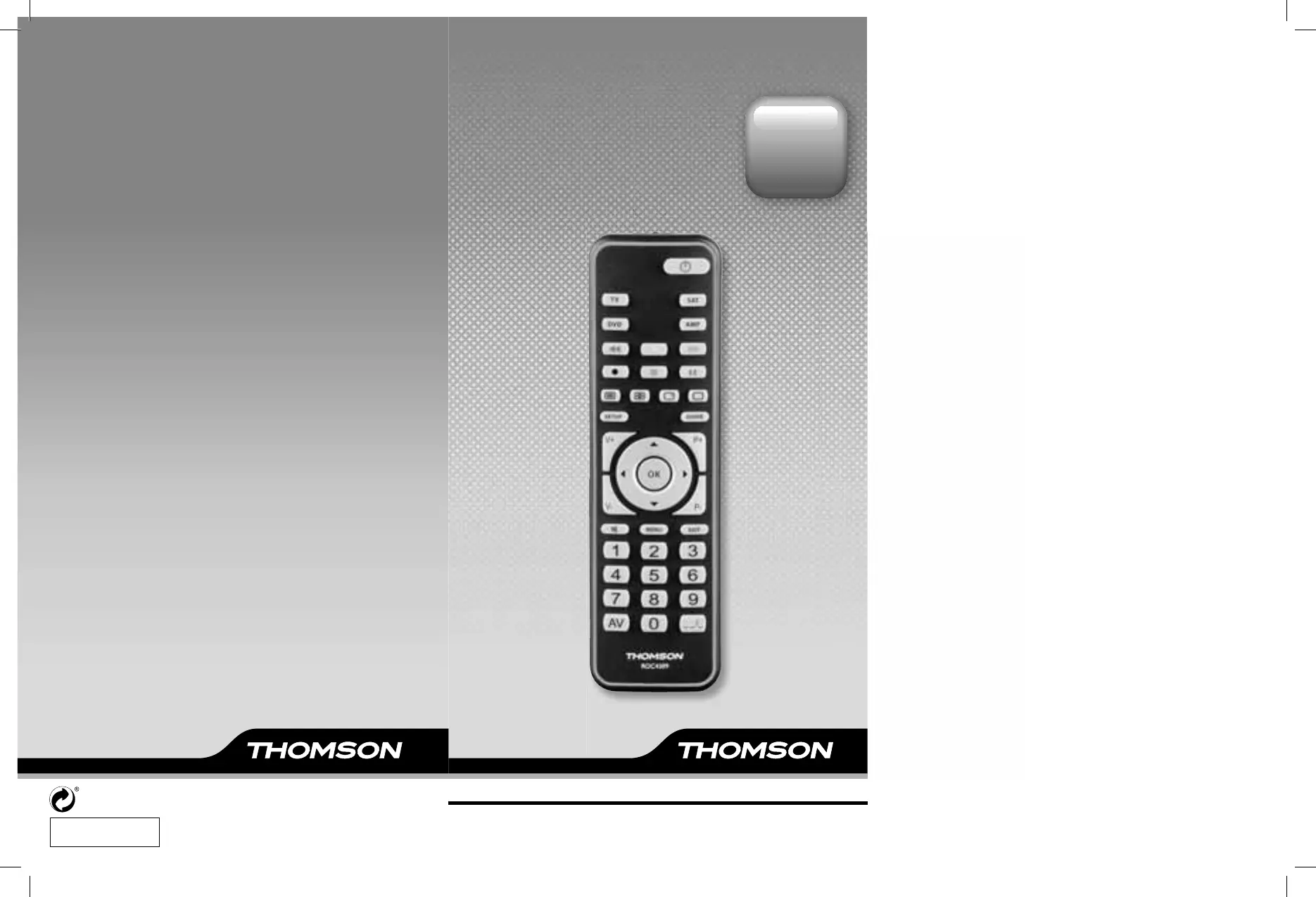

UNIVERSAL REMOTE CONTROL

Télécommande universelle

Universal Fernbedienung

Operating Instruction

Mode d'emploi

Bedienungsanleitung

ROC4309

00131873

U N I V E R S A L

4in1

00131873bda.indd 1-3

00131873bda.indd 1-3 02.10.2009 12:17:42 Uhr

02.10.2009 12:17:42 Uhr

ROC4309

00131873 Operating Instructions .......................................................... 01

Mode d‘emploi ....................................................................... 04

Bedienungsanleitung ............................................................. 07

Istruzioni per l‘uso ................................................................. 10

Instrucciones de uso ............................................................. 13

Gebruiksaanwijzing ............................................................... 16

Manual de instruções ............................................................ 19

Οδηγίες χρήσης..................................................................... 22

Руководство по эксплуатации ......................................... 25

Instrukcja obsługi ................................................................... 28

Návod k použití ...................................................................... 31

Használati útmutató .............................................................. 34

Bruksanvisning ....................................................................... 37

Brukerveiledning .................................................................... 40

Brugsanvisning ....................................................................... 43

Pistokelaturi ............................................................................ 46

Characteristics - Caractéristiques - Eigenschaften - Caratteristiche

Características - Eigenschappen - Características - χαρακτηριστικά

Технические характеристики - Dane techniczne - Technické údaje

Karakterisztika - Data - Karakteristikker - Data - Ominaisuudet

Dimensions - Dimensions - Abmessungen - Dimensioni - Dimensiones

- Afmetingen - Dimensões -

Διαστάσεις размеры - -

Wymiary - Rozměry

- Méret

- Mått - Dimensjoner - Mål - Mitat

= 171 x 49 x 20 mm

Weight = 80 grammes

Poids = 80 grammes

Gewicht = 80 Gramm

Peso = 80 grammi

Peso = 80 gramos

Gewicht = 80 gram

Peso = 80 gramas

Βάρoς = 80 γραμμάρια

вес = 80 грамм

Ciężar = 80 g

Hmotnost = 80 g

Súly = 80 gramm

Vikt = 80 gram

Vekt = 80 gram

Vægt = 80 gram

Paino = 80 grammaa

AAA

This universal remote control (4 in 1) is compatible with the majority of television sets, DVD

players and video recorders, ampliﬁ ers and Hi-Fi and Home Cinema systems, as well as

digital boxes such as satellite or cable receivers, DVBT receivers (Digital Video Broadcast

Terrestrial), ADSL decoders, and so on.

This remote control was programmed in the factory, so that you can use it to control most

of the sets of the THOMSON group’s make. For this reason, we recommend that prior to

attempting to programme the remote control, you try it out by means of one of the methods

described in this user manual. However, ﬁ rst of all, you must install 2 batteries (AAA) in the

remote control.

Please keep this guide along with the code list (provided separately), so that you can

subsequently programme your remote control for use with other sets.

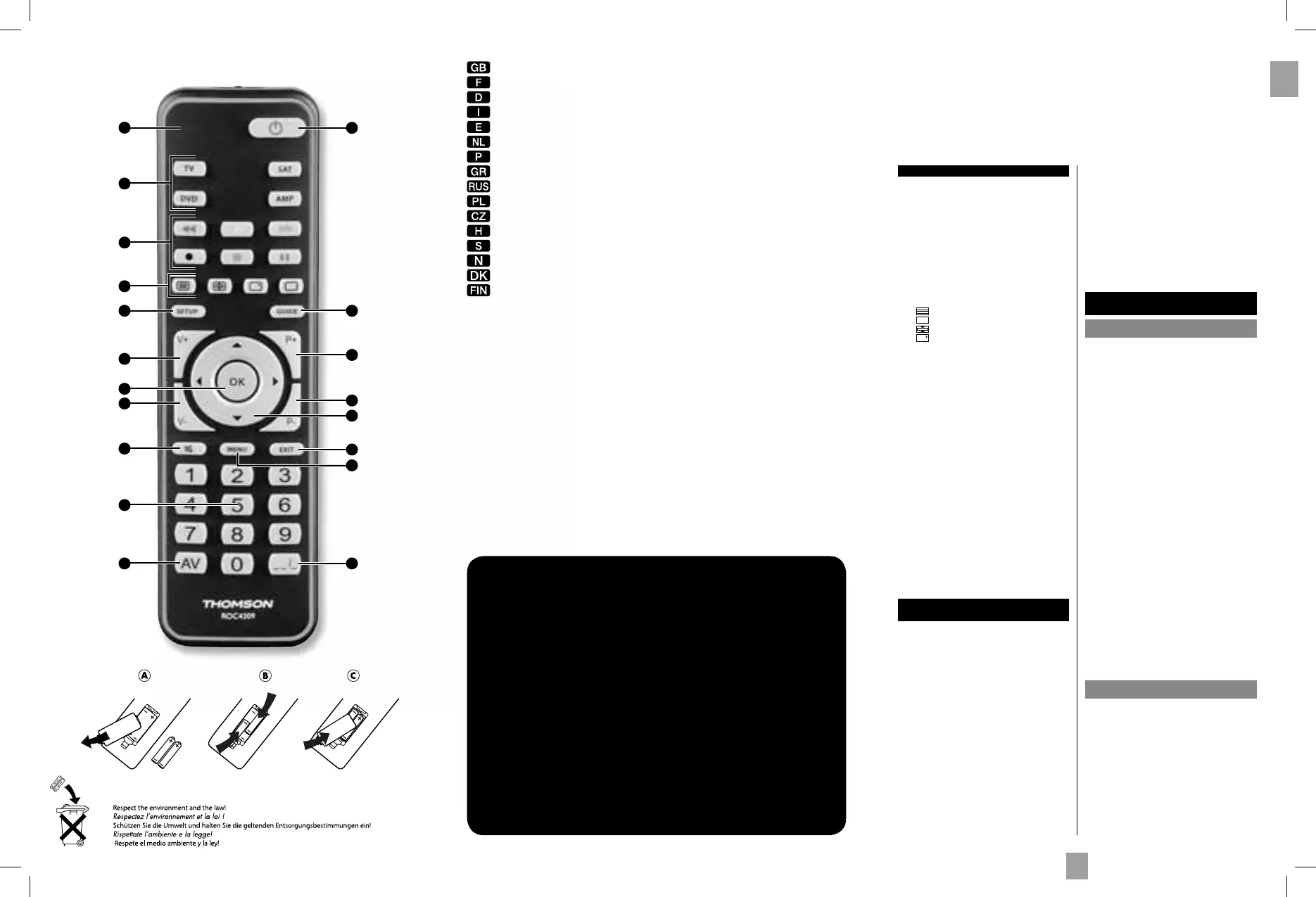

1 Indicator light: The red indicator light is lit

whenever a key is pressed.

2 : On/Standby or Standby only, depending on G

the equipment being used.

3 Mode keys: Select the device to control (TV, DVD,

…).

4. (play): Play a DVD disc or a VCR tape*.B

F (FF): Fast forward (DVD, VCR,...)*.

E (RW): Goes backward (DVD, VCR,...)*.

(pause): Suspends play and stops on an J

image*.

(record): To record, press the RECORD key I

twice.

(stop): Stop the disc (DVD)*.K

5. : Teletext On.

: Teletext Off.

: Teletext Hold (stop page scrolling).

: Displays information of the selected

appliance.

6 Guide: Electronic Program Guide.

7 Setup: Allows you to program your remote

before the ﬁ rst use.

8 P+/P-: Channel Up and Channel Down buttons.

9. V+/V-: Increases (+) or decreases (-) the volume

of the selected device.

10. OK: Conﬁ rms a selection.

11. / / / : Allow you to navigate the menus CDAB

verticaly and horizontaly.

12. Exit: Turn off the menu of the selected product.

13. (Mute): Switches the selected appliance sound H

off.

14. Menu: Turns on the menu of the selected product.

15. Numeric keys 0-9: These keys have the same

functions as those of your original remote and

are also used to enter the code.

16. :--/-: In connection with the numeric keys, this

button allows you, with some equipment, to select

directly channels with 2 digits.

17. AV: For selecting an external source (SCART,

HDMI, ...)..

Note: depending on the actual devices, manufacturers

and year of manufacture, the functions available

will vary.

* The coloured buttons can be used to select categories

when teletext is activated, and speciﬁ c functions

depending on the make.

The keys

Testing the remote control before

you programme it

1. Switch on the set you want to control.

2. Press the key that corresponds to the type of

equipment you want to control:

: Television Set,TV

DVD: DVD Player, Video Recorder,

SAT: Satellite Receiver, Cable Receiver, ADSL Box,

DVBT Receiver, ...

: Ampliﬁ er, CD Player, HiFi System,...AMP

3. Direct the remote control towards the TV set and

try to switch it off by simply pressing the key . If G

the device does not turn off, you must program the

remote control using one of the methods A, B, C or

D described hereafter.

Note 1: Except for the TV key, the DVD, SAT and AMP

mode keys can be programmed to control a device

other than that indicated on the key. It is therefore

possible, for example, to allocate SAT mode to the

DVD key. You must enter the code corresponding to

the manufacturer and the device by using one of the

methods indicated in this manual.

However, method D (automatic search for a code)

will greatly simplify the task for you. In this case it

is only necessary to enter a code from the list that

corresponds to the type of device, for example: 0603

for a Thomson satellite receiver) and then to run the

automatic search procedure. The remote control will

then test all the codes automatically until it ﬁ nds those

that control the receiver.

Note 2: To control 2 devices of the same type and the

same brand (2 Thomson VCRs, 2 Thomson satellite

receivers, ...) ensure ﬁ rst that these two devices are not

set to react to the same sub code, they will require one

sub code for one and a different sub code for the other

(i.e., codes A and B with Thomson devices). Once you

have checked this, successively program 2 separate

mode keys using method D.

Programming

the remote control

Method A – Fast programming

with 1-digit subcode

Before you start programming, you must ﬁ nd the

subcode of the set to be controlled. Entering a subcode

lets the remote control test a predeﬁ ned list of codes.

Refer to the list provided with these instructions, page I

of the .subcodes

1. Switch on the set you want to control.

2. Hold down the key until the red indicator SETUP

light blinks and then remains lit (the indicator light

remains on for a few seconds to give you the time to

proceed with the following steps. The indicator lamp

ﬂ ashes to signal that this time is almost up, and then

goes off). Release the key.SETUP

3. Press the key that corresponds to the type of

equipment you want to control:

: television set, : DVD player, Video TV DVD

recorder, : satellite receiver, cable, DVBT, ADSL SAT

and : audio equipment.AMP

4. While the indicator is lit, type in the subcode

(example: 1 for THOMSON).

5. Direct the remote control towards the set and try to

switch it off by pressing the key .G

6. If the set you want to control switches off, press OK

to memorise the code.

7. Should the set not switch off, press key repeatedly, G

until the set switches off. Between pressing the keys,

be sure to leave enough time for the indicator light to

go out and then relight (about 1 second). Proceeding

this way will enable you to see whether the set

responds or not.

8. Immediately upon the switching-off of the set to be

controlled, press to store the code.OK

Check of the programming:

In principle, your set is ready for receiving the remote

control commands.

Check your remote control for proper functioning by

performing the test described on page .2

Method B – 4-digit codes

programming

Before you start programming, you must ﬁ nd the code

of the set to be controlled.

Refer to the list provided with these instructions, page

II of the codes.

1. Switch on the set you want to control.

2. Hold down the key until the red indicator SETUP

light blinks and then remains lit (the indicator light

remains on for a few seconds to give you the time to

proceed with the following steps. The indicator lamp

ﬂ ashes to signal that this time is almost up, and then

goes off). Release the key.SETUP

3. Press the key that corresponds to the type of

equipment you want to control:

: television set, : DVD player, Video TV DVD

00131873bda.indd 4-Abs1:1

00131873bda.indd 4-Abs1:1 02.10.2009 12:17:47 Uhr

02.10.2009 12:17:47 Uhr

2 3

recorder, SAT: satellite receiver, cable, DVBT, ADSL

and : audio equipment.AMP

4. While the indicator is lit, enter the ﬁ rst digit of the

4-digit code proposed for the set to be controlled

(example: 0036 for Thomson).

5. Direct the remote control towards the set and try to

switch it off by pressing the key .G

6. Should the set not switch off, repeat step 2. Then

type in the next 4-digit code. Try to switch off the set

by pressing key once. Repeat this procedure by G

trying out each of the 4-digit codes.

Check of the programming:

In principle, your set is ready for receiving the remote

control commands.

Check your remote control for proper functioning by

performing the test described on page .2

Method C – Programming by means

of code retrieval

Should none of the codes work, you still have the

possibility of retrieving the appropriate code without

having to perform any input.

1. Switch on the set you want to control.

2. Hold down the key until the red indicator SETUP

light blinks and then remains lit (the indicator light

remains on for a few seconds to give you the time

to proceed with the following steps. The indicator

lamp ﬂ ashes to signal that this time is almost up,

and then goes off). Release the key.SETUP

3. Press the key that corresponds to the type of

equipment you want to control:

: television set, : DVD player, Video TV DVD

recorder, SAT: satellite receiver, cable, DVBT,

ADSL and : audio equipment.AMP

4. Direct the remote control towards the set and try to

switch it off by pressing the key .G

5. If the set you want to control switches off, press

OK to memorise the code.

6. Should the set not switch off, press key as many G

times as required (up to 200 times), until the set

switches off. Between pressing the keys, be sure

to leave enough time for the indicator light to go

out and then relight (about 1 second). Proceeding

this way will enable you to see whether the set

responds or not.

7. Immediately upon the switching-off of the set to be

controlled, press to store the code.OK

Check of the programming:

In principle, your set is ready for receiving the remote

control commands.

Check your remote control for proper functioning by

performing the test described on page .2

Try out other remote control keys to ﬁ nd out the range

of functions you can control. If you think that not all

of the keys are active, repeat the procedure of this

programming method to ﬁ nd out the code supporting a

wider range of features.

Method D – Automatic

code search

With this method, the remote control scrolls through

the full code list by sending an IR signal to the set to be

controlled remotely. Proceed as follows:

1. Switch on the set you want to control.

2. Hold down the key until the red indicator SETUP

light blinks and then remains lit (the indicator light

remains on for a few seconds to give you the time

to proceed with the following steps. The indicator

lamp ﬂ ashes to signal that this time is almost up,

and then goes off).

3. Release the SETUP key.

4. Press the key that corresponds to the type of

equipment you want to control:

: television set, : DVD player, Video TV DVD

recorder, SAT: satellite receiver, cable, DVBT,

ADSL and : audio equipment.AMP

5. Press the P+ or standby or (DVD/VCR only) G B

key. After a few seconds, the remote control begins

to scroll through the whole code list included in the

library (at a rate of roughly 1 code per second).

Press the , or key once again to slow P+ G B

down the test speed (1 code every 3 seconds). As

soon as the set changes channels (or turn off, or

start to play the disk), you must press to save OK

the code and stop the remote control scrolling

through the list. If you do not react quickly enough,

you can go back to the previous code by pressing

P- or (DVD/VCR only) as many times as E

necessary (you can go forward by pressing , G

P+ or (DVD/VCR only) if you have gone back B

too far). As soon as the set responds again, press

OK to save the code.

Method E – Programming for control of a

COMBO (combined TV-VCR, TV/DVD, VCR/

DVD, … set)

Depending on the COMBO group (TV/VCR, VCR/

DVD, etc.) and the make, you will be required to

enter a single code for both devices in the COMBO,

or to enter two codes, one code per device. Consult

the separate list to discover this. Before you start

programming, you must ﬁ nd the subcode or code

of the subset to be controlled (television or video

recorder...). Refer to the list supplied with this user

manual (see page subcodes or codes).

1. Switch on the COMBO you want to control.

2. Hold the SETUP key down until the red indicator

lamp blinks and then remains lit. Release the

SETUP key.

3. Press the key of the ﬁ rst device to control, and then

follow one of the programming methods A, B, C or

D previously described.

4. If a second code programming is required, then

repeat steps 2 and 3 above.

How to retrieve

a programmed code

It may be useful to retrieve the code programmed in

the remote control.

1. Hold down the key until the red indicator SETUP

light blinks and then remains lit. Release the SETUP

key.

2. Press the key that corresponds to the type of

equipment you want to ﬁ nd the code:

: television set, : DVD player, : Video TV DVD VCR

recorder,

SAT: satellite receiver, cable, DVBT, ADSL, : AMP

audio equipment and : any appliance.AUX

3. Press the SETUP key again brieﬂ y, the indicator

light blinks once.

4. Press the number keys ( to ) until you notice that 0 9

the indicator lamp blinks once.

5. The number which made the indicator lamp blink

is the ﬁ rst of the four ﬁ gures comprising your code,

write it down.

6. Repeat step 3 to ﬁ nd out the 3 other numbers of

the code.

7. When the fourth ﬁ gure is found, the indicator lamp

goes out.

Check of

the programming

- For a television or a satellite receiver: switch on

and, for example, press 2 to change channels,

etc...

- Video recorder: load a tape and then press .B

- DVD player: load a DVD and then press .B

Try other remote control keys to ﬁ nd out the range of

functions you can control. If you think that not all of the

keys are active, try the programming or .Method B C

When you have retrieved the code of

your set, jot it down so that you can use it

whenever needed.

After battery replacement, you may have to

programme the remote control again.

Other functions

Placing all devices on standby

Press the key twice in less than one second, keeping G

it held down the second time. All the devices go on

standby one after the other (the devices which were

already on Standby may turn on).

Adjustment of ALL volume controls under a

speciﬁ c mode

In its delivered state, the is programmed ROC4309

such that all modes will use their own Volume and

Mute functions if present.

You can allocate the volume control to one of the

modes of the remote control on condition that the

volume control exists on the corresponding device

(e.g. control of TV sound in TV mode, DVD mode, VCR

Mode, etc.).

1. Hold the SETUP key down until the red indicator

lamp blinks and then remains lit.

2. Release the SETUP key

3. Press the H key until the red indicator lamp blinks

once.

4. Press once on the mode key ( , , …) TV DVD

corresponding to the device whose volume will

always be controlled by the and keys. VOL H

5. Press the H key once. The red indicator lamp goes

off.

6. All other mode will now punch-through to your

chosen mode for Volume and Mute control.

Adjustment of the volume controls for EACH

mode.

You can decide that the volume control is functional

for each mode selected on condition that the volume

control exists on the corresponding device (e.g. control

of the television set sound in TV mode, the control of

the sound of the SAT receiver in SAT mode, …).

1. Hold the SETUP key down until the red indicator

lamp blinks and then remains lit.

2. Release the SETUP key

3. Press the H key until the red indicator lamp blinks

once.

4. Press once on the mode key ( , , …) TV DVD

corresponding to the device whose volume will

always be controlled by the and keys. VOL H

5. Press the VOL- key once.

6. Press the H key once. The red indicator lamp goes

off.

7. The chosen mode key will now use its own Volume

and Mute functions

Restoring the universal Volume/Mute

functions

If you have changed the universal volume and mute

functions, as described in the previous two sections,

you can reset the functions back to the factory settings:

1. Hold the SETUP key down until the red indicator

lamp blinks and then remains lit.

2. Release the SETUP key

3. Press the H key until the red indicator lamp blinks

once.

4. Press and release the key. The red indicator H

lamp will go off completely. The volume and mute

functions are now restored to their factory defaults.

DVD CODE

TV CODE

AMP CODE

SAT CODE

Replacing the batteries

Use 2 AAA 1.5 Volt batteries

1. Open the cover on the back of the remote control.

2. Check the +/– polarity on the batteries and inside

the compartment.

3. Insert the batteries.

4. Press the battery cover back into place.

When exchanging the batteries, it may be necessary to

reprogram the unit. Hence it is advisable to record the

codes needed for your devices.

00131873bda.indd Abs1:2-Abs1:3

00131873bda.indd Abs1:2-Abs1:3 02.10.2009 12:17:49 Uhr

02.10.2009 12:17:49 Uhr

Produktspecifikationer

Varumärke:	Thomson
Kategori:	Fjärrkontroll
Modell:	ROC4309

Behöver du hjälp?

Om du behöver hjälp med Thomson ROC4309 ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Fjärrkontroll Thomson Manualer

Thomson ROC3506SAM Bruksanvisning

21 September 2024

Thomson ROC4309 Bruksanvisning

19 September 2024

Thomson ROC240 Bruksanvisning

18 Augusti 2024

Thomson ROC130 Bruksanvisning

28 Juli 2024

Fjärrkontroll Manualer

Nyaste Fjärrkontroll Manualer

Monacor DRM-880WP Bruksanvisning

27 Oktober 2024

Hama Spot-Pointer V2 Bruksanvisning

26 Oktober 2024

Sony RM-ED022 Bruksanvisning

21 Oktober 2024

Sonos Control Bruksanvisning

18 Oktober 2024

One For All URC 7935 Bruksanvisning

18 Oktober 2024

Canon BG-E20 Bruksanvisning

12 Oktober 2024

Neewer RT112 Bruksanvisning

8 Oktober 2024

Neewer RT113 Bruksanvisning

8 Oktober 2024

Logitech Harmony 785 Bruksanvisning

8 Oktober 2024

DSC WS4949 Bruksanvisning

8 Oktober 2024
