1. The Brake Kit is pre-assembled for use on single Thule

Chariot child carriers, however, if you will be using the

Brake Kit on a double Thule Chariot child carrier, you

will need to adjust the Jogging Brake Kit into its large/

wider size. To do this, remove the four bolts (using a

10mm wrench and a Phillips screwdriver) that secure

the four rails to the square tube.

2. For the Thule Chariot Corsaire, move the rails

outwards and re-install the bolts through the middle

two holes on each of the four rails. For the Thule

Chariot Cheetah 2, and the Thule Chariot Cougar

2 move the rails outwards, and re-install the bolts

through the outside two holes on each of the four

rails. Ensure that each bolt has two washers, which

are placed on the top and the bottom of the square

tube and sandwiched between the square tube and

the rails.

3. Remove the front wheel of the carrier (or install the

two wheel arms, but not the wheel).

4. While facing the front of your carrier, pivot both

quick release levers into the open position and

orient the main body of the Brake Kit so that the

levers and the brake calipers are on the bottom

pointing towards you.

5. Install the main body of the Brake Kit onto the wheel

arms by rst sliding one end of the Brake onto one

of the wheel arms followed by the other. Notice: do

not tighten the quick release levers yet.

6. Assemble the brake cable onto / through the carrier.

Refer to Figure #1a or #1b. Run the cables up the

right hand side of the carrier.

These instructions contain many WARNINGS. Read and

understand all of the Warnings. Failure to assemble

and use this accessory correctly may lead to serious

personal injury to your passenger.

GENERAL WARNING

• Use wrist safety strap at all times.

• Always use seat belts.

• Always use parking brake when jogging stroller is

stationary.

• Never in-line skate with the Jogging Kit. A serious

accident could occur resulting in serious injury or death.

Initial Assembly Time: About 5 minutes.

Tools Required: a 10mm wrench, Phillips screwdriver

and a 5mm Allen Key.

Read instructions carefully before assembly.

The brake cable does not need to be disassembled

for assembly.

Any reference to orientation (left or right) is from the

trailer passenger's point of view, while in the carrier.

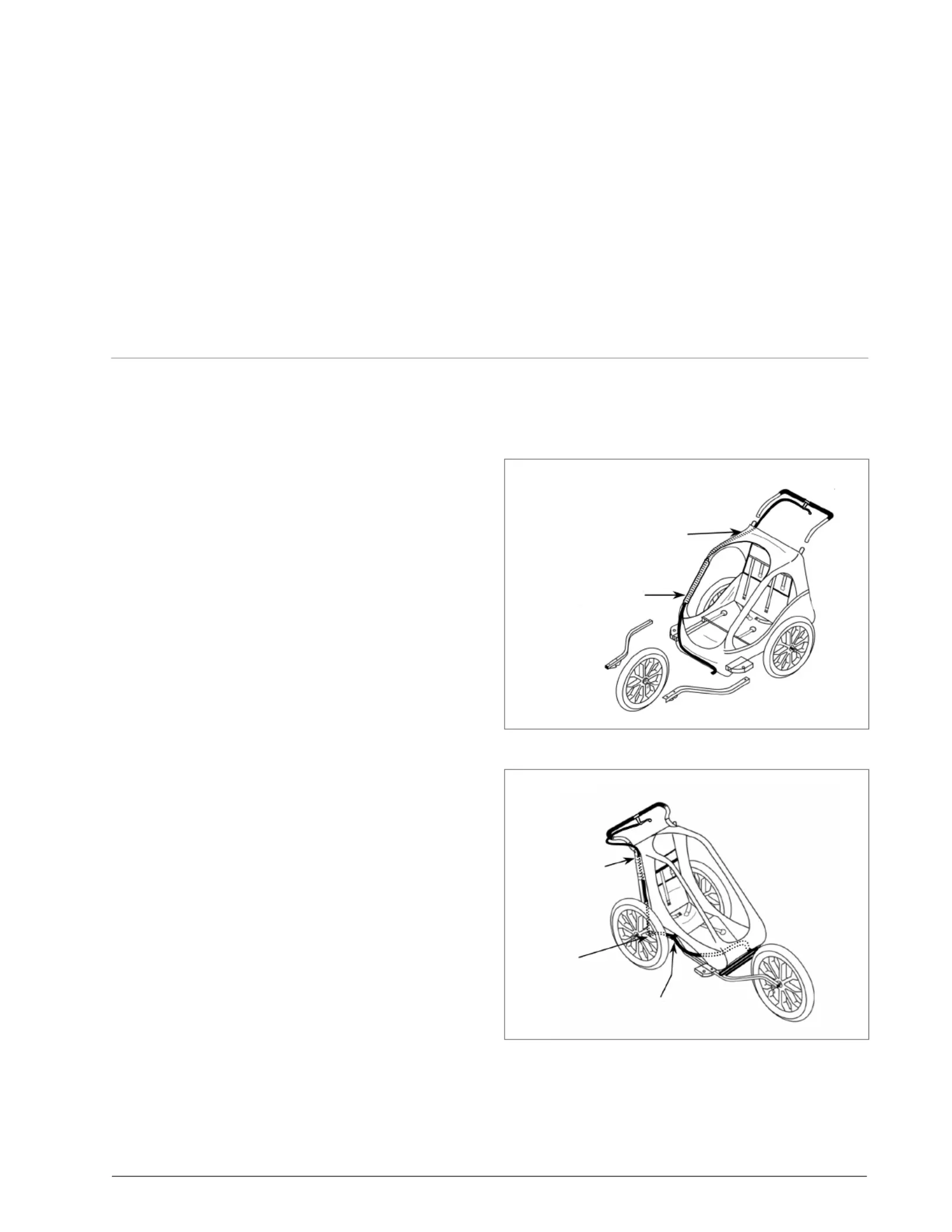

Figure 1a

Figure 1b

Thule Chariot Corsaire or

Thule Chariot Captain

Thule Chariot Cougar or

Thule Chariot Cheetah

Pass cable through

sleeve to back of trailer

insert cable

through sleeve

Insert cable into sleeve

cable passes under

hollow axle

insert cable

through webbing

51100902 - B 3

7. Place the brake lever on the centre of the handlebar

so that the lever points to the left. Insert the

aluminum shim between the brake lever mounting

clamp and the handlebar tube as shown in Figure 2.

Close the brake lever mounting clamp around the

handlebar (and shim) and tighten using a 5mm

Allen Key.

8. Re-attach the front wheel and adjust the main body

of the Brake Kit so that the centre bolt of the brake

calipers line up with the centre of the wheel. Ensure

that the main body of the Brake Kit is parallel to the

front of the carrier with approximately 1 to 1.5 cm

between the wheel and the square tube.

9. Pivot both quick release levers into the closed

position. This should securely fasten the main body

to the wheel arms. If it is not securely fastened,

open the quick release levers and slightly tighten

the nut on the opposite side of the quick release

levers until secure when the levers are closed.

10. Adjust the brake pads on the brake calipers so

that they fully contact the rim of the wheel when the

brake lever is actuated.

11. Adjust the cable tension and the alignment of the

brake calipers so that the brake pads are close to

but do not contact the rim of the wheel when the

brake lever is not actuated. To make minor cable

tension adjustments, rotate the barrel adjuster

nut, which is located at the point where the brake

housing connects to the brake calipers. If larger

adjustments are necessary, re-tension the brake

cable (using the 10mm) at the point where the cable

is fastened to the brake calipers.

WARNING

Ensure that the brake works effectively before

loading children and using.

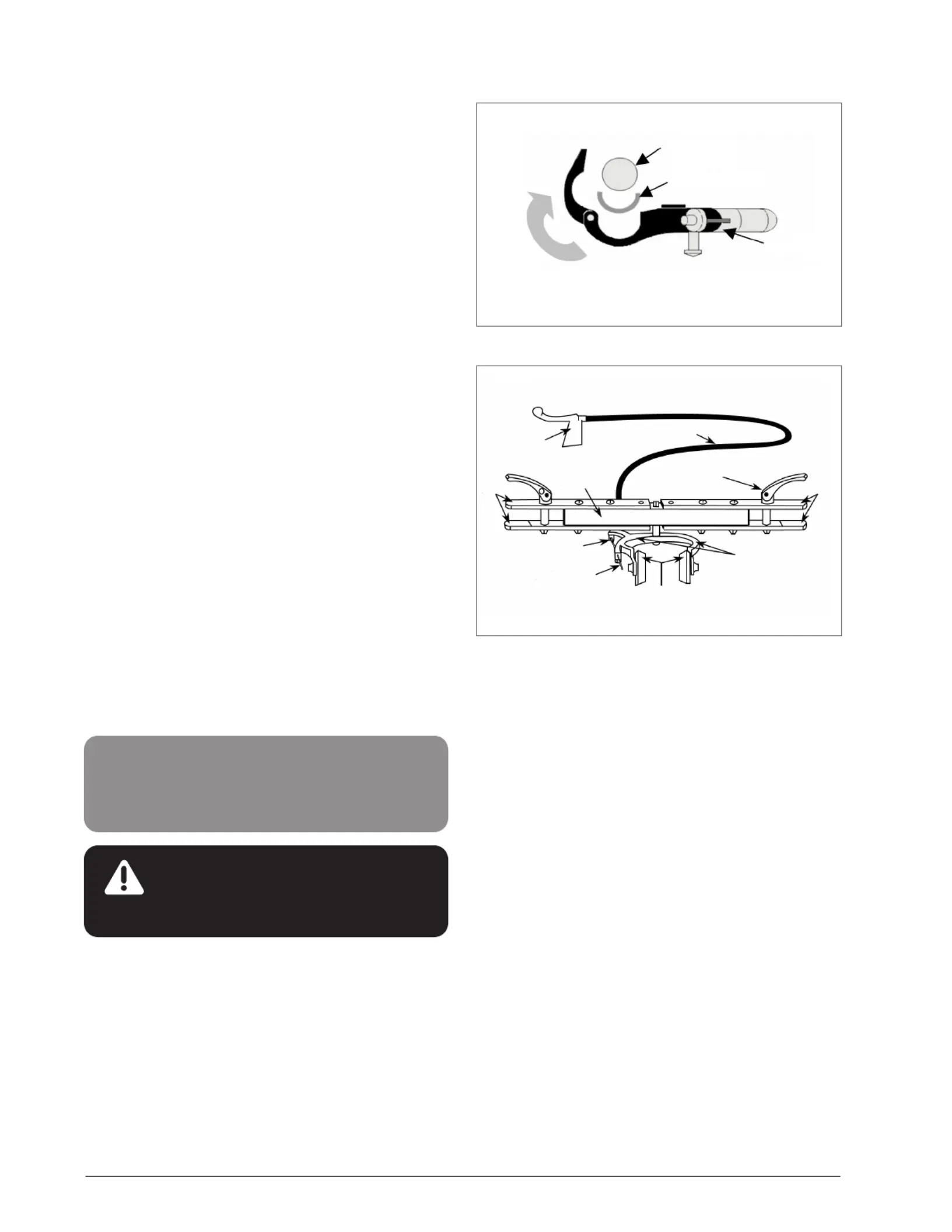

Figure 2: Brake Installation

Reference Diagram

NOTICE

The brake cable will periodically require tightening

due to cable stretch.

Handlebar

Aluminum Shim

Brake Lever

Square Tube

Close clamp

around handlebar

Barrel Adjuster Nut

Brake Cable

Quick Release Levers

Cable Housing

Rails

Brake Calipers

Brake

Pads
