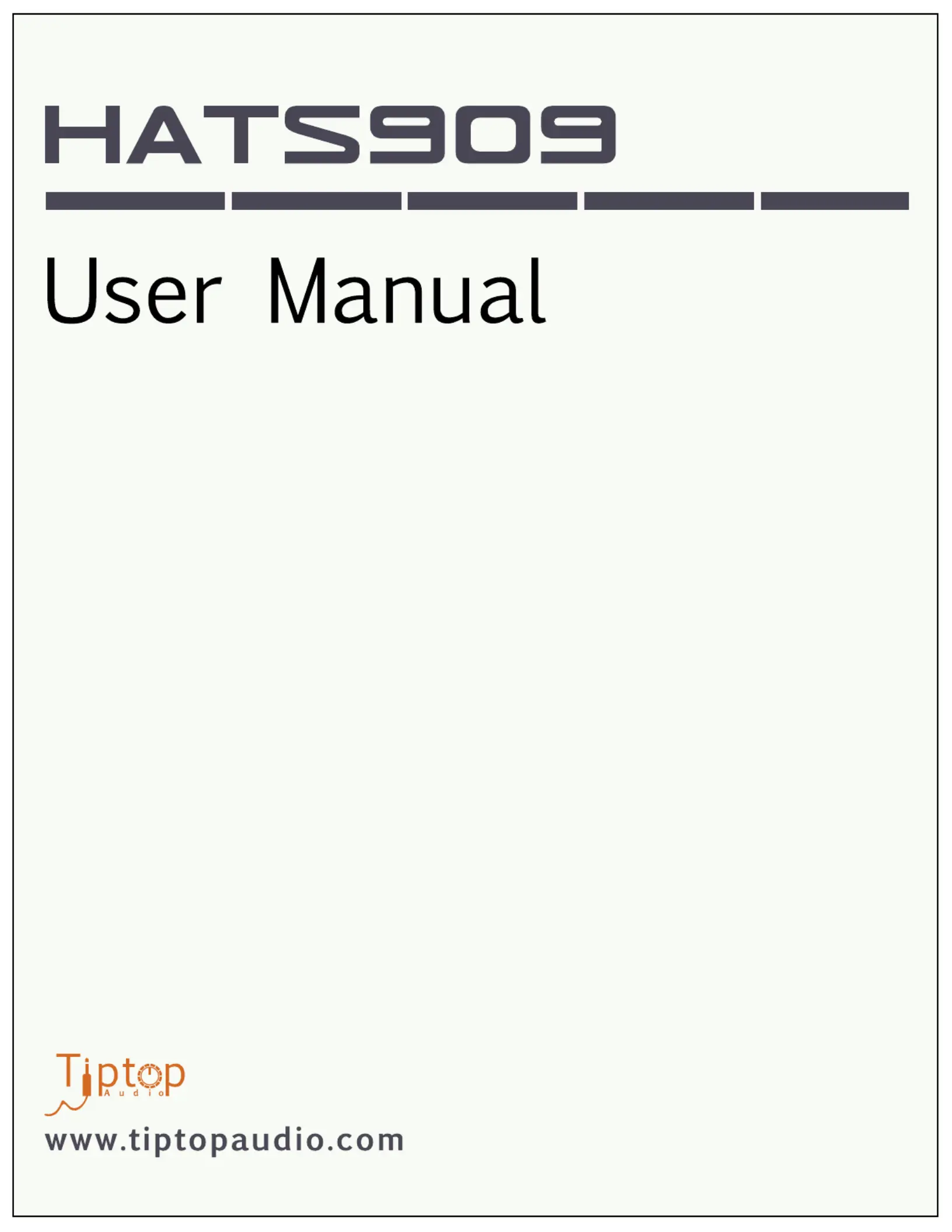

Sida 1/6

Introduction.

The HATS909 is Roland's TR-909 analog Closed and Open Hi-Hats sound generator

adapted for modular synthesizer use. The front panel contains all of the controls

found on the original TR-909 drum machine, allowing you full control over the

sound’s volume levels to mix with other drums and accent levels. In addition to

those original controls we have also added new controls, further enhancing this

legendary sound generator.

Let’s get started.

To start using the HATS909, just plug a gate signal into either the OH GATE or

the CH GATE input, plug the HATS OUT to your sound system, set the LEVEL half

way, set the TUNE knob to about half way, set the SOURCE switch to 909, and set

ACCENT to halfway.

OH vs CH and SOURCE switch.

The HATS909 is a low-fi sample based generator that is capable of producing

only one sound at a time; the default is the OH sound which overrides the CH. If

a gate signal appears at both inputs simultaneously, the OH will sound. Each of

those sounds have a DECAY control knob to set the length of the analog envelope

applied to that sample sound. Setting the SOURCE switch to RAW bypasses the

envelope and filtering of the sound sample, giving you the raw sample with no

processing. RAW mode is great for using your own filters, VCA, and envelope to

process the raw sample sound. When set to 909, the sampled sound pass through

the original analog filters and VCA of the 909 machine.

Tune:

The sample rate generator in the HATS909 module was replaced with a Voltage

Controlled Oscillator which allows for full control over the tuning of the sound,

both manually (TUNE knob) and with VC (VC-TUNE jack). This integration of analog

control over digital sound generation gives many more Hats sounds than were

originally capable with this circuit with crushed and short ticks at each end of the

knob or control signal, and the original signature sound at about 1-2 o'clock of

the tune knob position.

Modulation switch:

The MODULATION switch taps the FM/AM signal input to either the Tune oscillator

or the internal VCA. When in FM mode, the control input is not different than

the VC-TUNE input, but it does provide an attenuation on the input signal (CV IN).

When set to AM, the signal is then mixed up with the internal envelope signal

modulating the internal VCA. Both AM and FM can be modulated with control signals

from sequencers, LFOs, envelopes etc, or modulated in the audio range, performing

Amplitude or Frequency synthesis over the source sampled sound.

The Riding 909 HATS:

Perhaps the most famous use of the 909 Closed Hats is found in so many techno

and other acid tunes and here is how you do it. The trick is to use some notes

with no accent and some with. In its most basic form, this is done with accent on

every second note in a row. An easy way to do that is to plug the pulse of an

oscillator into the CH GATE input, send the pulse also to a sequencer clock-in like

the Z8000 and have every second knob turned CW on the Z8000. Clock dividers

are also great for doing that with the divide by 2 patched to the ACCENT input.

TUNE and MODULATION switch.

PATCH ideas:

CH GATE

ACCENT IN
