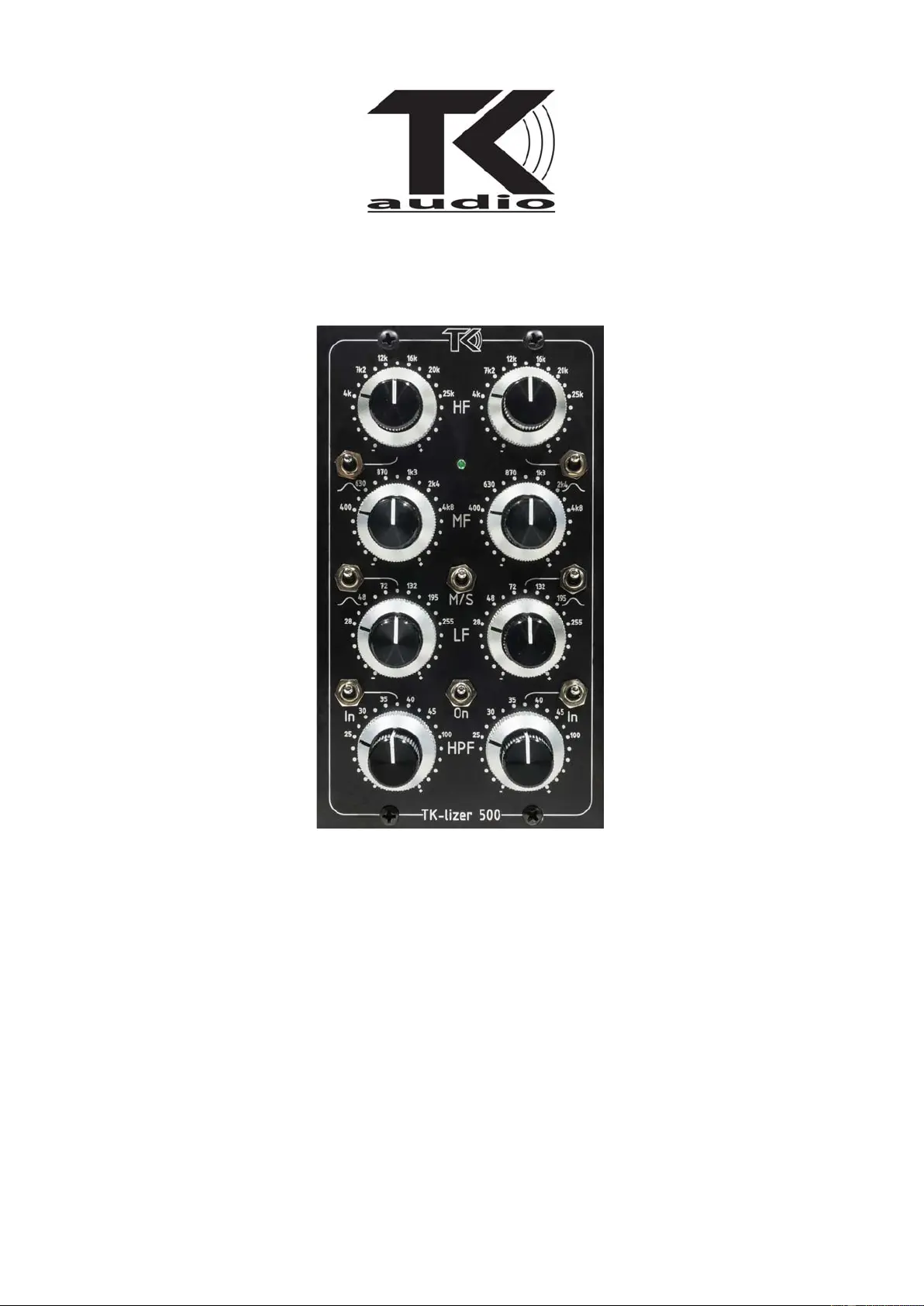

TK-lizer 500
500 series dual mono EQ with M/S function
Congratulations on buying the TK-lizer 500! It features all the power of the TK Audio’s flagship
TK-lizer, including the M/S functionality that has made it such a staple in studios all over the
world.
It’s manufactured and assembled by hand in Sweden and thoroughly tested before leaving
the factory.
The three bands have a cut/boost range of +/-8dB in 41 steps. The low and high bands
can be switched between peak or shelving mode. A high pass filter with a 12dB slope is
also provided, and each channel has it’s own level control with a range from infinity to
+6dB.
Using the built in M/S function, you can adjust the middle and side signals separately
before it is decoded back to a normal L/R signal. In M/S mode you can also adjust the
stereo width using the level controls.
Parameters:
Low band
Frequency: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz
Boost/cut: +/-8dB
Peak or Shelf
Mid Band
Frequency: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz.
Boost/cut: +/-8dB
High Band
Frequency: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz, switchable between shelf or bell.
Boost/cut: +/-8dB
Peak or Shelf
High Pass Filter
Frequency: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave.
In/Out
Level: Infinity to +6dB (Unity gain at 12’o lock)
EQ in/out. (LED red for out, green for in)
M/S in/out.
M/S mode:
When M/S mode is selected, the signal is encoded into M=mid ( L+R) and S=Side (L-R),
and after the EQ filters the signal is decoded back to conventional L and R.
By using the high pass filter in M/S mode you can affect the lower range in two ways:
1. HPF on M channel cuts the low energy on the mid signal – useful on program material
such as bass, drums and vocals.
2. HPF on S channel - frequencies below the selected frequency will be in mono, a
technique used when cutting records and to get a more focused low range.
In M/S mode you can also use the level controls to alter the stereo images. More S
channel will widen the image, and less S channel will reduce the stereo images.
If you turn down the “side” level all the way the signal will be mono.
Tip:
When working in stereo, to achieve the same settings on both channels you can use the
M/S function to ensure that L and R will be set the same way.
Installing:
Press on the left side of the panel when inserting the unit in a lunchbox!
EQ in/out
Red = out, Green = on
M/S function in/out
High frequency select
High cut/boost +/-8dB
Shelf/peak mode
Left channel/Mid Right channel/Side
Mid frequency select
Mid cut/boost +/-8dB
Shelf/peak mode
Low frequency select
Low cut/boost +/-8dB
HPF in/out
HPF frequency select
Output level.
0dB
+6dBinfinity
Specication:
Power requirement: +190mA / -80mA (extended over two slots)
Frequency response: 20Hz to 50kHz +/-0.2dB
THD @ +4dBu less than 0.0006%
THD+N @ +26dBu is less than 0.001%
Signal to noise ratio: 95dB
Cross talk: -89dB
Input impedance: 24kohm
Output impedance: 50ohm
Max input level: +26dBu
Max output level: +27dBu
Q ~ 0.5
