2.5” Solid State Disk
Transcend Information Inc.
V1.2
1
Description
Transcend PSD is a series of 2.5 PATA SSD
with high performance and advanced flash control
techniques. Due to smaller size (fit the standard
dimensions of 2.5” IDE Hard Disk Drives), huge
capacity, high speed, and low power consumption,
Solid State Disk is perfect replacement storage
device for PCs, Laptops, gaming systems, and
handheld devices.
Placement
Features
• RoHS compliant products
• Supports LBA 48bit addressing.
• Fully compatible with devices and OS that support the
IDE standard (44-Pin, pitch = 2.00 mm)
• Single Power Supply: 5V 10% ±
• Operating Temperature: 0
o
C to 70
o
C
• Storage Temperature: -40
o
C to 85
o
C
• Operating Humidity (Non condensation): 0% to 95%
• Storage Humidity (Non condensation): 0% to 95%
• Built-in ECC (Error Correction Code) functionality and
global wear-leveling algorithm ensures highly reliable of
data transfer
• True IDE Mode supports:
Ultra DMA Mode 0 to Ultra DMA Mode 6
MultiWord DMA Mode 0 to MultiWord DMA Mode 2
PIO Mode 0 to PIO Mode 4
• Shock resistance
• MTBF : 1,000,000 hours
• Support S.M.A.R.T (Self-defined) to monitor Erase
Count for lifetime evaluation.
• Support Security Command
• Support Static Data Refresh, Early Retirement to
extend product life

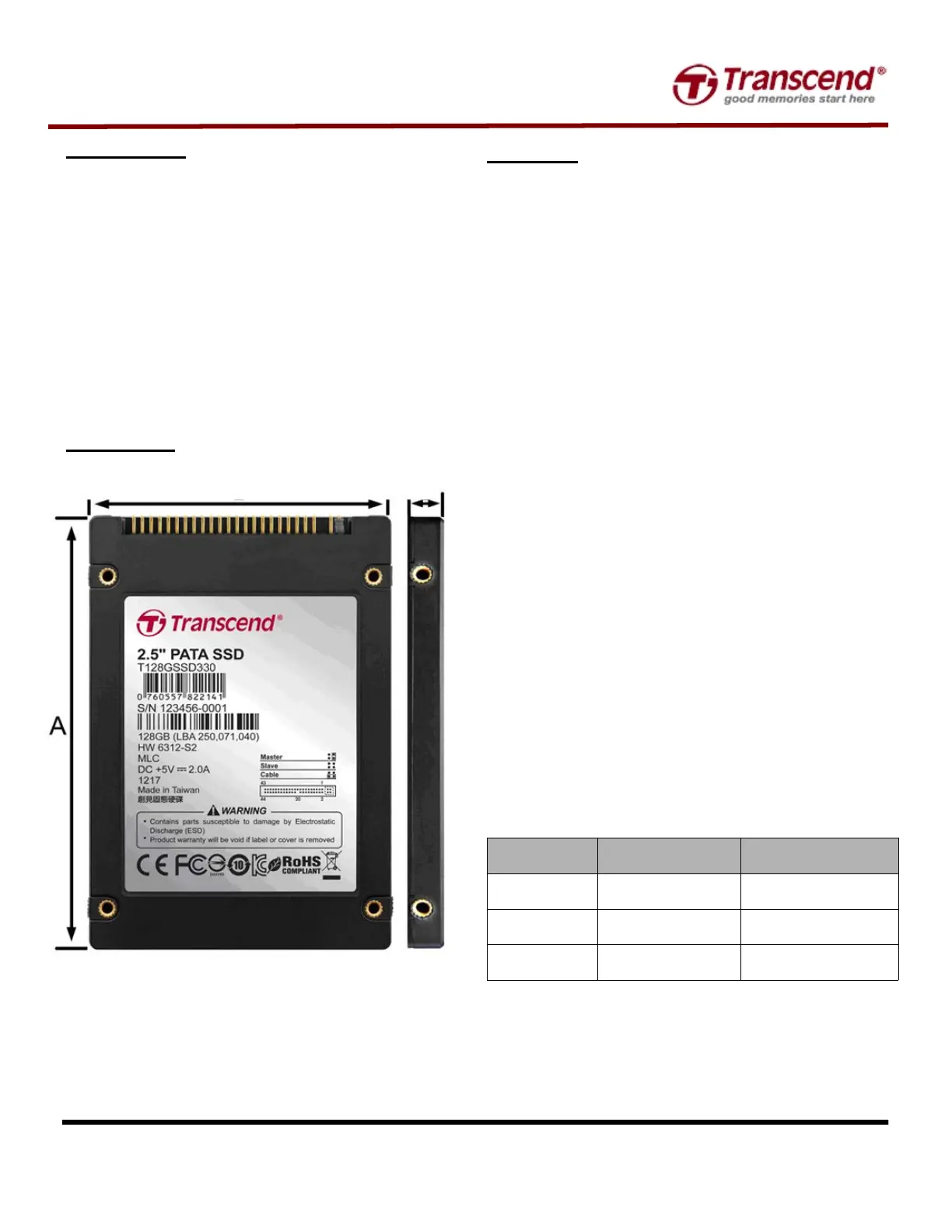

Dimensions
Side Millimeters Inches
A 100.30 0.40 3.949 0.016 ± ±
B 69.85 0.20 2.750 0.008 ± ±
C 7.40 0.15 0.292 0.004± ±
T
T
TS
S
S3
3
32
2
2G
G
G~
~
~1
1
12
2
28
8
8G
G
GP
P
PS
S
SD
D
D3
3
33
3
30
0
0
2.5” Solid State Disk
Transcend Information Inc.
V1.2
2
Specifications
Capacity
Model P/N Cylinder Head Sector User LBA Physical Capacity
TS32GPSD330 16383 15 63 62,533,632 32,018,219,584 Byte
TS64GPSD330 16383 15 63 125,044,736 64,002,424,832 Byte
TS128GPSD330 16383 15 63 250,071,040 128,036,372,480 Byte
Note. PSD330 series is shipped with RAW format. Inquiry for formatted device please contact with sales/PM.
Performance
Sequential Read Sequential Write Random 4K Read Random 4K Write
32GB 119.0 36.12 13.86 1.276
64GB 114.7 63.92 11.42 1.252
128GB 118.4 92.75 13.09 1.225
Note : Test by Crystal Disk Mark V3.0.1, 500MB size @25
o
C, P5K-VM(ICH 9), 1GB RAM * 2, IDE interface support up to
UDMA6, Windows® XP SP3
Power consumption (mA)
Capacity 32GB 64GB 128GB
Read
240.9
236.8
240.1
Write
158.9
245.5
247.5
Idle 0.8 0.8 0.8
Note: All data above are maximum value from various test patterns.
Physical Specification
Form Factor 2.5-inch HDD
Storage Capacities 32 GB to 128 GB
Dimensions (mm)
Length 100.3 0 0.40 ±
Width 69.85 0.20 ±
Height 7.40 0.15±
Input Voltage 5V 10%±
Weight 55g 5g±
Connector 44-Pin standard IDE/ATA connector (Pitch 2.0 mm)
T
T
TS
S
S3
3
32
2
2G
G
G~
~
~1
1
12
2
28
8
8G
G
GP
P
PS
S
SD
D
D3
3
33
3
30
0
0
2.5” Solid State Disk
Transcend Information Inc.
V1.2
3
Endurance
Capacity
32GB
64GB
128GB
Tera Byte Write
20 TBW 40 TBW 80 TBW
Note: Based on JEDEC JESD218A specification, Client Application Class. And based on the following scenario: Active
use: 40
o
C, 8hrs/day; Retention use: 30
o
C 1year
Interface
Part Number Interface Transfer Mode Connector
TS32G~128GPSD330 True IDE mode
Ultra DMA mode 0~6
Multi-Word DMA Mode 0~2
PIO Mode 0 ~ 4
44pin 2mm pitch Pin male
Header
Environmental Specifications
Operating Temperature 0
o
C to 70
o
C
Storage Temperature -40
o
C to 85
o
C
Operating Humidity (Non condensation) 0% to 95%
Storage Humidity (Non condensation) 0% to 95%
Note: If Third party report is needed, please contact with sales/PM.
EMC/EMI
Compliance CE, FCC and BSMI
Note: If Third party report is needed, please contact with sales/PM.
SHOCK & Vibration Test
Condition Standard
Mechanical Shock Test 1500G, 0.5ms, 3 axes IEC 60068-2-27
Vibration Test 20G (Peak-to-Peak)
20Hz to 2000Hz (Frequency) IEC 60068-2-6
Interface Specification
Jumper Settings Master/Slave/Cable-select Settings
ATA Compatibility ATA/ATAPI 8
UDMA Modes 6
