Sida 1/4

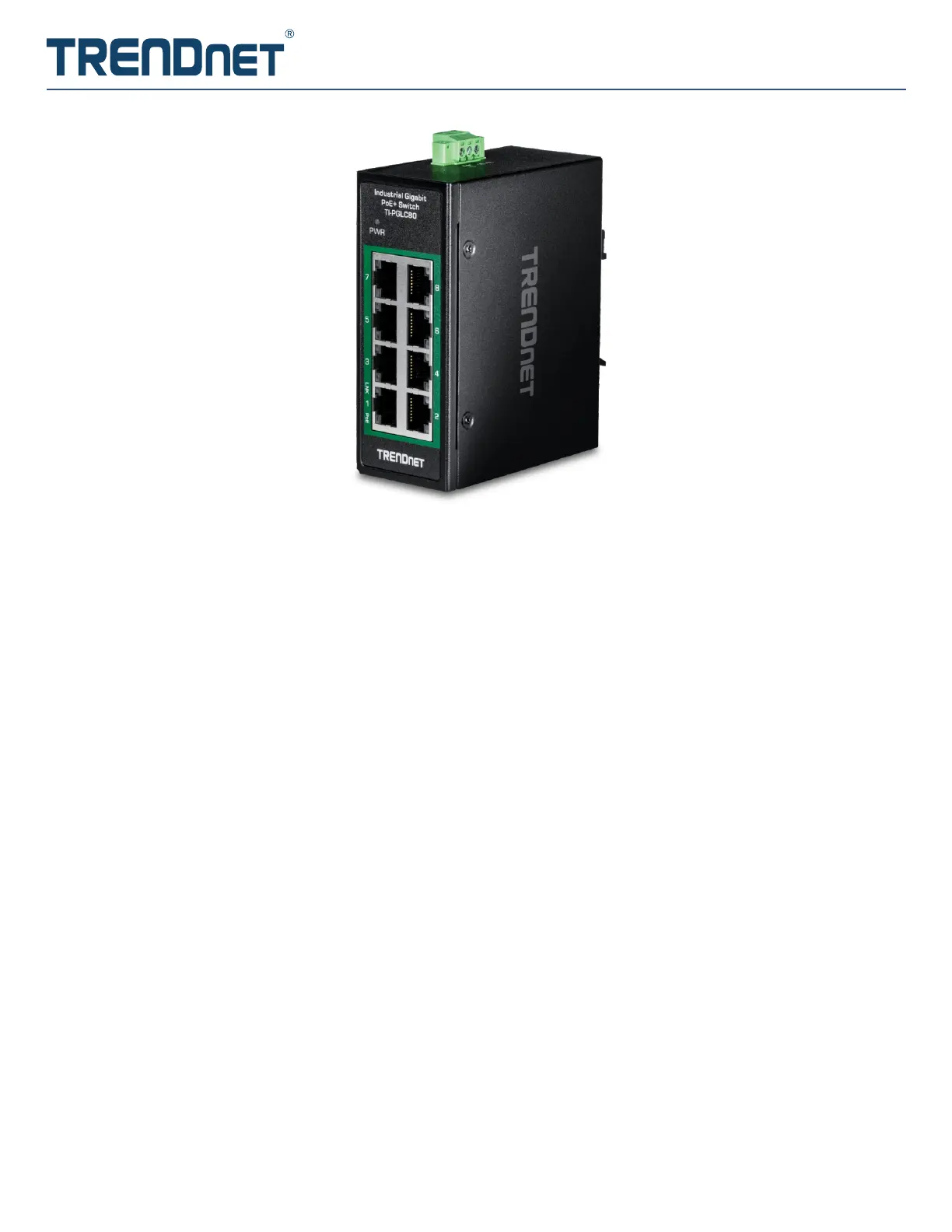

8-Port Industrial Gigabit PoE+ DIN-Rail Mini Switch
TI-PGLC80 (v1.xR)
• 8 x Gigabit PoE+ ports
• 200W PoE+ power budget
• Hardened IP30 rated metal mini switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• 16Gbps switching capacity
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-S24052, TI-S24048)
• NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 8-Port Industrial Gigabit PoE+ DIN-Rail Mini Switch, model TI-PGLC80, is a reliable and rugged networking solution
designed for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP30
rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low
temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features eight copper
gigabit PoE+ ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+
Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only
need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+
switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone
systems, IPTV decoders, access controls, and more.

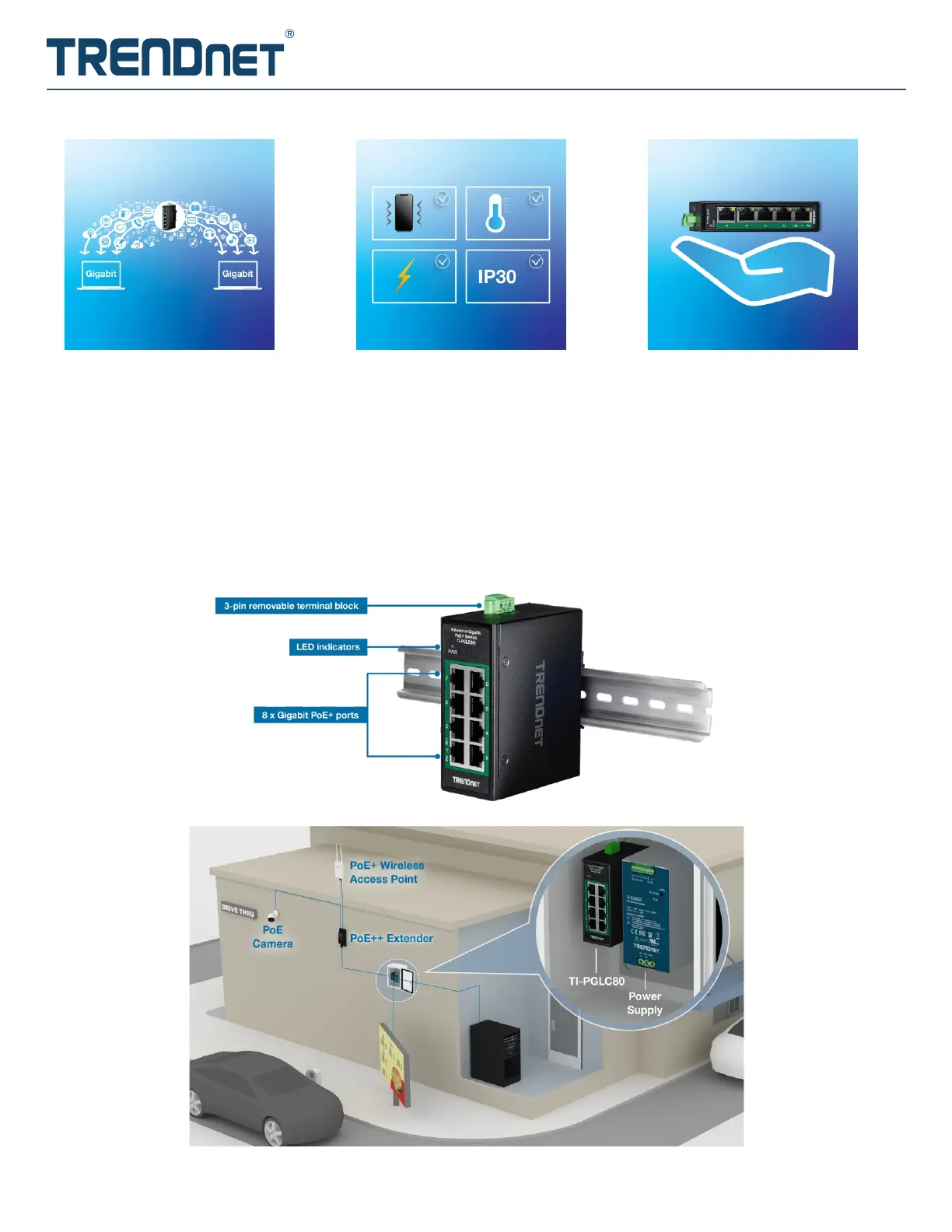

TI-PGLC80
Gigabit PoE+ Ports
This industrial switch features eight
copper gigabit PoE+ ports for high-
speed device connections.
Industrial Hardened Design
Equipped with a rugged IP30 rated
housing, designed to withstand a high
degree of vibration and shock, and
operate within an extreme
temperature range of -40° – 75° C (-
40° – 167° F).
Compact Design
With a compact metal housing design,
this mini network switch is well-suited
for installations into most environments.
NETWORKING SOLUTION
TI-PGLC80
FEATURES
Gigabit Ports
This mini switch is equipped with
eight gigabit PoE+ Ethernet
ports
PoE+ Power Budget
Supplies up to 30W of PoE/PoE+
power per PoE+ port with a
power budget of 200W
DIN-Rail / Wall Mounts
IP30 rated metal enclosure on the
industrial switch, with included DIN-
Rail mount and wall mount
hardware
Mini Housing Design
Compact and sturdy metal housing
Jumbo Frame
Supports larger packets, or
Jumbo Frames (up to 9KB), for
increased performance
Operating Temperature Range
An operating temperature range of
-40° – 75° C (-40° – 167° F) allows
for the installation of the industrial
switch in environments with
extreme hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-32), and
vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS
certifications (IEC 61000-4-2) ESD:
Contact: 6kV | Air: 8kV, (IEC 61000-
4-4) EFT: Power: 2kV | Signal: 2kV,
(61000-4-5) Surge:
Power: 2kV | Signal: 2kV
TI-PGLC80
Grounding Point
The industrial switch features a
grounding point for protection
against external electrical
surges

Produktspecifikationer

Varumärke: Trendnet
Kategori: Inte kategoriserad
Modell: TI-PGLC80
