Purpose: Ethernet cables have 4 pairs of wires (”twisted pairs”). It is important
that the pairs correctly go to connector pins 1,2 ; 3,6 ; 4,5 ; and 7,8. The Pocket CAT
tests for the proper pairing and if there is an error it will report it to you (”split pairs”) .
Connecting cables to tester:
Installed cables: Connect the Main unit to the wall jack and the Remote to the
patch panel or far-end wall jack.
Patch cables: Attach the Main unit and Remote directly to the cable ends.
Power ON and test:
STEP 1: Press the ON button. Press again to commence test.
STEP 2: When the PASS/FAIL LEDs light, press the FAULT CHECK button to isolate
any problems to an individual pair.
Coax Testing: Coax is displayed using the 4/5 LEDs. The coax remote is in the pouch.
CTX200
TM
RUGGEDIZED / CUSHIONED
TESTS RJ45/CAT CABLES TO TIA568 SPECS
INCLUDES MULTI-PAIR
TONE GENERATOR
TESTS COAX CABLES
For RJ45 and COAX cables
FEATURES
✔ Tests both RJ45-CAT5/6 and coax cables.
✔ Ruggedized for field use. Small and easy to carry.
✔ PASS/FAIL results appear in one second.
✔ Each pair’s status is highlighted.
✔ Complete TIA568 test performed. Continuity, opens / shorts,
reversals and split pairs.
✔ Tone mode for tracing cables and troubleshooting.
✔ Auto-off (12 seconds) to conserve battery life.
✔ Low battery indicator.
✔ Belt clip, battery (9V) and pouch included.
CABLE TESTING
TONE MODE
Purpose: Tone is used to locate a cable’s far end. A tone is placed on the cable by the
Pocket CAT Main unit. A probe (available separately) locates the tone at the far
end of the cable.
Connect the cable: Plug the cable into the tester’s Main unit.
Power ON and tone: Press the ON button. Hold the TONE button for 7 secs to turn
ON the tone. Press the TONE button repeatedly to select the pair you wish to tone.
The tone is loudest when you select the entire cable (including the shield).

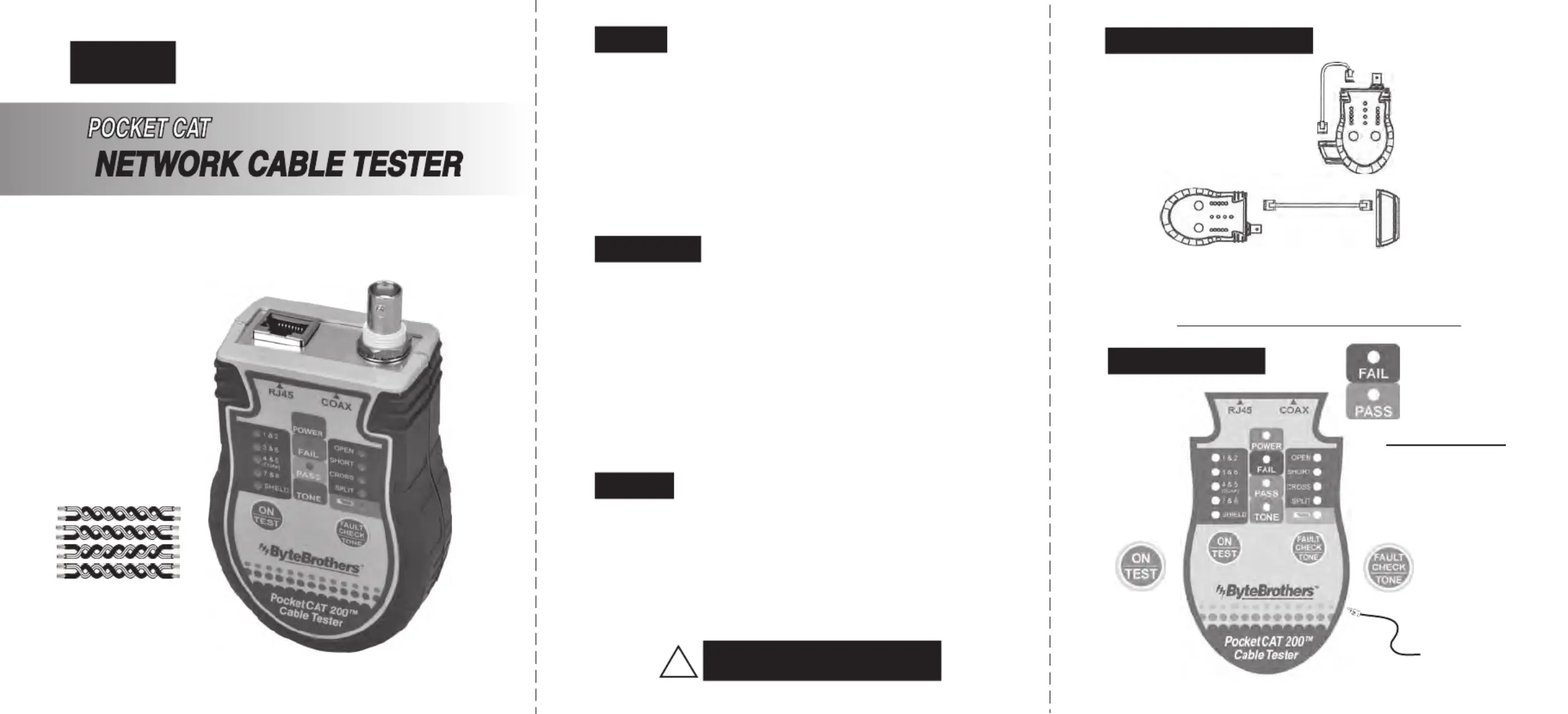

CONNECTING TO THE POCKET CAT
Testing patch cables
Slide drawer open and
connect cable to the
connector
Testing installed cables
Remove drawer and connect
to the far end of the cable
Remote
connector
POCKET CAT FACEPLATE
WARNING. DO NOT USE
ON LIVE CIRCUITS!
!
Pair/shield
tested
Remote
connector
drawer (push to
slide or remove)
PASS/FAIL
indicator
FAILURE DESCRIPTIONS
OPEN: A wire is disconnected
SHORT: A wire makes contact with another w
CROSS (REVERSAL): A twisted pair gets flip
on one side of the cable
SPLIT: One wire from each of two different pa
gets swapped on both ends of the cab
Press to test
all pairs
automatically
Press to test pairs
individually.
Hold 7 secs for tone.
Press again to select pair.
Note: The remote connector
for coax testing is located in
the pouch.
Coax uses 4/5
Cable diagrams inside
© 2010 Byte Brothers, Inc.
7003 132nd Place SE, Newcastle, WA 98059 USA
+1.425.917.8380 ● FAX +1.425.917.8379 ●
cs@bytebrothers.com
Network T
Network T
Network T
Network T
Network Test and Repair T
est and Repair T
est and Repair T
est and Repair T
est and Repair Tools
ools
ools
ools
ools
Network Test and Repair Tools
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
Orange/White
Orange
Green/White
Green
Blue
Blue/White
Brown/White
Brown
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
Orange/White
Orange
Green/White
Green
Blue
Blue/White
Brown/White
Brown
EIA/TIA 568B
STRAIGHT THRU CABLE
(MOST POPULAR)
GOOD CABLE
OPEN on PAIR 1-2
ON
OFF
BLINK
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
Orange/White
Orange
Green/White
Green
Blue
Blue/White
Brown/White
Brown
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
Orange/White
Orange
Green/White
Green
Blue
Blue/White
Brown/White
Brown
SPLIT PAIRS
(PAIRS 1,2 AND 3,6 SPLIT)
SHORT on PAIR 3-6
ON
OFF
BLINK
ON
OFF
BLINK
1
2
3
6
4
5
7
8
Orange/White
Orange
Green/White
Green
Blue/White
Blue
Brown/White
Brown
1
2
3
6
4
5
7
8
CROSSED
A WIRE ON BOTH
PAIRS 4-5 AND 7-8
IS FLIPPED (CROSSED)
ON
OFF
BLINK
Limited Warranty
The manufacturer warrants to the original consumer that this product is in good w
order for a period of one year from the date of manufacture or date of purchas
During this period the product will be repaired or replaced without charge for eit
parts or labor. The warranty does not cover damage caused by connection to hig
voltage sources such as telephones or Power over Ethernet (PoE). Repair or
replacement as provided under this warranty is the exclusive remedy of the purc
ON
OFF
BLINK
COAXIAL (”COAX”) CABLE
ON
OFF
BLINK
LEDs
LEDs
LEDs
LEDs
LEDs
LEDs
GOOD CABLEThe Pocket CAT uses LED 4&5 to display the status of a coax
cable test. Connect the near end of the cable to the BNC
connector. Connect the far end to the coax terminator (pouch).
WWW.BYTEBROTHERS.COM
Power ON and tone: Hold the TONE button for 7 secs to turn ON
the tone. Press the TONE button repeatedly to select the pair(s) you
wish to tone. Select the setting that gives the loudest tone.
Note: Requires an inductive probe to detect tone (available separately
ON
OFF
BLINK
LEDs
USING TONE TO LOCATE A CABLE END
TONE “ON”
(ALL PAIRS + SHIELD) TONE IS COMPATIBLE
WITH MOST POPULAR
PROBES (INCLUDING
BYTE BROTHERS
PROBES).
Hold 7 secs for
tone. Press again
to select pair(s).
1 2 3 4 5 6 7 8
PIN# PIN#
PIN# PIN#
PIN# PIN#
PIN# PIN#
PIN# PIN#
RJ45 SOCKET/PLUG
PIN DIAGRAM
