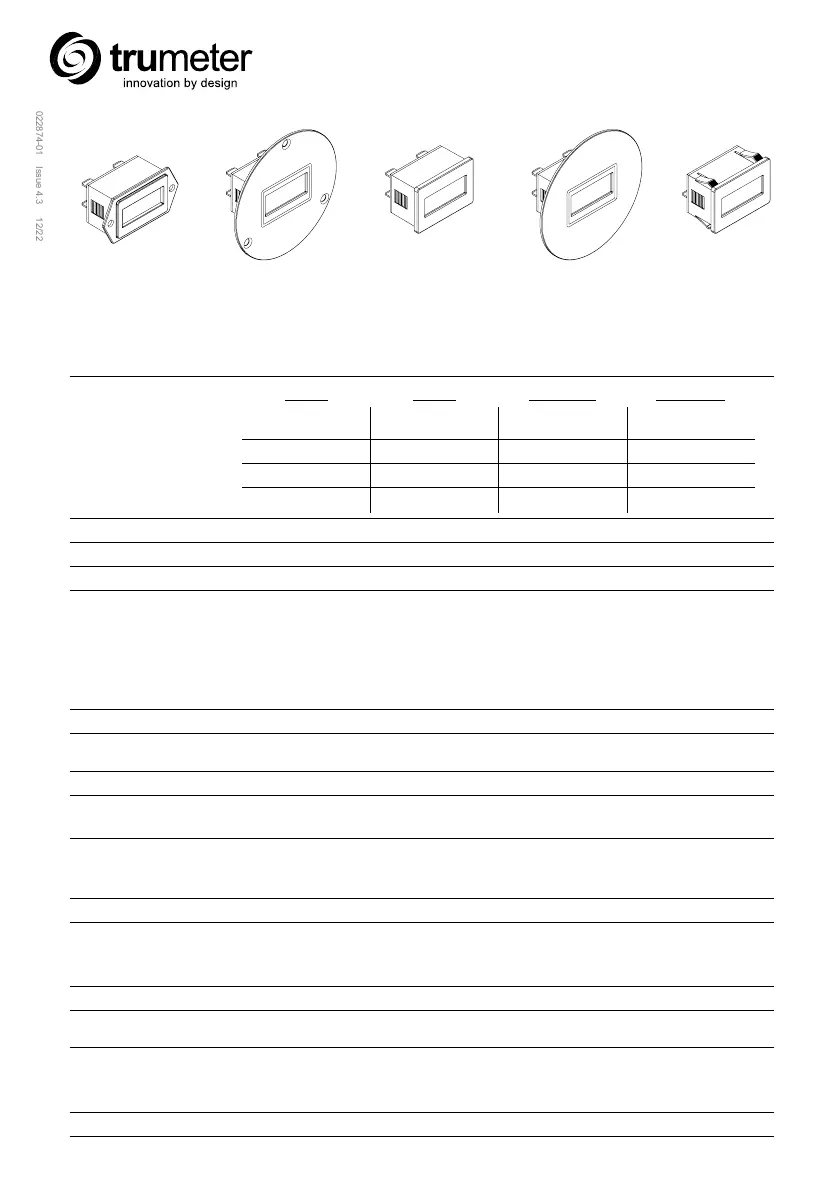

Model 34

Electronic totalizers and hour meters

Common Specication

Display LCD 0.28” [7mm] high gures black on light background

Input Options MODEL RANGE INPUT LOW INPUT HIGH

34x0 10-300VDC

20-300VAC

<3VDC

<3VAC

>10VDC

>20VAC

34x1 Dry Contact n/a n/a

34x3 4.5-30VDC <2VDC >=4.5VDC

34xx-GATE 4-30VDC <1VDC >=4VDC

Power Self-powered battery life 10+ years

Terminations Standard 0.250” [6.4mm] spades

Approvals UL & cUL recognized (le # ELIY2.E36690), CE, UKCA, SAE, NEMA 4/4X /IP66 compliant

Environmental Operating Temp.: -10˚C to +60˚C [14˚F to +140˚F]

Storage Temp.: -20˚C to +70˚C [-4˚F to +158˚F]

Humidity: 95% RH per SAE J1378

Shock: 44 to 55g’s per SAE J1378

Dielectric: 1000VAC 50/60 Hz for 1 minute (34x0 only)

Compliance: Compliant to the European WEEE and RoHS Directives

Protection Against: Alternator load dump 150V EMI (Electromagnetic Interface) +400V

@ 500Hz inductive switching and reverse polarity (34x0 only)

EMC Compliance EN61326

Enclosure NEMA 4/4X, 12 & IP66 compliant from the front when properly mounted using the optional

gasket. (Not applicable in the Snap-In Model)

Weight 1 oz. [28g]

Reset Options 34xx-xx0x - Non Reset

34xx-xx1x - Remote Reset / Dry Contact (switch)

34xx-GATE - Non Reset / Optional Remote Reset

3400 (Totalizer) Specication

Display 8 digits (99999999)

Max pulse rate 40 pulses per second (Hz)

3410 (Hour Meter) Specication

Display 9999999.9 (hours & 1/10’s)

Run Indicator Blinking decimal point

Accuracy ± 0.1% @ room temperature

± 0.2% over the specified temperature range

3400-GATE (Delayed Totalizer) Specication

Display 8 digits (99999999)

Input Time >5 seconds to register count

34xx-0xxx, 3400-GATE

Two Hole Mount

34xx-1xxx

Three Hole Mount

34xx-2xxx

Rectangular Flush Mount

34xx-3xxx

Round Flush Mount

34xx-5xxx

Rectangular Snap-in Mount

1.750

44.45

27.90

0.157

1.09

27.6

0.94

23.9

0.78

19.70

1.44

36.6

1.60

40.60

1.10

27.90

1.09

27.6

0.94

23.9

0.25

6.35

0.88

22.40

0.78

19.70

0.152

3.85

2.87

72.90

1.26

32.13

0.63

16.07

2.19

55.65

1.09

27.6

1.98

50.30

0.03

0.70

0.78

19.70

2.21

56.1

1.98

50.3

0.776

19.70

0.03

0.70

0.78

19.70

0.965

0.949

24.50

24.10

1.476

1.461

37.50

37.10

Trumeter (Europe)

Pilot Mill, Alfred Street, Bury, Lancashire

BL9 9JR, United Kingdom

Tel: +44 161 674 0960

Email: sales.uk@trumeter.com

Trumeter (Americas)

6601 Lyons Rd, SUITE H-7, Coconut Creek,

Florida, 33073, USA

Tel: +1 954 725 6699

Email: sales.usa@trumeter.com

www.trumeter.com

Asia Pacic Distributor

Innovative Design Technologies Sdn. Bhd, Lot 5881,

Lorong Iks Bukit Minyak 1

Taman Perindustrian Iks, 14000 Bukit Tengah

Penang, Malaysia

Web: www.idtworld.com

Tel: + 604 5015700

Email: info@idtworld.com

Panel Cut-out

Wiring Diagrams

Dimensions

(All dimensions are nominal)

Max panel thickness, snap-in housing: .125” [3.18]

Max panel thickness, without gasket: .375” [9.5]

Min panel thickness, with or without gasket: .04” [1.0]

Gaskets (Optional)

1 2

10-300VDC / 20-300VAC Input Note: Do not connect AC or DC voltages

to terminals 3 or 4. Reset wiring must be

specified for unit input voltage.

Inputs do not have a polarity and can be wired either way round.

1 2 1 2

3 4

1 2

Dry Contact Input

4.5-30VDC Input

Reset

34x3-xxxx 34x0-xxxx 34x1-xxxx 34xx-xx1x

WITH RESET (4 TERMINAL)

1 2

40-30VDC nput

34xx-GATE

Gasket 5003-009

Max panel thickness: .275” [7.9]

Gasket thickness: .118” [3.00]

Gasket 5003-010

Max panel thickness: .275” [7.9]

Gasket thickness: .118” [3.00]

Gasket 5003-017

Max panel thickness: .313” [6.5]

Gasket thickness: .062” [1.57]

CAUTION: RISK OF ELECTRIC SHOCK. INSTALLATION

MUST BE CARRIED OUT BY SUITABLY QUALIFIED AND

COMPETENT PERSONEL ONLY. HAZARDOUS VOLTAGES

MAY BE PRESENT ON THE CONNECTION. THIS PRODUCT

CONTAINS AN INTERNAL LITIUM BATTERY. DISPOSE OF IN

ACCORDANCE WITH LOCAL REQUIREMENTS

Mounting Clip

Clip included with ush mounting models.

Through hole mounting models supplied

with #4 machine screws, nuts and

washers.

TWO HOLE MOUNT

(34xx-0xx, 3400-GATE)

THREE HOLE MOUNT

(34xx-1xx)

RECTANGULAR

FLUSH (34xx-2xx)

AND SNAP-IN

(34xx-5xx)

ROUND FLUSH MOUNT

(34xx-3xx)

COMPLI ANT
