Sida 1/40

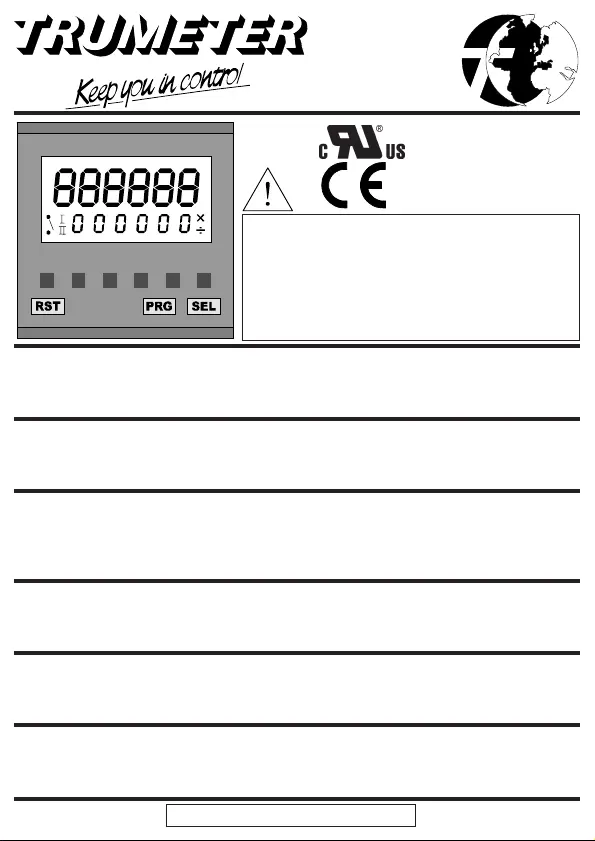

019510-01 Issue 1.1 03/2007
7922
6 digit programmable bi-directional counter relay, with
dual preset or batch mode operation, prescaling and
EEPROM data storage
6-Stelliger Bi-Direktionaler Zähler mit Supertwist-LCD
mit Einzel/Doppel- und Chargen Vorwahl, Skalierung
durch Vorteiler und EEPROM-Datenspeicherung
Compteur bidirectionnel à 6 chiffres, programmable,
avec 2 présélections ou 1 présélection et comptage de
lots, facteurs d'échelles et mémoire EEPROM
Relé contador bidireccional programable de 6 dígitos,
con modos de operación de doble preselección o de
lotes, pre-escala y almacenado de datos en EEPROM.
Contatore a relè a 6 cifre bidirezionale programmabile,
con funzionamento in doppia modalità preimpostata o
batch, prescala e memorizzazione dati nella EEPROM
Diagrams, Abbildungen, Diagrammes,
Diagramas, Diagrammi
English
Page 2
Deutsch
Seite 8
Français
Page 14
Español
Página 20
Italiano
Pagina 26
Page 35
Seite 35
Pagina 35
WARNING: Read page 32 first.
ACHTUNG: Lesen Sie zuerst Seite 32!
RECOMMANDATION IMPORTANTE:
Reportez-vous tout d'abord à la page 33
ATENCIÓN: Primero lea la página 33
ATTENZIONE: Leggere prima la pagina 34.
Specification
Display
Black on green STN LCD, with yellow/green LED
backlight.
Program Storage
Erase/write cycles:1,000,000
Life: 40 years min
Count Range
-99999 to 999999
Count Pre-scaler
Multiplier 0.00250 to 9.99999
Divider 1 to 99999
External Reset response time
Max 2ms
Count Inputs
High Speed: 10kHz max (electronic)
(Dividing prescaler: 7kHz max)
Duty cycle: 60:40 max
Low Speed: 30Hz max (contact closure)
Relay Contacts
5A resistive load 100,000 operations
2A resistive load 1,000,000 operations
Reaction time: <20ms.
P1 Relay: UL Ratings
AC 250V max, DC 125V max
250VAC 1/6 HP
30VDC 5A
P1 Relay: General ratings
AC 1250VA max 300V AC
250Vac (cosø =1): 5A
250Vac (cosø =0.4): 3A
DC 150W max 220V DC
30Vdc: 5A
P2 Relay: UL Ratings
AC 250V max, DC 125V max
250VAC 1/6 HP
30VDC 5A
P2 Relay: General ratings
AC 2000VA max 300V AC
250Vac (cosø =1): 8A
250Vac (cosø =0.4): 5A
DC 150W max 220V DC
30Vdc: 5A
Supply (see Connections)
94 to 240V AC ± 10% 50/60Hz
VA Rating 4VA
or 12 to 24VDC ± 10%
typical current 100mA DC (max)
Installation Category (IEC 664)
Overvoltage category II
(Pollution degree 2)
Operating temperature
-10°C to +60°C
Storage temperature
-20°C to +70°C
Environmental protection
IP65 (panel mounting) using the sealing gasket
supplied (without Screw-fixed bezel). If the seal is
removed, it must be replaced with a new one.
See page 39 for cut-out dimensions
Altitude
Up to 2000m
Relative Humidity
80% max up to 31°C, decreasing to 50% max at
40°C
The front panel buttons are used to program the counter and to display and set the P1
and P2 presets. All the buttons can be disabled by the Keyboard Inhibit input. (see
Programming, page 6).
Auto Reset (see and on page 35)
When Auto Reset is on, the counter will be automatically reset as follows:
In Reset to Zero mode, the counter will reset to zero when P1 is reached.
In Reset to P1 mode, the counter will reset to P1 when zero is reached.
Front Panel Reset and External Reset (RST / Ext. Reset)
A Reset can be caused by pressing the RST button or by applying a signal to the
External Reset input. Any active relay will be returned to its normal condition.
If the operation of the External Reset is safety critical, it is recommended that the External
Reset signal is derived from an independent power supply which will remain stable if the
7922’s supply is interrupted.
P1 and P2 Presets
The minimum value possible for P1 and P2 is 000001,except in Dual Preset
mode, when P2 can be set to zero. P1 and P2 must be greater than any
31
2
The Front Panel Count
P1 or P2 or
Batch Total
Digit 1
Multiplying Prescaler
Dividing Prescaler
Select
Program
Reset
P1 Relay state
P2 Relay operated
P1 Relay operated
Digit 6
multiplying prescaler value, or the unit may not operate correctly.
The P1 preset can be set at any time.
In Reset to Zero mode, the change will be accepted immediately.
In Reset to P1 mode, the change will not be accepted until after a Reset.
The P2 preset can be set as shown below.
The change will be accepted immediately.
Count Modes (see page 35)
The diagrams show how the P1 and P2 Relays are controlled by the Count, by Batch
Total and by Reset.
The diagrams show how the Count is reset to zero or P1 by Auto Reset. In all modes, the
Count can be reset at any time by a RST/Ext. Reset.
The counter can count up to 999999, and or down to -99999. Beyond these limits, the
counter will continue to count internally, but the display will flash 999999 or -99999 until
either the count returns to below the limit, or the counter is reset by RST/Ext. Reset.
Dual Preset Mode
In Dual Preset mode, P1 and P2 are used independently to control the operation of the
counter and the relays.
Press SEL, then use the Digit buttons to change P1. The display will flash. Press SEL
again to accept the new P1 value, then use the Digit buttons to change P2. Press SEL
again to accept the new P2 value. If SEL is not pressed within 30 seconds of the last
change to either P1 and P2, they will revert to their original values.
Dual Preset with Auto Reset on
Note: P1 Relay cannot be set to Latched.
Note: If P2 Relay is set to Latched, it will return to normal at the same time as P1 Relay.
Dual Preset with Auto Reset off
Note: If P1 or P2 Relays are set to Latched, they will return to normal at RST/Ext. Reset.
Batch Mode
In Batch mode, P1 and P2 are used in combination to control the operation of the counter
and the relays.
Set P1 and P2, as shown above for Dual Preset mode.
When the Batch Total is displayed, the RST button can be used to reset it to zero.
Note: P2 relay cannot be set to Pulsed.
Note: The P2 Relay operates when the Batch Total reaches P2. It will return to normal
when the Batch Total is reset to zero.
Batch Mode with Auto Reset on
Note: P1 relay cannot be set to Latched.
Note: The Batch Total increments at Auto Reset.
Batch Mode with Auto Reset off
Note: If P1 is set to Latched, it will return to normal at RST/Ext. Reset.
Note: The Batch Total increments at the first RST/Ext. Reset after P1 has been reached.
4
3
2
1
3
P1 P2P1
Count
P2
P1 P1
Batch
Total
