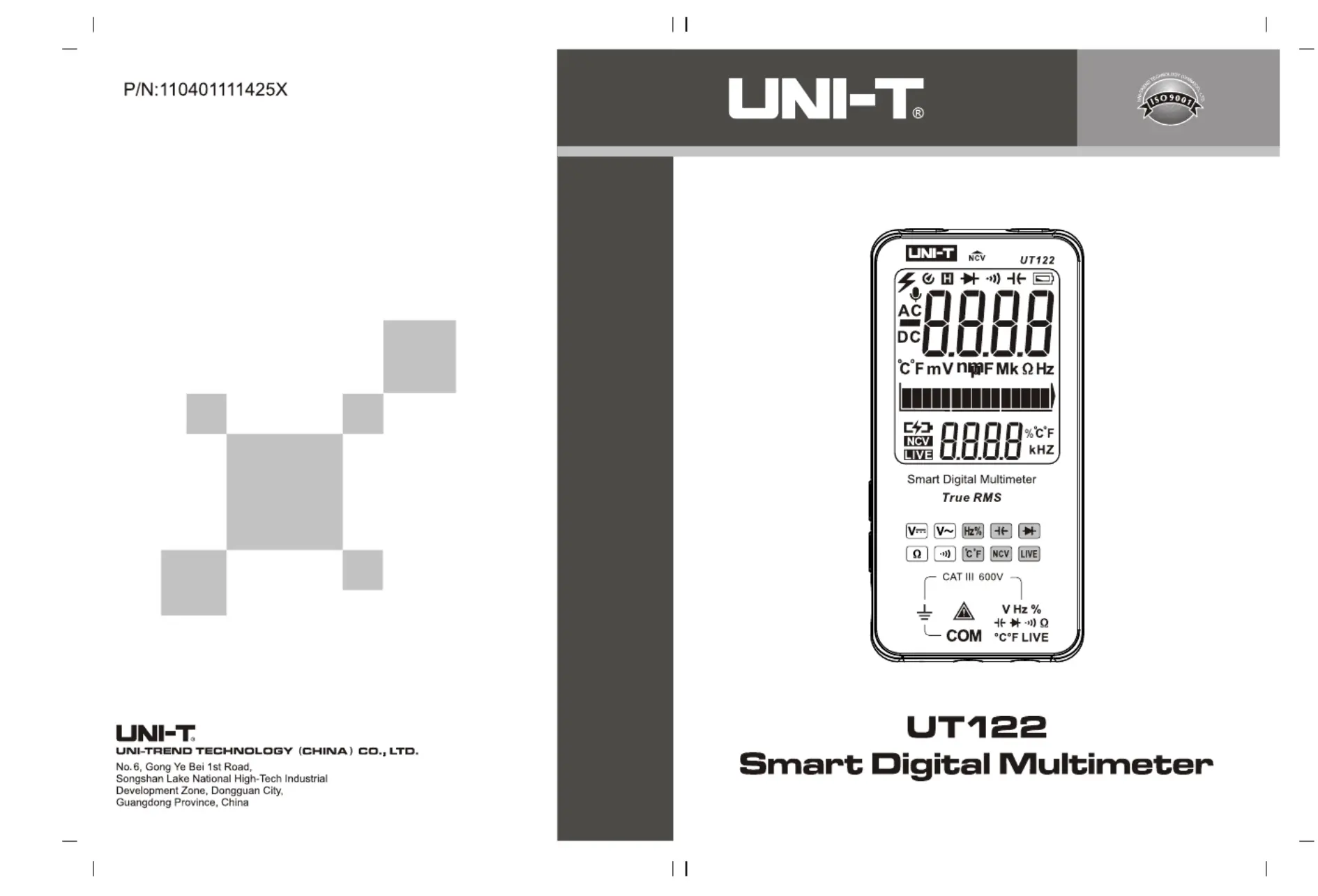

P/N:110401111425X
UT 122
Smart Digital Multimeter
True RMS
CAT III 600V
VV
LIVE
NCV
2

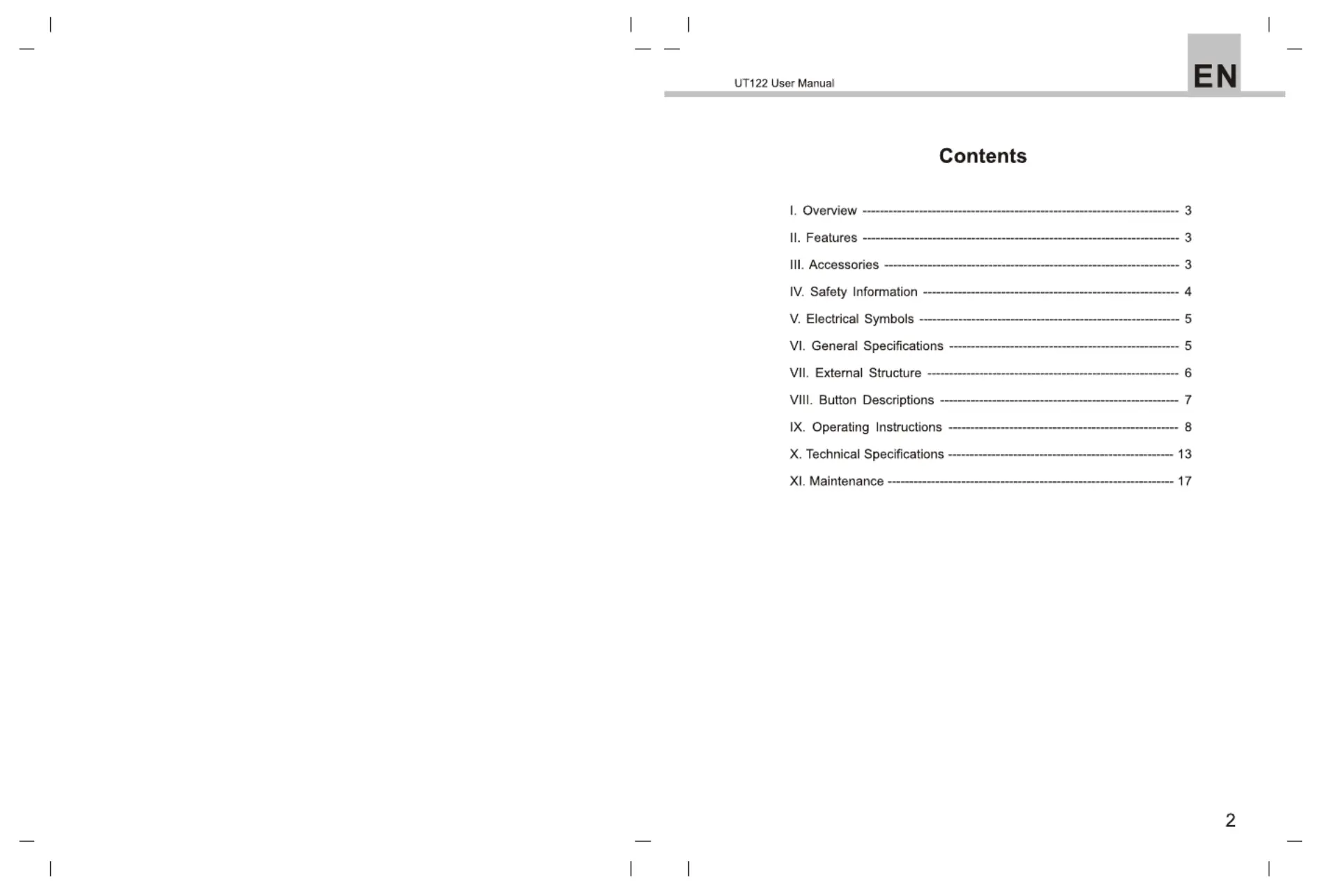

Contents
UT122 User Manual
EN
I. Overview ------------------------------------------------------------------------- 3
II. Features ------------------------------------------------------------------------- 3
III. Accessories -------------------------------------------------------------------- 3
IV. Safety Information ----------------------------------------------------------- 4
V. Electrical Symbols ------------------------------------------------------------ 5
VI. General Specifications ----------------------------------------------------- 5
VII. External Structure ---------------------------------------------------------- 6
VIII. Button Descriptions ------------------------------------------------------- 7
IX. Operating Instructions ----------------------------------------------------- 8
X. Technical Specifications ---------------------------------------------------- 13
XI. Maintenance ------------------------------------------------------------------ 17
3 4
UT122 User ManualUT122 User Manual

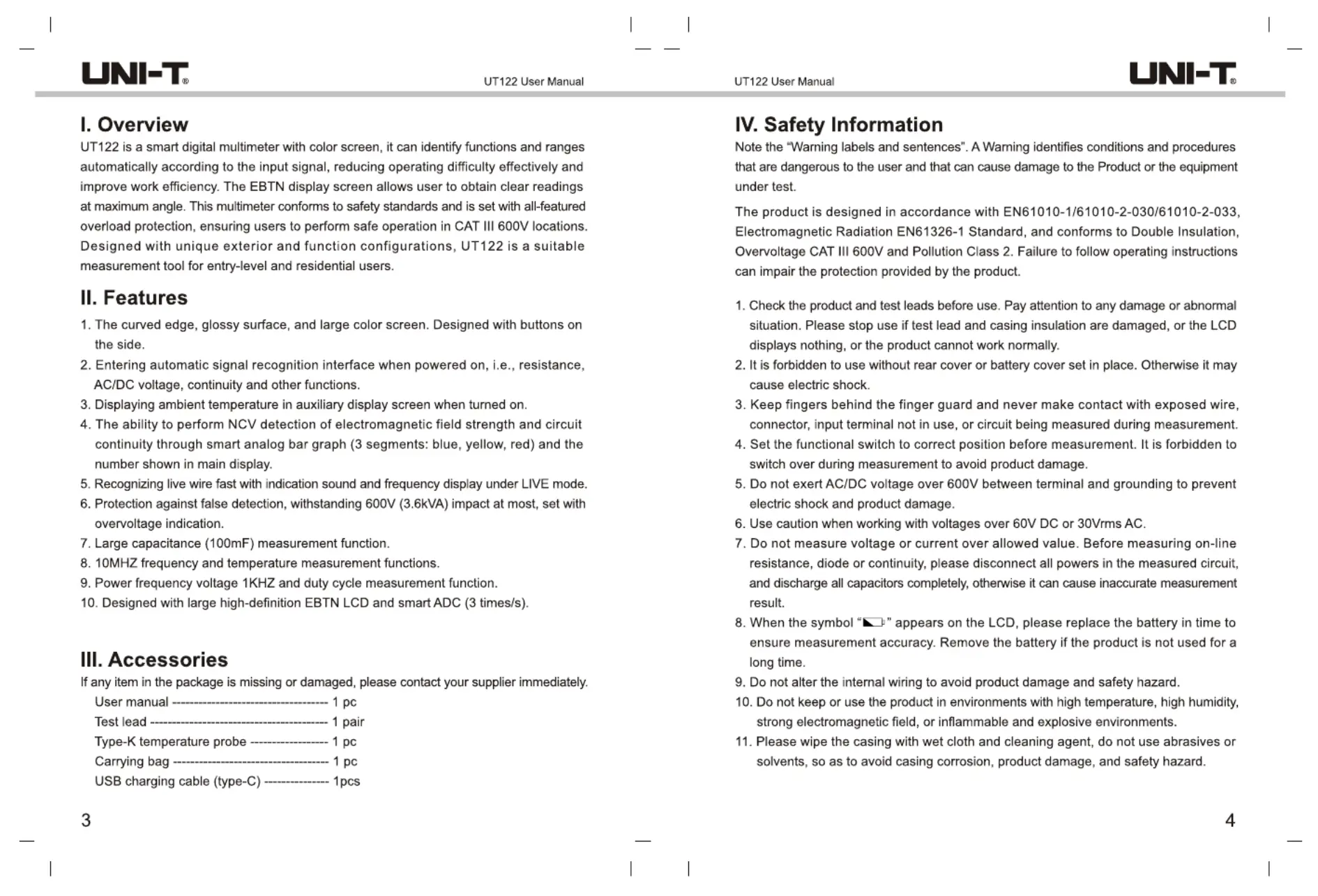

I. Overview
UT122 is a smart digital multimeter with color screen, it can identify functions and ranges
automatically according to the input signal, reducing operating difficulty effectively and
improve work efficiency. The EBTN display screen allows user to obtain clear readings
at maximum angle. This multimeter conforms to safety standards and is set with all-featured
overload protection, ensuring users to perform safe operation in CA T III 600V locations.
Designed with uniq ue exterior an d f unctio n configura tions, UT 122 is a suitable
measurement tool for entry-level and residential users.
II. Features
1. The curved edge, glossy surface, and large color screen. Designed with buttons on
the side.
2. Entering automatic signal recognition interface when powered on, i.e., resistance,
AC/DC voltage, continuity and other functions.
3. Displaying ambient temperature in auxiliary display screen when turned on.
4. The ability to perform NCV detection of electromagnetic field strength and circuit
continuity through smart analog bar graph (3 segments: blue, yellow, red) and the
number shown in main display.
5. Recognizing live wire fast with indication sound and frequency display under LIVE mode.
6. Protection against false detection, withstanding 600V (3.6kVA) impact at most, set with
overvoltage indication.
7. Large capacitance (100mF) measurement function.
8. 10MHZ frequency and temperature measurement functions.
9. Power frequency voltage 1KHZ and duty cycle measurement function.
10. Designed with large high-definition EBTN LCD and smart ADC (3 times/s).
III. Accessories
If any item in the package is missing or damaged, please contact your supplier immediately.
User manual ------------------------------------ 1 pc
Test lead ----------------------------------------- 1 pair
Type-K temperature probe ------------------ 1 pc
Carrying bag ------------------------------------ 1 pc
USB charging cable (type-C) --------------- 1pcs
IV. Safety Information
Note the “Warning labels and sentences”. A Warning identifies conditions and procedures
that are dangerous to the user and that can cause damage to the Product or the equipment
under test.
The product is designed in accordance with EN61010-1/61010-2-030/61010-2-033,
Electromagnetic Radiation EN61326-1 Standard, and conforms to Double Insulation,
Overvoltage CAT III 600V and Pollution Class 2. Failure to follow operating instructions
can impair the protection provided by the product.
1. Check the product and test leads before use. Pay attention to any damage or abnormal
situation. Please stop use if test lead and casing insulation are damaged, or the LCD
displays nothing, or the product cannot work normally.
2. It is forbidden to use without rear cover or battery cover set in place. Otherwise it may
cause electric shock.
3. Keep fingers behind the finger guard and never make contact with exposed wire,
connector, input terminal not in use, or circuit being measured during measurement.
4. Set the functional switch to correct position before measurement. It is forbidden to
switch over during measurement to avoid product damage.
5. Do not exert AC/DC voltage over 600V between terminal and grounding to prevent
electric shock and product damage.
6. Use caution when working with voltages over 60V DC or 30Vrms AC.
7. Do not measure voltage or current over allowed value. Before measuring on-line
resistance, diode or continuity, please disconnect all powers in the measured circuit,
and discharge all capacitors completely, otherwise it can cause inaccurate measurement
result.
8. When the symbol “ ” appears on the LCD, please replace the battery in time to
ensure measurement accuracy. Remove the battery if the product is not used for a
long time.
9. Do not alter the internal wiring to avoid product damage and safety hazard.
10. Do not keep or use the product in environments with high temperature, high humidity,
strong electromagnetic field, or inflammable and explosive environments.
11. Please wipe the casing with wet cloth and cleaning agent, do not use abrasives or
solvents, so as to avoid casing corrosion, product damage, and safety hazard.
