P/N:0000000000

CCA

BCI

MCA

JIS

DIN

IEC

SAE

12V/60Ah/CCA 500A

300A EN

12V 250Ah 60Ah DIN

26A19R 12V 60Ah

26A19RMF 12V 60Ah

12V/60Ah

CCA

DIN

JIS#

500

300

250A

200

220

60Ah

Overview

UT673A/UT675A battery tester, with its leading-edge conductivity test technology,

accurately and rapidly helps users to measure the cold cranking amps capability of the

vehicle starting battery, healthy state of the battery itself, detect the common fault of

vehicle starting and charging system, which helps repair vehicle quickly.

Safety information

Please carefully read this manual and follow the warning and safety information before

use.

To avoid fire and overcurrent, please read all rated values and symbol descriptions

before use.

Do not open the case cover. Do not turn on the tester if its cover or front panel is open.

Do not touch the connectors and components if the tester is powered on.

Please contact the authorized repair personnel to detect, repair, maintain the tester

if you find any fault on it.

Do not use in humid, explosive or inflammable environment.

Keep the tester surface clean and dry. Keep it well-ventilated.

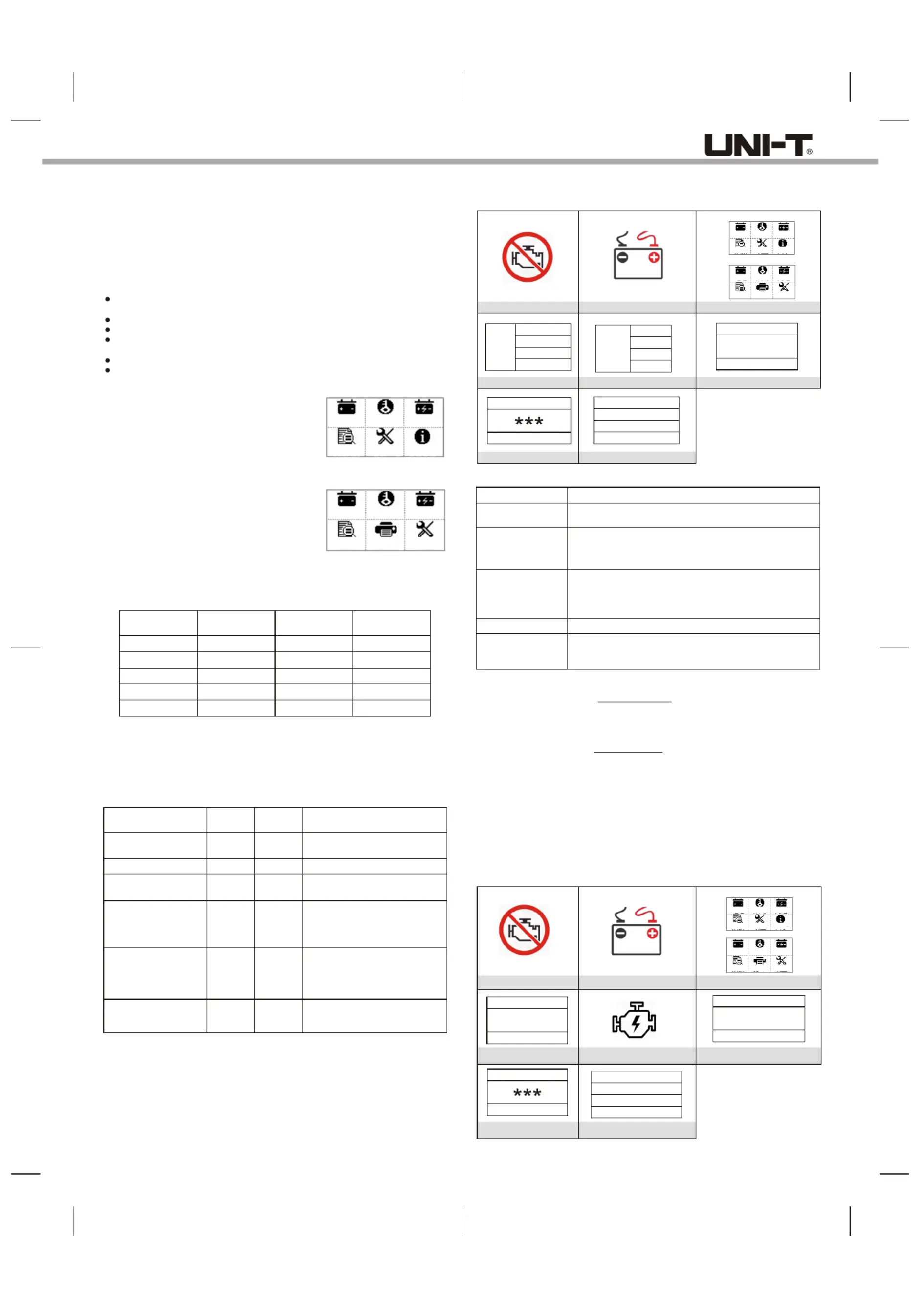

Product introduction

Interface

UT673A

1) Battery: Battery test.

2) Crank: Vehicle Cranking system test.

4) Data: The last test result can be viewed.

5) Setting: Language setting.

6) About: View the system information.

Charge: Vehicle Charging system test.

UT675A

2) Crank: Vehicle Cranking system test.

4) Data: The last test result can be viewed or upload.

5) Print: Print test data.

6) Setting: Language and time setting, view the system information.

1) Battery: Battery test.

Charge: Vehicle Charging system test.

Feature

1) Applicable to 12V battery testing and 12V/24V vehicle cranking/charging system test.

2) Measurement standard and range:

100-2000

26A17—245H52

100-1400

100-2000

30-200Ah

Measurement

range

Measurement

standard

Measurement

standard

Measurement

range

3) Working temperature: -20°C 50°C.

4) Special test clip: Double-conductor Kelvin clip.

5) Case material: Acid-resistant ABS plastic.

6) Measurement range of battery: 30Ah 200Ah.—

7) Measurement range of voltage: 7V 16V.—

8) Portable.

—

Example for selecting standard

Battery identification Standard Battery

parameter Remark

12V battery, the capacity is 60Ah,

the cold-start current is 500A.

The standard value is 300A.

12V battery, the capacity is 60Ah,

the standard value is 250A.

12V battery, the capacity is 60Ah,

check JIS CODE conversion table

and find that 26A19R corresponds

to 220A for CCA.

12V battery, the capacity is 60Ah,

check JIS CODE conversion table

and find that 26A19R corresponds

to 220A for MF CCA.

If the standard is not found,

estimate CCA value according to

the battery capacity.

Operation instruction

1. Connect the red and black clips of tester to the measured battery, red is positive,

black is negative, the tester screen will display startup interface. If the battery voltage

is lower than 7.0V, the test will become abnormal.

2. According to the prompts, press up and down button to select:

UT673A: Battery test, Charging test, View test results, Cranking test, ① ② ③ ④

System setting, About.⑤ ⑥

UT675A: Battery test, Charging test, View test results, Cranking test, ① ② ③ ④

Print test result, Setting.⑤ ⑥

1. Make sure engine is off. 2. Connect to the correct polarity.

Battery

Crank

Charge

Data

Setting About

Battery Charge

Data

Setting

UT675A

UT673A

3. Select “Battery”

7. Press ENTER to start the test.

Description

The performance of storage battery is good,

please continue using the battery.

Because the voltage of storage battery is lower

than 12.3V, so the performance of storage

battery is good, please continue using the

storage battery after it is fully charged.

Because the battery voltage is lower than 12V, so please

retest after it is fully charged. Incorrect reading may occur

if the battery is not fully charged. Please replace the battery

if “Retest after charging” displays again after charging.

The battery is in

good condition.

The battery is in

good condition,

please charge

the battery.

Retest after charging

Replace the battery

The battery is in bad

condition, replace

the battery.

Replace the storage battery.

Battery inside is damaged, replace the storage battery.

Battery capacity (SOC): The percentage of remaining battery capacity, 1)

2) Battery voltage (VOLTAGE): The voltage value of storage battery (Unit: V).

Battery life (SOH): State of health of battery storage, 3)

The measured cold-start current: The measured cold-start current of tester.4)

Nominal cold-start current: Nominal cold-start current of storage battery5)

Internal resistance of battery (R): The measured internal resistance of storage battery.6)

NOTE: For low-capacity battery (For example, the vehicle is shut down for a long

time, the battery is not charged in time, the battery power is significantly lost

because the vehicle door is not closed.), the tester may prompt you to “Replace

battery” during actual measurement, please consult the storage battery factory

and charge the battery according to the designated method, and then retest.

SOC= ×100%.

Remaining capacity

Actual capacity

SOH= ×100%.

Actual capacity

Nominal capacity

Battery

Crank

Charge

Data

Setting About

Battery

Crank

Charge

Data

Setting

UT675A

UT673A

Tests below are based on 12V, 60Ah, CCA580A:

1. Battery test

Crank

Battery Test results

Interpretation

2. Cranking test

1. Make sure engine is off. 2. Connect to the correct polarity.

Battery

Crank

Charge

Data

Setting

About

Battery Charge

Data

Setting

UT675A

UT673A

3. Select “Crank”

4. Enter the interfaceof

starting engine.

Crank

NORMAL BAT.

AGM ATTERYB

EFB ATTERYB

GEL ATTERYB

TYPE

4. Select “NORMAL BAT”

CCA

DIN

JIS

STANDARD

5. Select standard,CCA for example.

580 A

CCA

SET RATING

6. Set rated capacity of battery.

TESTING

SOH 75 495A%

SOC 100 12.8V%

R= 3.35mΩ

GOOD BATTERY

8. Display test result.

CRANKING TEST

START ENGINE

5. Start engine.

RPM DETECTED

CRANKING TEST

6. Engine RPM is detected.

TESTING CRANKING NORMAL

CRANKING 11.34V

TIME 243ms

7. Automatically enter the test. 8. Display test result.

1. Make sure engine is off. 2. Connect to the correct polarity. 3. Select “Charge”

7 16V DC~

264g

76mm*22mm*142mm

CCA:40 2000; BCI 40 2000; CA 40 2000 MCA

40~2000; JIS:26A17~245H52; DIN:40~1400; IEC:

40~1400; EN:40~2000;SAE:40~2000; AH:3~250 AH

~ : ~ : ~ ; :

UT673A UT675A

175mm*45mm*320mm 285mm*90mm*230mm

95mm*47mm*183mm

413g

Model

Applicable battery

Battery type

Battery capacity

Battery standard

and range

Voltage range

Test method

AH rapid measurement

Overvoltage protection

Prevent counter voltage

A prompt of poor contact

Internal resistance measurement

Battery life

Remaining battery capacity

USB data transfer

Printing function

LCD

Language

3 250AH~

Four-terminal kelvin test lead

LCD (128*64 black and white lattice)

Chinese and English

General

0°C 50°C~

Operating: below +35°C, 90%≤

Non-operating: +35°C +40°C, 60%≤~

Temperature

Relative

humidity

Working

environment

Net weight

(excluding batteries)

Product dimension

(excluding test leads)

Packing box dimension

View test result

a) For UT673A, ENTER to view the last test result of Battery test, Cranking and

Charging system test.

b) For UT675A, ENTER to view and export the last test result of Battery test, Cranking

and Charging system test. Connect the computer to export the last test result via

serial port and print the result.

Note: Please find the application software on our website by searching UT675A and

search under Docs & Software section.

About (Applicable to UT673A)

ENTER to view system information.

Print test result (Applicable to UT675A)

ENTER to print the last test result of Battery test, Cranking and Charging system test.

Note: The normal working voltage of the printer is 10 16V.~

Setting

ENTER to select language (English or Chinese).

Function

ENTER to enter setting page.

Language selection

User can select desired language as needed. After entering language selection page,

press ENTER to select English or Chinese.

Time adjustment (Applicable to UT675A)

User can adjust or correct the system time, time sequence adjustment (Year/Month/Day

/Hour/Minute) does not affect the setting of date and time format.

a. Press up or down button to adjust the last two digits of the YEAR, then press ENTER

to confirm this adjustment and enter month adjustment.

b. Press up or down button to adjust Month, then press ENTER to confirm this adjustment

and enter date adjustment.

c. Press up or down button to adjust DATE, then press ENTER to confirm this adjustment

and enter hour adjustment.

d. Press up or down button to adjust HOUR, then press ENTER to confirm this adjustment

and minute adjustment.

Specification

3. Charging test

Battery

Crank Charge

Data

Setting About

Battery Charge

Data

Setting

UT675A

UT673A

4. Enter the interface

of starting engine. 5. Start engine. 6. Start ripple test.

***

LOADED TESTING

Crank

CHARGING TEST

START ENGINE

RIPPLE TEST

PRESS ENTER TO

CONTINUE 5mV 12.65V

Test results:

Interpretation

Charging system is normal, the output

voltage of engine is 13.5V 14.7V.~

Charging system is under-voltage,

the voltage is lower than 13.5V.

The voltage of charging system is higher

than that of vehicle voltage stabilizer.

Generator voltage output is not detected.

Check if the connector and generator belt is normal.

Test via current waveform, for example, the diode is

damaged due to high ripple voltage of diode.

Decision

Charging voltage is normal.

Charging voltage is low.

Charging voltage is high.

No voltage output.

Diode test.

12V cranking lead acid battery

Ordinary lead acid battery, AGM flat plate battery,

AGM spiral battery, GEL battery, EFB battery.

Cranking test

Charging test

12/24V cranking system test

12/24V charging system test

7. Start loaded testing

INCREASE RPM TO

2500 R/MIN AND

KEEP IT 5 SECONDS

PRESS ENTER TO

CHARGING NORMAL

LOADED 14.26V

UNLOADED 12.65V

RIPPLE 5mV

8. According to the prompt, Step

on accelerator to increase the

engine speed to 2500 R/Min and

hold for 5 seconds.

9. Display test result.

Test results

Interpretation

The starting voltage is higher than 9.6V.

The starting voltage is lower than 9.6V.

Decision

Starting voltage is normal.

Starting voltage is low.

e. Press up or down button to adjust MINUTE, then press ENTER until “OK” is displayed.

After finishing the adjustment, the tester will go back to main interface. When adjusting

the time, the time character will flash. By pressing and holding the button, the character

will increase or decrease continuously.

NOTE: Make sure the button is pressed for more than one second when adjusting time.

After entering time setting, pressing return button is disabled because the system time

is protected, users need to set Year/Month/Day/Hour/Minute or press return button 5

times to return.

UT675AUT673A

Maintenance

1. Do not put or store the tester in the place where its LCD is exposed to direct sunlight

for a long time. No sprays, liquids or solvents are allowed on the tester or fixtures.

2. Please clean the dust on the tester with soft cloth. Do not scratch the protection

screen of LCD. Wipe the tester with a damp but non-dripping soft cloth. Never use

any corrosive chemical detergents.

Warning: Before the tester is powered on, please make sure it is completely dry to

avoid short circuit caused by moisture.

Tester host: 1 piece

User manual: 1 piece

USB cable: 1 piece

Printing paper: 3 pieces

Cloth bag: 1 piece

Tester host: 1 piece

User manual: 1 piece

Velcro strap: 1 piece

Accessories

https://www.uni-trend.com.cn/index.php?m=content&

c=index&a=show&catid=515&id=882

Produktspecifikationer

Varumärke:	Uni-T
Kategori:	Mätutrustning
Modell:	UT675A

Behöver du hjälp?

Om du behöver hjälp med Uni-T UT675A ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Mätutrustning Uni-T Manualer

Uni-T UT673PV Bruksanvisning

4 Januari 2025

Uni-T UT612 Bruksanvisning

30 December 2025

Uni-T UT18D Bruksanvisning

17 December 2024

Uni-T UT363s Bruksanvisning

17 December 2024

Uni-T UT383s Bruksanvisning

17 December 2024

Uni-T UT575B Bruksanvisning

21 September 2024

Uni-T UT503PV Bruksanvisning

21 September 2024

Uni-T UT225B Bruksanvisning

20 September 2024

Uni-T UT377C Bruksanvisning

20 September 2024

Uni-T UT387S Bruksanvisning

20 September 2024

Mätutrustning Manualer

Nyaste Mätutrustning Manualer

PCE Instruments PCE-PMI 1 Bruksanvisning

14 Januari 2025

PCE Instruments PCE-324 Bruksanvisning

14 Januari 2025

PCE Instruments PCE-TC 32N Bruksanvisning

14 Januari 2025

PCE Instruments PCE-ACO 9500 Bruksanvisning

14 Januari 2025

Klein Tools CL810 Bruksanvisning

14 Januari 2025

Klein Tools CL710 Bruksanvisning

14 Januari 2025

Ebro PHT 830 Bruksanvisning

13 Januari 2025

Gossen Metrawatt PROFiTEST H+E EASY CHECK Bruksanvisning

10 Januari 2025

PCE Instruments PCE-VT 3950S Bruksanvisning

9 Januari 2025

PCE Instruments PCE-VT 3750S Bruksanvisning

9 Januari 2025
