Overview:
The Vaddio™ TRIO Mic I/O interface enables the TRIO
Acoustic Echo Canceling Microphones to be used with any
professional DSP audio mixer. Connect the TRIO Ceiling or
Table Mics to the TRIO Mic I/O interface and instantly make
any mixer capable of Acoustic Echo Cancellation for use in
conferencing applications.
Vaddio TRIO Table and Ceiling Microphones incorporate SmartMic technology along with built-in DSPs for the ultimate in simple
control and maximum performance. The technology integrates automatic microphone mixing, wideband echo cancelation, noise
reduction, and automated gain control into the microphones and eliminates the need for super expensive, hard to program and
operate conferencing mixers.
Like many Vaddio products, a simple Cat-5/5e/6 UTP cable connection and no clumsy software configuration makes the TRIO
microphones as simple to install as traditional boundary or celling microphones. The TRIO Mic I/O connects up to four TRIO
Microphones over Cat-5 cables. The Cat-5 cable carries power to the microphone and returns the processed audio from the
TRIO mics. The TRIO Mic I/O has four (4) individual line level balanced outputs, each representing the echo canceled audio
channel from the individual TRIO mics. An Acoustical Echo Cancellation (AEC) Reference input channel is included on the rear
panel for connection to the far-end audio signal coming into the conference room. The AEC Reference channel is needed for
the TRIO mic to keep the far-end audio from going into the room mics and echoing back to the far-end.
The TRIO Table and Ceiling microphones each have three (3) mic elements, provide a 360º pickup pattern and connect to the
TRIO Mic I/O with a Cat-5 cable for power and audio. The TRIO Ceiling Mic has a plenum safe sealed enclosure for the
electronics and a 36” (914.4mm) drop cable to a 2.5” (63.5mm) spherical shaped mic array. The TRIO Ceiling Mics come in
either a dark charcoal or a white version. The combination of the TRIO Mic I/O, the TRIO Table Mics or the TRIO Ceiling Mics
turns any mixer into an automatic mixer with wideband echo cancelation, noise reduction, and automated gain control.
Part Numbers 999-8535-000 (North America), 999-8535-001 (Int’l)
Audio Specs Frequency Response: 20 HZ to 20KHZ, Dynamic Range: >90dB, THD + Noise: < 0.02%
Line Outputs Four (4) 3-Pin Balanced, Line Level Outputs
AEC Reference Input One (1) 3-Pin Balanced, Line Level Input
TRIO Mic Ports Connectors: Four (4) RJ 45-F, Proprietary Interface with audio, power & control, 100’ (30.48m) Cat-5 cable distance
Power Supply 18 VDC, 2.75 Amp, Positive Center
Power Consumed Maximum of 40 Watts
Operating Temp. 32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity
Dimensions / Weight 8.375” (212.7mm) W x 1.72”” (43.7) H x 6.0” (152.4mm) D / 1.45 lbs. (0.657708956434 kg)
Accessories Included: Power Supply, Five (5) 3-Pin 5.0mm Phoenix-type Connectors
Opt. Accessories Optional: Rack Mount Kit 1-RU: 998-6000-004 (one long ear and one short ear)

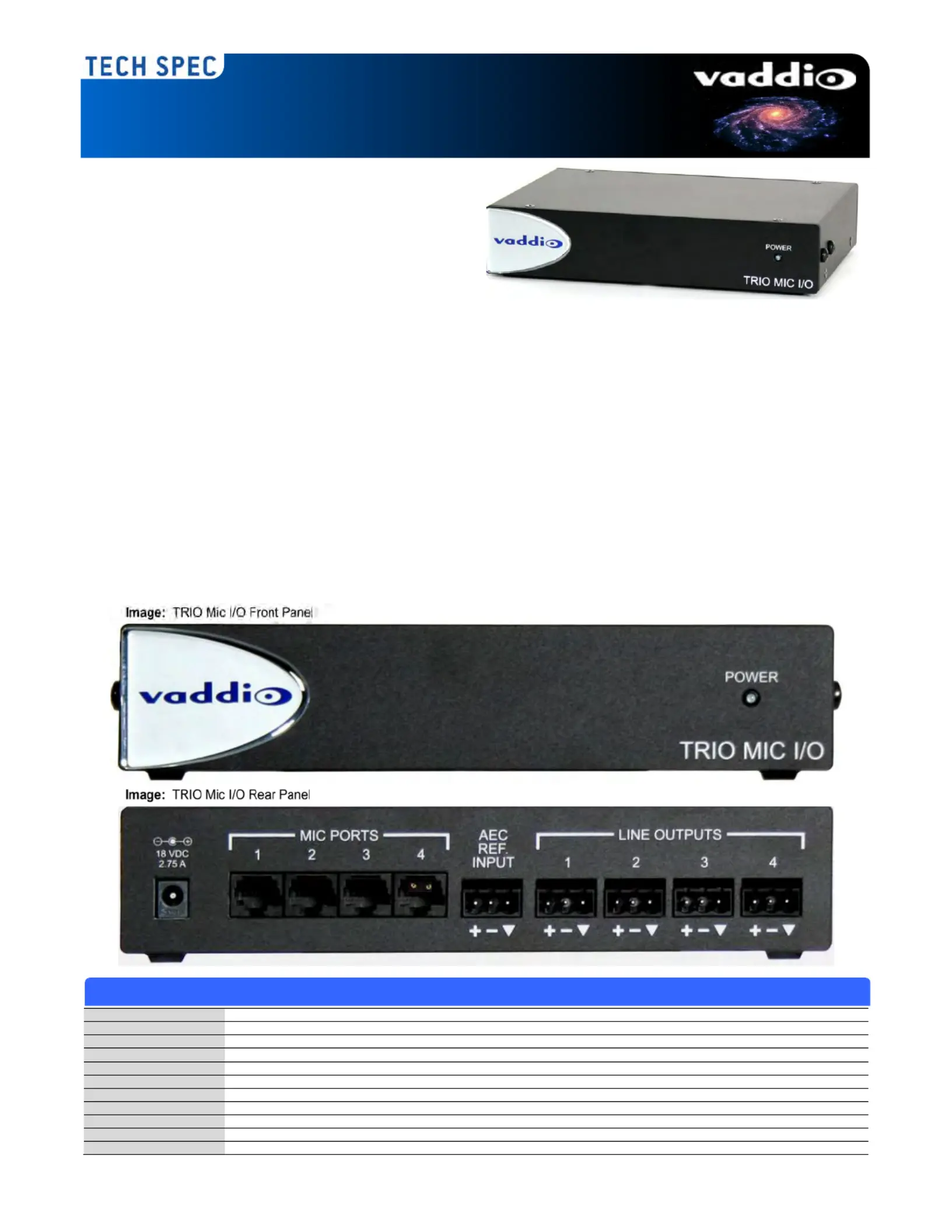

TRIO Mic I/O and TRIO Mics
Breakout Interface for use with TRIO Acoustic Echo Canceling Microphones
SPECIFICATIONS - TRIO Mic I/O Interface
TRIO MIC I/O and TRIO Microphones
The TRIO Echo Canceling Microphones
The TRIO Microphones with SmartMic technology add digital signal processing and echo cancellation to any professional audio
mixer. TRIO mics are available in two versions:
The TRIO Table Mic Array
Attractive echo cancelling table microphone
Three (3) mic elements providing a 360º degree pickup pattern
Connects to the TRIO Mic I/O with a single Cat-5 cable that carries
audio and power.
The TRIO Ceiling Mic Array
Small 2.5” (63.5mm) Mic Array blends into the room
360º coverage pattern created with three (3) mic elements
Includes a plenum safe interface box, tile support brace and an
adjustable 36” long cable to the microphone array head.
The TRIO Ceiling Mics (mic and cable) available in black and white.
Pair the TRIO Mics with the TRIO Mic I/O interface to produce four (4)
standard, balanced line level output channels and simply connect the
signals to the room audio mixer. Connecting a single echo canceling
reference channel from the room mixer to the TRIO Mic I/O completes the
interface with any audio mixer.
Part Numbers (Worldwide) TRIO Table Microphone: 999-8850-000, TRIO Ceiling Microphone: 999-8860-000 (White), 999-8865-000 (Black)
Audio Specs Frequency Response: 20 HZ to 20KHZ, Dynamic Range: >90dB, THD + Noise: < 0.02%
Microphones Three unidirectional cardioid elements per device, Frequency Response: 100-12kHz, Max Input Level: 115dB/SPL
Signal Processing Acoustic Echo Cancellation, Noise Reduction, Microphone Gating and Automatic Gain Control
TRIO Mic Ports Connectors: One(1) RJ 45-F, Proprietary Interface with audio, power and control up to 100’ (30.48m) Cat-5 cable distance
Dimensions TRIO Ceiling Mic: 2.5” (63.5mm) Diameter Sphere, Trio Table Mic: 7”(177.8mm) Diameter x 1” (25.4mm) Tall
Weight TRIO Ceiling Mic: 0.113 lbs. (.05255938 kg), TRIO Table Mic: 0.472 Lbs. (0.214 kg)
Operating Temp. 32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity
Power Consumption Less than four (4) Watts per mic
System Drawing - Simple Connectivity
SPECIFICATIONS - TRIO Table and Ceiling Mic Arrays
Learn more about our cameras, audio devices and controllers at 800-572-2011 or vaddio.com
©2014 Vaddio - All Rights Reserved. Reproduction in whole or part without written permission is prohibited.
Specifications and pricing are subject to change without prior notice or obligation. Vaddio is a trademark of Vaddio.
All other trademarks are the property of their respective owners. Document 011616-2, SD: 68508.9 Rev B.

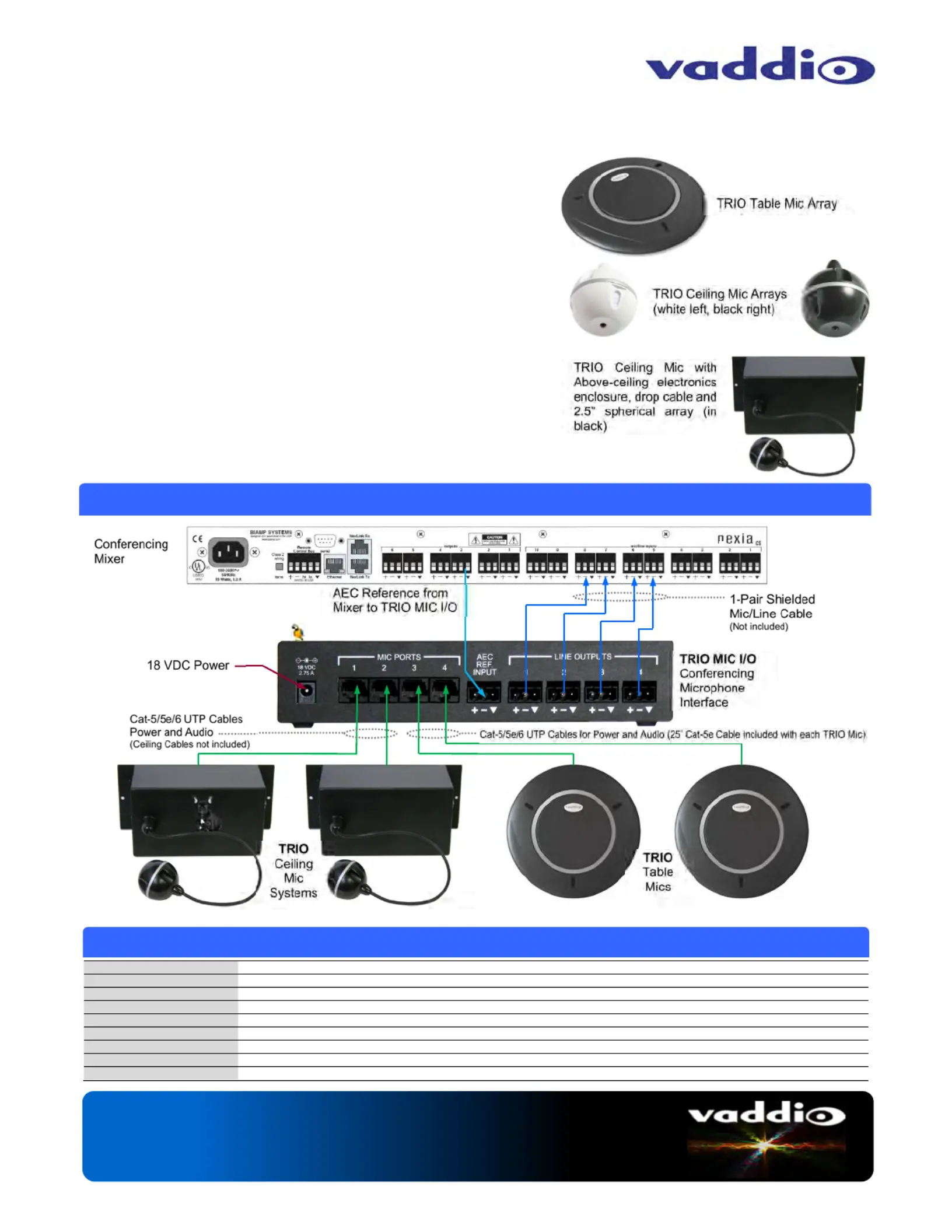

SYSTEM DRAWING - Simple Connectivity
