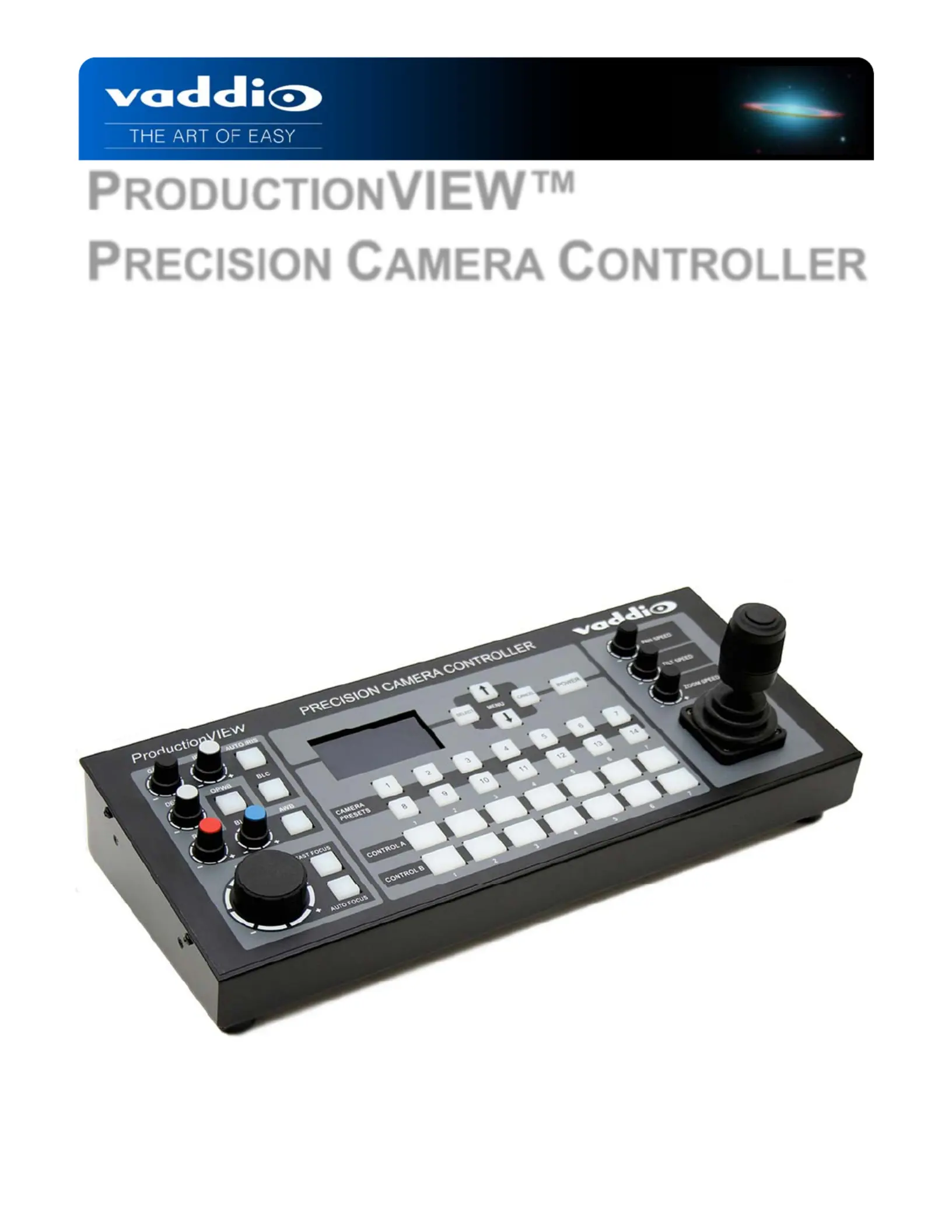

PRODUCTIONVIEW™

P C C RECISION AMERA ONTROLLER

Integration Joystick, with Seven Discrete Camera Control

Ports, On-board Camera Presets, CCU Exposure and Color

Control Functions with External Control Capability

Part Number: 999-5700-000 (North America)

Part Number: 999-5700-001 (International)

Installation and User Guide

ProductionVIEW Precision Camera Controller Manual 341-770 Rev I Page 2 of 16

Table of Contents

Overview: ................................................................................................................................................................... 3

Unpacking: ................................................................................................................................................................. 3

Image: Front panel of ProductionVIEW Precision Camera Controller ............................................................. 4

Front Panel Controls: ............................................................................................................................................ 4

Image: Rear Panel of ProductionVIEW Precision Camera Controller ............................................................. 5

Rear Panel I/O: ...................................................................................................................................................... 5

First Time Set-up with the ProductionVIEW Precision Camera Controller: .......................................................... 5

Drawings: System Configurations Examples ................................................................................................... 6

Operating the ProductionVIEW Precision Camera Controller: .................................................................................. 7

ProductionVIEW PRECISION CAMERA CONTROLLER Menu Structure ........................................................... 8

Compliance and CE Declaration of Conformity ....................................................................................................... 11

Warranty Information: .............................................................................................................................................. 12

Appendix 1: .............................................................................................................................................................. 13

RS-232 Control ............................................................................................................................................... 13

Communication Specification .......................................................................................................................... 13

Female DB-9 Control Port Pin-outs ................................................................................................................ 13

Camera Control Ports 1 through 7 - RS-232 on RJ-45 Connectors: .................................................................. 13

Appendix 2: RS-232 Control .......................................................................................................................... 13

API and Programming Language ........................................................................................................................ 14

Appendix 2: Command Structure Definitions ......................................................................................................... 15

General Specifications: ............................................................................................................................................ 15

ProductionVIEW Precision Camera Controller

ProductionVIEW Precision Camera Controller Manual 341-770 Rev I Page 3 of 16

O : VERVIEW

In our continuing drive to redefine camera control, Vaddio™

introduces the Precision Camera Controller system. Designed to

control up to seven PTZ cameras, the Precision Camera

Controller can be used as a stand-alone device or in conjunction

with a variety of video switchers or mixers on the market today.

The control surface gives system users real-time knobs and

buttons to control functions. In addition to a joystick controller with

separate pan, tilt and zoom speed adjustment knobs, there are

controls for red & blue gain, detail, iris and gain.

The system is capable of storing up to 14 pan, tilt and zoom position presets per camera. Two discrete control

buses can be configured to select PTZ cameras, as well as control an external switcher or mixer via either RS-232

or tally outputs on the back of the console.

Precision Camera Controller is the ideal camera control ations, including houses of system for a variety of applic

worship, local government, live event production and other situations where PTZ camera control is required.

Intended Use:

Before operating the device, please read the entire manual thoroughly. The system was designed, built and tested

for use indoors, and with the provided power supply and cabling. The use of a power supply other than the one

provided or outdoor operation has not been tested and could damage the device and/or create a potentially unsafe

operating condition.

Important Safeguards:

Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged.

In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock,

do not immerse in water or other liquids and avoid extremely humid conditions.

Save These Instructions:

The information contained in this manual will help you install and operate your product. If these instructions are

misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product

drawings for the Vaddio product line on the Vaddio website. These documents can be downloaded from

www.vaddio.com free of charge.

UNPACKING:

Carefully remove the device and all of the parts of the 999-5700-000 from the packaging.

Unpack and identify the following parts:

 One (1) ProductionVIEW PRECISION CAMERA CONTROLLER

 One (1) 18 VDC, 2.75A Power Supply

 One (1) AC Cord Set

 Two (2) 8-pin Phoenix type connectors

 Documentation and Manuals

Note: The International Version, 999-5700-001 includes the Euro and UK power cords.

ProductionVIEW Precision Camera Controller

Use only the power supply provided with the system. Use of any unauthorized

power supply will void any and all warranties.

Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not

work well for professional installations and can be the cause of intermittent connections which

can result in the RS-232 control line failing and locking up, and/or compromising the HSDS™

signals. For best results please use standard RJ-45 connectors and test all cables for proper pin-

outs

rior to use and connection to Vaddio

roduct.
