Sida 1/3
VSP-V-1090
Issue 3
1947790

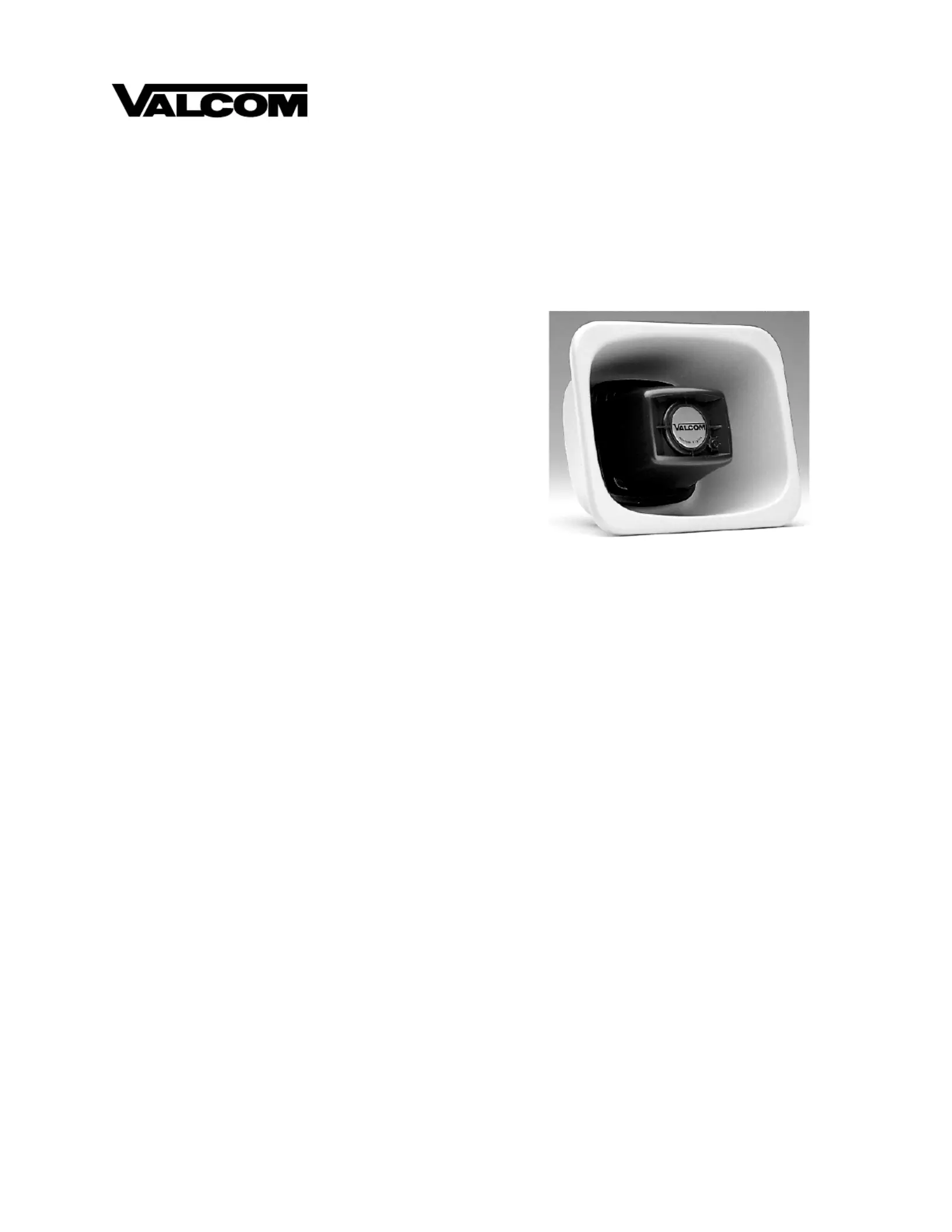

V-1090 FLEXHORN
45 OHM TALKBACK HORN
INTRODUCTION
The Valcom V-1090 Flexhorn is a 45 Ohm talkback
horn designed to be used with Valcom “handsfree”
talkback control units. This horn is weather proof and
can be used indoors or outside in environments ranging
from -20 to +55 degrees C.
Model V-1090-GY Gray
Model V-1090-BG Beige
Model V-1090-W White
CONNECTIONS
White - Tip/A
Black - Ring/B
DIMENSIONS/WEIGHT
• 6.8”H x 8.3”W x 3.3”D
(17.3cm H x 21.1cm W x 8.4cmD)
• 2 lbs. (.91 kg)
MOUNTING
FLUSH MOUNT
Using the template packaged with the speaker, draw the
speaker outline on the wall to be cut. Make appropriate
wiring connections and test the speaker for operation.
Using appropriate mounting screws (not furnished)
drill and mount the flange as shown.
UNIVERSAL BRACKET
Loosen or separate the universal bracket leaves by
loosening or removing the handle and hardware. Using
the back leaf as a template, mark the wall through the
mounting holes, drill and mount to the wall using
appropriate screws (not furnished) or mount directly to
a junction box. Mount the T-bracket to the back of the
horn as shown using the (2) ½" screws provided.
"C" CLAMP FOR "I" BEAM
MOUNTING
A "C" clamp is provided with the horns to allow
mounting to a beam. Place the bolt through the hole in
the bottom of the base to secure the "C" clamp to the
beam. It is suggested that the horn be mounted to the
underside of the "I" beam to provide the maximum of
positioning adjustments. Mount “C” clamp with (2)
1/2” screws provided.
TECHNICAL ASSISTANCE
When trouble is reported, verify the unit is properly
connected and there are no broken connections leading
to this unit. Ascertain volume control is turned up.
Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM and a
test set and be calling from the job site. Call (540)
427-3900 and ask for Technical Support, or call (540)
427-6000 for Valcom 24-Hour Automated Support or
visit our website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom, Inc.
maintains service facilities in Roanoke, VA. Should
repairs be necessary, attach a tag to the unit clearly
stating company name, address, phone number, contact
person, and the nature of the problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
2947790
TROUBLESHOOTING CHART
PROBLEM PROBABLE CAUSE AND CORRECTION
No sound in page mode. - Check tip and ring for audio at speaker.
- Check tip and ring for audio at control unit.
Low sound in page mode. - Check volume controls at page control.
Poor listening in talkback
mode.
- Check talkback volume control at page control. Set control where audio is clearly
audible.
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and
service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement,
repair or refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim,
2. the defect is not the result of damage, misuse, or negligence after the original shipment.
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (A service
charge plus parts and labor will be applied to units defaced or physically damaged),
4. freight charges for the return of products to Valcom are prepaid,
5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will
be subject to additional charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be
liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection
with the purchase, operation, or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.
Headquarters: In Canada
Valcom, Inc. CMX Corporation
1111 Industry Avenue 35 Van Kirk Drive #11 and 12
Roanoke, VA 24013 Brampton, Ontario L7A1A5
Phone: (540) 427-3900 Phone: (905) 456-1072
FAX: (540) 427-3517 FAX: (905) 456-2269
3947790
