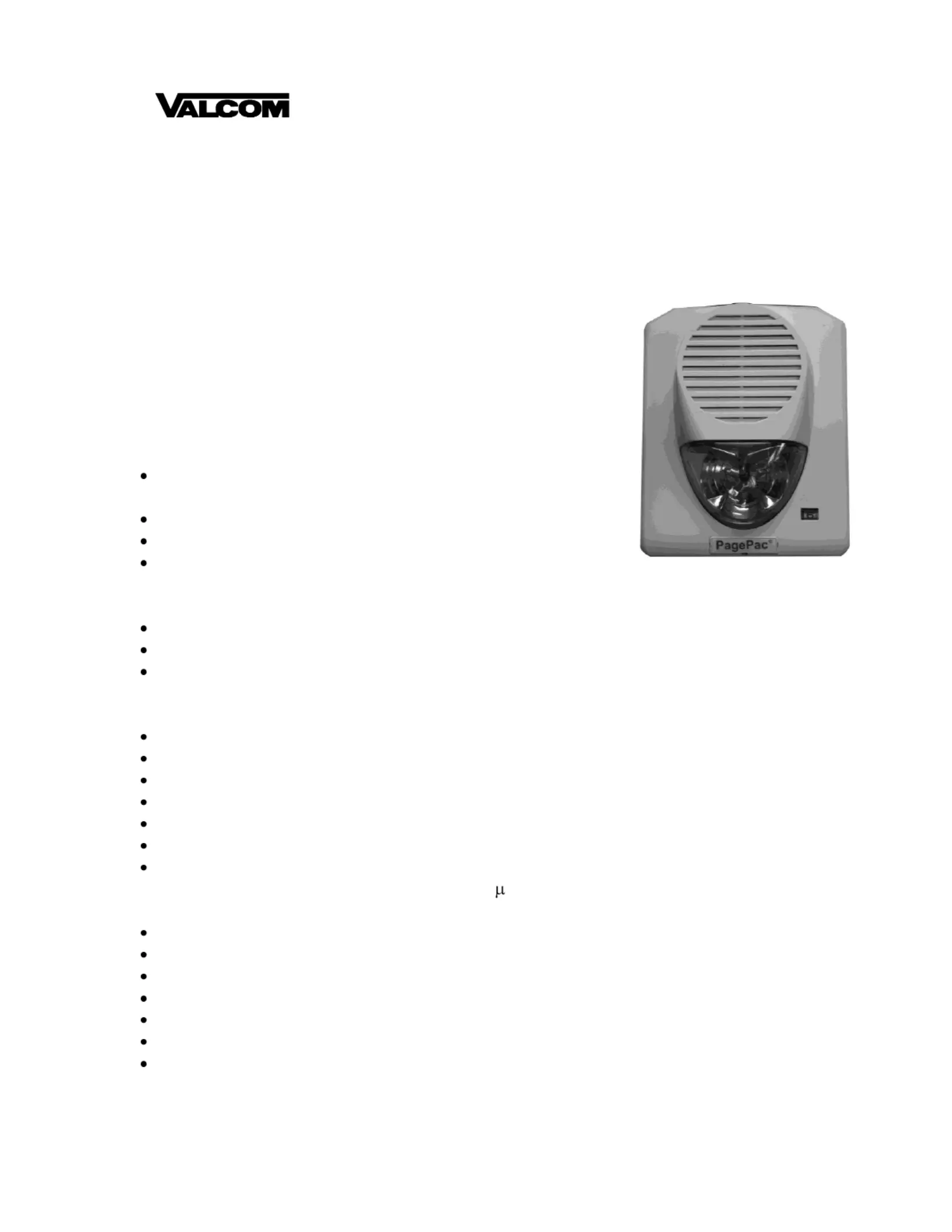

ADA COMPLIANT STROBE

INTRODUCTION

These instructions contain the specifications and information

necessary to install, operate, and maintain the ADA Compliant

Strobe.

SPECIFICATIONS

Features

Cost effective and versatile solution to applications

requiring visual alerts or strobes

ADA compliant with a 99 Candella rating

Typical coverage of 4900 sq. ft. @ 80" mounting height

Supplied with accessories to fit almost any application

Activation Methods Dimensions/Weight

Volt amplified sp ker signal 4.50"H x 4.50"W x 4.55"D 70 ea

Dry contact closure (11.43cm H x 11.43cm W x 11.56cm D)

Electronic Message Sign 5V signal 1.38 lbs. (.63 kg)

Specifications

Brightness Candella99

Power supply operating voltage input 110VAC

Strobe min um operating voltage 18VDCim

Strobe maximum operating voltage 30VD

Current draw 196mA

Maximum instantaneous 450mA

Activation voltage requirements

Electronic message sign A at 3 Volts 40

70 Volt audio signal 70 Volts peak

Activation voltage 70 Volts minimum 5 Volts

Environmental Rating Indoor

Connector Cable footage 6 feet

Mounting hardware 2 wall hangers

Lens color Amber

Faceplate cover Ivory

Metal case Silver

VP-324

- +

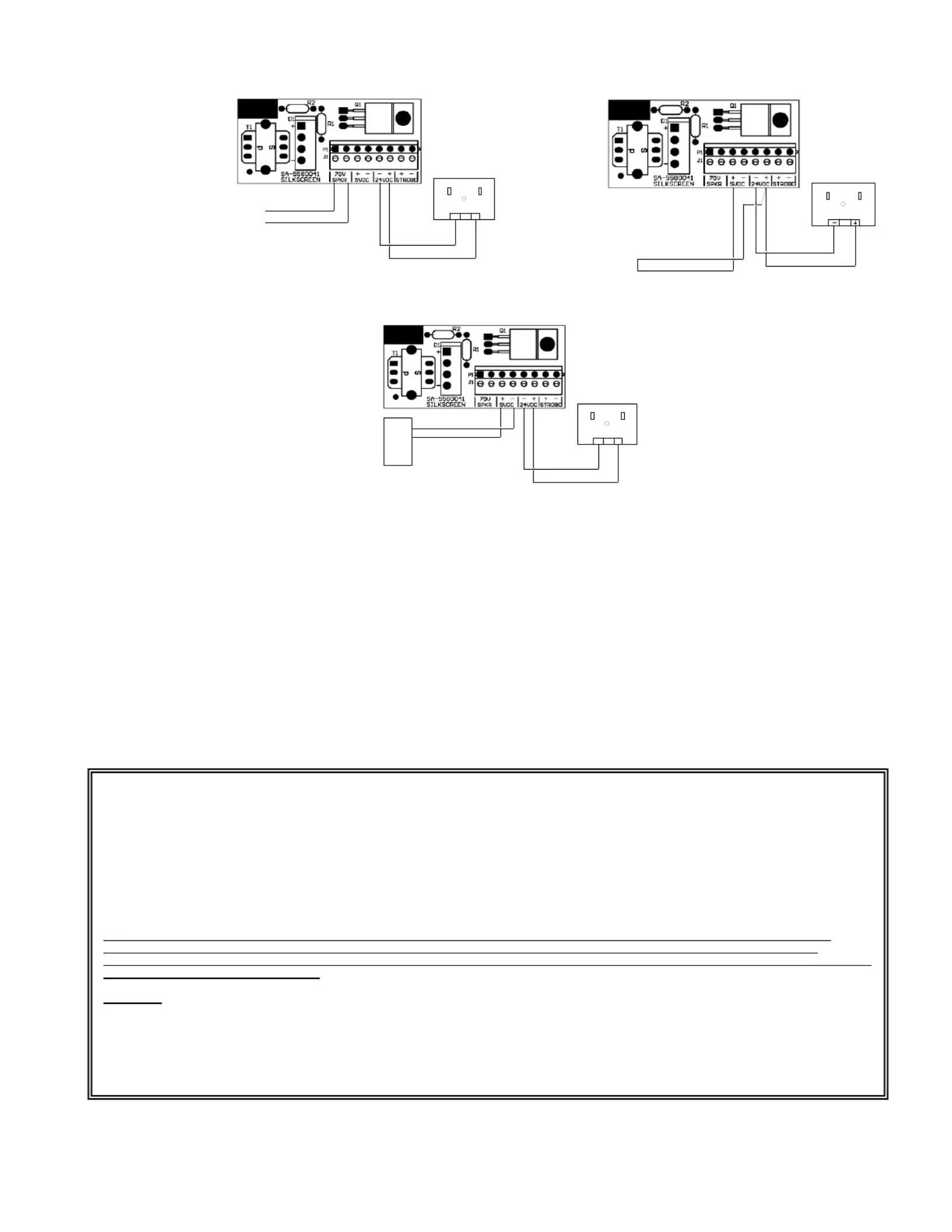

70 VOLT SPEAKER ACTIVATION

COMMON SPEAKER LINE

70 VOLT SPEAKER LINE

5 VOLT SIGN ACTIVATION

CONNECTOR

PLUG

5 VOLT SIGN

VP-324

- +

CONTACT CLOSURE ACTIVATION

SWITCH/RELAY

VP-324

TECHNICAL ASSISTANCE

When calling, have a VOM and a telephone test set available and call from the job site.

Call ( -2000 and ask for Technical Support, or visit our websites at 540) 563

http://www.pagepac.com and www.valcom.com.

Should repairs be necessary, attach a tag to the unit clearly stating company name, address,

phone number, contact person, and the nature of the problem. Send the unit to:

Valcom, Inc.

PagePac® Repair Dept.

5614 Hollins Road

Roanoke, VA 240 -5056 19

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of

normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “a is” without any warranty of any kind whatsoever including, without s-

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified

immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road Roanoke, VA 24019-5056
