1 947914
UL LISTED (UUMW) FLUSH MOUNTED

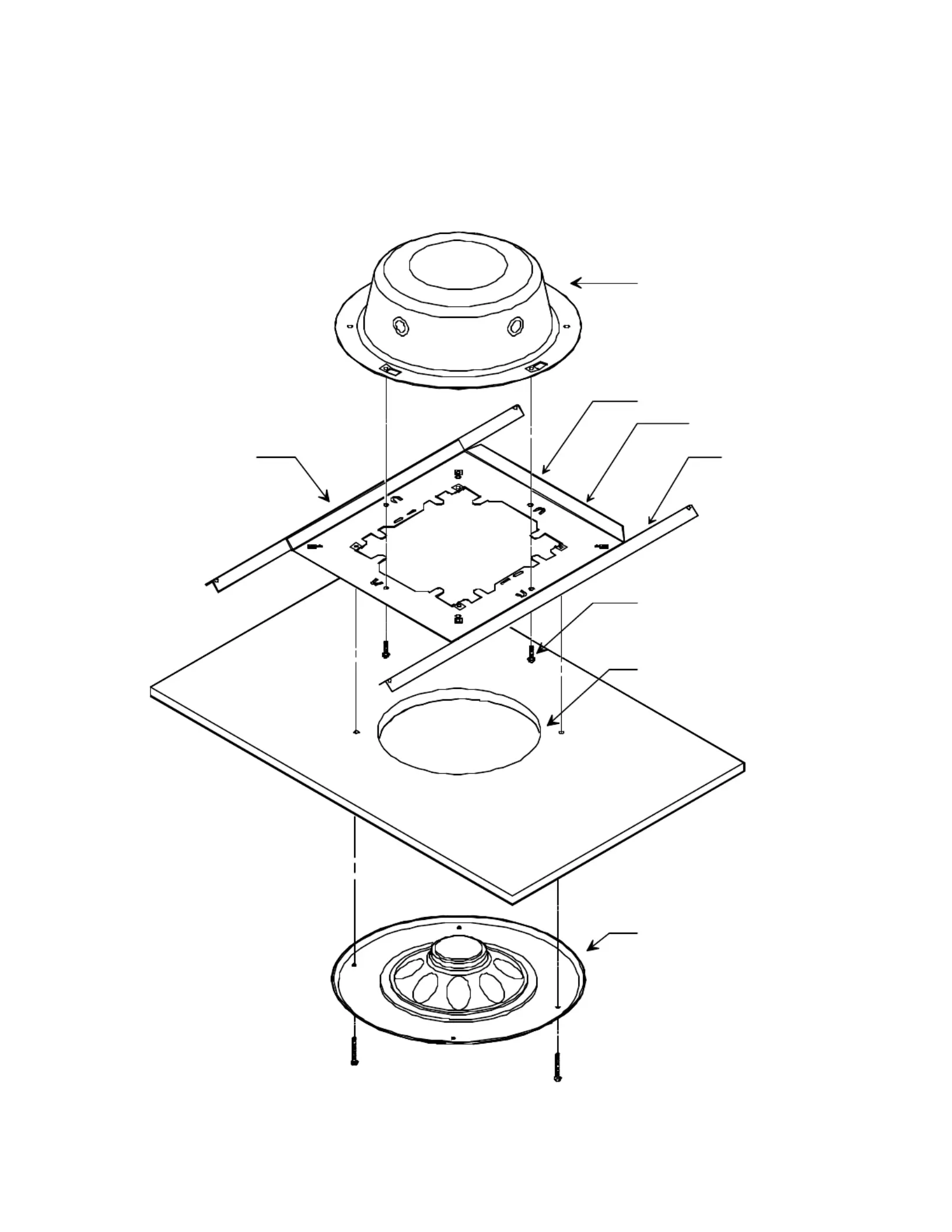

LOUDSPEAKER INSTALLATION INSTRUCTIONS
V-9915M-5 Backbox
V-9904M-5 Bridge
Bend tabs down to
locate bridge in
ceiling tile cutout
Attach backbox to
bridge using 4 screws
provided
Cut 5.25" round
hole in ceiling tile
4" Ceiling Grille
and Speaker
4" SPEAKERS
(540) 563-2000
Issue 8
14.50" X 13.60"
23.75" X 1.00"
REGULATORY INFORMATION
Listed by Underwriters Laboratories, Inc.
Category UUMW. Material and construction
permits use where ceiling plenum is part
of the air handling system.
Compound knockout(s) provided for listed
type metallic fittings for 1/2" and 3/4" plenum
rated cable and plenum whip flex conduit.
V-9915M UL LISTED BACKBOX AND V-9904M BRIDGE
2
V-9914M + V-9915M = V-9916M
INSTALLATION INSTRUCTIONS
V-9915M-5 Backbox
V-9914M-5 Bridge
Attach backbox to
bridge with 4 screws
provided
Cut 8.5" round
hole in ceiling tile
Bend tabs down to
locate bridge in
ceiling tile cutout
8" Ceiling Grille
and Speaker
(4 white screws
provided)
8 " SPEAKERS
14.50" x 13.60"
23.75" x 1.00"
3
COMPATIBILITY
Product Number Compatible with this Speaker
V- -9904M 5 (5 per box) V-1010C
V- -9914M 5 (5 per box) V- - - -1020C, V 1020KNOB, V 1060A/B, V 1220
V-9916M (1 per box) V- - - -1020C, V 1020KNOB, V 1060A/B, V 1220
V- -9915M 5 * (5 per box) To use the V- - -9915M 5 Backbox with the V 1010C Speaker, it is necessary
to use the V- - -9904M 5 Bridge. The backbox may be used alone with the V
1020C, V- -1060A/B or the V 1220 as long as provisions are made to support
the weight of the assembly.
TECHNICAL ASSISTANCE
Assistance is available from the factory when problems are encountered. Call (540) 563-2000 and ask for Technical
Support, or call (540) 767- -1555 for Valcom 24 hour Faxback System or visit our website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be
necessary, attach a tag to the unit clearly stating company name, address, phone number, contact person, and the
nature of the problem. Send the unit to:
Valcom Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
