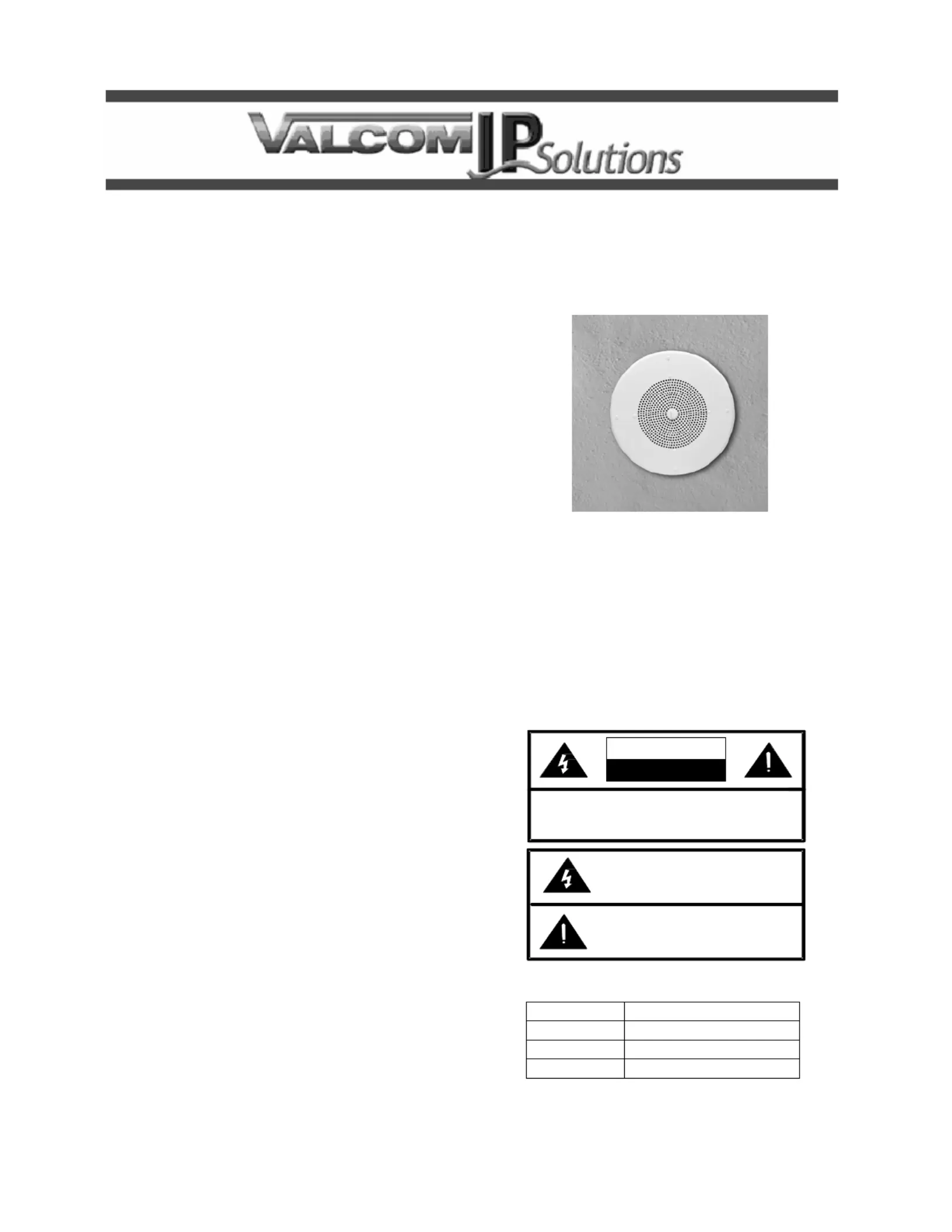

VIP-120
ONE-WAY IP CEILING SPEAKER
INTRODUCTION
The VIP-120 One-Way IP Ceiling Speaker enables
voice access to a single zone of one-way paging
over an IP-based LAN/WAN. This allows a page
zone extension anywhere on the network. The
speaker level is electrically adjusted during set up.
The enclosure is made of steel with a durable white
powder coated finish. Power is provided to the
VIP-120 via a Power over an Ethernet switch
meeting the 802.3af specification.
SPECIFICATIONS
Access Methods
• PBX, FXO Port w/VIP-811
• POTS telephone set w/VIP-811
• PBX, FXS Port w/VIP-821
• Valcom M Cast Page Group
• SIP – enabled telephone system
Features
• RJ-45 network connection
• 802.3af compliant
• High Efficiency Class-D Amplifier
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case the
user will be required to correct the interference at
his own expense.
DIMENSIONS/WEIGHT
• 13.00” Dia x 3.00” D
(33.02cm Dia. x 7.62cm D)
• Weight: 2.5 lbs (1.13 kg)
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Precautionary Designations
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer serv icing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present with in this unit.
This symbol in dica tes that there are
importa nt operating and maintenance
instructions in the literature acc ompanying
this unit.
Packing List
Qty. Item
1 VIP-120
1 VSP Document
1 RJ-45 Patch Cable
2 947635
MOUNTING
Cut an 8.50” diameter in ceiling tile. After
connections have been made to the speaker, attach
speaker to ceiling tile using the mounting hardware
provided. (A metal backbox with rails is available
separately as model V-9816M)
Network Connection
The VIP-120 has one CAT-5 RJ-45 network
connector on the rear panel. Use the supplied
CAT-5 patch cable to connect the VIP-120 to
an Ethernet switch. (See Figure 1).
Figure 1. VIP-120 Connections
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available, substitute
a spare unit for the suspected defective unit.
Assistance in troubleshooting is available from the
factory. Call (540) 563-2000 and press 1 for
Technical Support or via email at
support@valcom.com
When requesting assistance, you should include all
available information. It is strongly suggested that
you go to the web site and follow the trouble
resolution procedure at http://voip.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address,
phone number, contact person and the nature of
the problem. Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
.
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for
a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund
of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3 the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service
charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5 all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will
be subject to addition charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for any
anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation
or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier
should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters
Valcom, Inc.
5614 Hollins Road
Roanoke,Va 24019-5056
Phone: (540) 563-2000
Fax: (540) 362-9800
