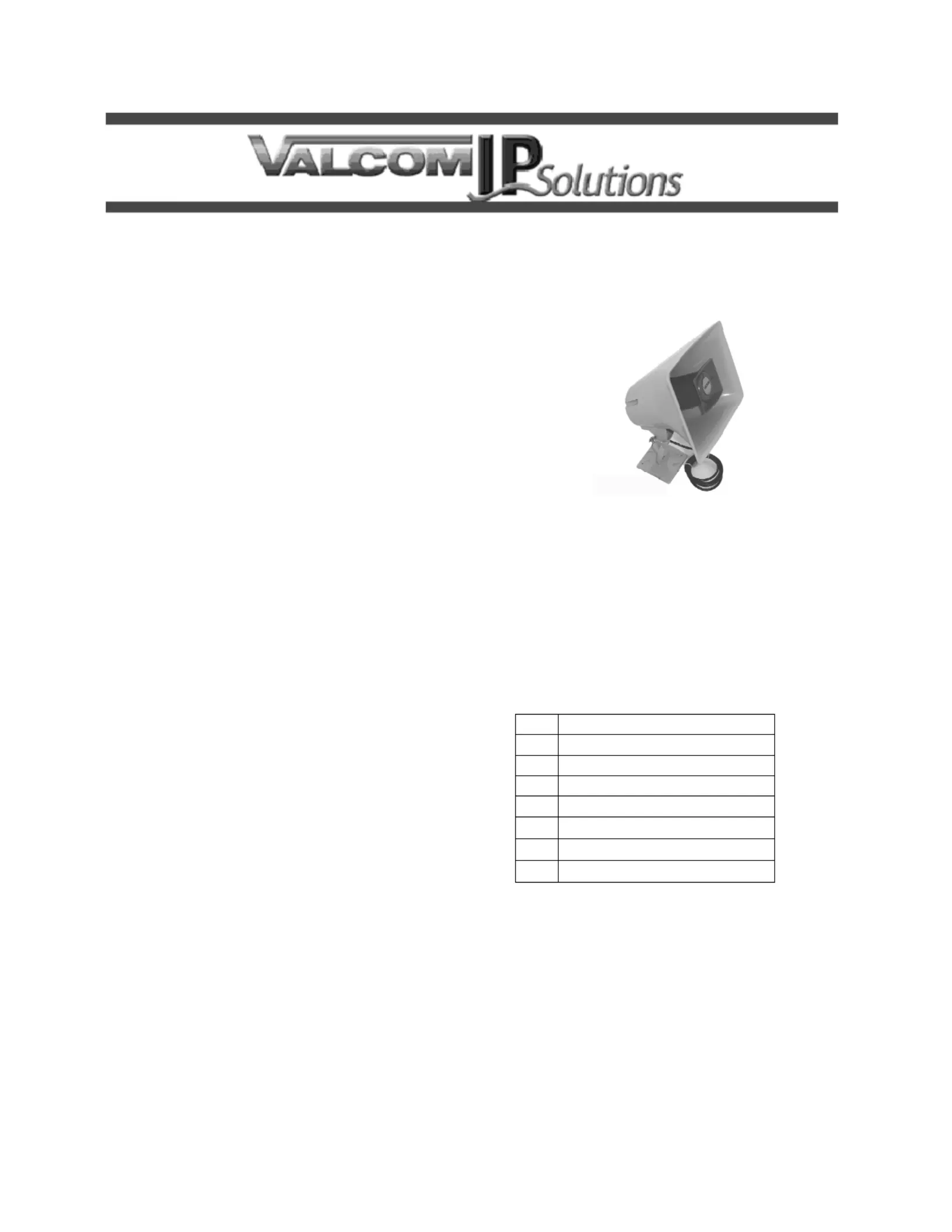

VIP-130L IP Paging Horn
INTRODUCTION
The VIP-130L IP Paging Horn is a self contained
paging system which enables voice paging up to
1200 feet from an Ethernet connection. The
VIP-130L consists of a high efficiency 5 Watt Class-D
Horn and a VIP-LLE Network Extender allowing
stand alone capability when used with a SIP enabled
telephone system or can be accessed from a variety
of Valcom managed VoIP products.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VIP-811
POTS telephone set w/VIP-811
PBX, FXS Port w/VIP-821
Valcom M Cast Page Group
SIP telephone system
Features
RJ-45 network connection
LED Status Indicator
Network activity LEDs
Power over Ethernet (PoE) 802.3af compatible
High Efficiency Class-D 5 Watt Amplifier
Dimensions/Weight
(Horn)
7.00” H x 10.00" W x 10.00" D
(18.75 cm H x 25.4 cm W x 26.4 cm D)
Weight: 5.8 lbs. (2.63 kg)
Network Extender
(VIP-LLE)
1.30” H x 6.10" W x 6.00" D
(3.51 cm H x 15.72 cm W x 13.51 cm D)
Weight: 0.85 lbs. (0.39 kg)
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Nominal Specifications – HORN
Input Impedance: 600 Ohms
Input Level: -10dBm
Output Impedance: 600 Ohms
Output Level: -10dBm nominal
Nominal Specifications – VIP-LLE
Via 802.3af PoE Ethernet Switch:
Class 3
Packing List
Qty Item
1 VIP-LLE Network Extender
1 5 Watt High Efficiency Horn
1 VSP Document
2 Mounting Brackets
4 Rubber Pads
4 Wood Screws
1 “C” Clamp
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if not
installed and used in accordance with the
2 947628
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indic ates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area may cause
harmful interference in which case the user will
be required to correct the interference at his own
expense.
Precautionary Designations
Mounting (VIP-LLE)
The VIP-LLE Network Extender is designed for wall
or shelf mounting and must be within 300 feet of the
network switch.
Shelf: Provided with the VIP-LLE Network Extender
are four rubber pads. Peel the pads from the carrier
backing and place at the four corners of the bottom of
the unit.
Wall: Using the brackets and wood screws provided,
secure the VIP-LLE Network Extender
to the wall.
Mounting (HORN)
The horn should be mounted 15 to 20 feet above the
floor to allow for best sound distribution. The unit can
be mounted to a wall, a beam or an electrical box.
NOTE: For ease of installation, the base can be
attached to the speaker before or after the base is
mounted.
Loosen position adjustment knob
Insert the ball of the base into the socket of
the speaker
Tighten the position adjustment knob
Mount the base to a wall using the two
pre-drilled holes provided.
A “C” clamp is provided with the horn to allow
mounting to a beam. Place the bolt through
the hole in the bottom of the base to secure
the “C” clamp to the beam. It is suggested
that the horn be mounted to the underside of
the “I” beam to provide maximum positioning
adjustments.
The base has pre-drilled holes for a double-
gang square electrical box, but by drilling out
additional knockout holes, the base can be
mounted to a single-gang or octagon box.
The horn may be rotated or moved up and down to
obtain the desired position by loosening the position
adjustment knob at the bottom of the unit
approximately one turn. Make required adjustments
and re-tighten knob.
3 947628
Interconnections
The only method of powering the VIP-130L IP Paging
Horn is via a Power over Ethernet (PoE) switch or
power injector meeting the 802.3af specification.
Make all required signal connections before
connecting to Ethernet switch or power injector
meeting the 802.3af specification. Power is supplied
to the horn assembly via the VIP-LLE Network
Extender.
Network Connection
As shown in Figure 3, the VIP-LLE Network Extender
has one RJ-45 network connector on the front panel.
Use a standard Ethernet patch cable to connect the
NETWORK connector of the VIP-LLE Network
Extender to a 802.3af compliant PoE port (300 feet
maximum distance).
Signal Connections
As shown in Figure 3 and 4, audio output
connections are made on the rear panel of the VIP-
LLE Network Extender. Versions of the VIP-LLE
Network Extender with the color-coded, 8-pin screw
connector will connect standard CAT-5 twisted-pair
cable from the rear panel color coded connector of
the VIP-LLE Network Extender to the supplied VM-
186 RJ-45 connector (900 feet maximum distance).
Connect RJ-45 connector of horn to VM-186 RJ-45
socket. For versions of the VIP-LLE Network
Extender with the RJ-45 Audio Output connector, the
horn may be connected directly to the RJ-45 port. If
additional length is required, any standard T568A or
T568B extension may be used (900 feet maximum).
Status Indicator Lights
The VIP-LLE Network Extender has 3 status
indication lights:
STATUS: Flashes during normal operation, and solid
when unit in reset.
LINK: Indicates 100 Mbit Ethernet connection when
illuminated. No activity indicates 10 Mbit connection.
Act: Indicator flashes to indicate network activity
Operation
Provide paging from SIP connection or via a variety
of Valcom managed VoIP products. Integration to
customer telephone system can be via SIP
registration, FXO port (with VIP-811), or FXS port
(with VIP-821).
Setup
Information specific to your application will need to be
programmed into the VIP-130L using a computer.
The PC used for programming would be connected to
the same subnet as the VIP-130L. Setup will be
done using the IP Solutions Setup Tool. The IP
Solutions Setup Tool may be downloaded from the
Valcom website at www.valcom.com.
TECHNICAL ASSISTANCE
Assistance is available from the factory when
problems are encountered. Call (540) 563-2000 and
press 1 for Technical Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person and the nature of the
problem. Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke VA. 24019
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under
conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the
replacement, repair or refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts
and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to
additional charges for parts and labor).
This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable
for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase,
operation, maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to
the purchase price of the specific Product covered by the warranty.
Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever
including, without limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be
notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters:
Valcom, Inc.
5614 Hollins Road Roanoke, VA 24019-5056
Phone:
(
540
)
563-2000 FAX:
(
540
)
362-9800
