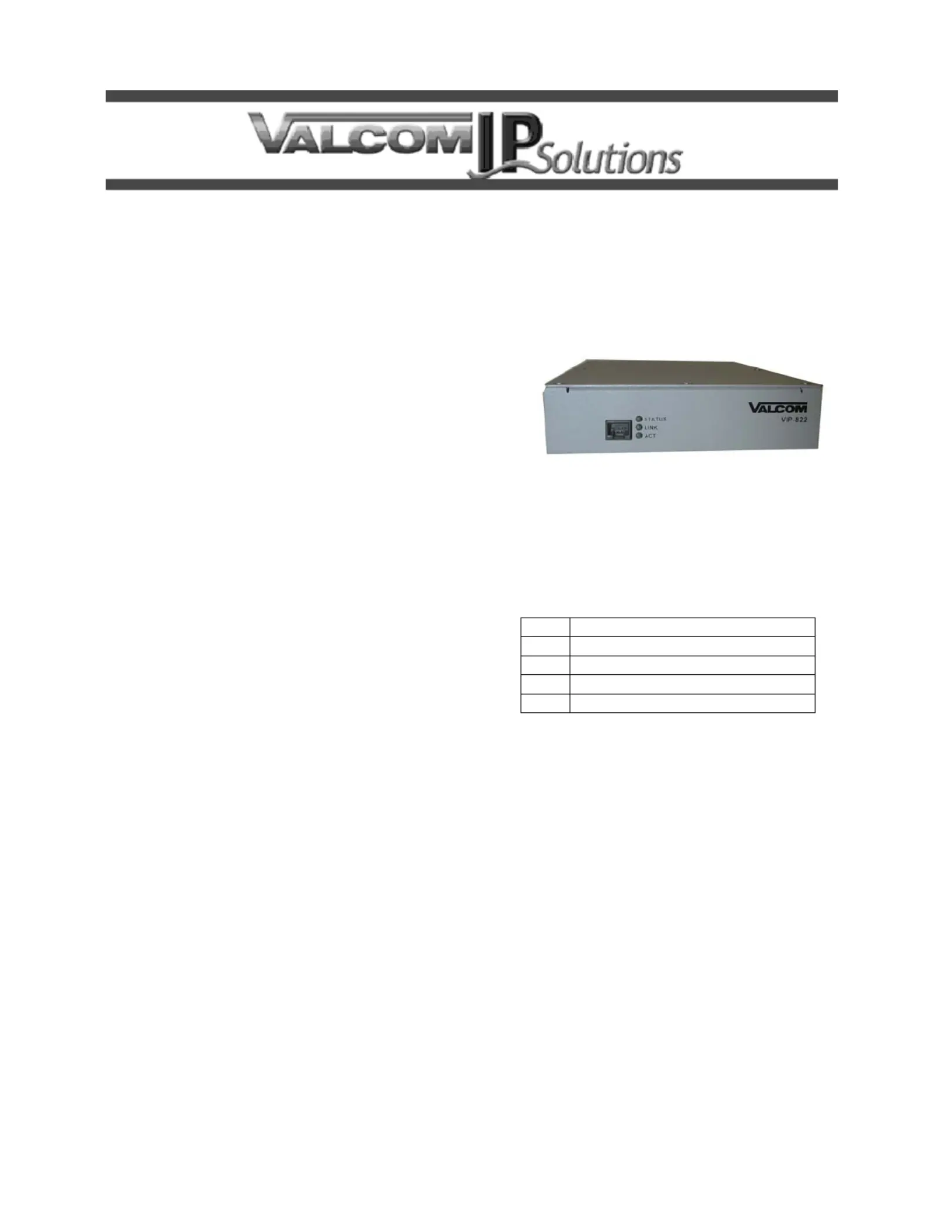

VIP-822

DUAL NETWORKED TRUNK PORT

INTRODUCTION

The VIP-822 Dual Networked Trunk Port allows

most loop start station ports to be connected to a

managed IP-based LAN/WAN.

SIP connectivity allows the VIP-821 to act as a

gateway device between a SIP telephone system

and the other Valcom paging systems, such as the

MultiPath.

SPECIFICATIONS

Access Methods

 PBX, FXS Port

 SIP

Features

 RJ-45 for network connection

 2 RJ-11 FXO connections

 2 RJ-11 failover telephone connections

 Decode Caller ID signals

 Front panel activity LED

 Network activity LEDs

 2.5mm jack for DC power

 Power over Ethernet (PoE) 802.3af compatible

Dimensions/Weight

 1.75 H x 6.75" W x 9.5" D

(4.45cm H x 17.15cm W x 24.13cm D)

 Weight: 1.75 lbs. (0.80 kg)

Nominal Specifications

Input Impedance: 600 Ohms

Input Level: -10dBm

Output Impedance: 600 Ohms

Output Level: - 10dBm nominal

Nominal Power Requirements

Via back panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty Item

1 VIP-822

1 VSP Document

2 Mounting Brackets

4 Rubber Feet

INSTALLATION

NOTE: The telephone system referred to in this

manual is the customer premise equipment

such as an electronic key system, a PBX or a

dedicated single line telephone sets. The

VIP-822 is not intended for direct or indirect

connection to the public telephone network.

When used with a customer premise telephone

system such as a key system or PBX system,

these units are interfaced to the system via a

fully protected page port or system central

office port, which is a fully protected interface

device. Also, the host system must be

configured to disallow central office trunk

conferencing in order to prevent indirect

connection to the public network.

2 947998

Precautionary Designations

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated in

a commercial environment. This equipment

generates, uses and can radiate radio

frequency energy and if not installed and used

in accordance with the instruction manual, may

cause harmful interference to radio

communications. Operation of this equipment

in a residential area may cause harmful

interference in which case the user will be

required to correct the interference at his own

expense.

Mounting

The VIP-822 is designed for wall, table or rack

mounting.

Table: Provided with the VIP-822 are four rubber

pads. Peel pads from their carrier backing and

place at the four corners of the bottom of the unit.

Wall: Using the template on last page of this

document, mark the location of the bracket screw

holes on the wall. Drill 5/64" pilot holes, 3/4" deep,

at each screw location and use the wood screws

provided to attach the brackets to the wall. For

surfaces other than wood, use hardware

appropriate for the surface (not included). With the

brackets securely attached to the wall, attach the

VIP-822 to the brackets using the included

hardware. Figure 2 illustrates the bracket

assembly.

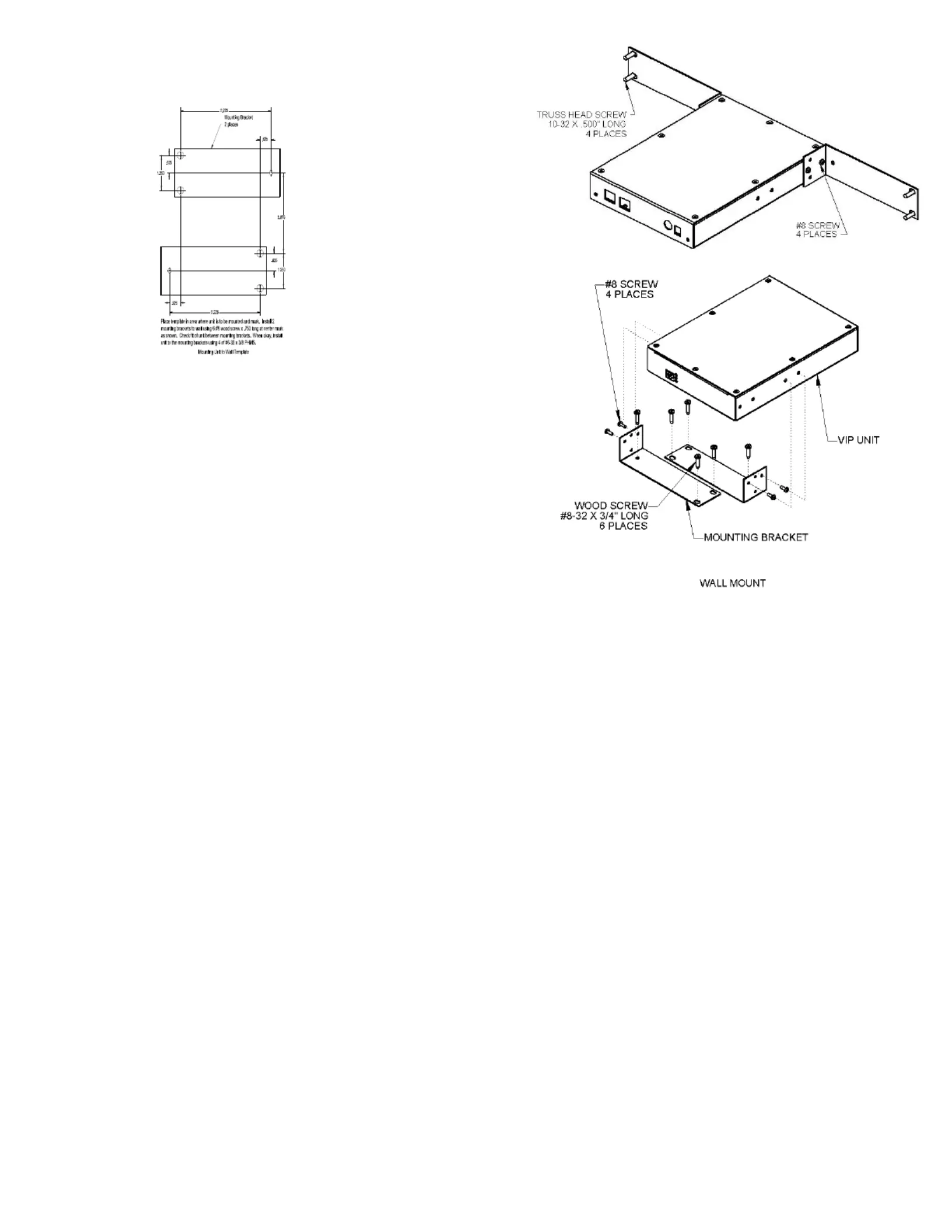

Rack: Following the assembly drawing, attach the

two mounting brackets to the VIP-812 unit. Using

rack screws, mount the VIP-812 in an available 1U

rack slot. See Figure 1.

Power Connections

The preferred method of powering a VIP-822 is via

a Power over Ethernet (PoE) switch meeting the

802.3af specification.

If the rear panel barrel connector is used for power,

the preferred power supply is a Valcom VIP-324D.

Make all required signal connections before

applying power to the unit. If powering via 802.3af,

make sure all signal connections via the back

panel are made then connect the VIP-822 to the

Ethernet switch.

If power is supplied via the barrel connector, make

sure all signal connections are secure. Attach the

unit to the network via the front panel RJ-45

Ethernet connector. Apply power by plugging the

power supply into the VIP-822 via the barrel

connector on the rear of the VIP-822.

Network Connection

The VIP-822 has one RJ-45 network connector on

the front panel.

Use a standard Ethernet patch cable to connect

the VIP-822 to an Ethernet switch. If the Ethernet

switch is 802.3af compliant, the VIP-822 will draw

power from it.

3 947998

Signal Connections

Trunk Connections:

Connect standard analog telephones to the

VIP-822 via the rear panel RJ-11 jacks labeled

Port 1 Line or Port 2 Line. Tip and Ring appear on

pins 3 and 4 of these jacks.

Failover Telephone Connections:

Connect standard analog telephones to the

VIP-822 via the rear panel RJ-11 jacks labeled

Port 1 Phone or Port 2 Phone. Tip and Ring

appear on pins 3 and 4 of these jacks.

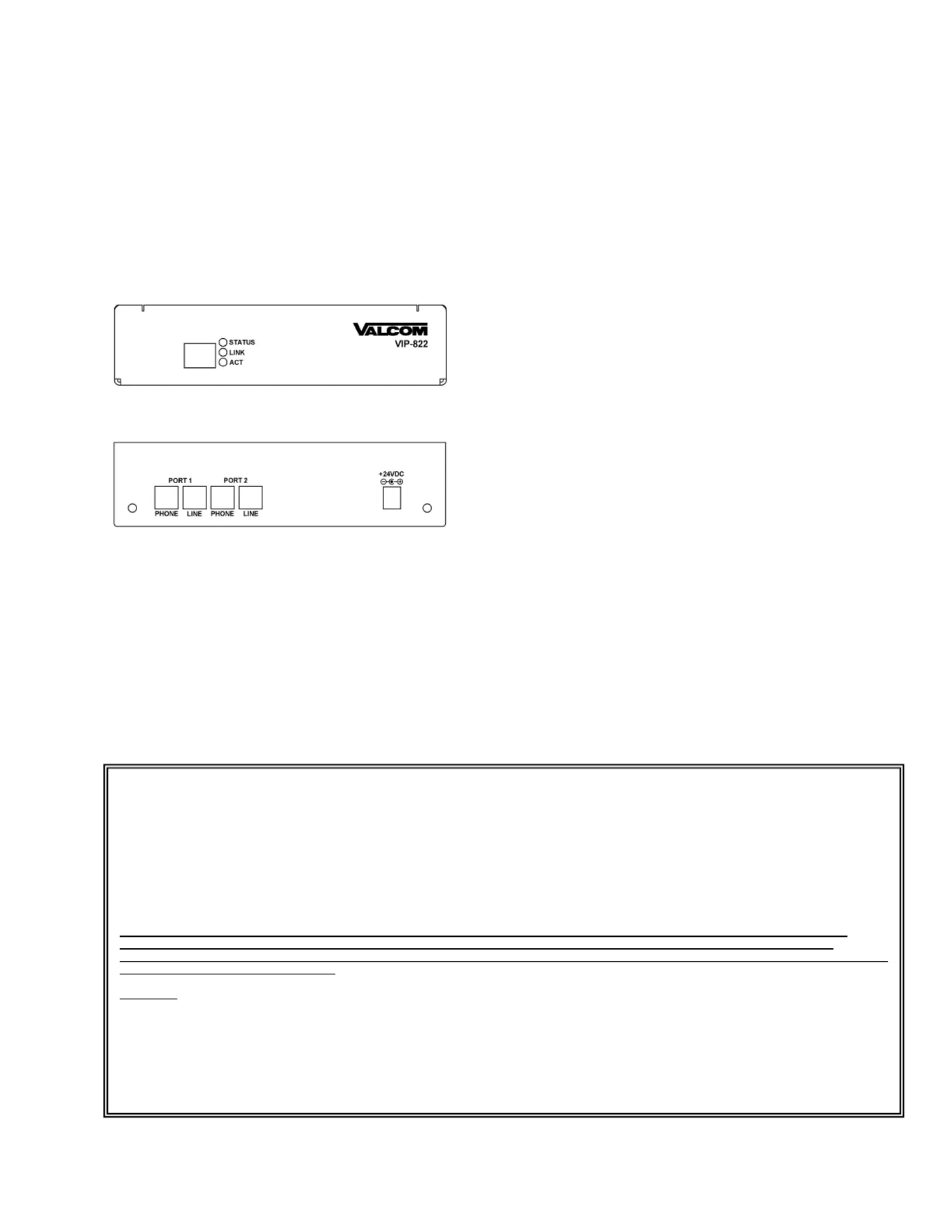

Front Panel

Rear Panel

Setup

Information specific to your application will need to

be programmed into the VIP-822 using a

computer. The PC used for programming should

be connected to the same subnet as the VIP-822,

Setup will be done using the IP Solutions Setup

Tool from Valcom web site at

www.valcom.com/vipsetuptool

Status Indicator Lights

The VIP-822 has 3 status indication lights on the

front panel:

STATUS: Flashes to indicate power.

LINK: Indicates 100 Mbit Ethernet connection

when illuminated. No activity indicates 10 Mbit

connection.

ACT: Indicator flashes to indicate network activity.

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. If a spare unit is available, substitute

a spare unit for the suspected defective unit.

Assistance in troubleshooting is available from the

factory. Call (540) 563-2000 and press 1 for

Technical Support or via email at

support@valcom.com.

When requesting assistance, you should include

all available information. General information and

troubleshooting procedures are available on the

Valcom web site at www.valcom.com. Valcom

equipment is not field repairable. Valcom, Inc.

maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the

unit clearly stating your company name, address,

phone number, contact person and the nature of

the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056
