UGT-CR940
Copyright © 2023 Vantec Thermal
Technologies. All Rights Reserved.
All Registered Trademarks Belong
to Their Respective Compaines.
P d orinte n
R d P r.ec leyc ape
Info on e rmati in this docum nt is
subj ct ge wit notice t chano hout e.
R on t ieproducti of hese mater s ial n y an
man r at w h t ttne wh soever it ou wri en
perm ss n ddeni io i ictly rbis str fo .
For Choosing VantecUSA Product.
We are committed to providing you with the best
service and support. If you have a problem with
installing, getting the product to function or other
product related question, please feel free to write
to us. We will help you answer your question.
You can write to us at : support@vantecusa.com
For the latest Drivers, Manual and Frequently
Asked Questions (FAQ), they are available at our
website at vantecusa.com or write to us.
Thank You
Thank you,
VantecUSA Support Team.
QRCode to product Page,
Drivers, Manual, and FAQ.
v1.04
3. Prepare the System Chassis for installation by
removing the System Chassis side panel(s) cover.
Note: Your System Chassis may have a dierent
mounting method or special screw, please
follow the mounting method of your System
Chassis. The example shown is for standard
System Chassis.
1b. Slide the front panel device into your case until
the front panel is ush with the front of your case.
Secure this converted 5.25" Card Reader device to
your System Chassis with the provided screws.
2b. Proceed to connect the USB 3.0 Header from this
converted 5.25" Card Reader to your System
motherboard or expansion card USB 3.0 Header
(20pin) interface.
Secure back the System Chassis side panel(s) cover.
1c. Prepare the 3.5" to 5.25" converter kit.
Slide in the 3.5" Card Reader device into the
converter kit until the front panel is ush.
2c. Secure with the screws provided by the 3.5" to
5.25" front panel converter kit.
NOTE: The insertion orientation, Memory Stick and CF are inserted
with card label facing up. The SD/MMC, XD, MicroSD and M2 are
inserted with card label facing down.
1. Verify the package contents.
2. Locate an available 3.5" or 5.25" drive bay where
you would like to install the device. If you are
installing into a 3.5" Drive Bay, follow the steps
listed below 1a and 2a.
If you are installing into a 5.25" Drive Bay, you
will need to install this 3.5" Card Reader into a
converter kit like the HDA-525P, this will convert
the 3.5" to a 5.25" size. Follow the steps listed
below 1b and 2b.
2a. Proceed to connect the USB 3.0 Header from this
3.5" Card Reader to your System motherboard or
expansion card USB 3.0 Header (20pin) interface.
Secure back the System Chassis side panel(s) cover.
Memory Card Insertion Orientation.
1a. Slide the front panel device into your case until
the front panel is ush with the front of your
case. Secure this 3.5" Card Reader device to your
System Chassis with the provided screws.
T-Flash
USB 3.0
Connect to
System 20 pin
USB 3.0 Header
T-Flash
USB 3.0
T-Flash
USB 3.0
Connect to
System 20 pin
USB 3.0 Header
T-Flash
USB 3.0

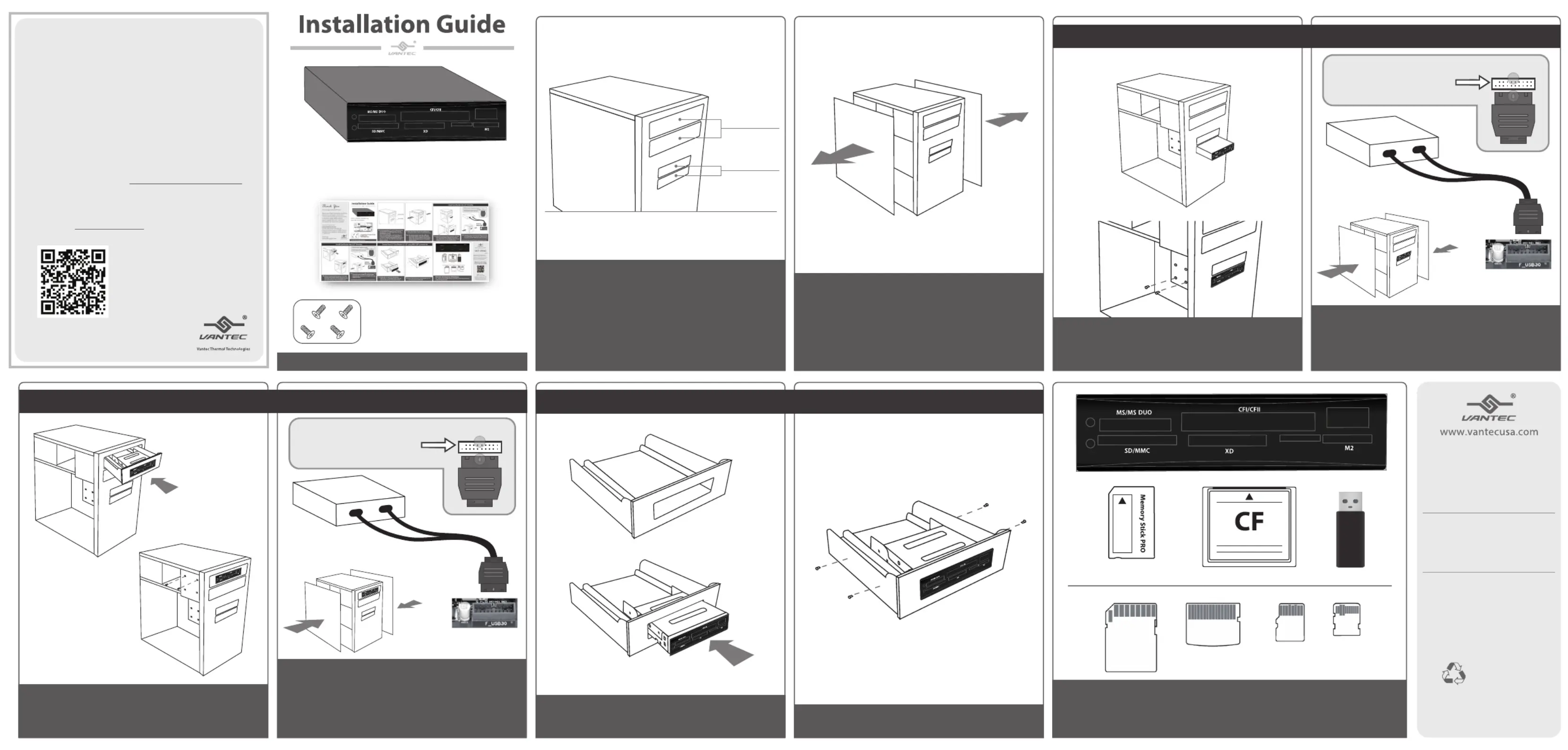

Install Card Reader into 3.5" Drive Bay
Install Card Reader into 5.25" Drive Bay Convert Your 3.5" Card Reader to 5.25" using HDA-525P converter kit
T-Flash
USB 3.0
T-Flash
USB 3.0
T -F las h
USB 3.0
T -Fl as h
USB 3. 0
T-Flash
US B 3.0
T-Flash
USB 3.0
5.25” Drive Bay
3.5” Drive Bay
+ 3.5" Card Reader with integrated USB cable
+ installation screws
+ Quick Installation Guide
Note: Missing pin and notch on the
connector matches notch on the header
micro SDXCx-PictureSDXC/SDHC/MMC
MS/MS PRO DUO
Insert Top Up Insert Top Up Insert Top Up
Insert Bottom Up
CF I / CF II USB 3.0
Thumb Drive
M2
Note: Missing pin and notch on the
connector matches notch on the header
