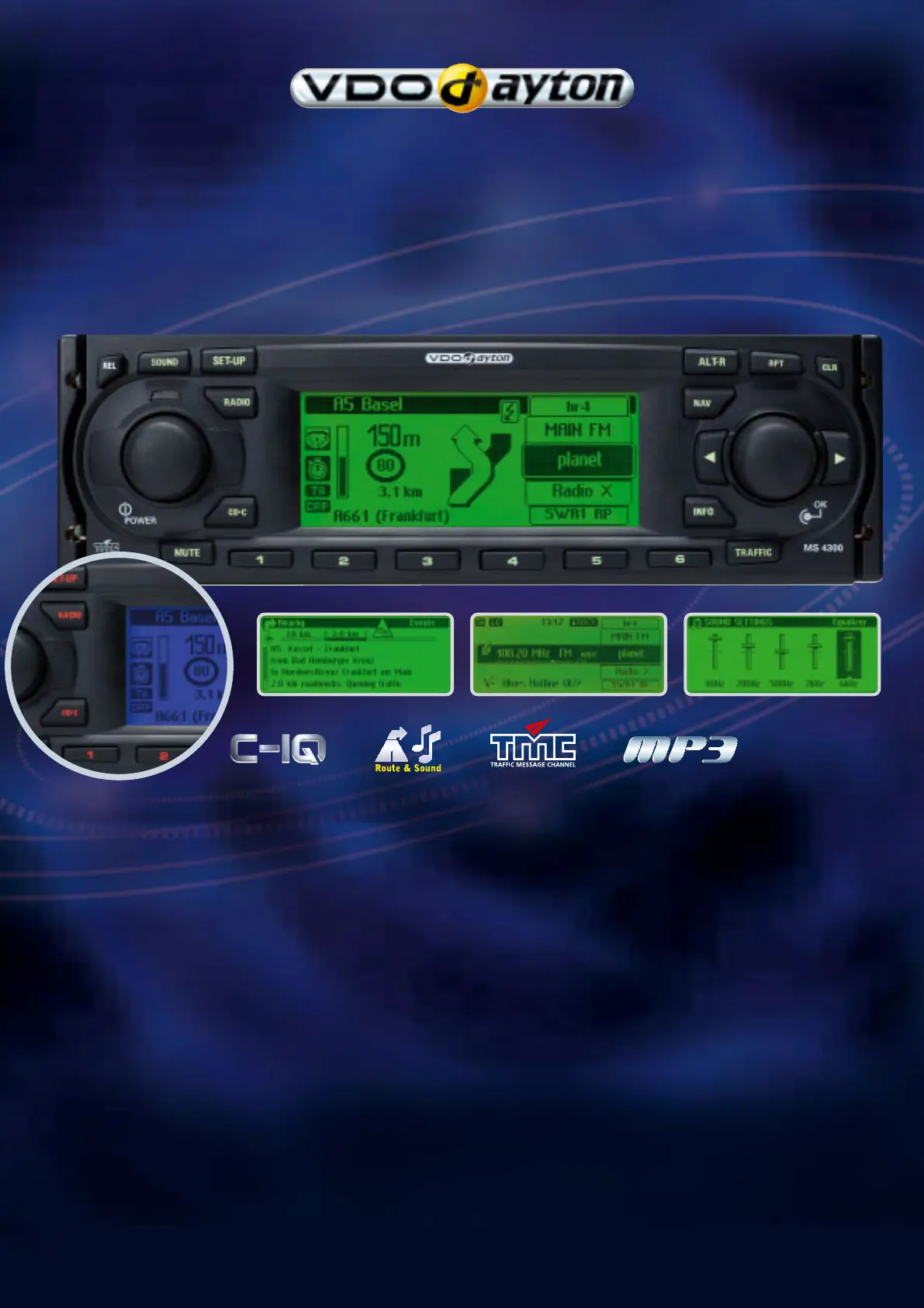

VDO Dayton. The Car Brand.
Car Multimedia Systems.
MS4300
Navigation Radio with MP3 CD-Player
∑ C-IQ Intelligent Content on Demand
∑ Dual-RDS-Tuner for simultaneous Radio and TMC Reception
∑ Route & Sound
4 x 55 Watt max. Power
∑ Integrated Dynamic Navigation via TMC
Dynamic FM Station List
∑ Active Antenna Supply
∑ 6 Preset Buttons
∑ Detachable Flipdown Front
Options
Digital CD MP3/WMA Changer CHM 604 MP3
IR Credit Card Remote Control RC 1104*
IR Steering Wheel Remote Control RCS 4000*
Connection to OEM Steering Wheel Remote Controls
via Adapter Wire
Easy Adaption to Handsfree Kits (e.g.: CIX 3000 Blue)
*Requires additional IR Receiver CA 1106 + ACP 1100/01
Intelligent Content on Demand
VDO Dayton. The Car Brand.
Car Multimedia Systems.
www.vdodayton.com
MS4300
Navigation Radio with MP3 CD-Player
Audio
• MP3 and Audio Player
• CD audio playback during
guidance (Route & Sound)
• Track Memory Function to
continue playing last song
when you are finished with
the map CD
• Playlist with up to 99 tracks
• MP3
- Display of directory name
- Display of file name
- Display of ID3-Tags
- Bitrate: Maximum of
320kbit/sec, constant or
variable
• Max. Power: 4 x 55 Watts
• Soft-Take-in CD insertion
(Anti-scratch)
• CD Text
• CD-R/RW compatible
• 5 Channel Equalizer
• 6 Sound Presets
• Dynamic Loudness
• Speed dependent volume
control
Radio
• Dual-RDS-Tuner for
simultaneous Radio and TMC
Reception
• Digital RDS/TMC Tuner
• Dynamic FM Station List
• FM with RDS-EON-News-PTY
• MW, LW and SW
Ergonomic and safety
• 6 Preset Buttons
• High Resolution Display
(260 x 100 dot matrix)
• Detachable flipdown front as
theft protection
• Display Dimming via software
Navigation
• Radio/Navigation split screen
• Pictogram- and voice supported
route guidance
• 9 languages with 20 voices
• Turn-now advices on highways
and roundabouts (circum-
ference greater than 150 m)
• Value and Distance-to-junction
Bar
• Integrated Dynamic Navigation
- Manual Detour Planning or
- Dynamic Route Planning
• Route criteria
- Fast Route
- Short Route
- Prefer Main Roads
- Avoid Main Roads
- Avoid Toll Roads
- Avoid Ferry
- Avoid Tunnel
• Calculation of alternative route
• Traffic information via TMC
- Detailed information of the
congestion source
- TMC station list including
automatic mode
- Pay TMC 3
- Traffic information on route
and sorted on actual position
or on destination
- Detour calculation incl. info
on additional time and length
• Address book for min. 200
entries (categories: Home,
Work, Business, Private)
• Last destinations: 20
• Trip Computer
- Current/Average Top Speed
- Travel Time/Distance
• Programmable Speed
Warning
• Legal Speed Limit on current
route section 2
• Extensive Destination Input
Possibilities:
- Country, city, street junction,
house number
- Postal/ZIP Code
- QXS – Quick Access Street
Search
- Longitude/latitude
- Points of Interest (POI) like
petrol and train stations,
car parks and cinemas
- Travel guides 3
(e.g. Varta, Michelin)
Technical Data
• RMS Power:
4 x 28 Watts at 10% THD
(DIN 45324) and 14,4 V
• Sensors:
- 12-Channel GPS Receiver
- Gyroscope
- Interface for Digital Speed
Signal (optional)
• Temperature Range:
-20° C ... +65° C
• Power Supply:
- 12 V DC, – at GND
- Voltage Range: 10,5V - 16V
- Current Consumption:
about 1 A - 10 A
(about 0,01 A in off state)
- Active Antenna Supply
• Dimensions (w x h x d): DIN-
Housing, 180 x 51 x 160 mm
E
MS 4300
B
F
A
C1 C2 C3
G
D1
09/05, MS 4300,
subject to modification
C-IQ Intelligent Content on Demand
Once C-IQ is activated, you benefit from a wide range of products
including up to date road maps, travel guides and special country
products. Along with wide coverage, road maps come with free traffic
information (TMC) and up to 1.500.000 Points of Interest (POI). The
C-IQ update service automatically sends you the latest road maps free
of charge1. Activation takes just a few minutes anytime, anywhere.
Navigation content can be chosen on a daily or monthly basis with time
based payment.
Convincing Sound Quality
With its 4 x 55 Watt MOS-FET amplifier, a 5 channel equalizer and 6 pre-
definied sound styles the MS 4300 provides a convincing sound quality
which leaves nothing more to desire.
Enhanced Route and Sound with MP3 CD-Player
Route and Sound enables you to easily switch between different audio
sources (CD, MP3, Changer) whilst being guided in a perfect manner via
voice and pictogram to your destination. The Track Memory Function
enables you to continue playing the last song. Address entry can be
performed in a pre-loaded street corridor to avoid additional map CD
usage. The large display allows for a comfortable browsing through an
MP3 folder structure whilst displaying 6 folder names at the same time.
A “Playlist” allows playing up to 99 individual songs out of e.g. MP3 CD.
Dual-RDS-Tuner
Two integrated RDS-Tuner (Radio Data System) assure a optimal receip-
tion and radio performance. Your preferred radio program is always
receipted with the best quality by silently switching to the strongest
frequency of your listened radio program. A permanently refreshed
station list displays all currently received FM stations.
Improved Navigation Performance
High resolution pictograms, value and distance-to-junction bar as well as
legal speed limits provide a comprehensive optical guidance
performance. With a optimized audible guidance covering turn-now
advices on highways or roundabouts as well as linked advices in cities
allow navigation in a perfect manner even without the need to watch
the optical guidance on the display.
Dynamic Navigation via TMC
The system is able to process traffic information, which is provided
through an integrated RDS-TMC receiver (Radio Data System – Traffic
Message Channel). This traffic information is evaluated and included in
the route calculation. The delta (travel time, distance) for the current
route is shown and the driver can decide whether p2-he wants to drive the
alternative route or not. It is possible to customize the system's behaviour
for dynamic route planning.
Connections
A: ISO-connector block
B: Loudspeakers (ISO)
C1: Preamplifier Out
C2: OEM steering wheel remote control
connection via adaptor cable
C3: CD-Changer
D1: Tel.In / IR Receiver
E: Aerial Plug (ISO)
F: Fuse
G: GPS Antenna (SMB)
Options
• Digital CD MP3/WMA Changer
CHM 604 MP3
• IR Credit Card Remote Control
RC 1104
1
• IR Steering Wheel Remote
Control RCS 4000 2
• Connection to OEM Steering
Wheel Remote Controls via
Adapter Wire
• Easy Adaption to Handsfree
Kits (e.g.: CIX 3000 Blue)
1 Activation necessary
1 Requires additional IR Receiver
CA 1106 + ACP 1100/01
2Map/country dependent
3 On extra cost
