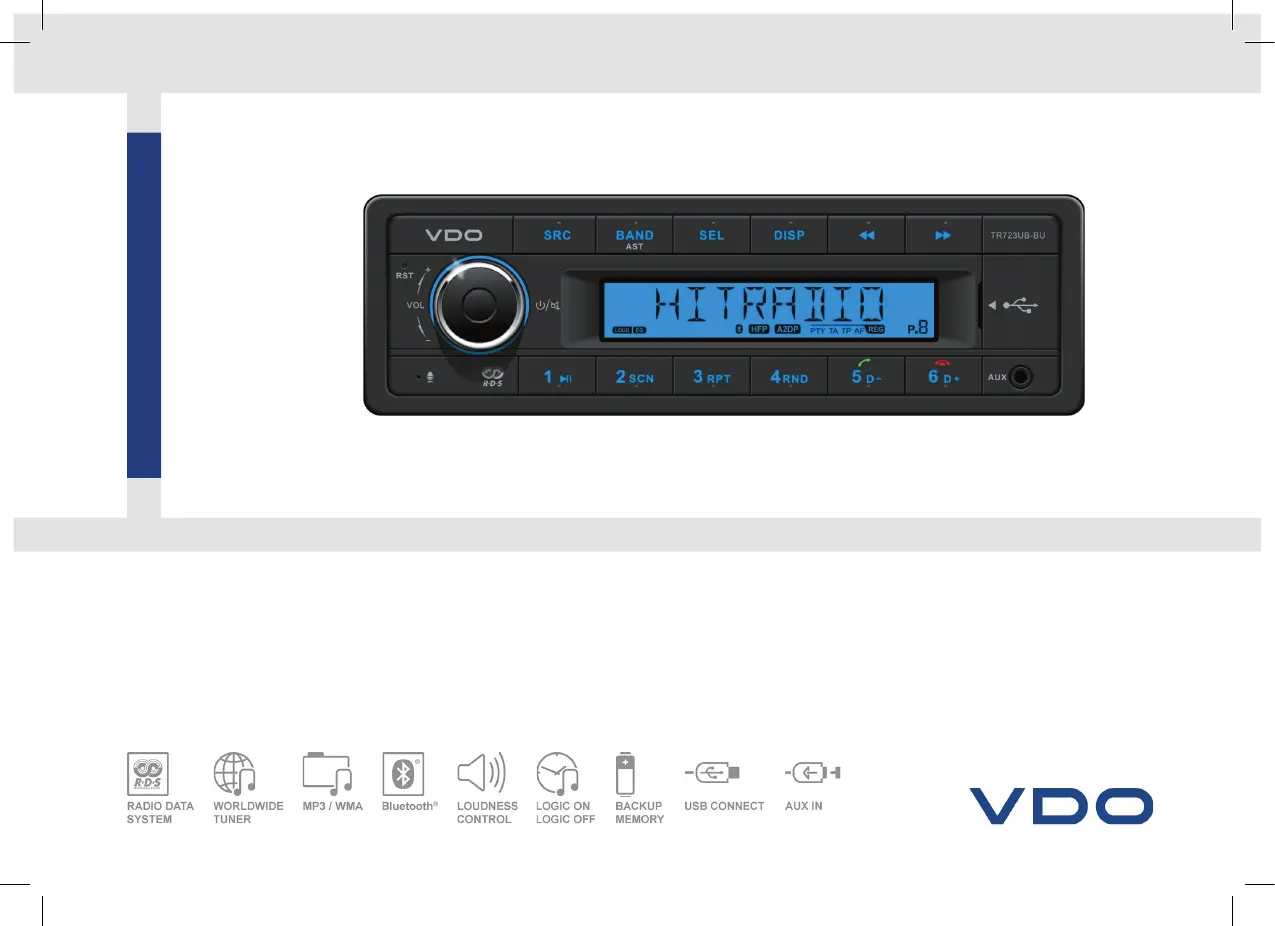

TR723UB-BU
RADIO / USB MP3 / WMA / Bluetooth® 24V
OWNER’S MANUAL
VDO_TR723UB-BU_EN.indd 1 29/04/15 12:17
2
TR723UB-BU RADIO / USB MP3 / WMA / Bluetooth
® 24V
Safety Information
nSafety Information
Thank you for purchasing this product, please
read the manual carefully before operating, and
reserve it for future reference.
iPRECAUTIONS
• Only in a 24-volt DC negative-ground
electrical system.
• Disconnect the vehicle’s negative battery
terminal while mounting and connecting the
unit.
• When replacing the fuse, be sure to use one
with an identical amperage rating.
• Using a fuse with a higher amperage rating
may cause serious damage to the unit.
• Make sure that pins or other foreign objects
do not get inside the unit, they may cause
malfunctions, or create safety hazards such
as electrical shock.
• If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating
the unit.
• Keep the volume at a level at which you can
hear outside warning sounds (horns sirens,
etc.).
iCAUTION
• DO NOT open covers and do not repair by
yourself. Ask the dealer or an experienced
technician for help.
iBEFORE OPERATION
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operation.
Note:
1 According to models with different
wiring harness to connect the
denition of the specic content,
please refer to the model label.
2 Specications and the design are
subject to change without notice due
to improvements in technology.
Specications
nSpecications
iGENERAL
Power supply: 24 V DC (18V-32V)
Maximum power output: 4 x 15 W
Suitable speaker impedance: 4 ohm
Fuse spec: 10 A
Weight: 0.9 kg
Dimensions (WxDxH): 188x131x58.5 mm

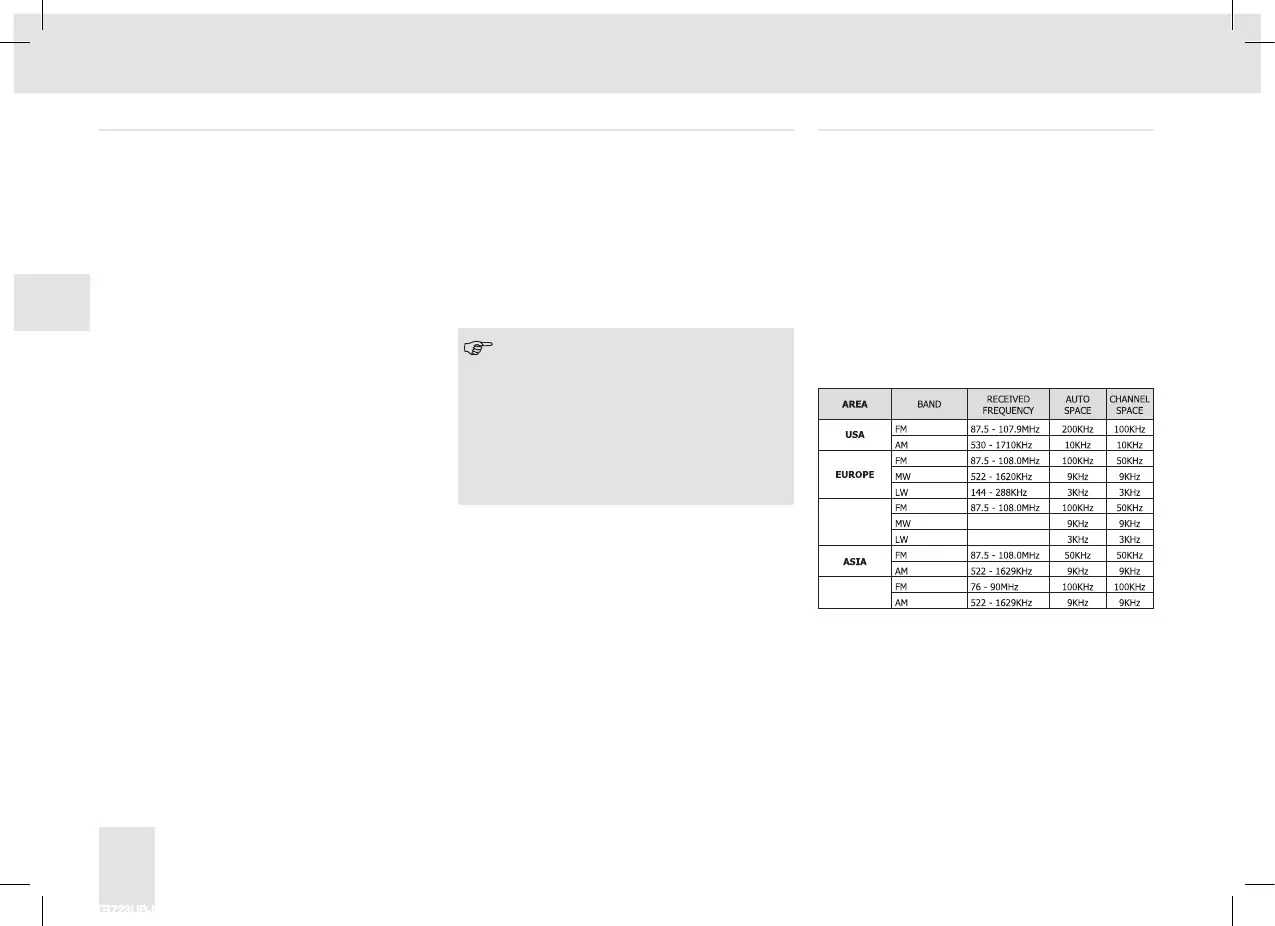

iFREQUENCY TABLE
NORTH
AFRICA
JAPAN
531- 1602KHz
153 - 252KHz
VDO_TR723UB-BU_EN.indd 2 29/04/15 12:17
3
© Continental Trading GmbH
Panel Controls
nPanel Controls

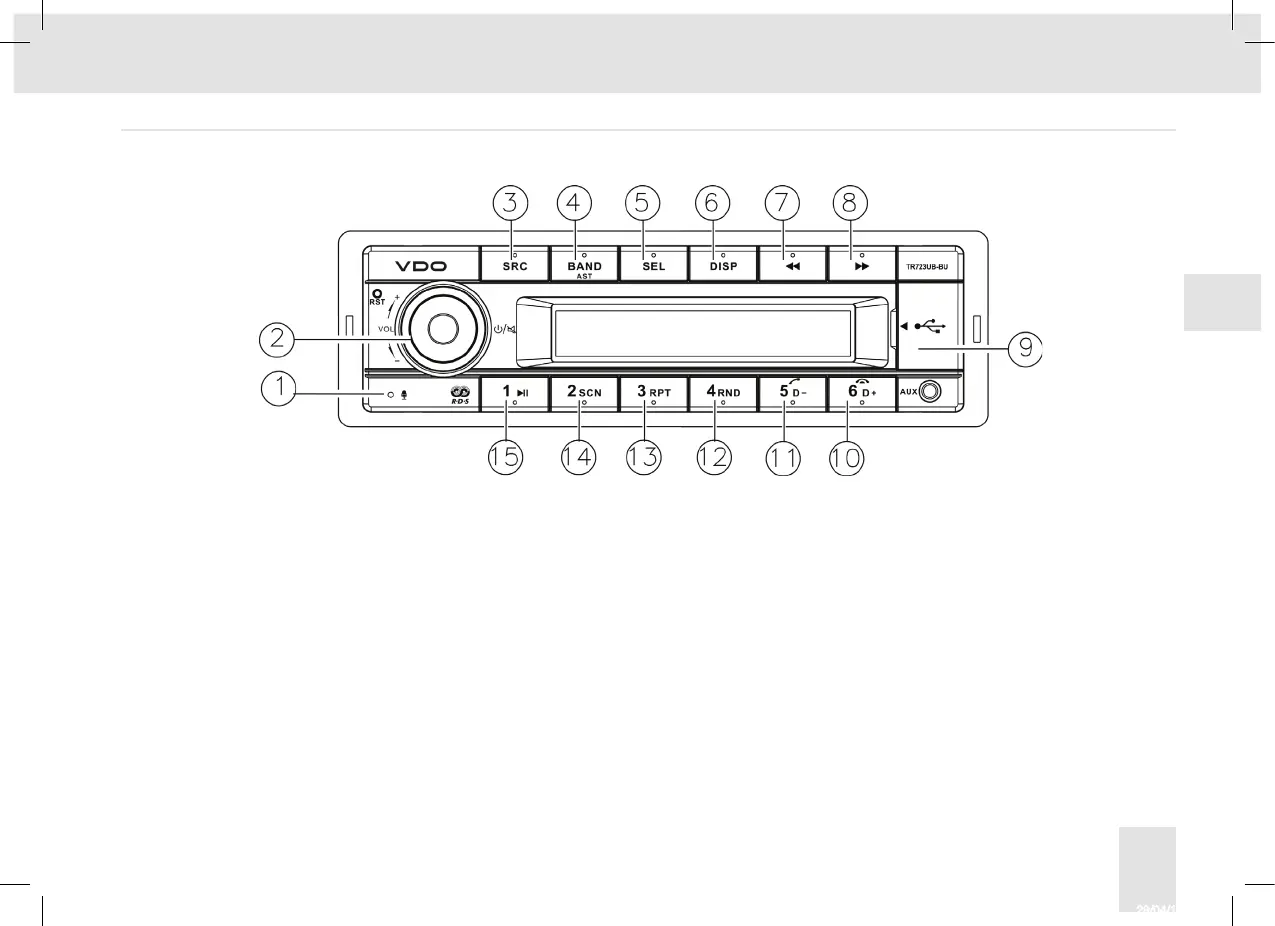

(1) Microphone
(2) Power on/off
Mute,
when on, hold it more than 2 seconds to
power off.
Rotate the VOL knob to adjust volume.
(3) Source
Radio
USB (when USB inserted)
AUX IN
A2DP
Hold it more than 2 seconds to select PTY
mode.
(4) Band switch:
FM1 -> FM2 -> FM3 -> MW1 -> MW2 -> LW
Hold it Automatically search station and store
the signal strongly station to 1-6 Preset.
(5) Press SEL and rotate VOL knob to select EQ
preset mode:
EQ OFF-POP-CLASSIC-ROCK-JAZZ
Press to enter, when selecting the PTY mode
Press SEL and rotate VOL knob to ajust the
time, when on the CLOCK mode.
(6) Display system clock
Hold it to set clock
Radio mode:
Display PTY info/system clock/current
channel
MP3 mode:
Turn and turn about folder name/le name/
ID3 TAG/Clock.
(7) Radio mode:
Auto search the station from high to low
MP3 mode:
Select the previous track
(8) Radio mode:
Auto search the station from low to high
MP3 mode:
Select the next track
(9) USB slot
(10) MP3 folder ahead/Hang up
(11) MP3 folder back/Contact mode/
Dial/Call transfer
(12) MP3 random play
(13) MP3 repeat play
(14) Program intro play (10 sec.)
(15) Play/pause
(10-15)
1-6 radio preset
Press to tune in a preset station.
Hold for more than 2 seconds to store current
station.
VDO_TR723UB-BU_EN.indd 3 29/04/15 12:17
