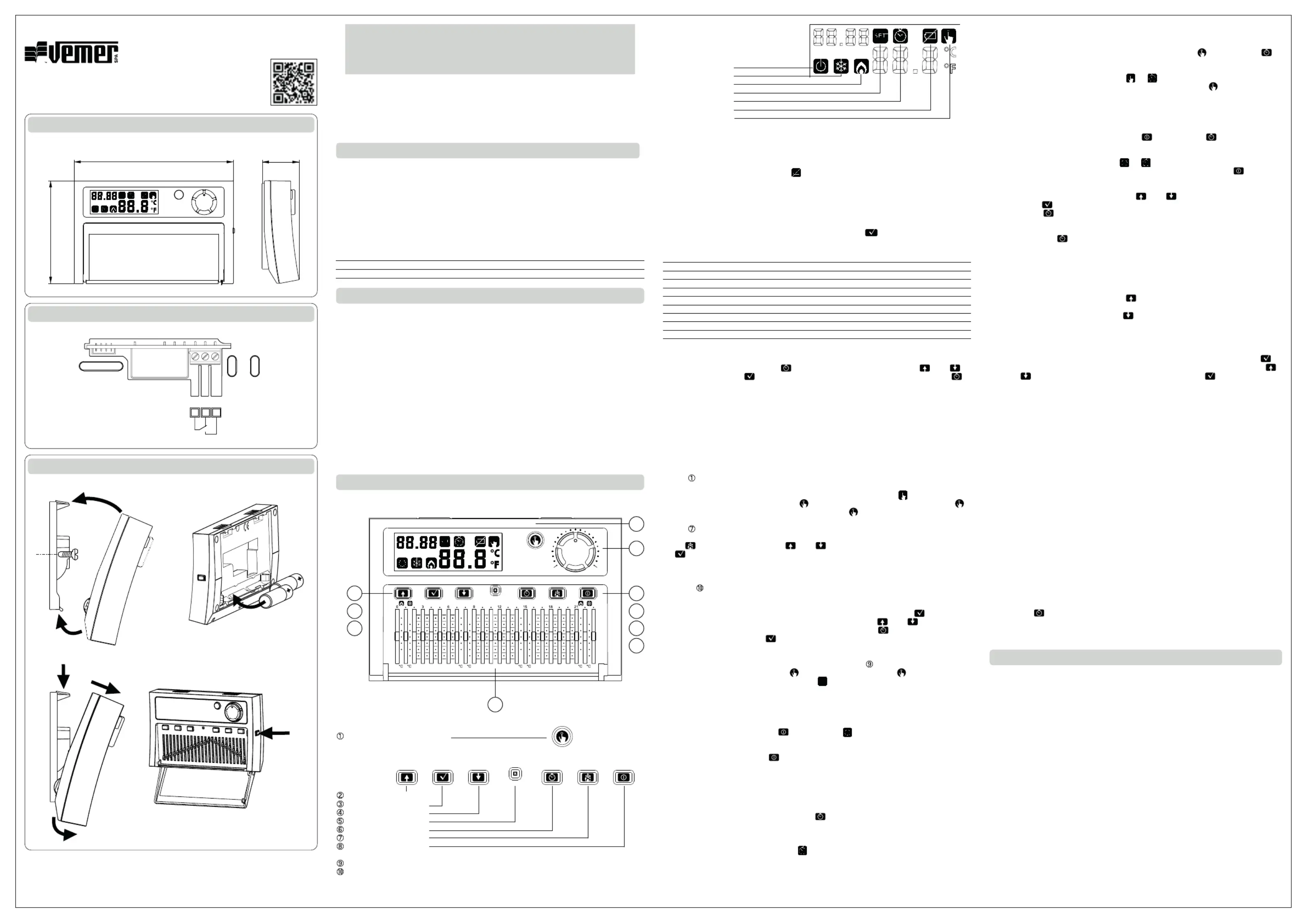

Sida 1/2

Press

Pull

Press

LCD DISPLAY

Mod. HIPNOS

V3IS00377-020-092020

Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

e-mail: info@vemer.it - web site: www.vemer.it

User Manual

DAILY CHRNOTHERMOSTAT WITH CURSORS

Read all instructions carefully

Q The wall-mounted electronic chronothermostat is an automatic control device for daily HIPNOS

thermoregulation.

It performs actions of type 1B and is suitable for environments with a pollution degree 2 and overvoltage

category III (EN60730-1).

SAFETY INSTRUCTIONS

During installation and operation of the product, it is necessary to comply with the following

instructions:

1) The instrument must be installed by a skilled person, in strict compliance with the

connection diagrams.

2) Do not power on or connect the instrument if any part of it is damaged.

3) After installation, inaccessibility to the connection terminals without appropriate tools

must be granted.

4) The instrument must be installed and activated in compliance with current electric systems

standards.

5) Before accessing the connection terminals, verify that the leads are not live.

Code Model Description

VE013900 Hipnos Wall-mounting daily chronothermostat - White

VE075800 Hipnos Grigio Wall-mounting daily chronothermostat - Grey

TECHNICAL SPECIFICATIONS

• Power supply voltage: 2x1,5V (AA) alkaline batteries

• Battery autonomy: over two years

• Battery level indication with “dead battery” sign

• Bistable switchover relay output: maximum capacity from 5A to 250V AC under resistive charge

• “Summer” and “winter” operation modes

• Temperature adjustment type: ON/OFF with differential to be adjusted from 0,1 to 1°C

• PROPORTIONAL-type temperature control, band and period to be congured

• Resolution of temperature reading: 0,1°C

• Accuracy: ±0,5°C

• °C/°F display selection

• Temperature measurement updated every 60s

• Range of measured temperature: 0°C ÷ 50°C

• Temperature control range: 2°C ÷ 36°C

• Range of timed operation: 0 ÷ 99 hours / 0 ÷ 99 days

• Operating temperature: 0°C ÷ 50°C

• Storage temperature: -10°C ÷ 65°C

• Readings on LCD display

• Protection degree: IPXXD

OPERATIONAL SPECIFICATIONS

CONTROLS

SWITCH-ON RESET AND BATTERY REPLACEMENT

• When starting the device for the rst time, place the batteries (see gure C) and reset the device using the ad

hoc key. After a few seconds, the clock setup page will be displayed (see “Clock setup”).[R]

When the batteries are about to be dead the symbol will ash: actuation is not guaranteed when the

batteries are not replaced. As soon as the new batteries are in place, the chronothermostat will resume

operation with all the previous settings, current time included. If battery replacement took longer and the

previous settings were not kept, press the reset key and set up the clock again.[R]

Warning: incorrect battery positioning may damage the device and run down the batteries.

• To restore the default parameter values, press the reset key and the [R] key within 3 seconds. the display

will read “GH)”.

Default parameters are:

parameter default

temperature control type: ON/OFF

control band 0.5°C

period 10’

antifreeze temperature 6°C

winter differential 0.3°C

summer differential 0.3°C

operation winter

measurement unit °C

CLOCK SETUP

• To access the clock setup page push the key: the eld to be modied will ash. Use keys and/or to

modify the eld, push the key to conrm and move on to the next eld. To exit clock setup push the

key again.

OPERATION

• When in normal operation mode, the thermostat periodically measures the temperature in the room HIPNOS

in which it is installed and controls temperature based on the previously set parameters. Default temperature

control is ON/OFF type, with a selectable differential.

When in winter operation it is possible to select the PROPORTIONAL control mode, which follows the control

band value as congured (the temperature span in which climate control is performed) and the value set for the

control period (duration of the control cycle).

• Key Automatic/Manual

There are two operation options: automatic (different temperatures according to the time of the day) and

manual (one temperature all through the day): when in manual operation mode the symbol is lit.

To switch from automatic to manual, push the key. To view the temperature control setting, press the

key when in manual mode. To switch back to automatic, hold the key down for at least 3 seconds.

• Key Summer/Winter

It is possible to congure relay operation to command a heating or cooling unit. To select this function, push

the key; to select operation, push the and/or key; to conrm and return to normal operation press

• Setpoint programming

When in automatic operation, climate control uses 15 temperature levels, depending on the position of the

cursors .

Temperature selection during the day uses 24 cursors; the temperature value is selected by moving the cursors

along the appropriate rails until they are in the desired position.

To view the temperature associated to the cursor corresponding to the current time, press ; at this stage

it is possible to schedule an actuation delay – with 15’ steps – using the keys and/or . To view the

temperature associated to the next cursors or change actuation delays press . To switch back to normal

operation, press conrmation key .

When in manual operation mode, climate control uses one temperature level only (with different winter and

summer levels), depending on the position of the manual setpoint knob .

To view the temperature setpoint press key . To exit the reading or change, press again.

When in the setpoint view or change page the symbol is lit.

Note: while changing setpoint, temperature control and relay actuation are discontinued.

SWITCH OFF

To disable climate control totally press and ensure that the symbol lights up. If the device is in winter

operation mode, the antifreeze function is however guaranteed according to the relevant temperature setting

(see “Advanced programming”).

To switch the device back on, press again.

TIMED OPERATION

• Timed automatic

When in automatic operation it is possible to schedule manual operation mode for a certain time span, after

which the device will go off.

To enable timed automatic operation, hold down the key for at least 3 seconds, until the delay setup page

appears; adjust the delay as explained below (see “Timer programming”).

When in timed automatic operation mode the key for at least 3 seconds, until the delay setup page appears;

adjust the delay as explained below (see “Timer programming”).

When in timed automatic operation mode the symbol is lit.

To terminate timed operation quickly, enable the manual mode or off mode.

Dimension (A)

Wiring diagram (B)

Installation (C)

145

93.5

33.5

• Timed manual operation

It is possible to schedule manual operation mode for a certain time span, after which the device will

resume automatic operation.

To enable timed manual operation, switch to manual operation (press the key), hold down the key

for at least 3 seconds, until the delay setup page appears; adjust the delay as explained below (see “Timer

programming”).

When in timed manual operation, the symbols and are lit.

To quickly terminate timed operation and return to automatic, hold down the key for at least 3

seconds.

• Timed switch-off

When in automatic operation it is possible to put climate control off for a certain programmed time span,

after which the device will resume the previous operation mode.

To enable timed switch off, switch to off mode (press ) and hold down the key for at least 3

seconds, until the delay setting page appears; then set up the delay as explained below (see “Timer

programming”).

When in timed switch-off mode the symbols and are lit.

To quickly terminate timed operation and return to the previous operation mode, press .

• Timer programming

To set a delay in hours (eld marked ), use the “ ”K and/or key when in the delay programming

page and press to conrm. To set a delay in days, when the hour page appears move to the day page

by pressing the key (the display will read instead of “ ”G“K”) and proceed as explained for the hour

delay.

During timed operation it is possible to view and change the remaining delay: go to the relevant setup

page (hold down the key for at least 3 seconds) and proceed as explained above.

Note: timings expressed in hours expire when the last hour ends; timings expressed in days run

out at midnight.

MINIMUM AND MAXIMUM TEMPERATURE

• To view the maximum daily temperature press : to set the value to zero, hold the same key down for at

least 3 seconds until three dashes appear.

To view the minimum daily temperature pres : to set the value to zero hold the same key down for at

least 3 seconds until three dashes appear.

ADVANCED PROGRAMMING

• To access the advanced programming menu, view and congure some parameters, hold down the key

for at least 3 seconds. The display will show the rst page, i.e. the temperature control type. Use the

and/or key to change the value assigned to the selected parameter. Press to conrm the change

and move on to the next parameter.

• ON-OFF/PROPORTIONAL selection

This selection is only enabled when in winter mode:

- U(* : ON-OFF temperature control (default)

- U(* 3: PROPORTIONAL temperature control

• Control band and period selection

This selection is only enabled when in PROPORTIONAL temperature control type:

- EQG: i.e. control band, varying from 0,5 to 5,0°C ( value 0,5°C)default

-3(U: i.e. control period, varying from 10’ – 20’ –30’ ( value 10’)default

• Setting up the control differential

This selection is only enabled when in ON-OFF temperature control type:

- G,): i.e. control differential, varying from 0,1 to 1°C ( value 0,3°C)default

• Antifreeze temperature selection

This selection is only enabled when in winter mode:

- )): Antifreeze temperature, varying from 1 to 10°C ( value 6°C)default

• °C/°F selection

To select the unit of measurement for the temperature reading:

- GHJ°C: degrees Celsius (default)

- GHJ°F: degrees Fahrenheit

• Operation hour count

Reads the system operation hours – a 6 digit reading - (when the relay is in ON status). To zero the hour

count press for 3 seconds

• Battery level reading:

Reads the battery charge percentage (3-digit reading).

REFERENCE STANDARDS

Compliance with Community Directives

2014/35/EU (LVD)

2014/30/EU (EMCD)

is declared with reference to the following harmonized standards:

EN 60730-2-7, EN 60730-2-9

EN 61000-6-1, EN 61000-6-3

Manual/automatic selection key

Value up (or forward) key

Conrm/program key

Value down (or back) key

Reset key [R]

Clock/timer key

Summer/Winter key

On/off key

Manual setpoint knob

Daily programming cursors

OFF symbol

Cooling symbol

Heating symbol

Setpoint symbol

Timer symbol

Battery low symbol

Manual symbol

1 2 3

5A / 250V~

NANCCOM
