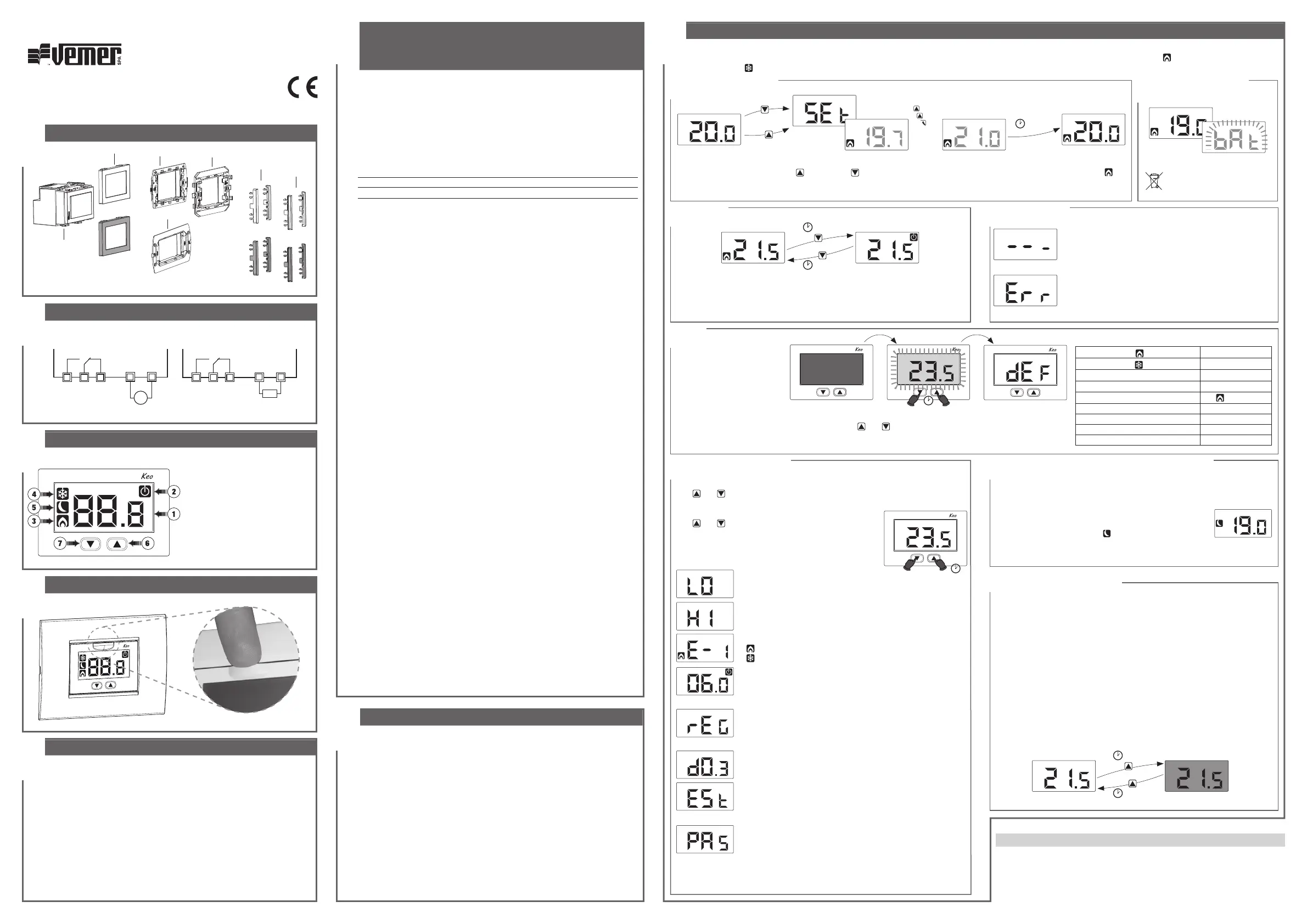

1 8 OPERATIONUser Manual

ELECTRONIC THERMOSTATS

 Read all instructions carefully

6ADJUSTABLE COVER PLATES

PACKAGE CONTENTS

3WIRING DIAGRAMS

4LEGEND

5BATTERY KEO-B LCD REMOVAL

7INSTALLATION

Advanced programming

Reset

Setpoint modification

Depleted batteries signal

(Keo-B LCD only)

Error messages

Auxiliary input configuration (for Keo-B LCD only)

Backlighting management

thermostat

frames and plastic elements are available in white and anthracite grey colours

frames

VI plastic

elements BM plastic

elements

A mount

AIR mount

B mount

COM

NA NC

N L

230V~

AUXILIARY

INPUT

Keo-A LCD Keo-B LCD

COM

NA NC

1 2 3 4 5 1 2 3 4 5

EST

Switch off

Normal operation

Note: in heating mode (winter), the device if off, it regulates according to the

antifreeze temperature Toff in order to prevent freezing of the system.

Toff can have values from 1 to 10° C or be excluded; in this case any minimum

temperature is guaranteed.

Replace the batteries as soon as

possible! Dispose of batteries

in the appropriate recycling

containers.

Occurs in case of probe failure.

In this case the regulation is inhibited and the relay contacts

remain in position 2-3.

Occurs for the following values of measured temperature:

t < 0°C

t > 50°C (t > 60°C with external probe)

Reset to delete the settings you

made and reload the default

values. To reset:

1 remove and restore power

to the device (Keo-A LCD) or

remove it from the base and

re-insert it (Keo-B LCD).

2 during the flashing of the backlighting press the keys and until will appearDEf .

The removal of the device occurs pulling on the convexity of the frame (box 5).

Modification of the desired temperature (setpoint),

to increase to decrease

Normal operation

heating on ( )

3 sec.

19.8

19.9

...

Default values

Heating setpoint 21°C

Cooling setpoint 25°C

Minimum settable setpoint - L0 2°C

Maximum settable setpoint - Xi 35°C

Operating mode (heating)

Antifreeze temperature 6°C

Regulation type On /Off

Auxiliary input DIG

Password - - - (desabled)

3 sec.

Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

Tel +39 0439 80638 • Fax +39 0439 80619

e-mail: info@vemer.it - web site: www.vemer.it

MKIS00744-022 EN Mod. KEO-A LCD

KEO-B LCD

Flush-mounting electronic thermostats for temperature control both in heating

and cooling. They perform actions of type 1B and are intended for operating in

environments with Pollution Degree 2 and Overvoltage Category III (EN60730-1).

• , with battery power supply and configurable auxiliary input for Keo-B LCD

the connection of a temperature probe or an external contact with whom to

reduce the setpoint of 3°C.

• Keo-A LCD with mains power supply.

Code Model Description

VE267100 Keo-B LCD Battery thermostat with auxiliary input

VE558300 Keo-A LCD 230V Thermostat

SAFETY WARNINGS

During product installation and operation it is necessary to observe the

following instructions:

1) 1) The device must be installed by a qualified person, in strict compliance with

the connection diagrams.

2) Do not power or connect the device if any part of it is damaged.

3) After installation, inaccessibility to the connection terminals without appropriate

tools must be guaranteed.

4) The device must be installed and activated in compliance with current electric

systems standards.

5) Before accessing the connection terminals, verify that the leads are not live.

6) In the electrical system of the building where the

device

must be installed, a

protection device from the overcurrents must be present (for KEO-A LCD only).

TECHNICAL SPECIFICATIONS

• Power supply Keo-B LCD: – 2 alkaline batteries 1.5V (AAA type)

– battery life: 12 months

– depleted batteries indication

• Power supply Keo-A LCD: – 230Vac (-15% ÷ +10%) 50/60Hz

– max absorption: 6 VA / 230Vac

• Installation on 3 modules box (503 type)

• Terminals Keo-B LCD:

– 3 terminals for 1.5 mm2 cables for output relay 5A / 250 Vac

– 2 terminals for 1.5 mm2 cables for digital input (3°C setpoint reduction)

• Terminals Keo-A LCD:

– 3 terminals for 1.5 mm2 cables for bistable output relay 5A / 250 Vac

– 2 terminals for 1.5 mm2 cables for power supply

• Operating mode: summer/winter/off (with antifreeze)

• Password protected lock keypad

• Regulation type:

– on/off with settable differential (0.1 ÷ 1°C)

– P8 proportional with 0.8°C band (-0.3 ÷ +0.5°C) and period 8 minutes

– P15 proportional with 1.5°C band (-0.7 ÷ +0.8°C) and period 15 minutes

• Measurement precision: ± 0.5 °C

• Measurement temperature resolution: 0.1 °C

• Setpoint range: 2°C ÷ +35°C

• Operating temperature: 0 °C ÷ +50 °C

• Storage temperature: -10 °C ÷ +65 °C

• Operating humidity: 20÷90% non condensing

• Protection degree: IP40

• Insulation: reinforced among accessible parts (frontal) and all other terminals

During the standard operation the thermostat displays the detected temperature value and the relay status is identified by the symbol (heating mode)

or the symbol (cooling mode).

Minimum settable setpoint - L0

It’s the minimum value settable as setpoint.

Settable values: 2 ÷ 35°C

Maximum settable setpoint - KI

It’s the maximum value settable as setpoint.

Settable values: ÷ 35°CL0

Operating mode - E-I

if connected to the boiler (heating)

if connected to a cooling system

Antifreeze temperature - Toff - (only in heating)

Minimum temperature maintained with device off

(see box «Switch off»).

Settable values: 1 ÷ 10 °C or --- (excluded function)

Regulation type - REG - (only in heating)

0 = on/off with settable differential

P8 = proportional with band 0.8°C and period 8 minutes

P15 = proportional with band 1.5°C and period 15 minutes

Differential - d0.3 - (only for on/off regulation)

Differential (or hysteresis) for temperature regulation.

Settable values: 0.1 ÷ 1°C

Input configuration - Est - (only for Keo-B LCD)

- for the connection of a temperature probe^_[

- DIG for the connection of an externa contact to reduce the

setpoint (see box “Auxiliary input cnfiguration”)

Password for keypad lock - PAS

Set a value between 001 and 999 to activate the keypad lock.

Set to disable the lock.“ ”---

If the keypad lock is active, pressing one key appearsLoC

and the password is required. If it’s properly inserted the

keyboard is unlocked for the next 30 seconds.

To enter menu Advanced programming keep simultaneously pressed for 3 seconds the

keys and until will appear. PR

The items of the menu are displayed in succession. For each item is displayed an identi-

fication abbreviation and its relative blinking value. Use the

keys and to modify the value. The passage to the

next parameter occurs after 3 seconds without pressing

any key. Once all parameters are set the writing is END

displayed and the thermostat returns to normal operation

saving the effected modifications.

 “Environment temperature” field

 “Off” field

 “Heating activation” field

 “Cooling activation” field

 “Active night reduction” field

 Key “▲” increases the

selected field

 Key “▼” decreases the

selected field

The adapters inside the box allow the monitoring of the following cover

plates:

For information about the possibility to adapt the thermostat with different

cover plates from those listed, contact the Technical Service.

* through mount that you can buy on request (code VE767500)

• All the above trademarks are the property of their respective owners.

ABB Chiara series

ABB Mylos series

Ave S44 series

Bticino Axolute series

Bticino Axolute Air

Bticino Light series

Bticino Light tech series

Bticino Living series

Bticino Livinglight series

Bticino Livinglight Air series

Bticino Matix series

Gewiss Chorus series

Vimar Eikon series

Vimar Eikon Evo series

Vimar Idea series

Vimar Plana series

Vimar Arké series

• Install the thermostat at a height of about 1.5 m above the floor, away from

direct sunlight, away from doors, windows, heat sources, locations with

excess or total lack of ventilation.

• Install the white or anthracite grey frame according to your preferences by

hooking it to the cogs of the device.

• Make the connections by respecting the diagrams described in this manual.

• Fix the device inside the 3 modules box in compliance with the assembly

diagrams described on the back of this instruction sheet. The accessories

for the installation included in the package allow the mounting of the plates

described in the diagram “adjustable plates” and they are:

- mount A

- mount B (it could be necessary to remove the side cogs)

- mount AIR

- couple of side BM plastic elements (both of white colour and grey colour)

- couple of side VI plastic elements (both of white colour and grey colour)

- frames of white colour and anthracite grey.

The Keo-B LCD has a configurable auxiliary input for the connection to

alternative to:

- an external temperature probe

- an external contact for reducing the set temperature.

With closed contact, the setpoint is reduced by 3 °C

than the set one and the symbol appears on the display.

To configure the auxiliary input, see “Advanced programming” in this manual.

• Keo-B LCD

The keo-B LCD has a backlighting of blue colour that is normally off and turns

on when you enter the menu: setpoint modification, advanced programming,

pin enter.

• Keo-A LCD

The Keo-A-LCD has a backlighting of blue colour which is on during normal

operation.

If the installation makes it necessary (for example bedrooms) you can turn off

the backlighting. In this condition the thermostat continues to operate normally

and the backlighting turns on when you enter setpoint modification menus,

advanced programming, pin enter.

06-2017

REFERENCE STANDARDS

Compliance with Community Directives

2014/35/EU (LVD)

2014/30/EU (EMCD)

is declared with reference to the following harmonized standards:

• CEI EN 60730-2-9

3 sec

3 sec.

3 sec

9 10

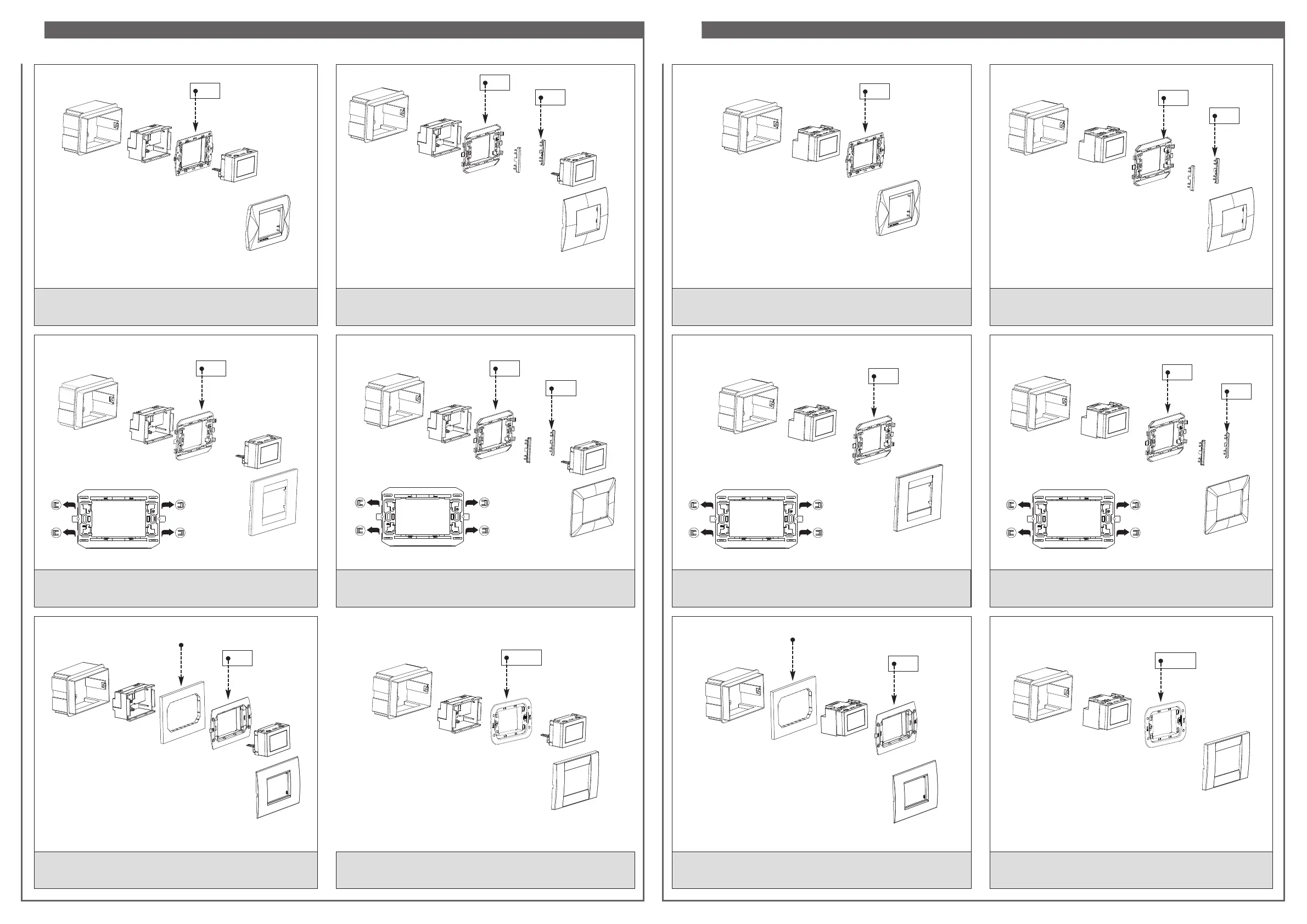

KEO-B LCD BATTERY MOUNTING KEO-A LCD MOUNTING

Bticino Living, Light, Light Tech, Livinglight, Axolute series

Vimar Eikon, Eikon Evo, Plana series

Ave S44 series – ABB Mylos series

Gewiss Chorus series Bticino Matix series

Remove the cogs Remove the cogs

Bticino Matix seriesGewiss Chorus series

Bticino Living, Light, Light Tech, Livinglight, Axolute series

Vimar Eikon, Eikon Evo, Plana series

Ave S44 series – ABB Mylos series

Remove the cogs Remove the cogs

ABB Chiara series

Vimar Arké, Idea series

ABB Chiara series

Vimar Arké, Idea series

*Note: only for installing the Vimar Idea series

cover plate, use the side plastic elements VI.

*Note: only for installing the Vimar Idea series

cover plate, use the side plastic elements VI.

Bticino Livinglight AIR series

* Note: If the box extension is not present (adapter

which increases the depth of the in-built box)

we recommend using the frame for installation

Livinglight AIR.

AIR

Bticino Livinglight AIR series

* Note: If the box extension is not present (adapter

which increases the depth of the in-built box)

we recommend using the frame for installation

Livinglight AIR.

AIR

Bticino Axolute AIR series

AXO AIR mount not included in the package.

AXO AIR

Bticino Axolute AIR series

AXO AIR mount not included in the package.

AXO AIR

Produktspecifikationer

Varumärke:	Vemer
Kategori:	Termostat
Modell:	Keo-B LCD

Behöver du hjälp?

Om du behöver hjälp med Vemer Keo-B LCD ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Termostat Vemer Manualer

Vemer Keo-B LCD Bruksanvisning

27 September 2024

Vemer Chronos Key Bruksanvisning

17 September 2024

Vemer TAMB cap Bruksanvisning

17 September 2024

Vemer Asso Wi-Fi Bruksanvisning

25 Augusti 2024

Vemer Hipnos Bruksanvisning

16 Augusti 2024

Vemer Olympo Bruksanvisning

3 Augusti 2024

Vemer Mix Bruksanvisning

3 Augusti 2024

Vemer Klima 3 Bruksanvisning

2 Augusti 2024

Vemer Celo LCD Bruksanvisning

29 Juli 2024

Vemer Olympo LCD Bruksanvisning

26 Juli 2024

Termostat Manualer

Nyaste Termostat Manualer

Danfoss ORT-10 Bruksanvisning

27 Oktober 2024

Hunter 44279 Bruksanvisning

27 Oktober 2024

Heatmiser PRT-ETS Bruksanvisning

26 Oktober 2024

Heatmiser PRT-W Bruksanvisning

26 Oktober 2024

Heatmiser PRTHW Bruksanvisning

26 Oktober 2024

Heatmiser PRT-EWTS Bruksanvisning

26 Oktober 2024

Heatmiser DT-N Bruksanvisning

26 Oktober 2024

Heatmiser DT-EW Bruksanvisning

26 Oktober 2024

Heatmiser PRTHW-WTS Bruksanvisning

26 Oktober 2024

Heatmiser PRT-RPTS Bruksanvisning

26 Oktober 2024
