Sida 1/44

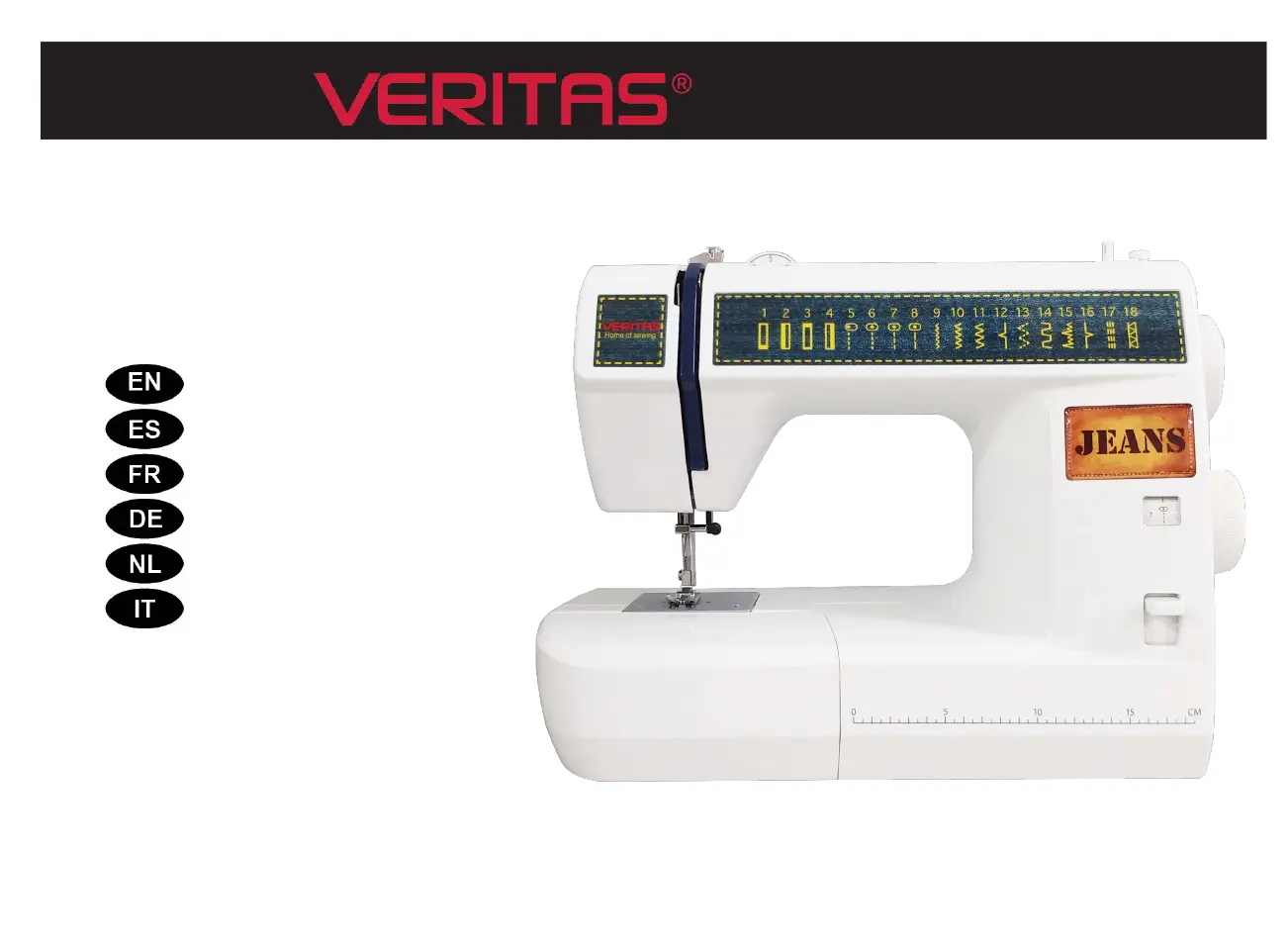

jsa18

Instruction manual

Guia del Usario

Guide de L'utilisateur

Gebrauchsanleitung

Manuale di Instruzioni

Gebruiksaanwijzing

English

UK ONLY IMPORTANT PLEASE READ CAREFULLY

The wires in this mains lead are coloured in accordance with the following code:

BLUE-NEUTRAL BROWN-LIVE (OR ACTIVE)

As the colours of the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug

— PROCEED AS FOLLOWS: The earth plug pin is unnecessary. As the Machine is designed under double insulation structure, the

earth wire is removed from the machine. The wire coloured BROWN must be connected to the terminal marked L or A or coloured RED.

The wire coloured BLUE must be connected to the terminal marked N or coloured BLACK. Neither core is to be connected to the earth

terminal of a three-pin plug.

IMPOR ANT SAFETY INSTRUCTIONST

When using an electrical appliance, basic safety precautions should always be followed, including the following:

Read all instructions before using (this appliance). DANGER – To reduce the risk of electric shock:

An appliance should never be left unattended when plugged in. Always unplug this appliance from the electric outlet immediately after using and

before cleaning.

WARNING o reduce the risk of burns, fire, electric shock, or injury to persons:– T

1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or near children.

2. Use this appliance only for its intended use as described in this manual. Use only attachments recommended by the manufactur-er as contained

in this manual.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into

water. Return the appliance to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.

4. Never operate the appliance with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the

accumulation of lint, dust, and loose cloth.

5. Never drop or insert any object into any opening.

6. Do not use outdoors.

7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

8. To disconnect, turn all controls to the off ( ) position, then remove plug from outlet.“ ”O

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved.

11. The machine must only be used with designated foot controller, in order to avoid a hazard. If the foot controller is damaged or broken, it must be

replaced by the manufacturer or its service agent or a similarly qualified person.

12. The LED lamp maximum power is 0.3W, maximum voltage is DC 5V. If the LED light is damaged, you should not use the product and send it to

the manufacture or service agent to repair or replace at once.

13. Keep the instructions at a suitable place close to the machine and hand it over if you give the machine to a third party.

14. Caution - to avoid injury:

a. Unplug the foot controller of the appliance when leaving it unattended.

b. Unplug the foot controller of the appliance before carrying out any maintenance.

DANGER

1. Do not reach for an appliance that has fallen into water. Unplug immediately.

2. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place or drop into water or other liquid.
