Sida 1/18

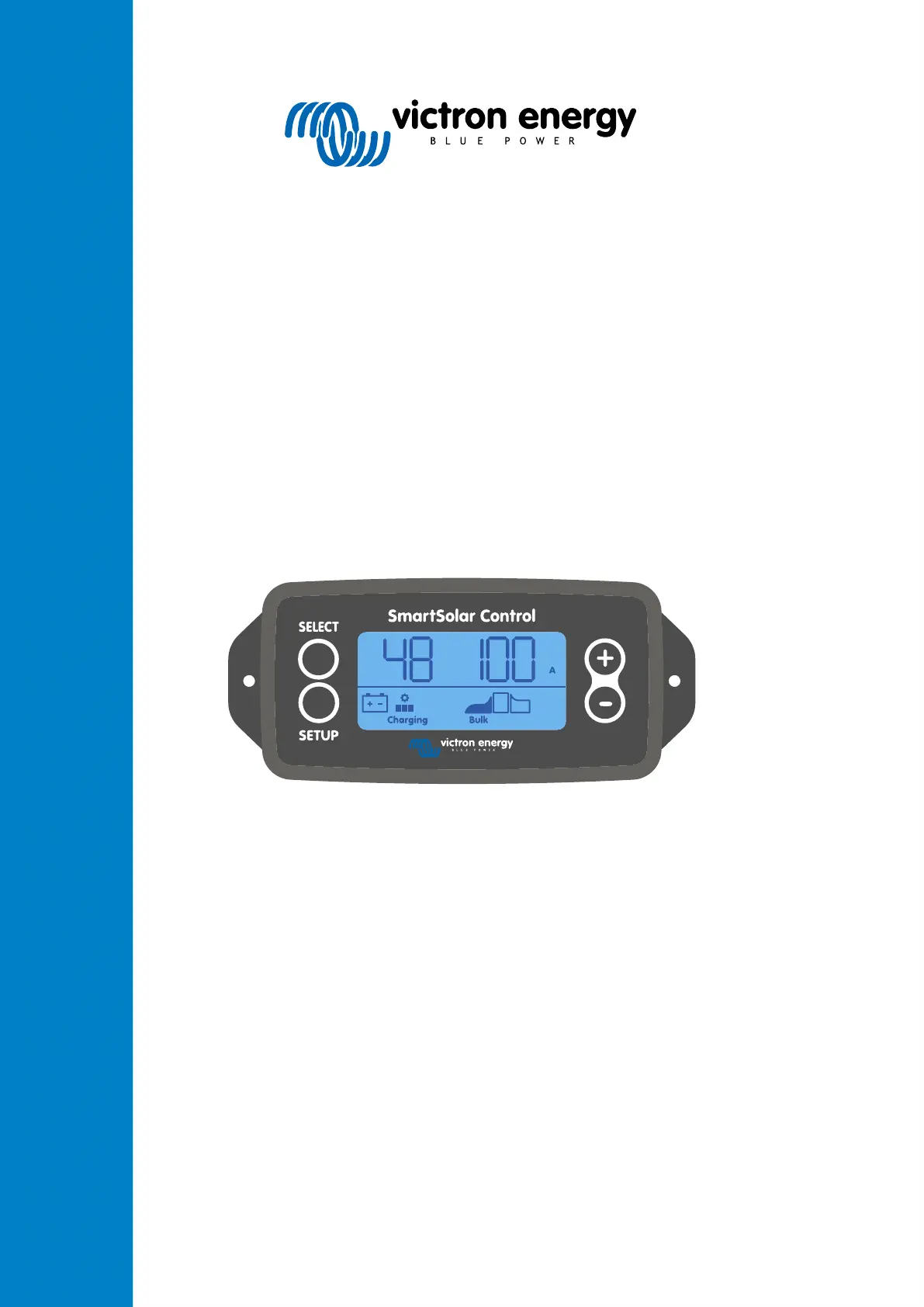

SmartSolar Control display
manual
Rev 00 02/2021
This manual is also available in HTML5
ENGLISH
Table of Contents
1. Introduction ....... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... 1
2. Installation ... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .. 2
3. Operation . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . . 3
3.1. Status menu .. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... 4
3.2. History menu .. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ... 5
3.3. Setup menu .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .. 7
4. Troubleshooting and Support 12.. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .
4.1. The display does not power up 12.. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ....
4.2. The display segments are faint or missing 12.. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ...
4.3. Display keeps scrolling through different menu items 12.. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ...
4.4. Settings locked 12.. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ..
5. Warranty 13.. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ...
6. Specifications 14.. .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .
SmartSolar Control display manual
1. Introduction
The SmartSolar Control display is a dedicated display for the following MPPT solar charger ranges:
SmartSolar MPPT 150/45 up to 250/100
SmartSolar MPPT 150/70 up to 250/100 VE.Can
BlueSolar MPPT 150/70 up to 250/100 VE.Can
These solar chargers can also be recognised by a small plastic cover on the front face with the text "display option".
Example of a solar charger without display and with display
The display plugs directly into the front face of the solar charger. It can act as both a permanent or a temporary display. Simply
remove the plastic cover that protects the display terminal on the front of the controller and then plug in the display.
The display can be used to monitor the solar charger and to view both live and historic data. The display can also be used to
configure solar charger settings.
Examples of live and historic monitoring:
PV power, yield, voltage and current.
Battery voltage, current and charge stage.
Load output state and current (only available if the solar charger is equipped with a load output).
30-day historical values.
Cumulative historic values over the live of the solar charger.
SmartSolar Control display manual
Page 1 Introduction
