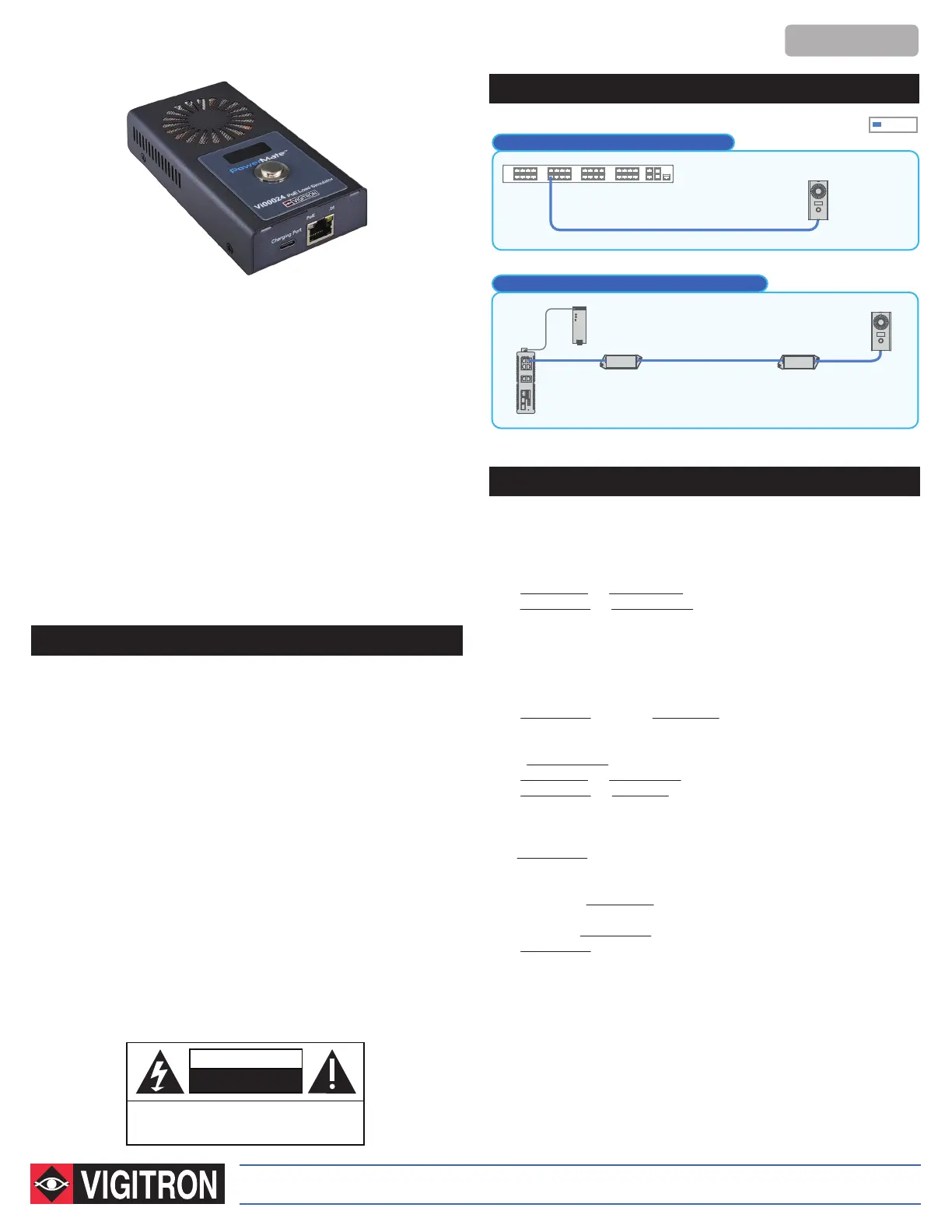

PoE Maximum Load Meter w/ Voltage & Power Monitor User Manual
Application Drawing
Important Safety Warning
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The Vi00024 Setup
The Smart Choice for Transmission Solutions www.vigitron.com
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Use in accordance with the manufacturer’s instructions.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75°C.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The network cable is used as the disconnect device and shall remain
readily operable.
Vi00024_UM
Vigitron’s patent pending Vi00024 is an innovative test tool that installation
reliability by measuring PoE capacity at any point of a networks before
installing a camera. The Vi00024 simulates PoE devices and measures the
maximum PoE capacity received from the PoE source over the network. It is
compliant with IEEE 802.3af/at/bt standard up to 74W.
The Vi00024 operates in both Manual and Auto mode. In manual mode the
user can manually increase the PoE consumption of the Vi00024 until it
reaches the maximum available PoE. In the auto mode, the Vi00024 with
the push one bottom can measure maximum available PoE in a few
seconds.
The Vi00024 includes a rechargeable battery that can be charged via a
USB type C connector using any standard USB charger. It is very low power
and with a full charge can operate for several days.
The Vi00024’s compact and light weight construction makes is easy to carry
and use. It is easy to use and helps to speed up installations and prevent
service calls by locating and helping to solve PoE problems.
The Vi00024 can measure Maximum available PoE up to 74W over standard networks.
The Vi00024 can measure Maximum available PoE up to 74W over Extended UTP networks.
Cat 5/6
PoE
328 ft. (100m)
PoE
328 ft. (100m)
PoE
328 ft. (100m)
Vi30208
56VDCVi10240
Measuring Maximum PoE over an Extended UTP network
Measuring Maximum PoE over a standard network
PoE Switch
Vi00024
Vi2301A Vi2301A
Vi00024
PoE
Extended UTP
Power
Mate
TM
Turning On
• Hold down the Button to Turn ON the Vi00024 and view “ Menu” Selection
on the display .
• In Selection Menu:
• Press Once for .AUTO Mode
• Press Twice for Manual Mode
Auto Mode
After selecting Auto Mode the Vi00024 will turn on a PoE Load and
increase the load gradually until the PoE source shuts down due to
exceeding its maximum load capacity. Then the Vi00024 will display the
maximum PoE level.
• Press Twice to exit the .Auto Mode
Manual Mode
In the select the load increase mode:Manual Mode
• Press Once for Class Mode
• Press Twice for 5W Mode
Class Mode
In this mode select the desired PoE Class.
• Press Twice to exit Manual/Class Mode.
5W Mode
In This mode Press Once each time to increase the PoE load by 5W up
to 74W.
• If time out, Press Once to resume operation.
• Press Twice to exit Manual/5W Mode.
Turning Off
• Hold down the Button for 3 Second to turn off the Vi00024.
• If the Vi00024 is left idle for 1 minute, it will shut down
unit time out
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products excluding batteries (“Product”), if
used in accordance with these instructions, will be free of defects in material and
workmanship for lifetime defined as the duration period of time until product end of
life is announcement. After which Vigitron will continue to provide warranty services
for a period of 3 years. Period covering valid warranty will be determined by proof of
purchase in the form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any
circumstances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
Please contact Vigitron to learn about Limited Warranty for
Rechargeable Batteries.
Technical Specifications*
Ordering Information
Status LEDs
© Copyright 2021 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
LED Name Color Status Function
OFF
ON
OFF No .bt level PoE
ON .bt level PoE
No PoE
PoE Active
GREEN
ORANGE
Part No. Description
Vi00024
Maximum PoE Load Meter w/ Voltage and Power Monitor
Electrical
Connectors PoE: RJ-45
USB: USB Type C, for charging internal battery
PoE Standards IEEE 802.3af/at/bt and most non-standard PoE
sources up to 74W
LED Indications PoE Connection: Green
BT: Yellow
Input PoE Voltage Range: 37-57VDC
Power: Maximum 74W
Control Input Push Button
Operation Mode Auto/Manual
Display 128x32 monochrome OLED
Displayed Info PoE Voltage,
Maximum PoE Power
Internal Battery status
Battery 3.7V, 350mAh
Regulatory
Safety CE
Environmental Rohs, WEEE
Environmental
Humidity 0-95% non condensing
Operating Temperature -20°C to +45°C
Storage Temperature -20°C to +45°C
Mechanical
Dimensions 1.1 x 2.69 x 5.3in., 2.8 x 6.83 x 13.5 cm (HxWxL)
Weight 0.63 lb, 286 g
Housing Sheet metal
USB Battery Charger
Output 5VDC, 1A Max.
Charge time 5 Hours with standard chargers
Input Voltage 120/220VAC
Connectors USB type C
Accessories
4 feet RJ45 Ethernet cable
USB Battery Charger (UK, US, EU & AU plugs)
Two-feet USB-Type C cable
Carrying Case
Warning
The Vi00024 can be warm during operation. Over temperature will result in device
shut down.
*Specifications subject to change without notice.
802.3bt Level PoE
