Sida 1/12
black

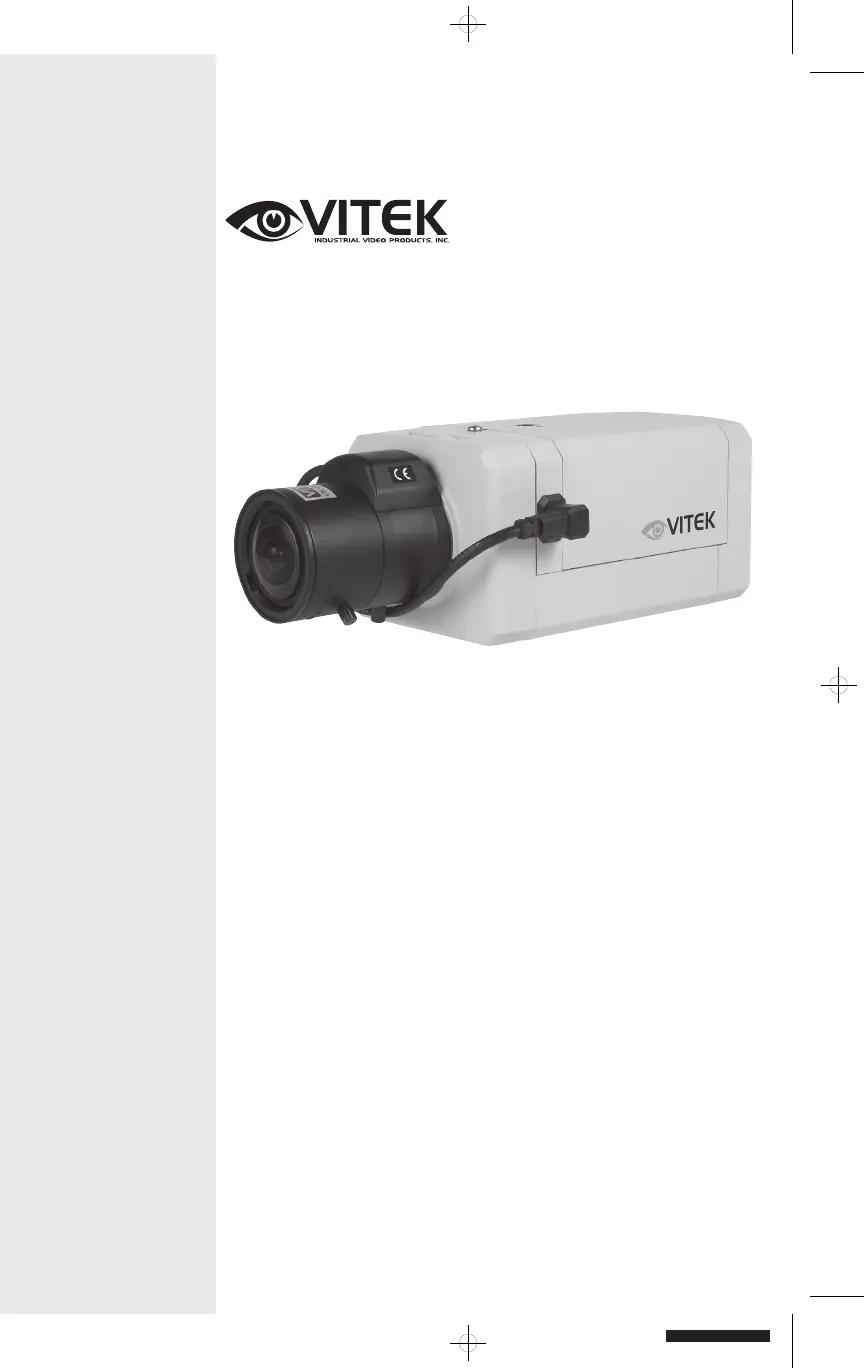

VITEK
VTC-C680
VTC-C750
VTC-C680/DN
VTC-C750/DN
1/3” Color Camera Series
• 1/3” Super HAD CCD With 550 TVL (VTC-C750 / VTC-
C750DN) & 480 TVL (VTC-C680 / VTC-C680DN)
• Minimum Illumination 0.02 Lux (F1.2) (VTC-C680DN / VTC-
C750DN) & 0.2 Lux (F1.2) (VTC-C680 / VTC-C750)
• Accepts DC Servo Type Auto Iris Lenses
• 2000-8000 Degree K Automatic White Balance Tracking
• Max 1/100,000 Sec. Electronic Shutter
• Better Than 48dB S/N Ratio (VTC-C680 / VTC-C750) &
50dB (VTC-C680DN / VTC-C750DN)
• 12VDC / 24VAC Dual Voltage Operation
2
1. Unit contains uninsulated dangerous
voltage within the enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to
persons
2. Only use DC Power Supply
3. Read & Keep these instructions.
4. Heed to all warnings and follow all
instructions carefully.
5. Do not use near water.
6. Clean only with dry cloth.
7. Do not block any ventilation
openings. install in accordance with
the instructions.
8. Do not install near any heat source
such as radiators, heat resisters,
stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has to blades with
one wider the other. A grounding
type plug has to blades and a third
grounding plug. The wide blade
or the third prong are provided for
safety. if the provided plug dose not
fit into your into your outlet, consult
an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being
walked on a pinched particularly at
plugs, convenience receptacle, and
the point where they exit from the
apparatus.
11. Only use attachment/accessories
specified by VITEK.
12. Use only with cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the Unit,
13. Unplug this unit during lightning
storms or when unused for long
periods of time.
14. Refer all servicing to qualified service
personnel, Servicing is required
when the unit has been damaged in
any way, such as power-supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
unit, the unit has been exposed to
rain or moisture, does not operate
normally or has been dropped.
15. Do not attempt to service this
product yourself as opening or
removing covers may expose you to
dangerous voltage or other hazards.
Refer all servicing to qualified service
personal.
CAUTION - To reduce the risk of electric
shock, do not perform any servicing
other than contained in these operating
instructions unless you are qualified to
do so.
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
black
3
CONTENTS
SAFETY INSTRUCTIONS & NOTES
Safety Instructions & Notes .................................................................................. 3
Cleaning ............................................................................................................... 3
Introduction / Features ......................................................................................... 4
Package Contents ................................................................................................ 5
Camera Layout ..................................................................................................... 5
Rear Camera Layout ............................................................................................ 6
External Controls ...............................................................................................7-9
Power Supply Connections .................................................................................. 9
Specifications ................................................................................................10-11
Warranty ............................................................................................................. 12
• Please read these safety and operating instructions before putting the camera into
operation.
• Keep the operating instructions in a safe place for later use.
• The Standard Box Camera is designed for indoor use only and it must not be installed
where exposed to rain and moisture.
• The unit may only be opened by authorized personnel.
• Do not operate the cameras beyond their specified temperature, humidity or power
ratings.
• Pay attention when laying the connection cable and observe that the cable is not
subject to heavy loads, kinks, or damage and no moisture can get in.
• Power MUST be removed during installation.
• Do not attempt to disassemble the camera board from the camera.
• The warranty becomes void if repairs are undertaken by unauthorized persons.
• Contact the supplier if any functional problems arise.
CLEANING
• Do not use strong or abrasive detergents when cleaning this product.
• Use a dry cloth to clean the camera surface. In case the dirt is hard to remove, use a
mild detergent and wipe gently.
