Revison History:
Rev. 1.0: Initial release

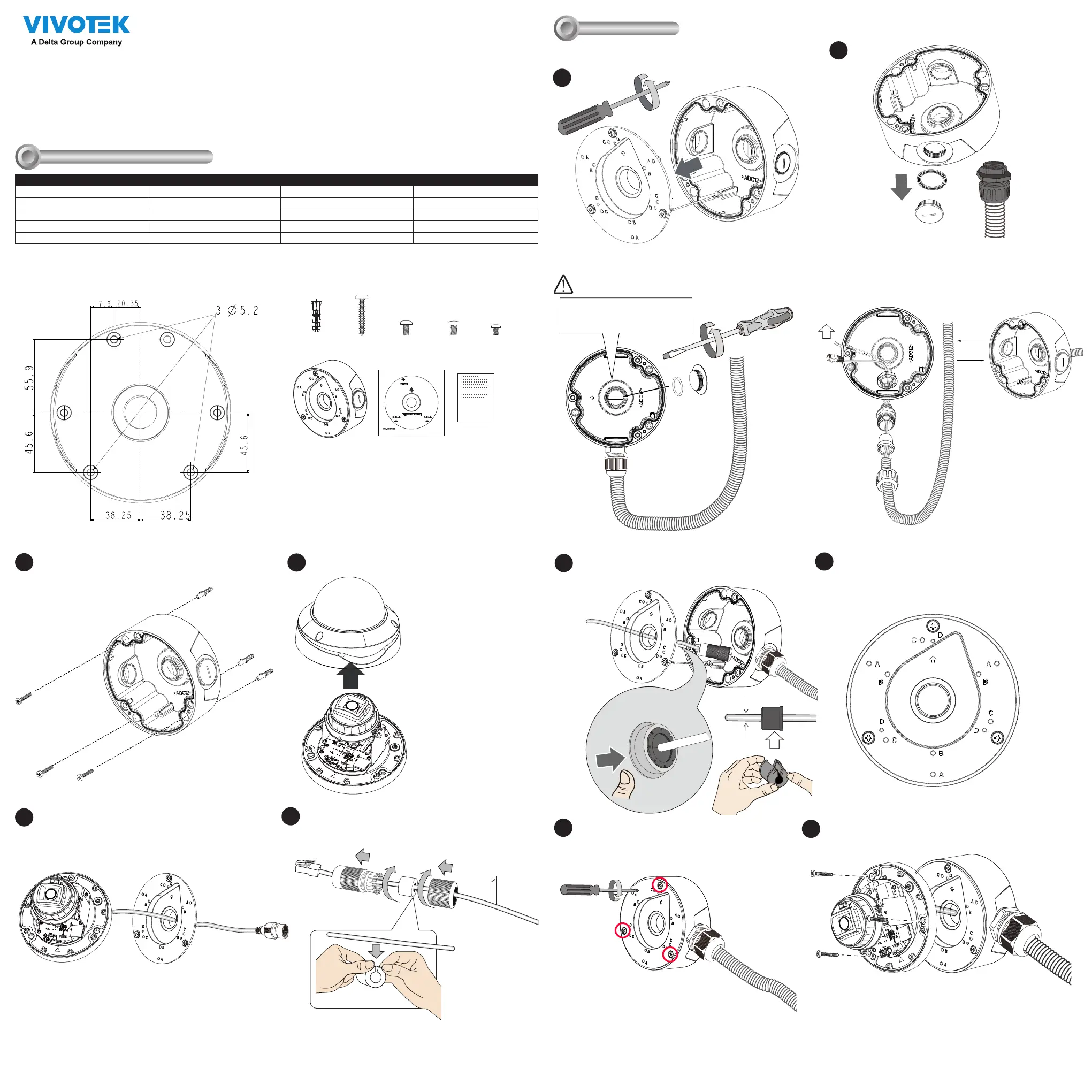

VIVOTEK Mounting Accessories
AM-71B_V02 Conduit Box
Installation Guide
Mounting Dimensions
Installation
II
Compatible VIVOTEK CamerasI
A 3/4" conduit is required for routing the cables with waterproof
connection.
Remove the top cover.
Install the cable gland and pass cables through it.
Loosen and remove the camera top cover. (Using one of
the supported cameras as an example)
Pass the camera's Ethernet cable through the center hole of
the box and the rubber seal.
1
2
4
56
78
Install the camera using the corresponding mounting holes.
Part no.: 5019042700
Accessory Ordering part no.: VIO100220401
Package Contents
A: FD9389 series, FD9368-HTV, FD9388-HTV
B: IT9388-HT
C: FD9360-H, FD9380-H
D: IT9389-H-V2
5.5 ~ 6.4mm
5 ~ 6.3mm
Make sure the rubber seal is properly installed to the center
hole. The outer rim of the seal must be through and cover the
edge of the hole.
10
Install the waterproof components of the cable gland to your
Ethernet cable following the QIG of your camera. The cable
gland will be placed within the protection of the box.
If using the bottom hole,
seal the center hole.
OR
3/4”
9Secure the top cover by fastening 3 cross-head screws.
Attach the included alignment sticker to a preferred position.
Drill holes on the wall and install the junction box. If space
behind the wall allows, you may also pass cables through the
wall.
3
Hole Type Applicable Cameras Screw No. of Screws
A FD9368-HTV, FD9388-HTV M4x10 3
A FD9389 series M4x8 3
B IT9388-HT M4x8 3
C FD9360-H, FD9380-H M4x8 3
D IT9389-H-V2 M3x7 3
x3x3 x3 x3 x3
Secure the camera top cover.
Open a live view console and adjust the shooting direction.
Refer to the camera's QIG for more information.
T10
11
