DC input
AP-FEX-0105-R AP-FEX-0150-T
Network switch
RG6 100m~2.4km
AA-420
AT-BSP-001
(op onal)AP-FEX-0250-T
1. Use CAT5e or CAT6 UTP/STP cables and RG6 coaxial cables.
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
3. Make sure the power source is sufcient for your conguration.
AP-FEX-0150-T
AP-FEX-0250-T EPoC Module
Model Description
AP-FEX-0150-T EPoC Outdoor Tx Module, 1x BNC, 1x FE RJ45, -30ºC~60ºC, IP67, IK10
AP-FEX-0250-T EPoC Outdoor Tx Module, 1x BNC, 2x FE RJ45, -30ºC~60ºC, IP67, IK10
IMPORTANT:
INTRODUCTION
CONNECTION
PACKAGE CONTENTS
Quick Installation Guide
AP-FEX-0100-R AP-FEX-0150-T
Network switch
AP-FEX-0100-R AP-FEX-0150-T
UPoE switch
RG6 100m~2.4km
RG6 100m~2.4km
PoE input
UPoE Injector AT-BSP-001
(op onal)
AT-BSP-001
(op onal)AP-FEX-0250-T

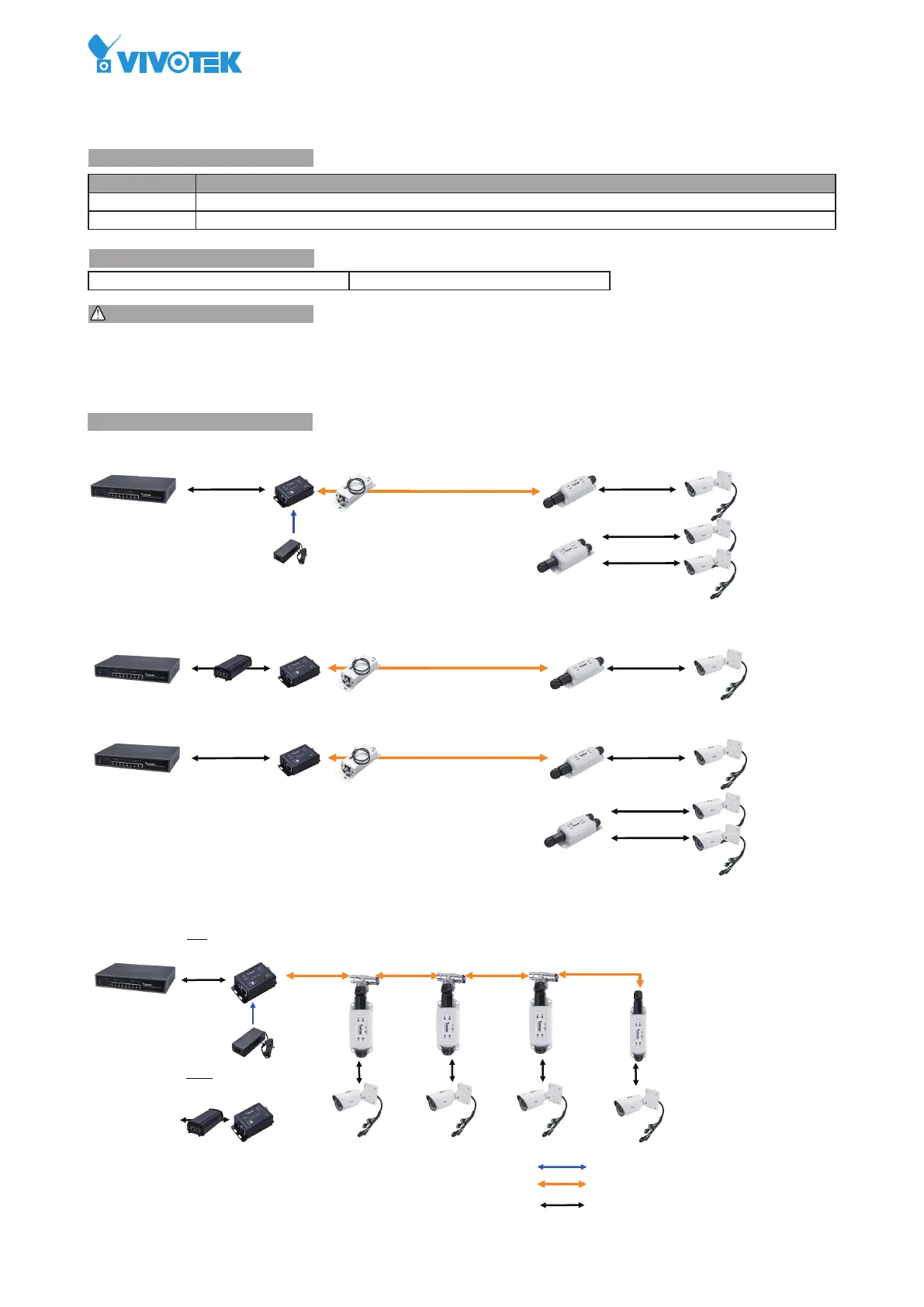

100m 100m 100m 100m
Network switch
AP-FEX-0150-T
Coaxial Cable
Ethernet Cable
Power Cable
AP-FEX-0105-R
AP-FEX-0100-R
AP-FEX-0150-TAP-FEX-0150-TAP-FEX-0150-T
Daisy Chain
DC
PoE
* 1x AP-FEX-0150/0250 EPoC module * 1x Quick Installation Guide
Rev.: 1.1
NOTE:
To disconnect a LAN cable, loosen the cable gland and pull the cable against the socket wall towards the side of the
locking tab.
1
2
Ground screw
* Make sure the grounding
resistance is lower than
0.5Ω.
The outdoor EPoC adapter and SD-301 surge protector must be grounded using a ground wire between the ground
screw and earth ground.
Network switch
Coaxial Cable
Ethernet Cable
100m 100m
100m 100m
AP-FEX-0150-T
AP-FEX-0150-T
AP-FEX-0150-T
AP-FEX-0105-R
Power Cable
AP-FEX-0100-R
Ring
DC
PoE
IMPORTANT:
LEDs
RJ45 Yellow ON PoE: Power port is connected to PD
Green ash LAN: Data is being transmitted or received.
OFF No connection
PWR Yellow ON Power adapter is connected to the EPoC module
LINK Green ON Rx and Tx EPoC module is connected.
DIP Switch
DIP# On Delivering PoE output to PD.
Off No PoE output to PD.
Distance/Power Chart
Length of Coaxial Cable AA-420 65W AP-GIC-011A-095 95W
300m 25.2W 18.1W
500m 17.64W 12.6W
800m 11.76W 8W
1200m 7.56W 5.1W
1200m ~ 2400m Data only (100Mbps) Data only (100Mbps)
NOTE:
1. The numbers comply using RG6 coaxial cables.
2. The length of network cable for camera
connection is 100m CAT5e cable.
3. The power delivery will vary on the quality of
coaxial cable due to resistance.
Waterproof plug:
PoE ON/OFF switch
Join bu onJoin bu on
AP-FEX-0150-T AP-FEX-0250-T
Join: Press 10 ~ 15 seconds
to restore default
Join button
