Installation Guide
AP-GIC-015B-095
Surveillance PoE Junction Box
Rev.: 1.0
2
CAUTION:
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
UNPACKING:
Unpack carefully. Electronic components can be damaged if improperly handled or
dropped. If an item appears damaged in shipment, place it properly in its carton and
notify the shipper.
1. The electrical connections and conduit installations shall be made by a certied electrician following
local regulations.
2. Risks of electric shock exist. The mains supply shall be disconnected before installation.
3. Read and follow Instructions: All operating and user instructions should be read and followed before
the unit is to be operated.
4. This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that
the protective device is listed rated not greater than 20A.
5. Attach the ground wire (to external ground) to a suitable grounding point, e.g., an earth stake.
6. Observe national and local regulations for the installation.
7. To avoid additional accummulation of moisture, please avoid installing the components in cabinet
during a raining weather.
8. Only use applicable tools when installing this product; excessive force can damage the product.
9. Use only accessories compliant with the technical specications of the product.
10. When the need arises for transportting this product, it is recommended to use the original shipping
package.
IMPORTANT!:
Revision History:
Rev. 1.0: Initial release.

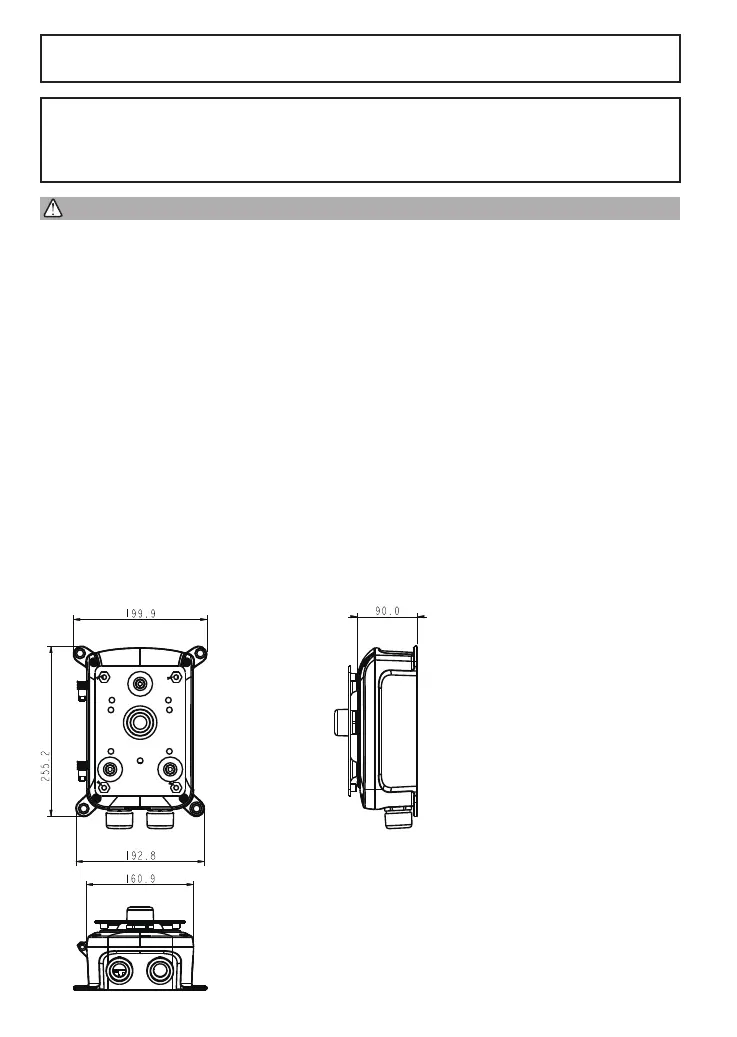

Mechanical Dimensions:
3
English
Applicable Mount & BracketsI
Item Models Applicable Cameras
Junction box AP-GIC-015B-095 SD9365, SD9366, SD9363, SD9364
External
housings
AE-239, AE-244, AE-23E, AE-23F Box cameras
100~240V Line IN
Neutral
to camera from
network
for power
wires
for Ethernet
cables
Ground
WiringII

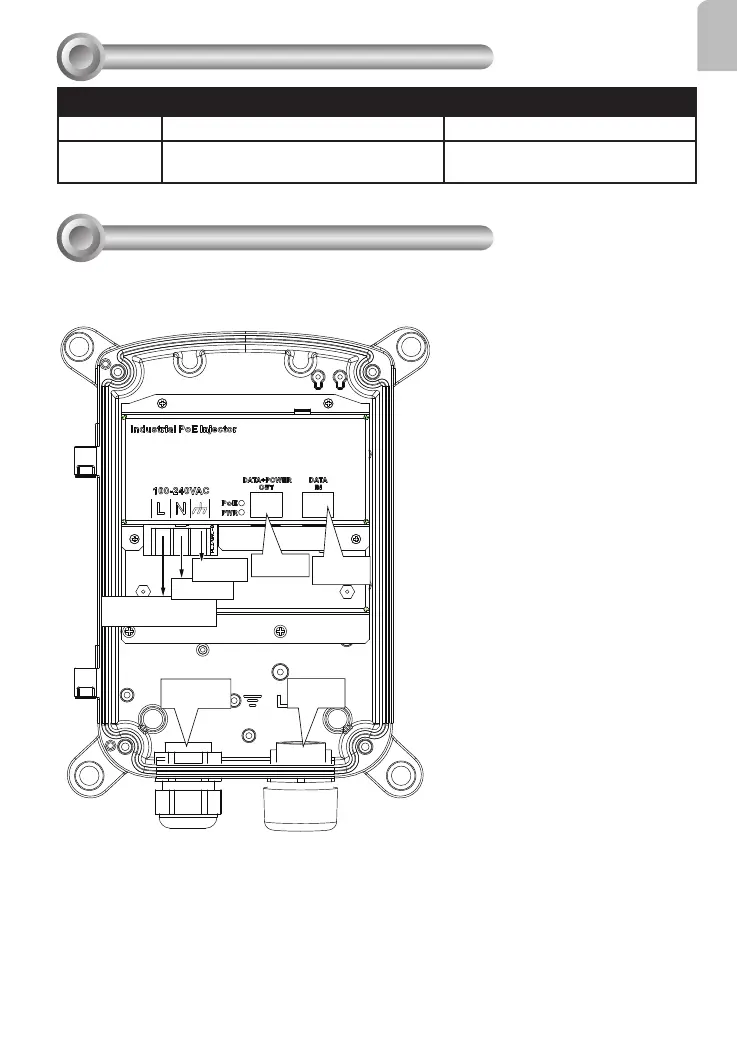

Route your power wires through a 3/4" conduit into the power box. The wiring scheme is shown below.
The power supply converts 100~240V power to the 95W PoE output to IP cameras.
